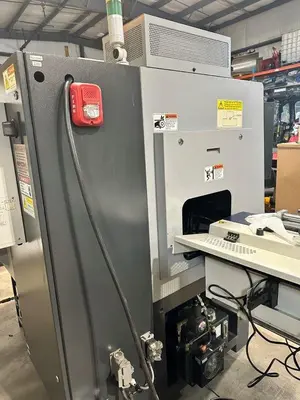

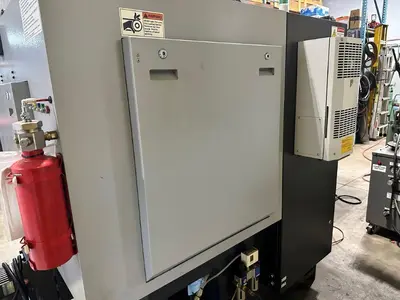

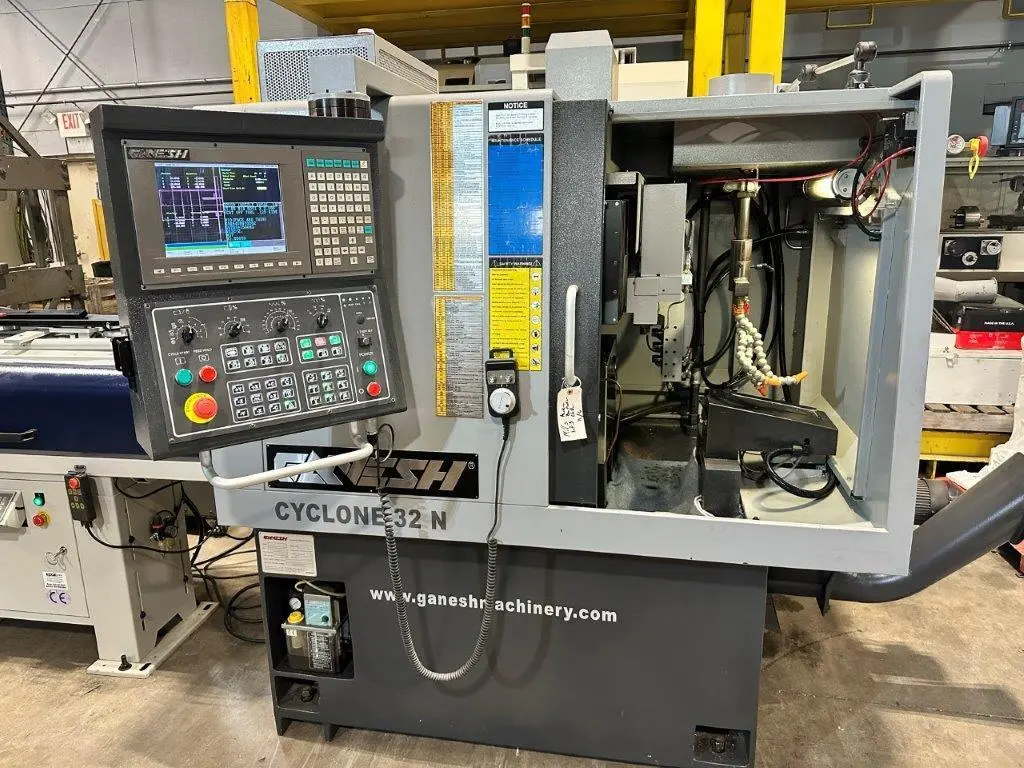

USED 2013 GANESH CYCLONE-32NCY

GANESH CYCLONE-32NCY CNC Lathe in used condition. Features 1.0" bar capacity, 10.0 HP, and max RPM of 6000, ideal for precision turning tasks. A reliable choice for enhancing your machining operations.

AXIS CONTROLS:
CNC CONTROLLED AXIS ................... 4-Axis(X,Y,Z,C)
X-AXIS TRAVEL (Vertical Tool) ......... 7.5" Linear Ways
Y-AXIS TRAVEL (Cross Tool) ............ 19.3" Linear Ways
Z-AXIS TRAVEL (Sliding Headstock)...... 6.5" Linear Ways
C-AXIS TRAVEL (Rotational Axis) ....... 360 Degrees
SPINDLE:
DRAW TUBE ID .......................... 1.456"
TRAUB A-32 COLLET CAPACITY ............ 1.25"
SPINDLE SPEED RANGE ................... 100-6,000 RPM
SPINDLE HORSEPOWER .................... 10 HP (7.5kW)
SPINDLE CENTER HEIGHT ................. 38"
RIGID TAPPING ON MAIN SPINDLE ......... YES

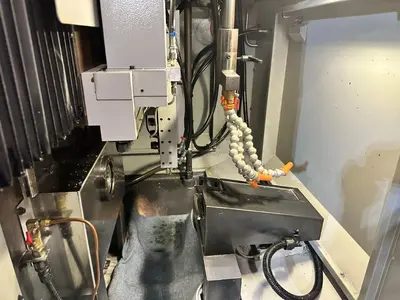

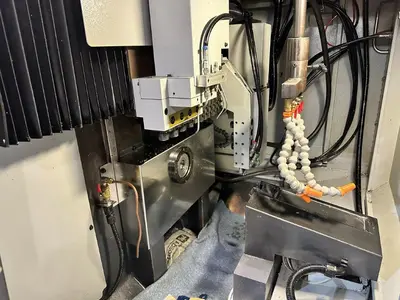

TOOLING SYSTEM:
NUMBER AND SIZE OF TOOLING STATIONS ... 6 TOOLS of 1/2"
NUMBER OF INTERNAL STATIC TOOLS ....... 5 ID TOOL STATIONS
ID TOOL BORES (Round Shank) ........... 25mm Bore for ER-20
DRIVEN TOOL SYSTEM:
NUMBER OF CROSS WORKING DRIVEN TOOLS .. 4-Cross Driven
NUMBER OF END WORKING LIVE TOOLS ...... 3-Axial Driven
SIZE OF DRIVEN TOOLS (Round Shank) .... ER-20, 1/16"-1/2"
RIGID TAPPING w/DRIVEN TOOLS .......... Included
DRIVEN TOOL PROGRAMMABLE RANGE ........ 0-4000 RPM
DRIVEN TOOL HP ........................ Radial 2.0HP
AXIS DRIVES
RAPID TRAVERSE RATE X,Y & Z Axis ...... 1181 IPM
C-AXIS RESOLUTION ..................... 0.001 Degrees
SYSTEM REQUIREMENTS:
ELECTRICAL REQUIREMENTS ............... 16 KVA - 42 Amps
MACHINE DIMENSIONS:
FLOOR SPACE ........................... 86" x 74" x 76"
MACHINE NET WEIGHT .................... 6,175 LBS.

MITSUBISHI CNC CONTROL

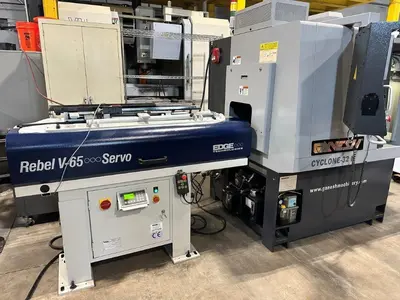

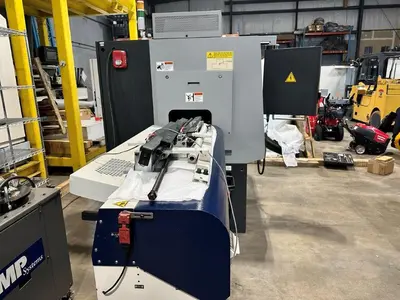

EDGE REBEL V65 MAGAZINE BARLOADER

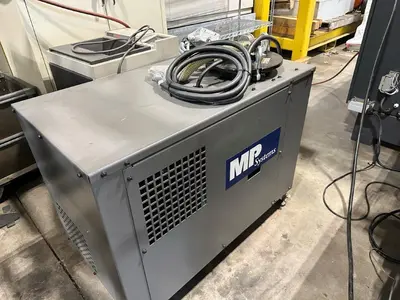

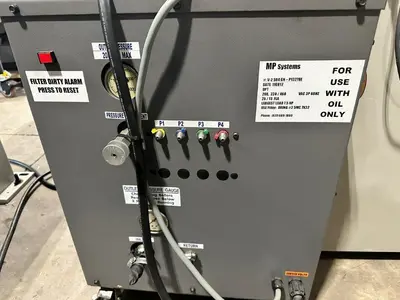

MP 1000 PSI HIGH PRESSURE COOLANT
PARTS CATCHER
