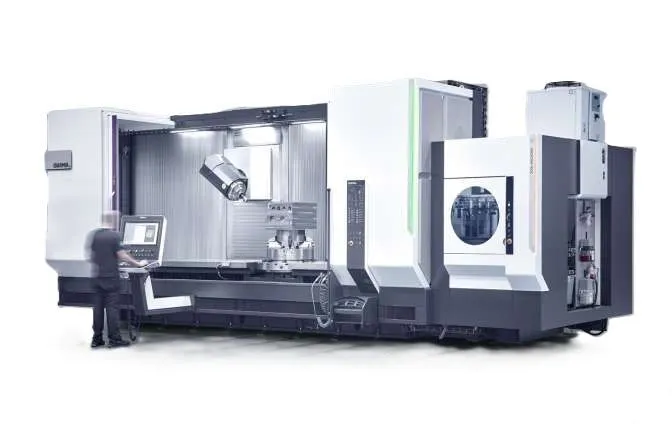

NEW IBARMIA ZVH 58 MULTIPROCESS

Specifications (subject to buyer verification):
Travels
X-axis, longitudinal: mm 3000
Y-axis, transversal: mm 1000
Z-axis, vertical: mm 1050/1100
NC Head tilting range: +/-115º
Maximum swing diameter: mm 1400
Pendulum working (optional): mm 2x1165

Working Table:
Length x width of the table: mm 3.600x1.050
Number of T slots: 7
Size of the T slots: 1x18(H7) / 6x18(H12)
Distance between T slots: mm 125
Maximum admissible load over the table: kg/m2 2000
Distance from table surface to spindle nose V (min./max.): mm 0/1050
Distance from table surface to spindle nose H (min./max.): mm 250/1350

Main spindle and headstock:
Taper of the tool holder axis: HSK A100
Tool holder pull stud according to Norm: DIN 69872
Hydarulic clamping for positioning (continuous turning): Nm 6000
Turning motor torque (continuous turning): Nm 744
Electrospindle
Power in service S1 (100%): kW 48/74
Power in service S6 (40%): kW 71/84
Total available power from: rpm 1500/4000
Torque in service S1 (100%): Nm 300/177
Torque in service S6 (40%): Nm 452/200
Maximal rotation speed: rpm 12000

Capacity/Services
Milling capacity in steel 600 N/mm2 : cm3/min 1100
Drilling capacity in steel 600 N/mm2 : Ømm V 70
Tapping capacity in steel 600 N/mm2 : mm M45

Feeds:
Digital servomotors with incorporated break system. X/Y/Z
Feed thrust X/Y,Z 100%: N 15021/12154/10649
Feed thrust X/Y,Z 40% (S3): N 22971/17255/15529
Rapid feed for positioning
X-axis: m/min 45
Y-axis: m/min 45
Z-axis: m/min 45
Maximum working feed
X-axis: m/min 30
Y-axis: m/min 30
Z-axis: m/min 30
Positioning speed on B axis: rpm 50

Guide ways and ball screws:
Number of rollers:
X-axis: 2+2+2
Y-axis: 3+3
Z-axis: 2+2
Distance between linear guides:
X-axis: mm 730/810
Y-axis: mm 980
Z-axis: mm 710
Dimensions of rollers: mm 55
Dimensions of ball screw
X-axis: mm D 63/ P 30
Y-axis: mm D 50/ P 30
Z-axis: mm D 50/ P 30

Measuring system:
Resolution: μm 1
Positioning accuracy Tp X-Y-Z (1000 mm):(1) μm 10
Positioning repeatibility:(1) μm 5
Positioning accuracy B axes:(1) s 10"

Tool magazine and automatic changer:
Number of positions of the magazine: 40
Maximal tool diameter
Previous and posterior taken position: mm 125
Previous and posterior free position: mm 200
Maximum tool length: mm 400
Maximum tool weight: kg 20
Tool management system: Random
Tool changing time: (2) s 10"
Chip to chip time: (2) s 12"
Magazine taper: HSK A-100 (DIN 69893)
Tool holder pull stud according to Norm: HSK A-100 (DIN 69872)

Machine dimensions:
Maximum length: mm 8885
Maximum width: mm 5509
Maximum height: mm 3600
