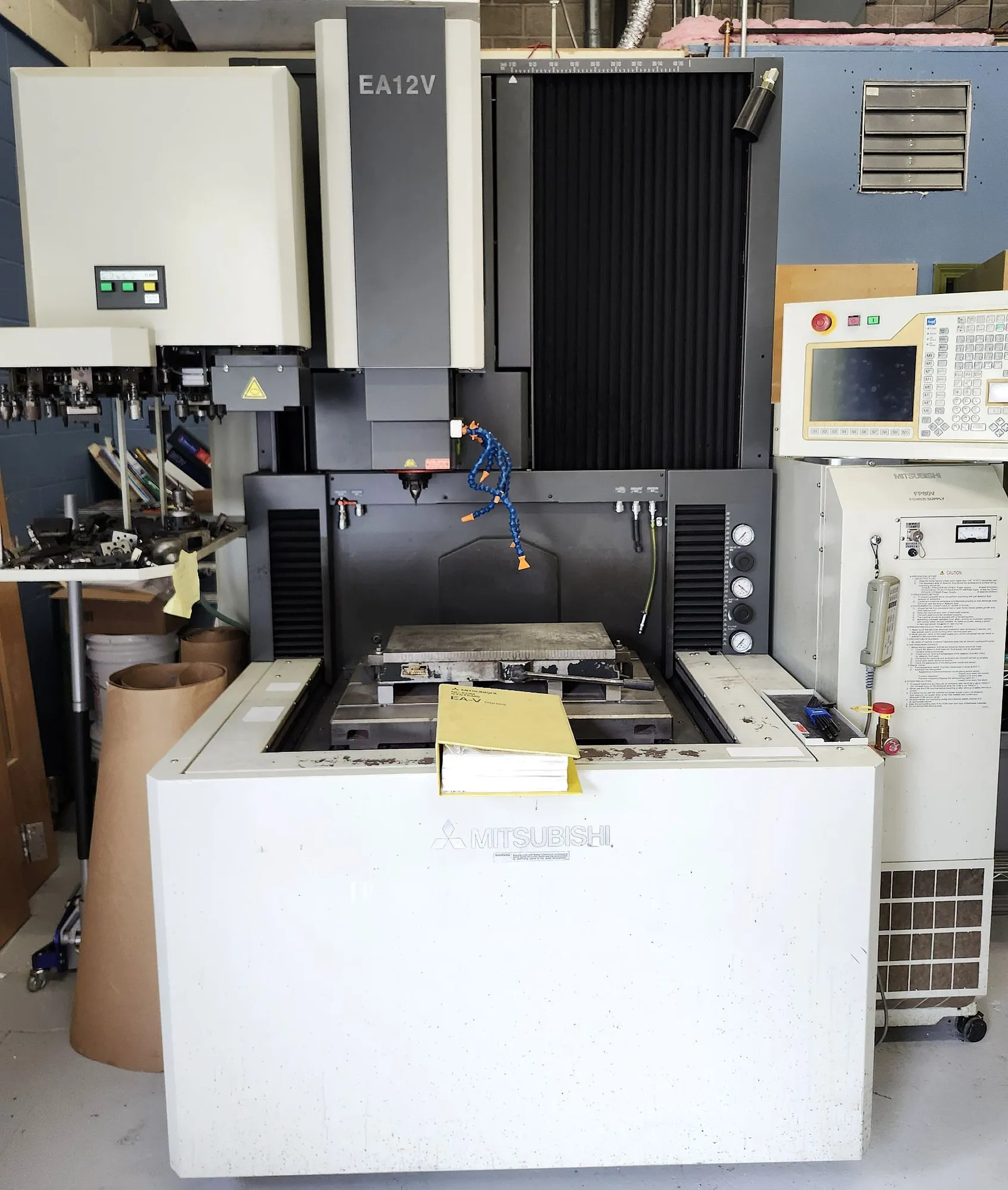

80 Amp, C-Axis, 20" x 28", 24-Position Automatic Electrode Changer. This Japanese-made 2007 Mitsubishi EA12VM ram-type die-sinking electrical discharge machine (EDM) is ideal for mold and die making, aerospace and medical parts. In plant, under power and ready for immediate inspection.
| POWER PACK | 80 A | 80 A |
| TABLE WIDTH | 19.7" | 500.38 mm |
| TABLE LENGTH | 27.6" | 701.04 mm |
| X-AXIS TRAVEL | 15.74" | 399.8 mm |
| Y-AXIS TRAVEL | 11.81" | 299.97 mm |
| Z-AXIS TRAVEL | 11.81" | 299.97 mm |
| MAX ELECTRODE WEIGHT | 110 lb | 49.9 kg |
| Dimensions | 84'' x 56'' x 94'' | 84'' x 56'' x 94'' |
| Weight | 8,157 lbs | 8,157 lbs |

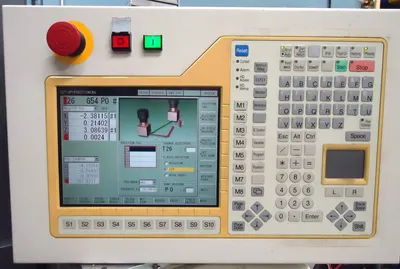

MITSUBISHI M700 PC BASED CNC CONTROL W/TOUCHSCREEN
C-AXIS

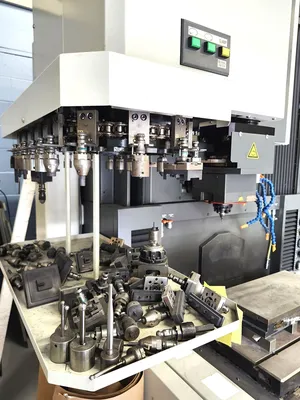

24-POSITION ELECTRODE CHANGER
ENCODERS (X/Y/Z)
GLASS SCALES
DI-ELECTRIC FLUID CHILLER
REMOTE HAND CONTROLLER
90-GALLON DROP TANK

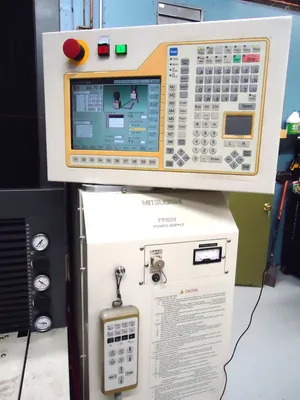

FP80V POWER SUPPLY
ETHERNET
DNC
FTP
10MB
** TOOLING AS PICTURED INCLUDED
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
