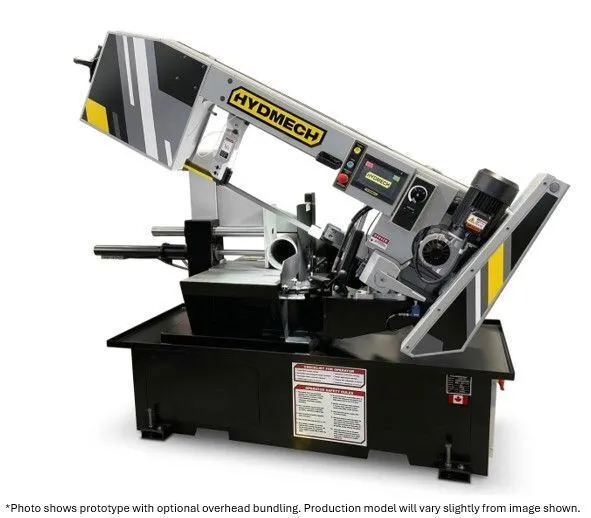

NEW HYD-MECH S-20PNG

The HYDMECH S-20PNG is a semi-automatic, mitering band saw engineered for production shops that demand faster cycle times and consistent, hands-free operation. Hydraulic vise clamp material automatically, the powered head lift reduces operator fatigue, and variable vise pressure safely handles everything from solid bar stock to thin-wall tubing.

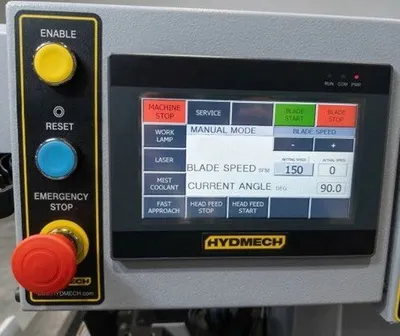

The S-20PNG features HYDMECH’s exclusive 7" HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class.

Specifications (subject to buyer verification):
Capacity 90° Rectangular: 13" H x 18" W
Capacity 90° Round: 13"
Capacity 45° Rectangular: 13" x 10.9"
Capacity 45° Round: 12"
Capacity 30° Rectangular: 13" x 7.3"
Capacity 30° Round: 8"
Blade Size: 1" x 14’ 10"
Blade Speed: 45–375 SFM VFD
Blade Drive: 3 HP
Blade Wheel Diameter: 17.75"
Table Height: 33"
Vises: Hydraulic Full Stroke
Variable Vise Pressure: 50-400 PSI
Head Lift: Hydraulic powered
Hydraulic Motor: 0.5 HP
Hydraulic System Pressure: 400 PSI
Hydraulic Tank Capacity: 0.66 US Gal. (2.5L)
Feed System: Variable Rate: Gravity Driven
Guide Arm: Manual Positioned
Machine Voltage: 480V *208V, 240V, 575V with transformer
Machine Weight: 1,830 lbs
Machine Dimensions: 91" x 33" x 61"

Equipped With (subject to buyer verification):
Standard Features:
• Manual movement of the flip over stop
• Clamping devise for the flip over stop
• Positioning accuracy ± 0.0079”
• Counter reversible with selector switch
• Two low friction linear roller guides with brake system
• Easy to modify afterwards into an automatic measuring system
Easy to extend by adding components
• Brackets for mounting on a roller table
• Manual flip over stop
• Operating and spare part manual

Optional Features:
• Extension AS30M L=6.3’
• Control box on high arm, tilted
• Measuring tongue for AS30M including finger 39” and stop plate, for using maximum measuring length
