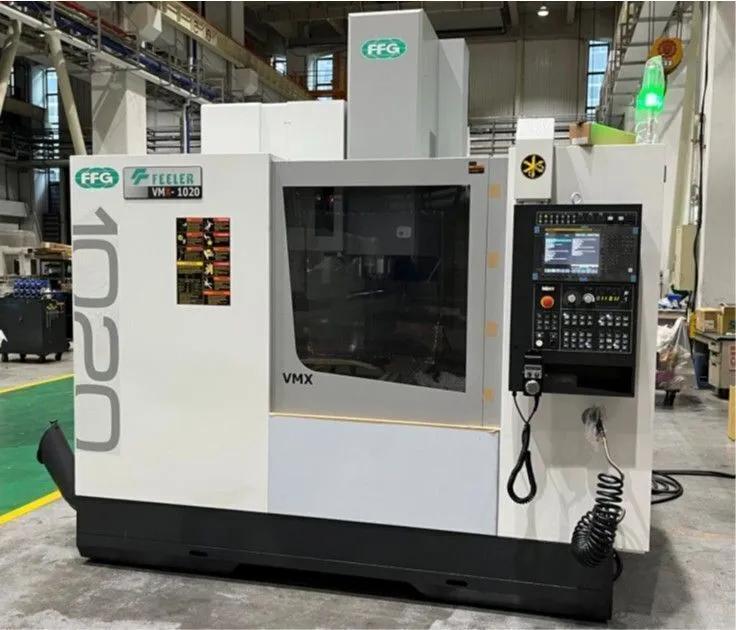

| X | 40" | 1,016 mm |
| Y | 20.5" | 520.7 mm |
| Z | 22" | 558.8 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | #40 | #40 |
| Table-W | 20.5" | 520.7 mm |
| Table-L | 45.3" | 1,150.6 mm |
| Control | CNC (Fanuc 0i-MF Plus) | CNC (Fanuc 0i-MF Plus) |
| Dimensions | 119.6 x 83.5 | 119.6 x 83.5 |
| Weight | 13889 | 13889 |
Specifications (subject to buyer verification):
MACHINE TRAVELS
X axis travel 1020 mm (40”)
Y axis travel 520 mm (20.5”)
Z axis travel 560 mm (22”)
Spindle nose to table surface 140~700 mm (5.5” ~27.5”)
TABLE
Table size 1,150 x 520 mm (45.3” x 20.5”)
Loading capacity (lbs.) 800kg (1,760 lbs.)
Dimensions of T-Slots 18H8 x p100 x 5ea
SPINDLE
Spindle speed 12,000 rpm Direct Drive with Oil Cooler
Spindle taper #40 (Dual Contact)
Max. torque (S3, 25%) 118 Nm (87.03lbs.-ft)
FEED RATE
Rapid traverse(X/Y) 40m/min (1575 IPM)
Rapid traverse (Z) 30m/min (1181 IPM)
Cutting feed rate rpm (X/Y/Z) 20/20/15 m/min (787 / 590 IPM)
AUTO TOOL CHANGER
Magazine Capacity 30 Tools
Tool shank #40 (Dual Contact)
Maximum tool diameter [Adjacent empty] Ø75 mm (Ø 2.95”) / [Ø 150mm (5.9”)]
Maximum tool length 300 mm (11.81”)
Maximum tool weight 8 kg (17.6 lbs.)
Tool changing time (T-T) 1.7 sec
MOTORS
Spindle drive motor αiI8T/12000-B – 15kW / 18.5 kW (25 HP)
Feed motor (X/Y/Z) β22i-B – 3 / 3 kW (4 / 4 / HP)
Feed motor (Z) β30Bi – 3 kW (4 HP)
Coolant pump motor 0.86 kW (1.2 HP)
Lubricant pump motor 12 W (0.0160 HP)
MACHINE SIZE (with screw type chip conveyor)
Floor space (L x W) 3,038 x 2,120 mm (119.6” x 83.5”)
Machine height 3,060 mm (120.5”)
Machine Weight 6,300 kg (13,889 lbs.)
Total power capacity 30 kVA
CNC CONTROLER Fanuc 0i-MF Plus
Equipped With (subject to buyer verification):
Fanuc 0iMF Plus with 10.4" LCD
Manual Guide I, Fine Surface Machining, AICCII, 8 M Functions
Fanuc Spindle Motor: αiIT-8 - 11/15/18.5 kW (S3 15%)
Fanuc X & Y Axis Motors: βiS22 (3.0 kW)
Fanuc Z Axis Motor: βiS30B (3.0 kW)
DDS 12,000rpm w/ ceramic bearing with spindle oil cooler (SETCO spindle)
Spindle taper: Special CAT-40 dual contact
Rapid traverse: 40/40/30 m/min
Tool Magazine: 30 Tools Arm Type ATC
Door interlock, heat exchanger, lubrication system, leveling blocks and plates
Coolant through spindle interface + top roof + Electrical Wiring (70BAR) rotary union
Preparation for 4th axis interface (includes software, wiring & connections with socket) - 0iMF
Auto power off
Rear Side chip flushing system with Coolant Gun
Oil-water skimmer-box connect with tank
Screw type chip conveyor without bucket
Base Wash Coolant Pump - 2.5 Bar pump with 3/4" hose
Front door interlock (switch type instead of lock type)
Two sides door interlock (switch type instead of lock type)
X/Y/Z roller type linear guide ways (PMI)
Auto door for ATC (Garage Door)
Dual Y-Axis Chip Screws
Flood Coolant Pump upgrade - 7 Bar with 1.00" diameter hose
Air Gun
Extra brushes and sheet metal around the spindle and ATC on the top cover
Extra coolant tank 125 L
