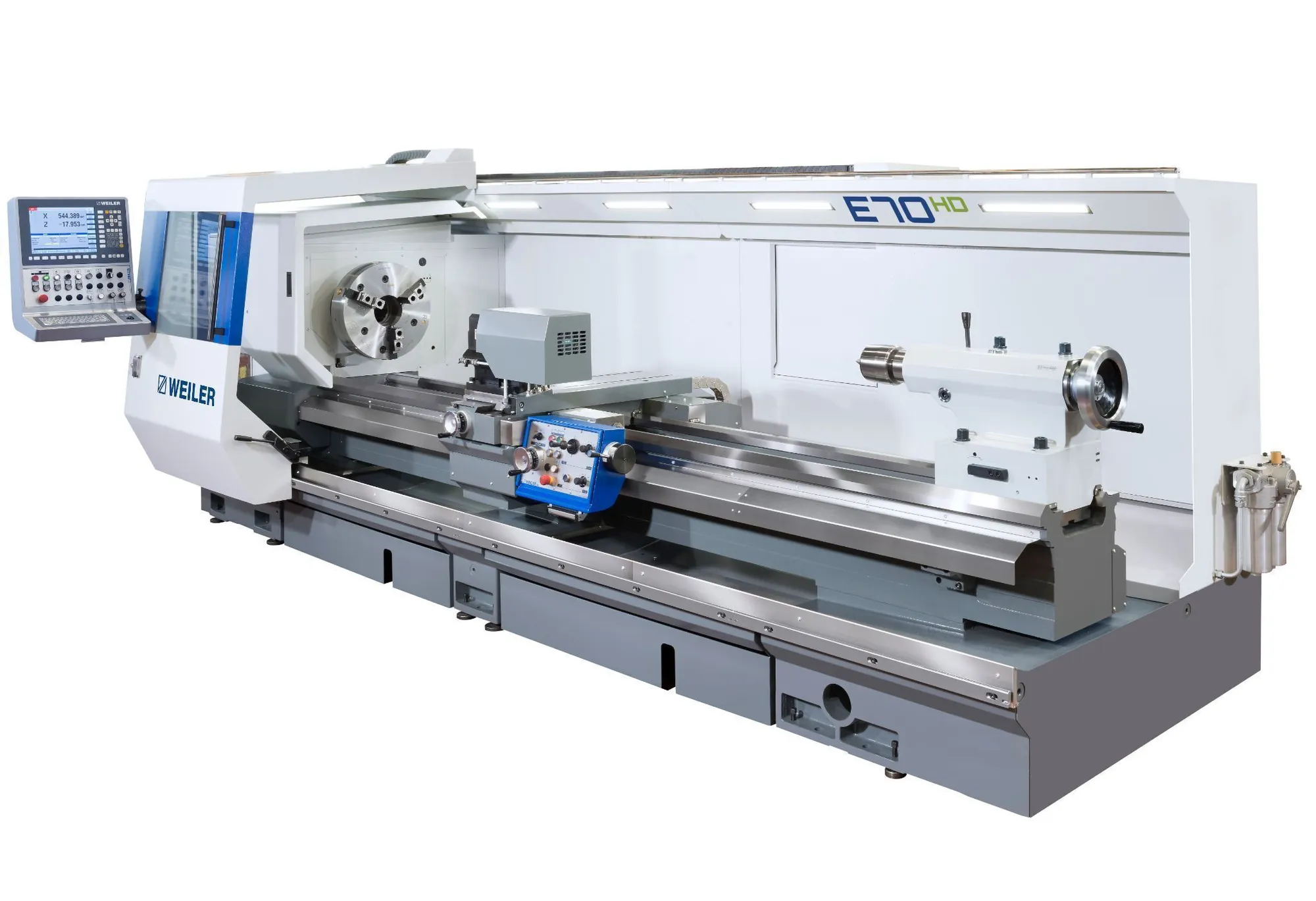

NEW WEILER E70HD/one1-128

Specifications (subject to buyer verification):
Working Range
Center distance: 3,000 mm
Swing over bed: 720 mm
Swing over cross slide: 430 mm
Travel of cross slide: 460 mm
Width of bed: 480 mm
Cross section of turning tool (height x width): 32 x 25 mm

Main Spindle
Spindle nose acc. to DIN ISO 702-1 (DIN 55026): Size 11
Spindle diameter in front bearing: 180 mm
Spindle bore: 128 mm
Inside taper of the main spindle: 140 metric

Main Drive
AC drive with 2 gear steps: 37/30 kW
Drive power at 60% / 100% duty cycle: 37/30 kW
Total speed range: 1 - 1,800 RPM
Speed range - gear step I: 1 - 450 mm
Speed range - gear step II: 4 - 1,800 RPM
Max. torque at the main spindle: 2,800 Nm

Feed Drive
Three phase digital servo drives
Feed force longitudinal: 25,000 N
Feed force transverse: 13,000 N
Feed range longitudinal and transverse: 0.001 - 50 mm/rev
Time feed: 0.001 - 10,000 m/min
Rapid motion longitudinal / transverse max.: 10/5 m/min

Thread Range
Metric threads: 0.1 - 2,000 mm
Inch threads: 112 - 1/64 TPI
Modular threads: 0.05 - 56 mm
Diametral threads: 448 - 0.05 DP
Number of thread courses: 360 Max

Tailstock
Quill diameter: 115 mm
Quill travel: 225 mm
Inside taper of quill: MT 6

Weight
Machine without additional accessories: 7,500 kg

Dimensions
Length (without chip conveyor): 5,400 mm
Width: 2,760 mm
Height: 2,050 mm

Equipped With (subject to buyer verification):
Four-Way Quick-Change Tool Post
Independent 4-Jaw Chuck, Diameter 600 mm Bore 130 mm
Steady Rest with Roller Jaws 220 - 400 mm
Quills with Roller Jaws 20 - 220 mm
Boring Bar Holder
Chip Conveyor
Splash Guard
