| Swing | 36.02" | 914.91 mm |
| Machining Length | 159.13" | 4,041.9 mm |
| # Axis | 2 | 2 |
| Chuck Size | 32" | 812.8 mm |
| Bar Capacity | 14.76" | 374.9 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 500 RPM | 500 RPM |
| Turning Dia | 31.89" | 810.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Weight | 70,000 lbs | 70,000 lbs |
Specifications (subject to buyer verification):
Spindle Bore: 14.76”
Chuck Size: 32”
Bed Length: 160”
Maximum Swing: 36.02”
Maximum Machining OD: 31.89”
Maximum Machining Length: 159.13”
Live milling speed: 3,000 RPM
Z-Axis Travel: 123”

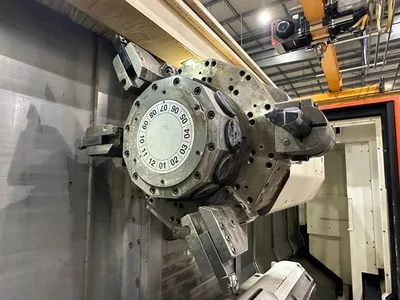

Tooling: 12 Station Turret
Main Spindle HP: 60
Main Spindle RPM: 500
Motor Output (30 minute rating): 15 HP
Equipped With (subject to buyer verification):

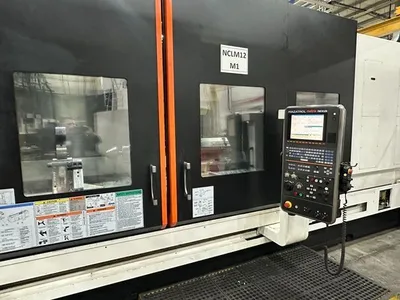

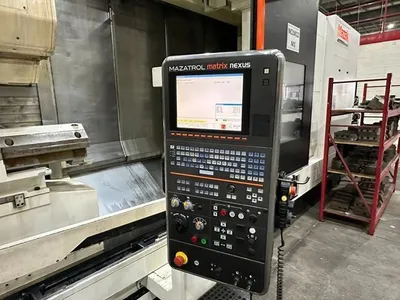

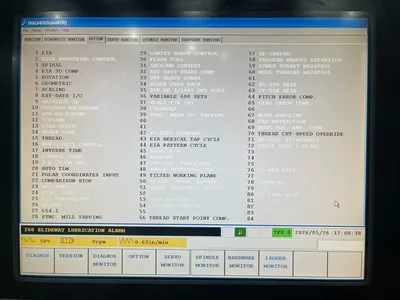

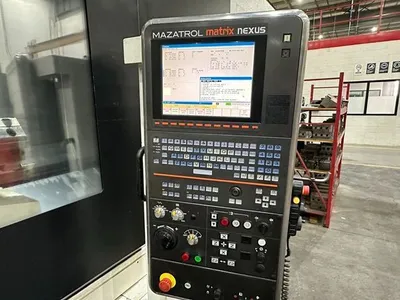

Mitsubishi Matrix Nexus Controller
Live Tooling

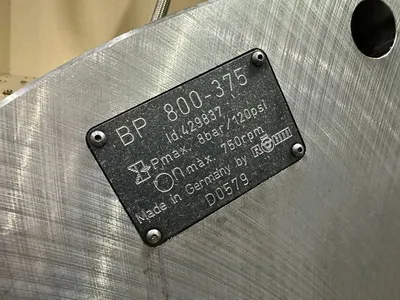

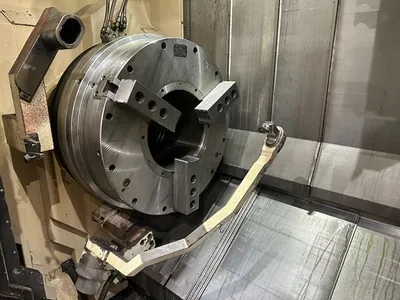

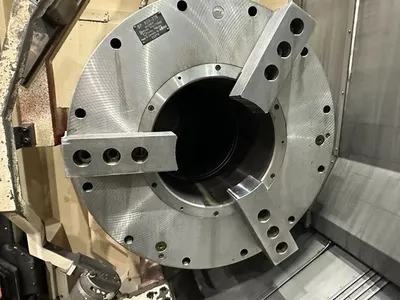

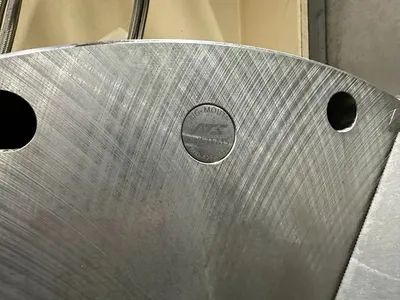

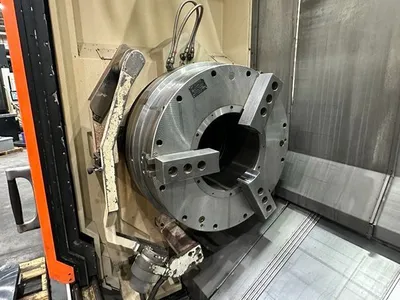

Pneumatic Main Chuck: BP 800-375

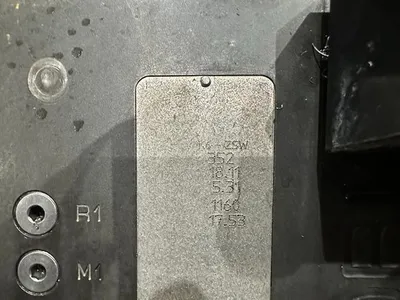

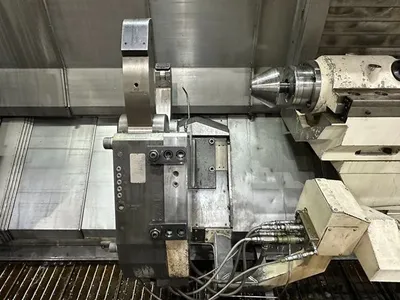

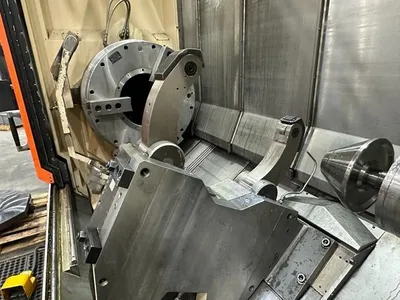

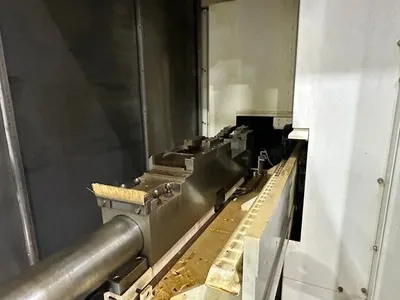

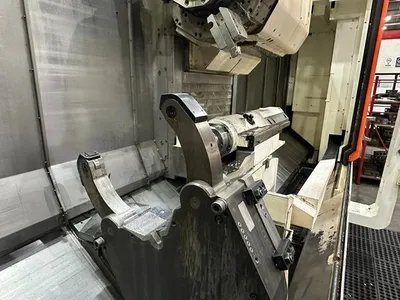

SMW-AUTOBLOK K6-ZSW Hydraulic Steady Rest min/max: 5.31” to 18.11”

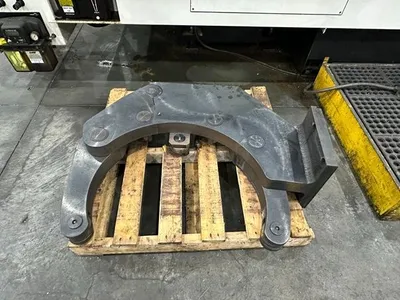

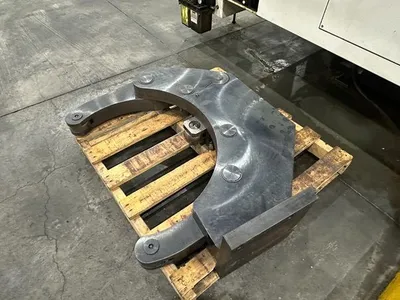

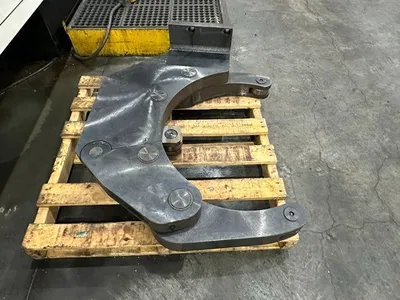

Additional Manual Steady Rest: max 23.5”

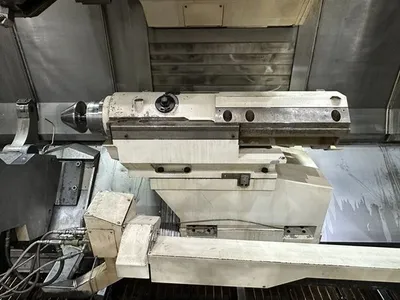

Tailstock

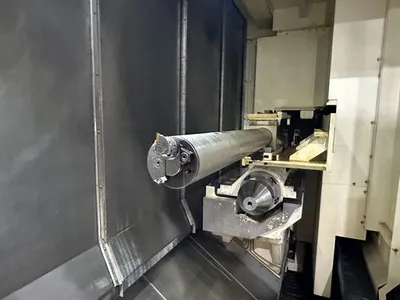

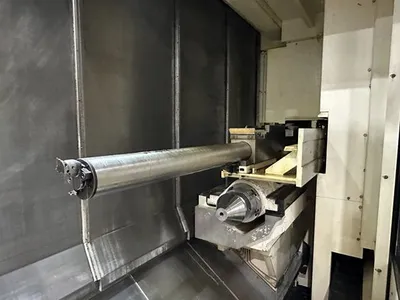

Boring Bar Stocker
Tool Eye

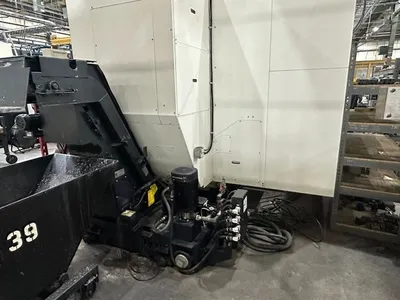

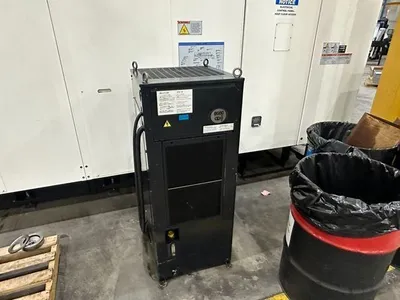

Chiller
Three (3) ID holders: grooving, finish bore, rough bore
Three (3) OD holders; grooving, finish, roughing
Twenty-One (21) sets of various size soft jaws
