USED 2009 GENERAL ELECTRIC (GE) IC1074
Overview
Specs

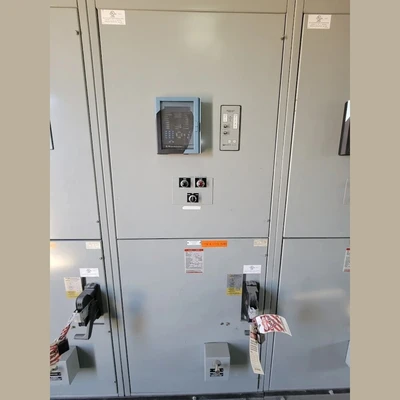

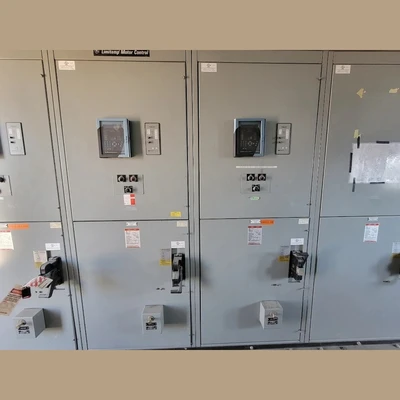

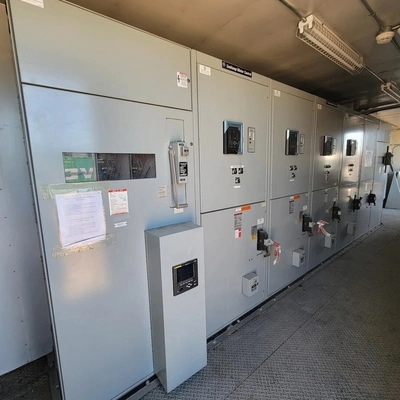

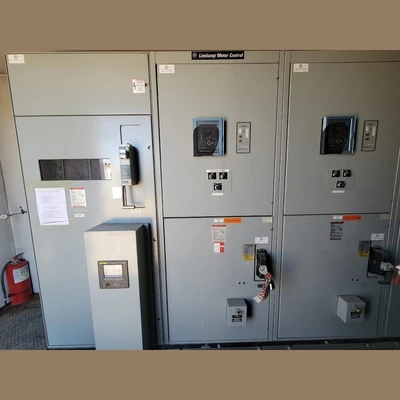

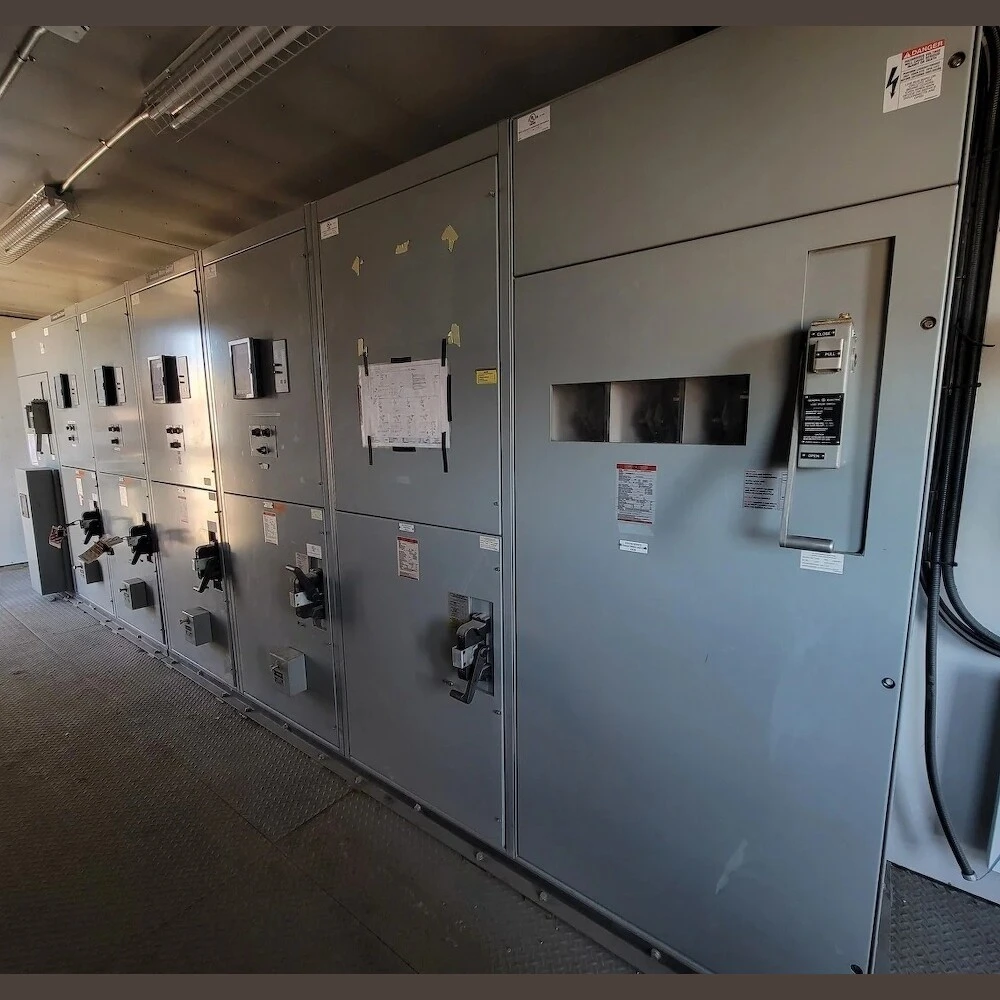

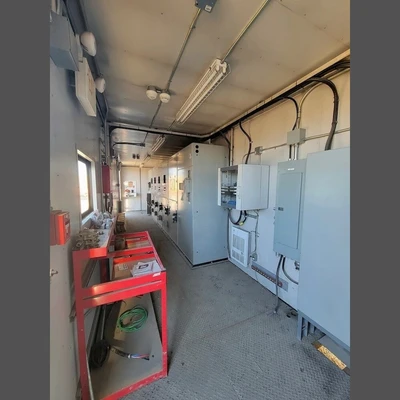

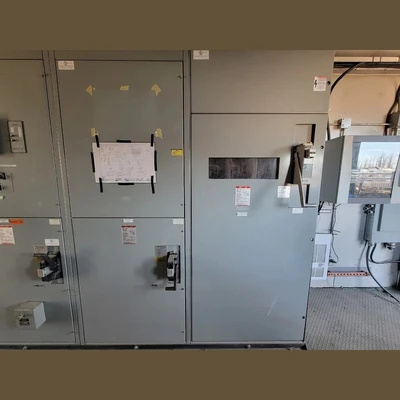

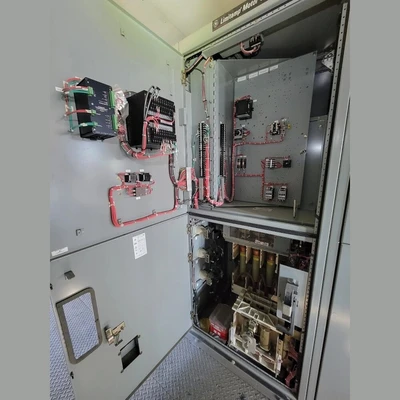

General Electric 5kV 7-Column MCC Panel
Make: General Electric (GE)
Type: Motor Control Center Panel
Year: 2009
Condition: Used Condition
Voltage: 4160 Volts
Phase: 3-Phase

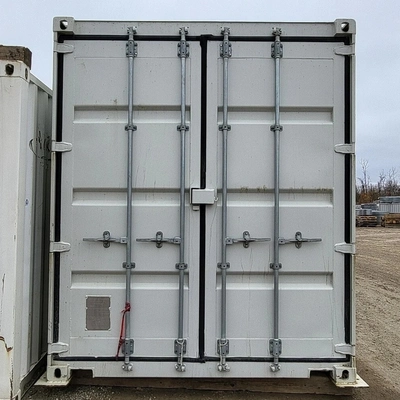

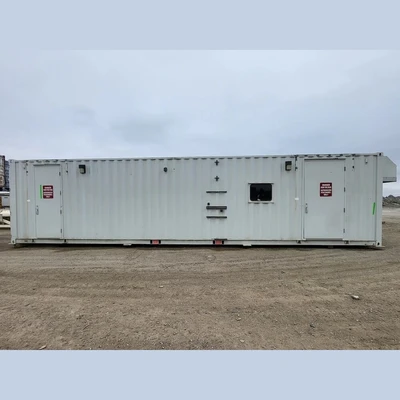

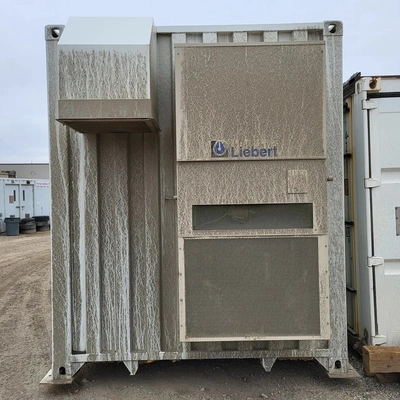

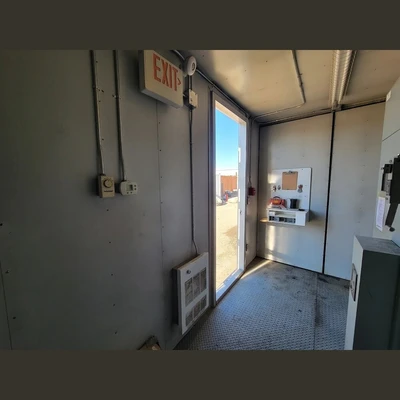

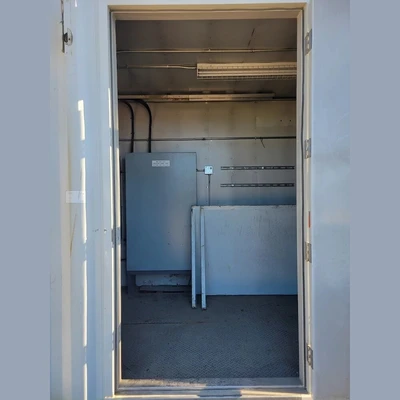

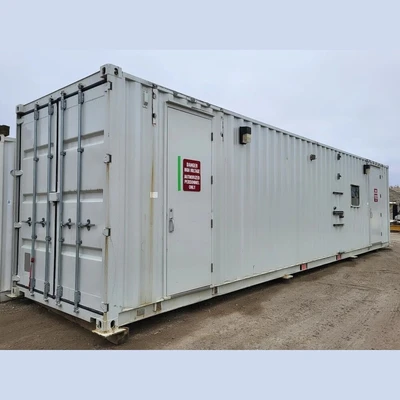

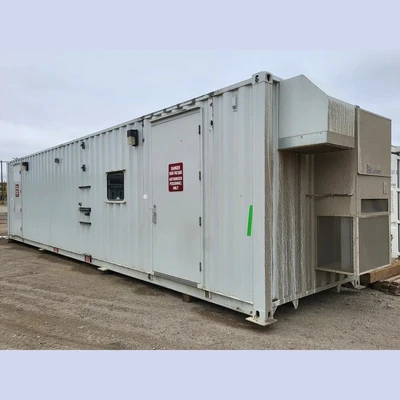

Enclosure: 40ft Shipping Container - 2 Door
Columns/Sections: (7) Columns

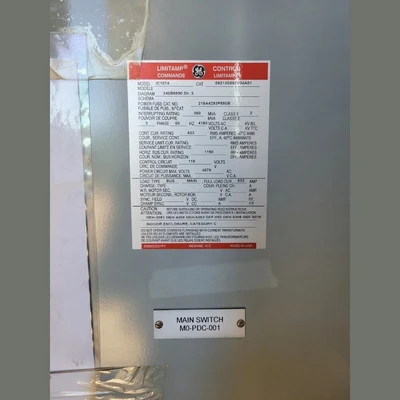

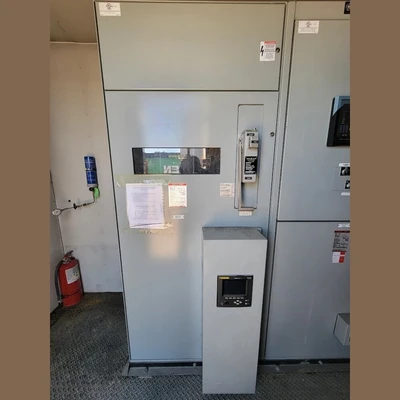

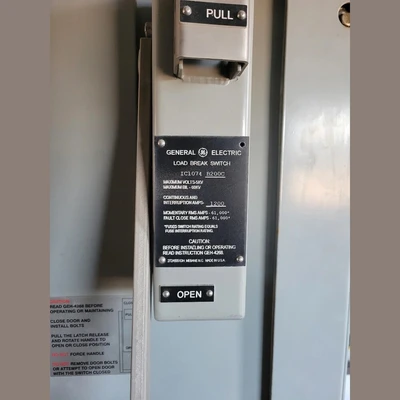

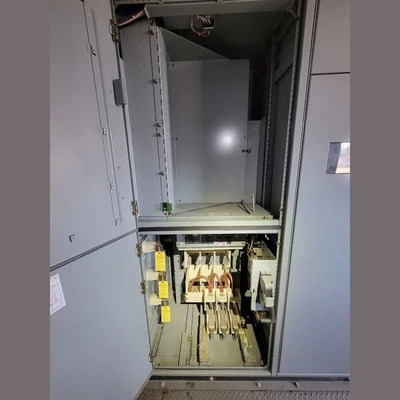

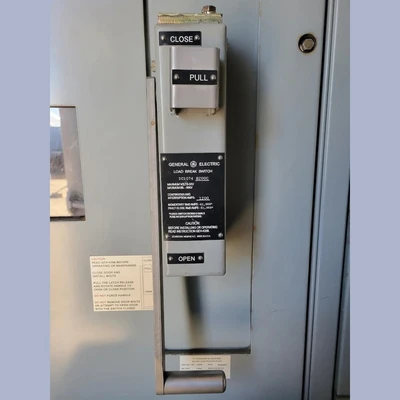

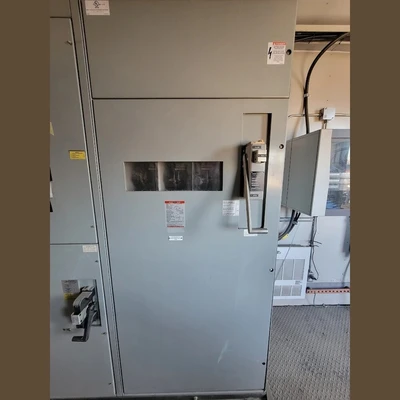

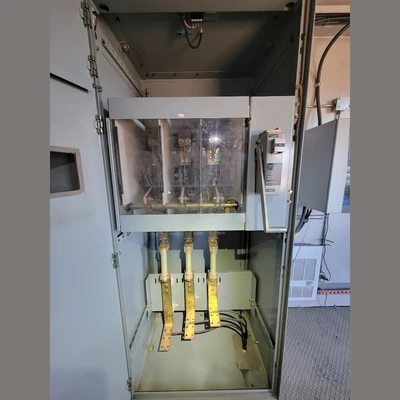

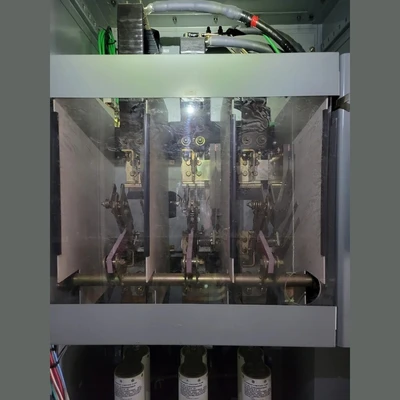

Column 1: GE IC1074 5kV Load-Break Switch
Model: IC1074
CAT #: 0921X0562V04A01
Int. Rating: 350MVA
Current Rating, Continuous: 833 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: Bus, Main
FLA: 833 Amps

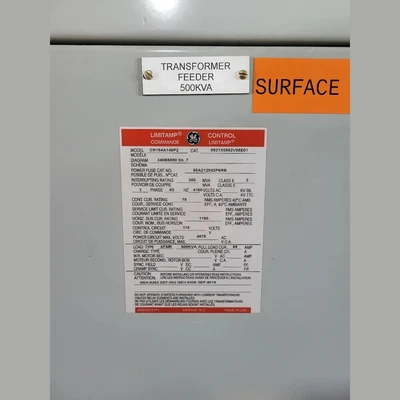

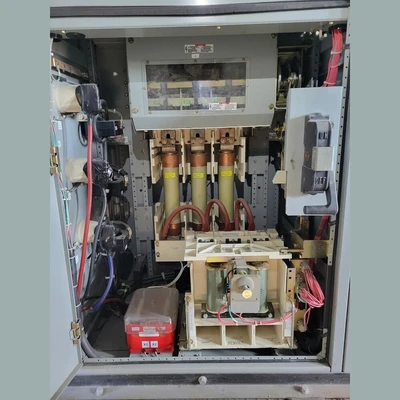

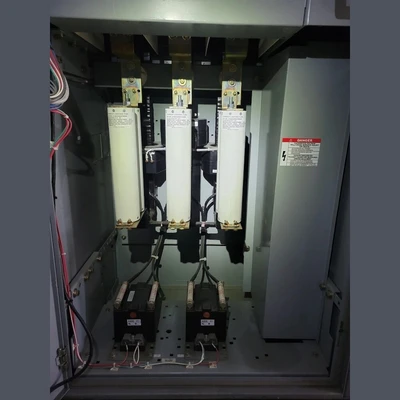

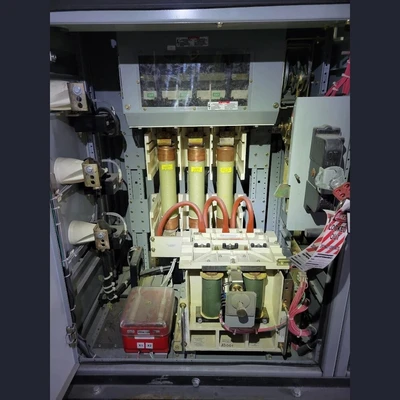

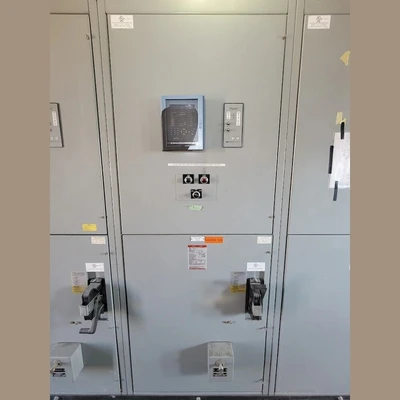

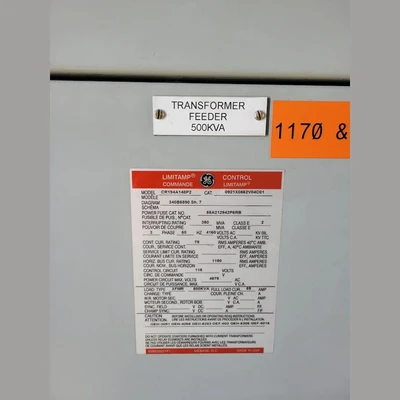

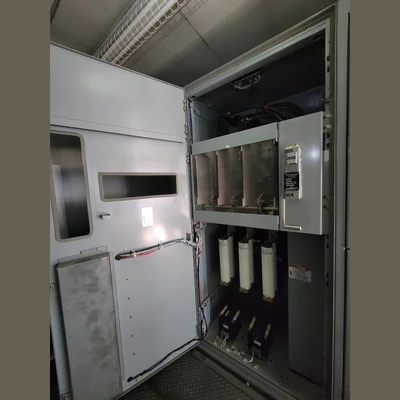

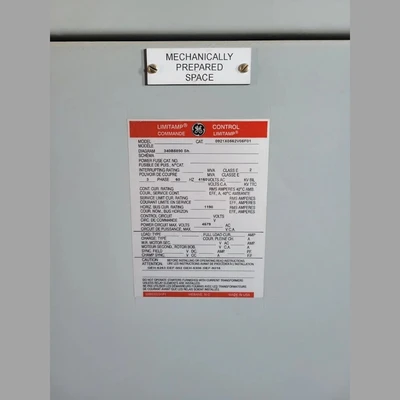

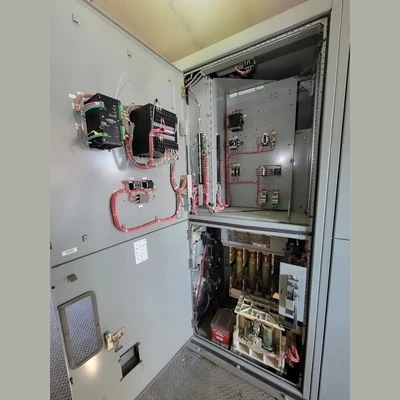

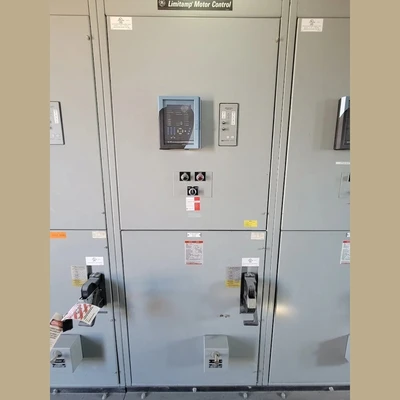

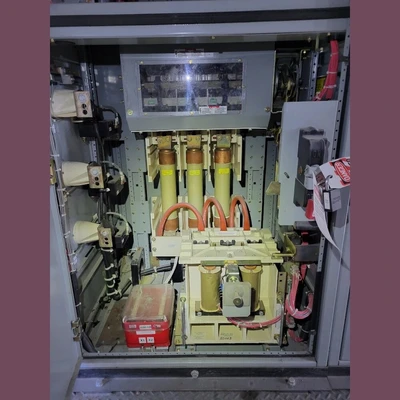

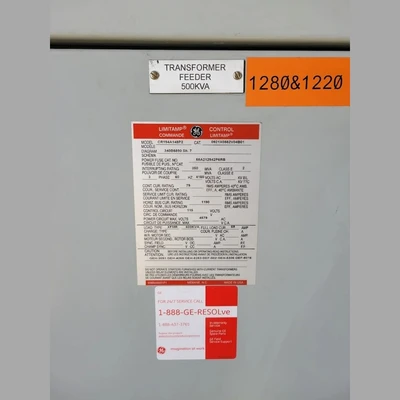

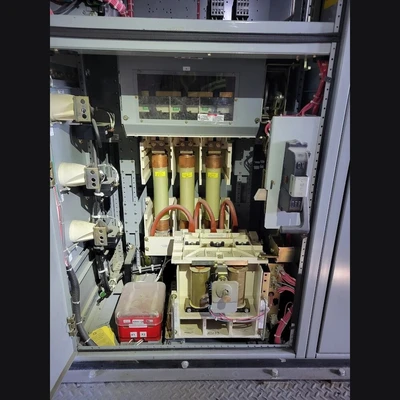

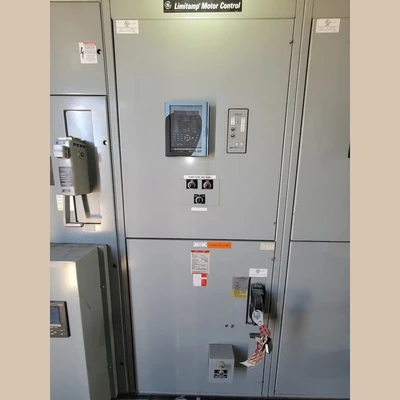

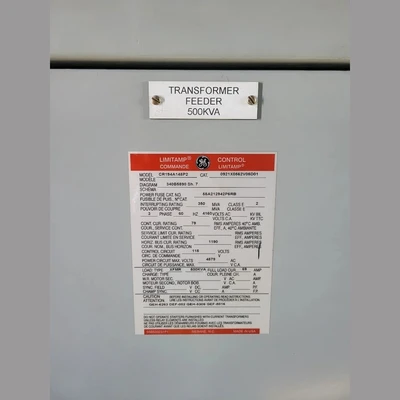

Column 2: GE CR194 4.2kV 2-High Vacuum Limitamp Controller

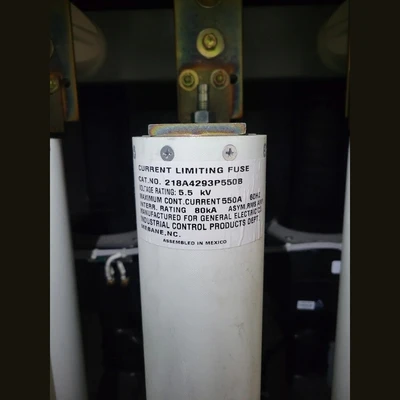

Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04B01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 3: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04C01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 4: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05D01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 5: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05E01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 6: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
CAT #: 0921X0562V05E01
Horz. Bus Rating: 1190 Amps
Power Circuit Max.: 4579 Volts
Column 7: GE IC1074 5kV Load-Break Switch
Model: IC1074
CAT #: 0921X0562V05G01
Int. Rating: 350MVA
Current Rating, Continuous: 7 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 45kVA
FLA: 6 Amps
Column 1: GE IC1074 5kV Load-Break Switch
Model: IC1074
CAT #: 0921X0562V04A01
Int. Rating: 350MVA
Current Rating, Continuous: 833 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: Bus, Main
FLA: 833 Amps
Model: IC1074
CAT #: 0921X0562V04A01
Int. Rating: 350MVA
Current Rating, Continuous: 833 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: Bus, Main
FLA: 833 Amps
Column 2: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04B01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04B01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 3: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04C01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V04C01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 4: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05D01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05D01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 5: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05E01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT #: 0921X0562V05E01
Int. Rating: 350MVA
Current Rating, Continuous: 79 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 500kVA
FLA: 69 Amps
Column 6: GE CR194 4.2kV 2-High Vacuum Limitamp Controller
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
CAT #: 0921X0562V05E01
Horz. Bus Rating: 1190 Amps
Power Circuit Max.: 4579 Volts
Configuration: Single-Speed, Full Voltage, Non-Reversing/Non-Braking, Fused
CAT #: 0921X0562V05E01
Horz. Bus Rating: 1190 Amps
Power Circuit Max.: 4579 Volts
Column 7: GE IC1074 5kV Load-Break Switch
Model: IC1074
CAT #: 0921X0562V05G01
Int. Rating: 350MVA
Current Rating, Continuous: 7 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 45kVA
FLA: 6 Amps
Model: IC1074
CAT #: 0921X0562V05G01
Int. Rating: 350MVA
Current Rating, Continuous: 7 Amps
Horz. Bus Rating: 1190 Amps
Control Circuit: 115 Volts
Power Circuit Max.: 4579 Volts
Load: XFMR, 45kVA
FLA: 6 Amps

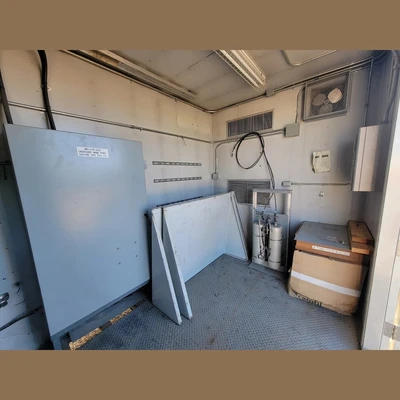

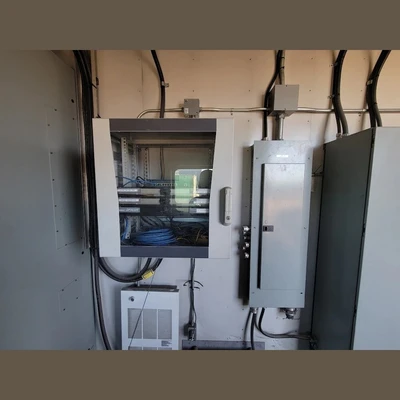

Comes With:

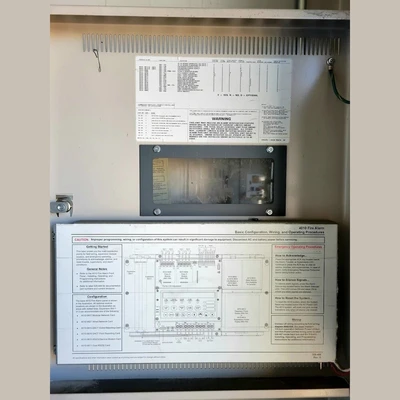

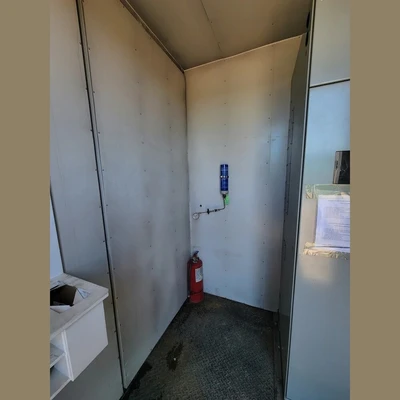

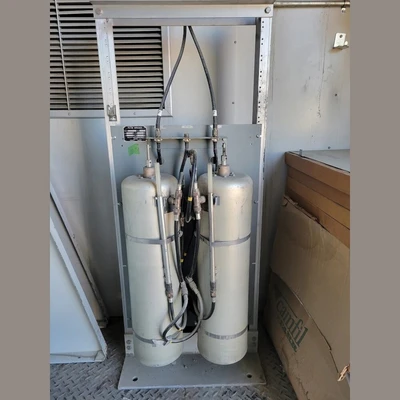

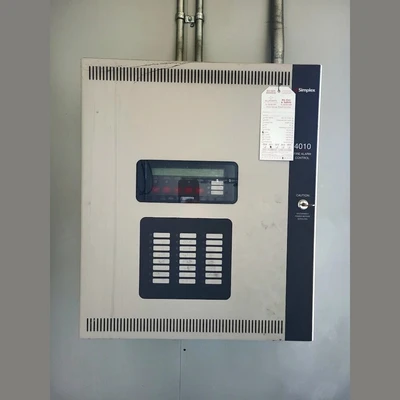

Fire Suppression
HVAC
Lighting
Fire Suppression
HVAC
Lighting
Location: Western Canada
