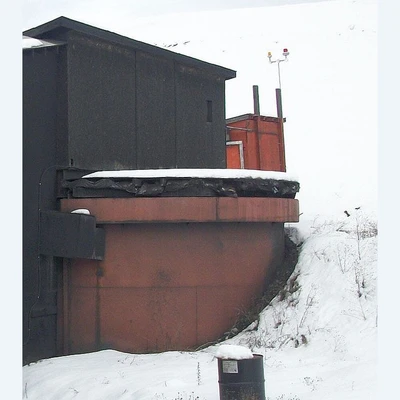

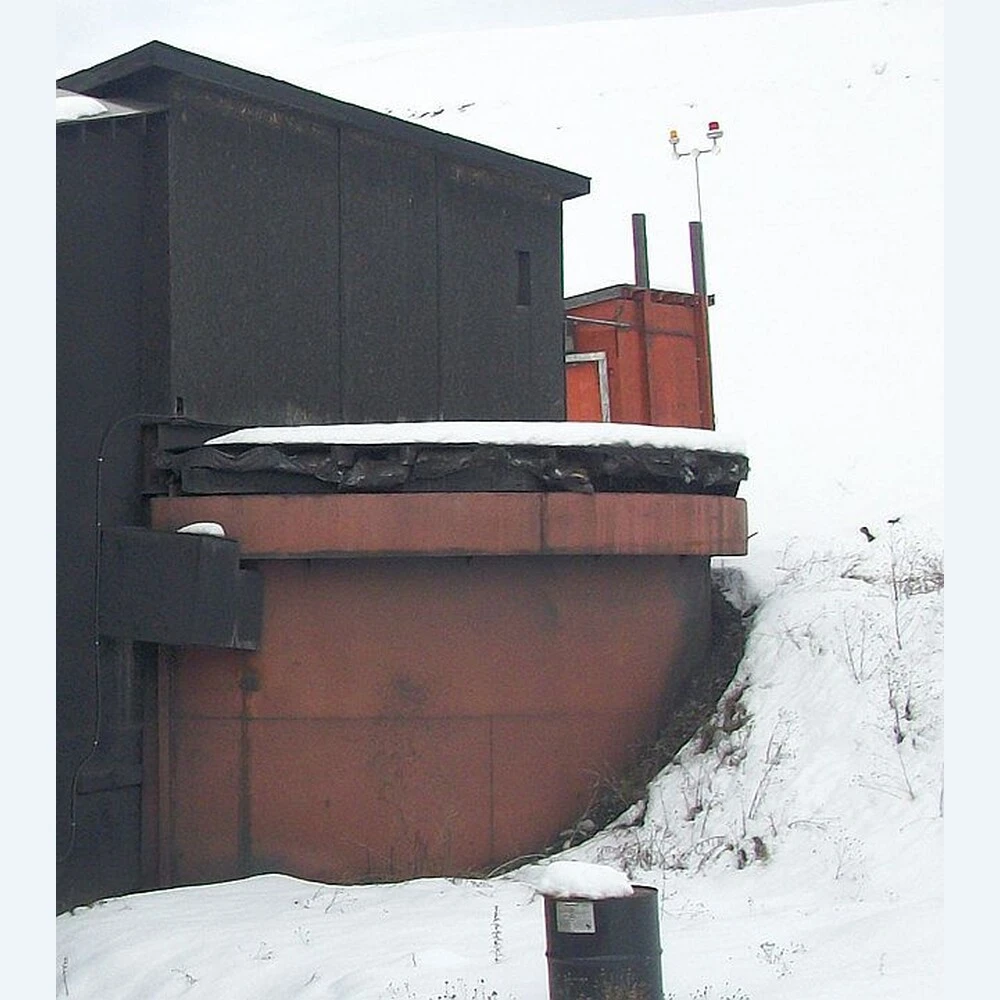

10ft Deep
24ft Diameter
9ft 3in Discharge Height
4ft Head
Full bridge
12in Wide External Launder

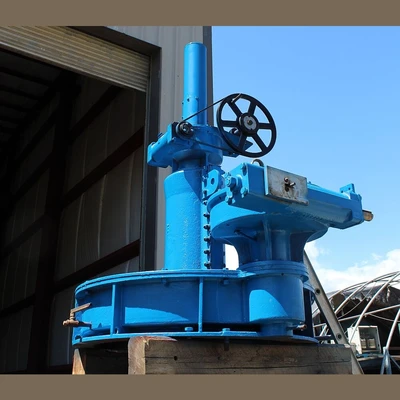

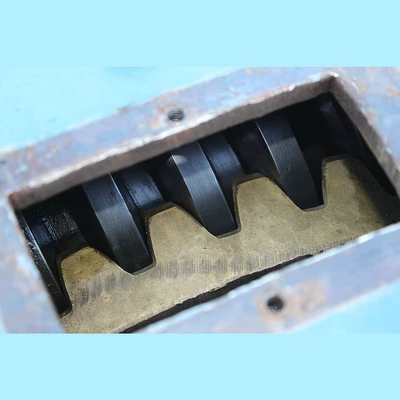

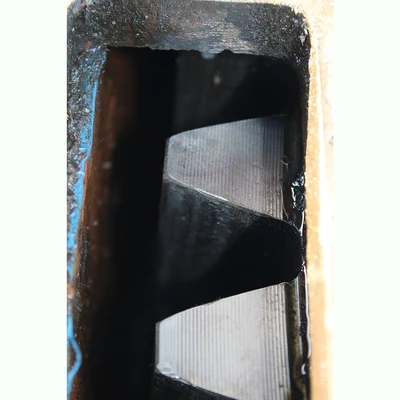

48" Dia. Drive Head

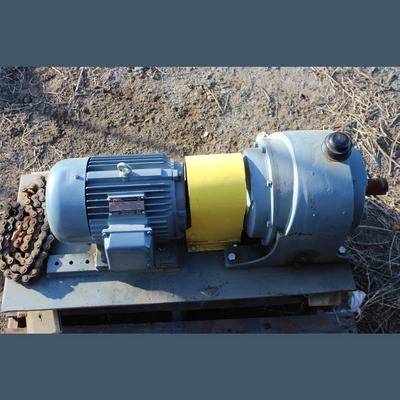

5 HP Motor
575 volt, 3 phase, 60Hz
5 HP Motor
575 volt, 3 phase, 60Hz
575 volt, 3 phase, 60Hz
Torque Rating: 100,000 ft-lbs.
Main Shaft Final Speed: 0.1 RPM

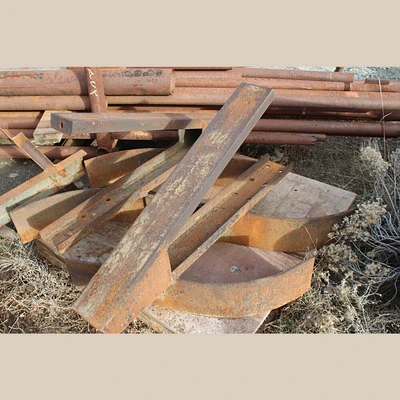

Main shaft, rakes & discharge cone

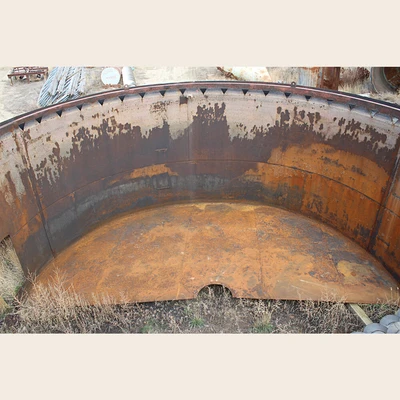

Flat bottom floor ¼” (6.35mm) Carbon Steel

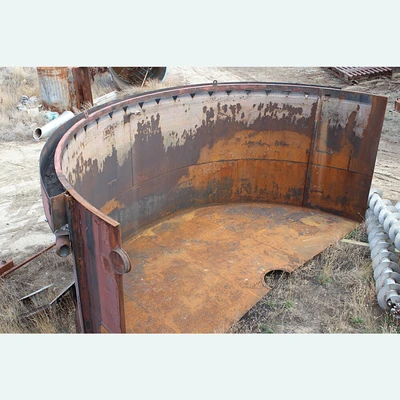

Bottom half of tank made of ¼”(6.35mm) Carbon Steel
Top half of tank made of 7/32” (5.55mm) Carbon Steel
Overflow launder 18” (457.2mm) Deep X 12” (304.8mm) Wide
Water discharge height 9.34’ (2846.83mm)

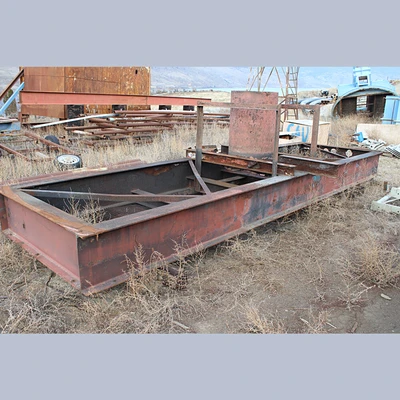

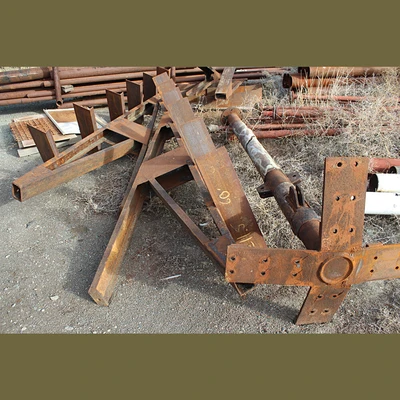

Support bridge for drive made from 21” X 8” Wide flange beam
Comes with 30”dia. feed well.
Fabricated mounting plates on the bottom of rake main shaft has approx. 7° pitch which will create a tapering floor as material builds up in tank.
