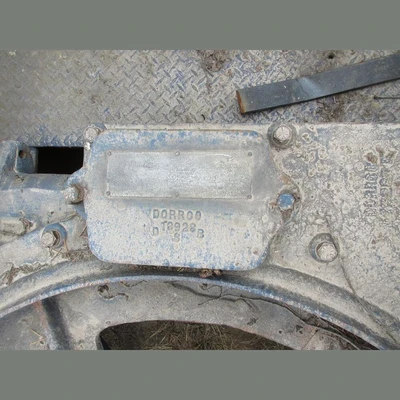

Dorrco 48in Thickener Head
Make: Dorrco
Size: 48in Diameter
Type: Thickener Head
2HP Primary Drive Gearhead Motor
Voltage: 550 Volt
Speed: 1800 RPM
Reduction: 71–5 Ratio (14.2)
Voltage: 550 Volt
Speed: 1800 RPM
Reduction: 71–5 Ratio (14.2)
Chain Drive to Thickener Head
5.4 – 1 Ratio
5.4 – 1 Ratio
Main Head Worm Gear Reduction
90 – 1 Ratio
Final RPM: 0.26 RPM
90 – 1 Ratio
Final RPM: 0.26 RPM

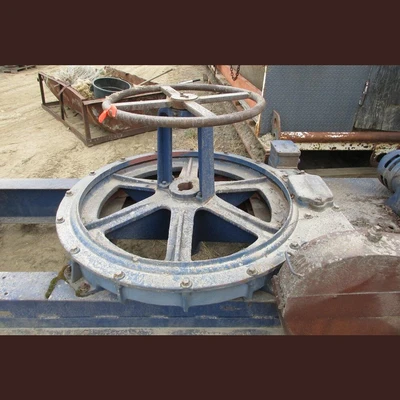

Manual Lift Adjust (No Shaft or Rakes)

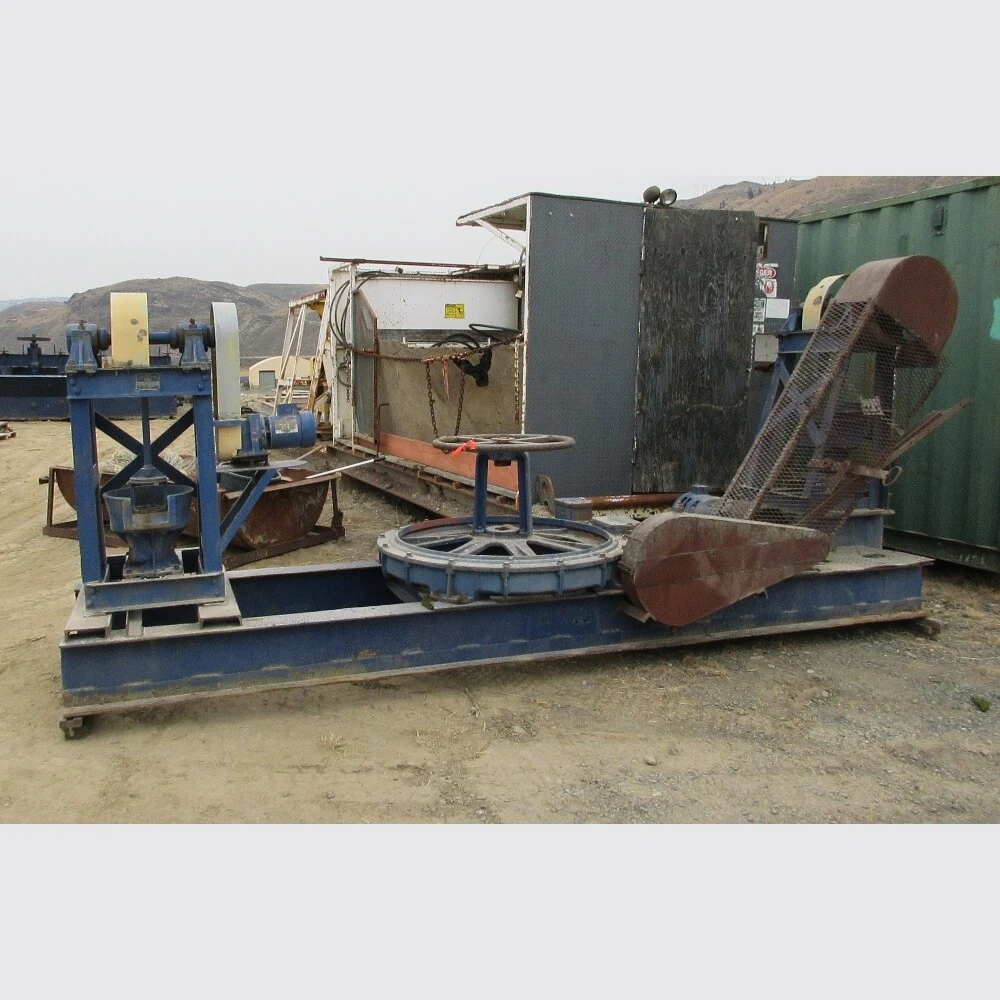

Mounted on Bridge with 2 Dorrco Simplex Vertical Diaphragm Pumps
Bridge Dimensions: 15ft Long x 45in Wide x 12in High
Made from 12in H x 6.5in W x 0.25in Thick H-Beam
Made from 12in H x 6.5in W x 0.25in Thick H-Beam
Overall Dimensions:
Length: 182in
Width: 60in
Height: 78in
Length: 182in
Width: 60in
Height: 78in
Location: Savona, British Columbia, Canada
