USED 2023 VEOILA WATER TECHNOLOGIES ACTIFLO CLARIFIER ACP2-55 (MARK III)

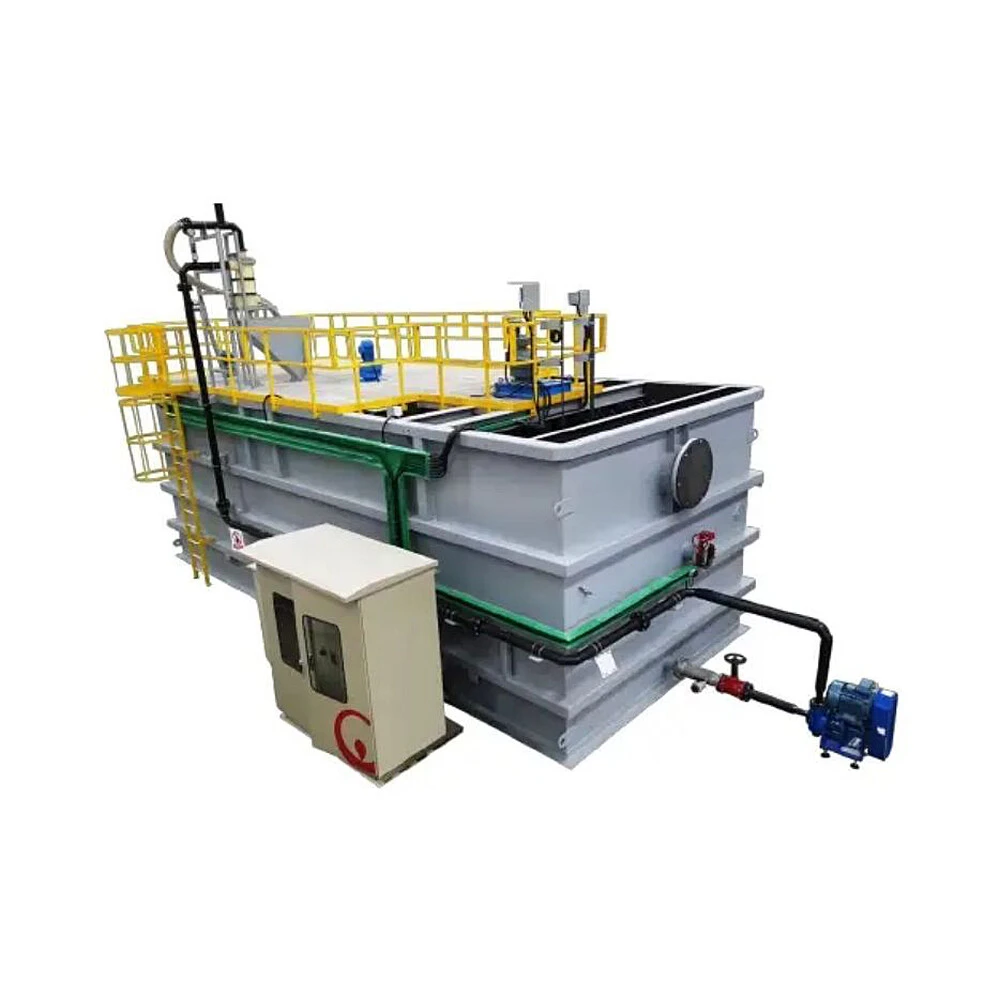

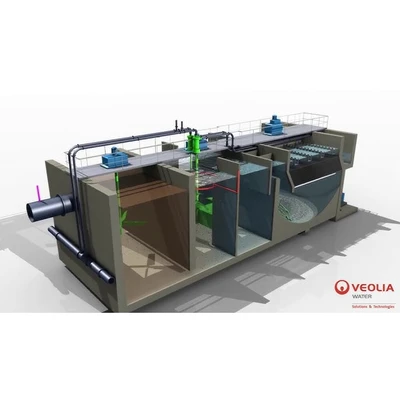

Veolia Actiflo High Rate Ballasted Clarifier Package
Make: Veoila Water Technologies
Model: Actiflo Clarifier ACP2-55 (Mark III)
Type: High-Rate Ballasted Flocculation System
Year: 2023
Condition: Unused, New Surplus - Sealed in Original Packaging
Includes:
Actiflo Clarifier ACP2-55

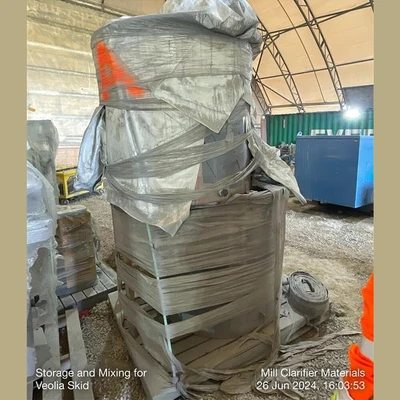

HydraPol Polymer Preparation System

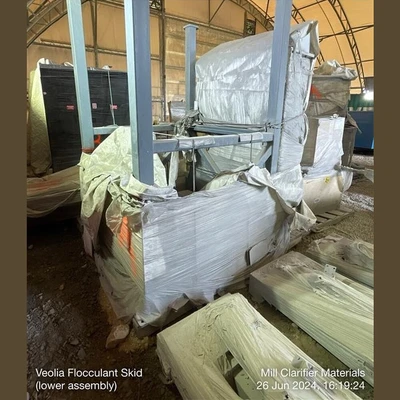

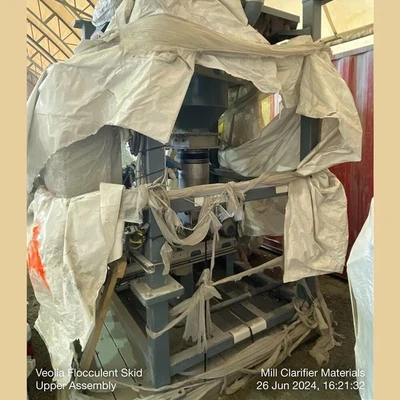

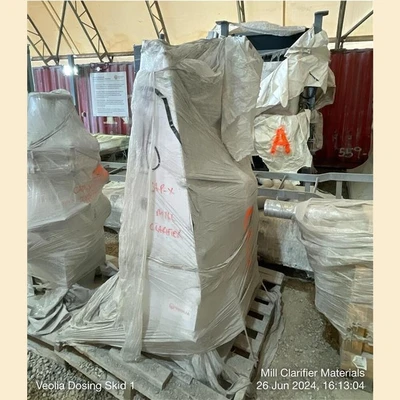

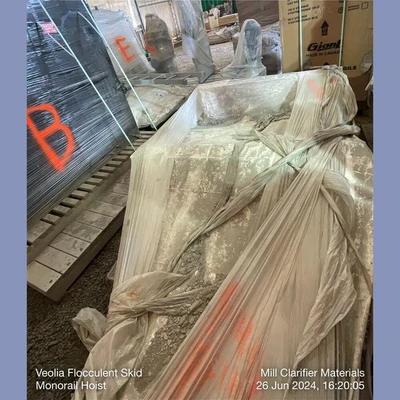

Polymer Dosing Skid
Coagulant Dosing Skid

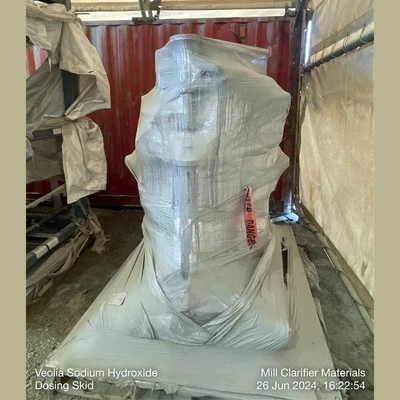

Caustic Soda Dosing Skid

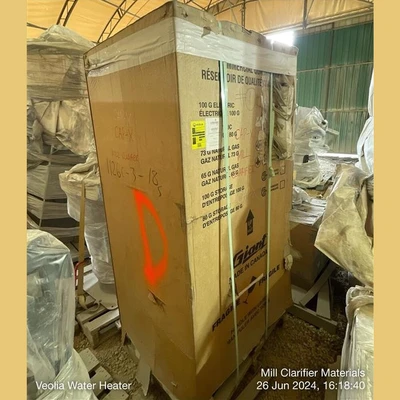

Water Heater
Actiflo Clarifier ACP2-55
HydraPol Polymer Preparation System
Polymer Dosing Skid
Coagulant Dosing Skid
Caustic Soda Dosing Skid
Water Heater
Actiflo Clarifier General Information:
Technology: ACTIFLO
Type: TURBO
Model: ACP2-55
Nominal Characteristics:
Nominal Flowrate per Unit: 6,000 m³/d (@ 40 m/h)
Nominal Settling Velocity per Unit: 40m/h
Max. Capacity per Unit (Hydraulic): 12,000 m³/d  (@ 80 m/h)
Retention Time at Nominal Flowrate:
Extended Coagulation: 2.06 min
Coagulation: 2.06 min
Flocculation: 6.20 min
Technology: ACTIFLO
Type: TURBO
Model: ACP2-55
Nominal Characteristics:
Nominal Flowrate per Unit: 6,000 m³/d (@ 40 m/h)
Nominal Settling Velocity per Unit: 40m/h
Max. Capacity per Unit (Hydraulic): 12,000 m³/d  (@ 80 m/h)
Retention Time at Nominal Flowrate:
Extended Coagulation: 2.06 min
Coagulation: 2.06 min
Flocculation: 6.20 min
Nominal Flowrate per Unit: 6,000 m³/d (@ 40 m/h)
Nominal Settling Velocity per Unit: 40m/h
Max. Capacity per Unit (Hydraulic): 12,000 m³/d  (@ 80 m/h)
Retention Time at Nominal Flowrate:
Extended Coagulation: 2.06 min
Coagulation: 2.06 min
Flocculation: 6.20 min
Extended Coagulation: 2.06 min
Coagulation: 2.06 min
Flocculation: 6.20 min
Technical Specifications:
Extended Coagulation:
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm

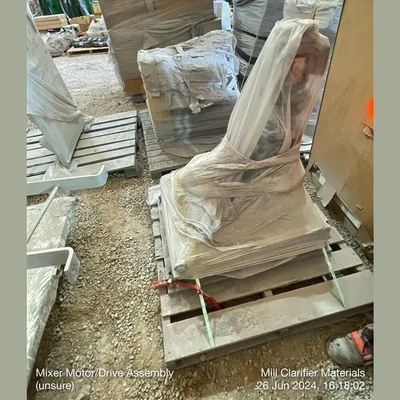

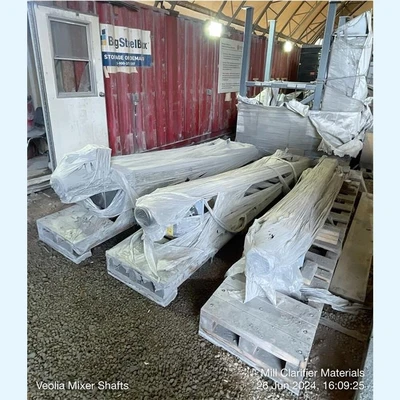

Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 143kg
Rotation/Direction of Thrust: Counterclockwise/Up
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Coagulation:
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 179kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Flocculation:
Basin Dimensions:
Length: 2850mm
Width: 3048mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX4-5.0
Impeller: 1
Weight: 227kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 5HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Settling:
Basin Dimensions:
Length: 3047mm
Width: 3048mm
Total Depth: 2973mm
Scraper:
Manufacturer - Drive: SEW Eurodrive
Model - Drive: RF87 R57 AR71/W DRN80MK4/C/DH/RI
Manufacturer - Reducer Drive - 3rd Stage: VWTC
Model - Reducer Drive - 3rd Stage: Gear Ratio 4.59:1
Running Torque: 2022 Nm
Rotation: 0.63 RPM
Drive Tube Diameter: 150mm (6in)
Material: AISI 304/304L
Torque Monitor: SEW Eurodrive FR-1
Motor:
Power: 0.75HP
Type: TEFC Fractional
Manufacturer: SEW Eurodrive
Settling Tubes:
Brand/Model: SECCO
Material: PP K8003
Thickness: 60 mils
Height: 610mm (24in)
Angle: 60°
Hydraulic Diameter: 85mm (3.35 po)
Troughs:
Material: AISI 304/304L
Quantity: 2

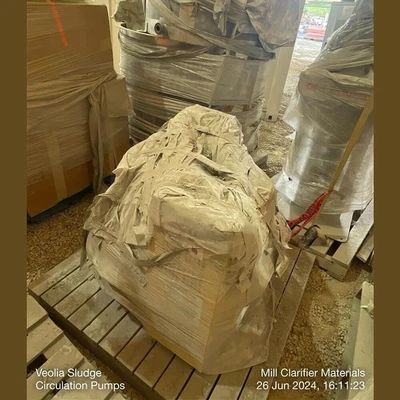

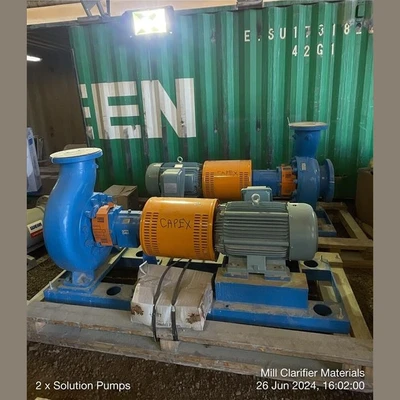

Microsand Recirculation:
Pump:
Manufacturer: McLanahan
Model: M3H-CRD 2/2
Seal Type: Dry Gland
Flow: 35.0m³/h
Head: 20.20m
Quantity per Unit: 2
In-Duty / Duty Assist / Standby: 1 / 0 / 1
Max. Number of Pumps In-Service Simultaneously: 1
Motor:
Power: 10HP
Type: TEFC Premium Efficiency
Manufacturer: WEG

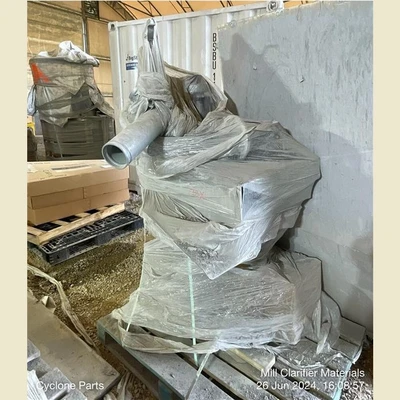

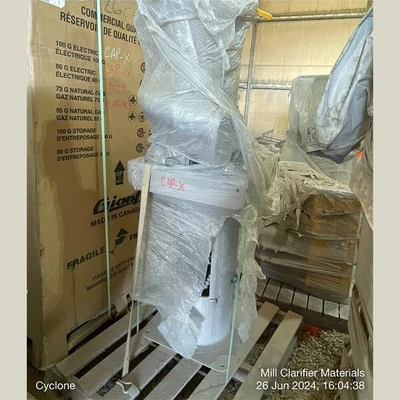

Hydrocyclones:
Manufacturer: Krebs
Model: U6-10-1758
Quantity per unit: 2
Hydrocyclones Support Material: AISI 304/304L
Microsand Recirculation Piping:
Diameter: 100mm (4in)
Number of Lines per Unit: 2
Material: Galvanized Steel and Abrasion Resistant Hose Stainless Steel 304 under Settling Tank
Effective Size of Microsand: 120-135 microns
First Fill Required Mass: 430kg
Connections:
Flanges: Flange 1/2" Thick, OD & Bolt Pattern as per ASME B16.5 #150
Inlet Diameter: 350mm (14in)
Hydrocyclone Sludge Outlet Diameter: 100mm (4in)
Polymer Dosing Inlet Diameter: 20mm (0.75in)
Lamella Air Cleaning Inlet Diameter: 80mm (3in)
Extended Coagulation Drain Diameter: 50mm (2in)
Flocculation Drain Diameter: 50mm (2in)
Partial Drain Diameter: 100mm (4in)
Outlet Diameter: 400mm (16in)
Drainage:
Sludge Discharge Per Cyclone: 35m³/h
Max. Sludge Discharge per Cyclone: 28.0m³/h
Instant Max. Flow - Partial Drain: 43L/s
Extended Coagulation:
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 143kg
Rotation/Direction of Thrust: Counterclockwise/Up
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 143kg
Rotation/Direction of Thrust: Counterclockwise/Up
Material and Grade: AISI 304/304L
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 143kg
Rotation/Direction of Thrust: Counterclockwise/Up
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Coagulation:
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 179kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Basin Dimensions:
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Length: 1899mm
Width: 1521mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 179kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Manufacturer: VWTC
Model: EVGX3-2.0
Impeller: 1
Weight: 179kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Power: 2HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Flocculation:
Basin Dimensions:
Length: 2850mm
Width: 3048mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX4-5.0
Impeller: 1
Weight: 227kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 5HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Basin Dimensions:
Length: 2850mm
Width: 3048mm
Water Depth: 2973mm
Length: 2850mm
Width: 3048mm
Water Depth: 2973mm
Mixer:
Manufacturer: VWTC
Model: EVGX4-5.0
Impeller: 1
Weight: 227kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Manufacturer: VWTC
Model: EVGX4-5.0
Impeller: 1
Weight: 227kg
Rotation/Direction of Thrust: Clockwise/Down
Material and Grade: AISI 304/304L
Motor:
Power: 5HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Power: 5HP
Type: TEFC Premium Efficiency
Manufacturer: Nord
Settling:
Basin Dimensions:
Length: 3047mm
Width: 3048mm
Total Depth: 2973mm
Scraper:
Manufacturer - Drive: SEW Eurodrive
Model - Drive: RF87 R57 AR71/W DRN80MK4/C/DH/RI
Manufacturer - Reducer Drive - 3rd Stage: VWTC
Model - Reducer Drive - 3rd Stage: Gear Ratio 4.59:1
Running Torque: 2022 Nm
Rotation: 0.63 RPM
Drive Tube Diameter: 150mm (6in)
Material: AISI 304/304L
Torque Monitor: SEW Eurodrive FR-1
Motor:
Power: 0.75HP
Type: TEFC Fractional
Manufacturer: SEW Eurodrive
Settling Tubes:
Brand/Model: SECCO
Material: PP K8003
Thickness: 60 mils
Height: 610mm (24in)
Angle: 60°
Hydraulic Diameter: 85mm (3.35 po)
Troughs:
Material: AISI 304/304L
Quantity: 2
Basin Dimensions:
Length: 3047mm
Width: 3048mm
Total Depth: 2973mm
Length: 3047mm
Width: 3048mm
Total Depth: 2973mm
Scraper:
Manufacturer - Drive: SEW Eurodrive
Model - Drive: RF87 R57 AR71/W DRN80MK4/C/DH/RI
Manufacturer - Reducer Drive - 3rd Stage: VWTC
Model - Reducer Drive - 3rd Stage: Gear Ratio 4.59:1
Running Torque: 2022 Nm
Rotation: 0.63 RPM
Drive Tube Diameter: 150mm (6in)
Material: AISI 304/304L
Torque Monitor: SEW Eurodrive FR-1
Manufacturer - Drive: SEW Eurodrive
Model - Drive: RF87 R57 AR71/W DRN80MK4/C/DH/RI
Manufacturer - Reducer Drive - 3rd Stage: VWTC
Model - Reducer Drive - 3rd Stage: Gear Ratio 4.59:1
Running Torque: 2022 Nm
Rotation: 0.63 RPM
Drive Tube Diameter: 150mm (6in)
Material: AISI 304/304L
Torque Monitor: SEW Eurodrive FR-1
Motor:
Power: 0.75HP
Type: TEFC Fractional
Manufacturer: SEW Eurodrive
Power: 0.75HP
Type: TEFC Fractional
Manufacturer: SEW Eurodrive
Settling Tubes:
Brand/Model: SECCO
Material: PP K8003
Thickness: 60 mils
Height: 610mm (24in)
Angle: 60°
Hydraulic Diameter: 85mm (3.35 po)
Brand/Model: SECCO
Material: PP K8003
Thickness: 60 mils
Height: 610mm (24in)
Angle: 60°
Hydraulic Diameter: 85mm (3.35 po)
Troughs:
Material: AISI 304/304L
Quantity: 2
Material: AISI 304/304L
Quantity: 2
Microsand Recirculation:
Pump:
Manufacturer: McLanahan
Model: M3H-CRD 2/2
Seal Type: Dry Gland
Flow: 35.0m³/h
Head: 20.20m
Quantity per Unit: 2
In-Duty / Duty Assist / Standby: 1 / 0 / 1
Max. Number of Pumps In-Service Simultaneously: 1
Motor:
Power: 10HP
Type: TEFC Premium Efficiency
Manufacturer: WEG
Hydrocyclones:
Manufacturer: Krebs
Model: U6-10-1758
Quantity per unit: 2
Hydrocyclones Support Material: AISI 304/304L
Microsand Recirculation Piping:
Diameter: 100mm (4in)
Number of Lines per Unit: 2
Material: Galvanized Steel and Abrasion Resistant Hose Stainless Steel 304 under Settling Tank
Effective Size of Microsand: 120-135 microns
First Fill Required Mass: 430kg
Pump:
Manufacturer: McLanahan
Model: M3H-CRD 2/2
Seal Type: Dry Gland
Flow: 35.0m³/h
Head: 20.20m
Quantity per Unit: 2
In-Duty / Duty Assist / Standby: 1 / 0 / 1
Max. Number of Pumps In-Service Simultaneously: 1
Manufacturer: McLanahan
Model: M3H-CRD 2/2
Seal Type: Dry Gland
Flow: 35.0m³/h
Head: 20.20m
Quantity per Unit: 2
In-Duty / Duty Assist / Standby: 1 / 0 / 1
Max. Number of Pumps In-Service Simultaneously: 1
Motor:
Power: 10HP
Type: TEFC Premium Efficiency
Manufacturer: WEG
Power: 10HP
Type: TEFC Premium Efficiency
Manufacturer: WEG
Hydrocyclones:
Manufacturer: Krebs
Model: U6-10-1758
Quantity per unit: 2
Hydrocyclones Support Material: AISI 304/304L
Manufacturer: Krebs
Model: U6-10-1758
Quantity per unit: 2
Hydrocyclones Support Material: AISI 304/304L
Microsand Recirculation Piping:
Diameter: 100mm (4in)
Number of Lines per Unit: 2
Material: Galvanized Steel and Abrasion Resistant Hose Stainless Steel 304 under Settling Tank
Diameter: 100mm (4in)
Number of Lines per Unit: 2
Material: Galvanized Steel and Abrasion Resistant Hose Stainless Steel 304 under Settling Tank
Effective Size of Microsand: 120-135 microns
First Fill Required Mass: 430kg
Connections:
Flanges: Flange 1/2" Thick, OD & Bolt Pattern as per ASME B16.5 #150
Inlet Diameter: 350mm (14in)
Hydrocyclone Sludge Outlet Diameter: 100mm (4in)
Polymer Dosing Inlet Diameter: 20mm (0.75in)
Lamella Air Cleaning Inlet Diameter: 80mm (3in)
Extended Coagulation Drain Diameter: 50mm (2in)
Flocculation Drain Diameter: 50mm (2in)
Partial Drain Diameter: 100mm (4in)
Outlet Diameter: 400mm (16in)
Flanges: Flange 1/2" Thick, OD & Bolt Pattern as per ASME B16.5 #150
Inlet Diameter: 350mm (14in)
Hydrocyclone Sludge Outlet Diameter: 100mm (4in)
Polymer Dosing Inlet Diameter: 20mm (0.75in)
Lamella Air Cleaning Inlet Diameter: 80mm (3in)
Extended Coagulation Drain Diameter: 50mm (2in)
Flocculation Drain Diameter: 50mm (2in)
Partial Drain Diameter: 100mm (4in)
Outlet Diameter: 400mm (16in)
Drainage:
Sludge Discharge Per Cyclone: 35m³/h
Max. Sludge Discharge per Cyclone: 28.0m³/h
Instant Max. Flow - Partial Drain: 43L/s
Sludge Discharge Per Cyclone: 35m³/h
Max. Sludge Discharge per Cyclone: 28.0m³/h
Instant Max. Flow - Partial Drain: 43L/s
Power Feed Requirements:
Power: 575 Volt, 3-Phase, 60Hz
Controls: 120 Volt, Single-Phase, 60Hz
Junction Box Type: NEMA 4X
Power: 575 Volt, 3-Phase, 60Hz
Controls: 120 Volt, Single-Phase, 60Hz
Junction Box Type: NEMA 4X
Dimensions & Weights:
Length: 9,478mm (373.2in)
Width: 3,638mm (143.3in)
Height: 4,811mm (189.4in)
Shipping Weight (Dry): 13,500 Kg (29,835 Lbs.)
Installed Weight (Full of Water): 85,750 Kg (189,508 Lbs.)
Length: 9,478mm (373.2in)
Width: 3,638mm (143.3in)
Height: 4,811mm (189.4in)
Shipping Weight (Dry): 13,500 Kg (29,835 Lbs.)
Installed Weight (Full of Water): 85,750 Kg (189,508 Lbs.)
Location: Northwest Canada
View More Clarifiers
