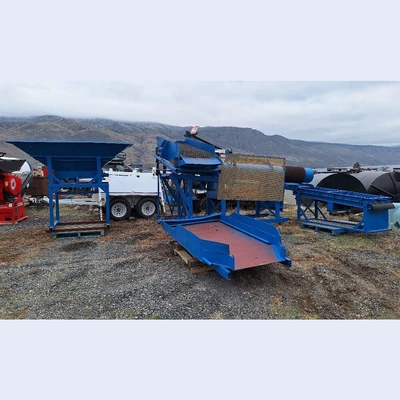

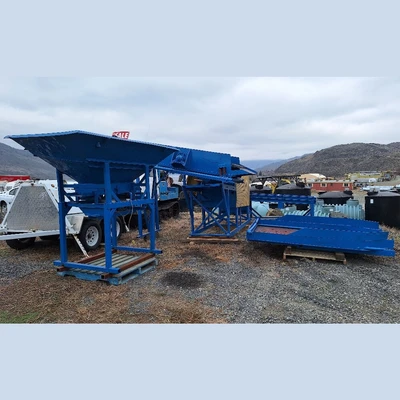

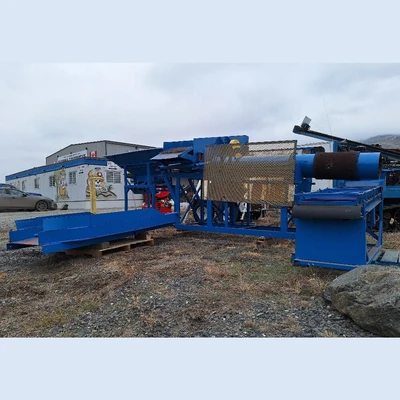

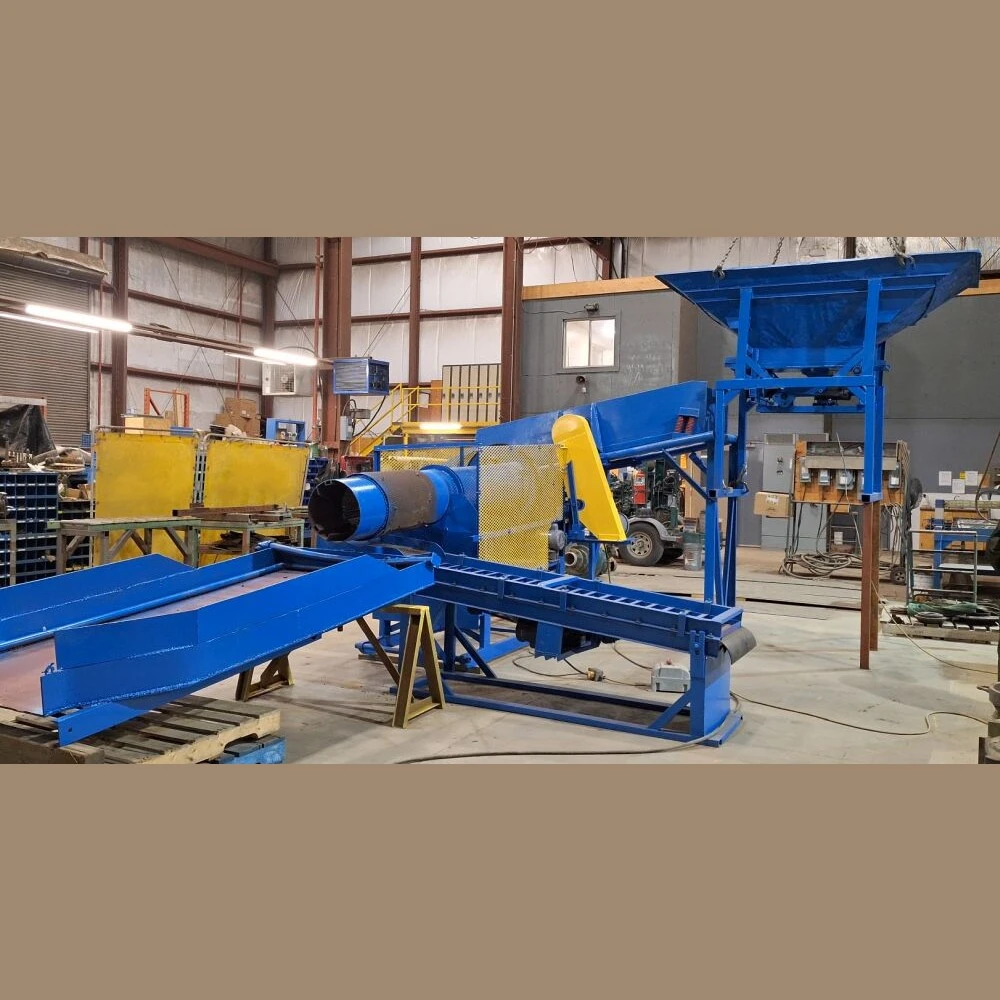

16in Dia. x 9.5ft Long Trommel Wash Plant

16in Dia. x 9.5ft Long Trommel Wash Plant
Type: Trommel Wash Plant
Condition: Used Condition - Recently Refurbished
Feed Pan:
Size: 48.5in Wide x 8ft Long
Discharge: 29-5/8in Wide
1ft Tall Side Walls Near Discharge
Top Spray Bar: 2in Threaded
Lower Spray Bar: 1.5in Hose Barb Connection
Support Legs: 74-5/8in Tall x 32.5in Wide Frame x 43.5in Wide Base
Module Dimensions: 8ft Long x 55in Wide x 20in Tall
Size: 48.5in Wide x 8ft Long
Discharge: 29-5/8in Wide
1ft Tall Side Walls Near Discharge
1ft Tall Side Walls Near Discharge
Top Spray Bar: 2in Threaded
Lower Spray Bar: 1.5in Hose Barb Connection
Support Legs: 74-5/8in Tall x 32.5in Wide Frame x 43.5in Wide Base
Module Dimensions: 8ft Long x 55in Wide x 20in Tall
Screen:
Type: Inclined Screen
Size: 31in Wide x 8ft Long
Decks: Single Deck
Screen Spacing:
Top Mesh: 0.5in Spacing
Bottom Mesh: 2in Spacing
Spray Bars: (2) 2in Plastic Pipe Spray Bars
Bearing Housings: (2) Steyr S 611
Drive Pulley: 8in Dia.
Module Dimensions: 109in Long x 52in Wide x 35in Tall
Type: Inclined Screen
Size: 31in Wide x 8ft Long
Decks: Single Deck
Screen Spacing:
Top Mesh: 0.5in Spacing
Bottom Mesh: 2in Spacing
Top Mesh: 0.5in Spacing
Bottom Mesh: 2in Spacing
Spray Bars: (2) 2in Plastic Pipe Spray Bars
Bearing Housings: (2) Steyr S 611
Drive Pulley: 8in Dia.
Module Dimensions: 109in Long x 52in Wide x 35in Tall

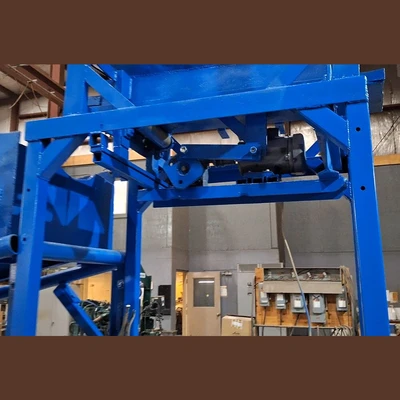

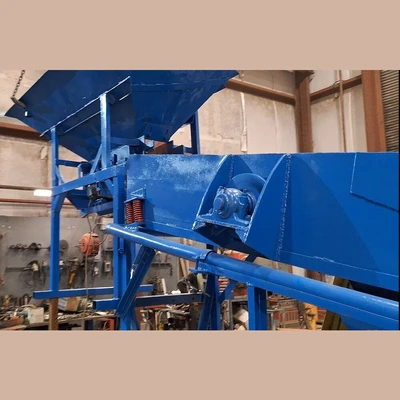

Hopper:
Hopper Dimensions:
Top: 34in Wide x 8ft Long
Bottom: 10in Wide x 34in Long
Reciprocating Plate Feeder Discharge
Discharge Opening: 6in x 10.5in
Speed Reducer
Hose Inlet: 2in Threaded
Hose Outlet: 1in Barbed Hose Fitting
Module Dimensions: 8ft Long x 50in Wide x 47in Long
Hopper Dimensions:
Top: 34in Wide x 8ft Long
Bottom: 10in Wide x 34in Long
Top: 34in Wide x 8ft Long
Bottom: 10in Wide x 34in Long
Reciprocating Plate Feeder Discharge
Discharge Opening: 6in x 10.5in
Speed Reducer
Hose Inlet: 2in Threaded
Hose Outlet: 1in Barbed Hose Fitting
Module Dimensions: 8ft Long x 50in Wide x 47in Long

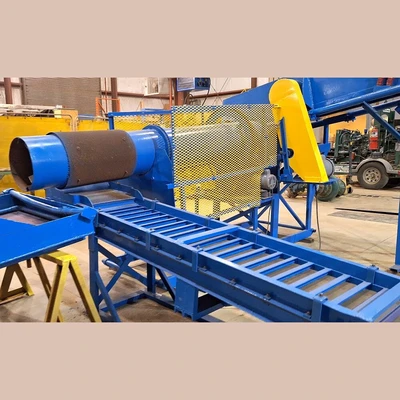

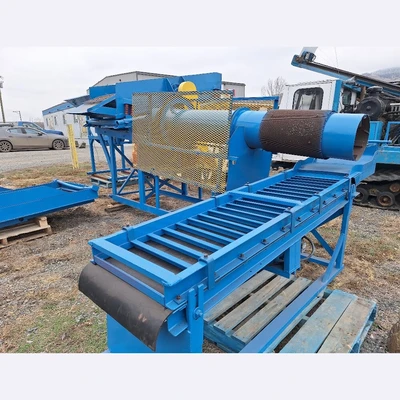

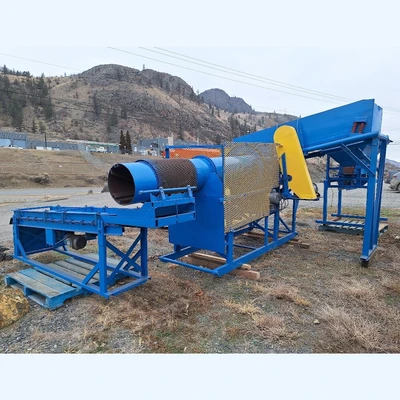

Trommel:
Feed Trough: 11in Wide x 38in Long
Barrel Size: 15-3/8in Dia. x 114in Long
Screen Section: 18in Long
Drive: Baldor Electric Motor To Chain Drive
Power Output: 0.5HP
Sprocket: 4in Dia., 16-Tooth
Module Dimensions: 160in Long x 70in Wide x 71in Tall
Feed Trough: 11in Wide x 38in Long
Barrel Size: 15-3/8in Dia. x 114in Long
Screen Section: 18in Long
Drive: Baldor Electric Motor To Chain Drive
Power Output: 0.5HP
Power Output: 0.5HP
Sprocket: 4in Dia., 16-Tooth
Module Dimensions: 160in Long x 70in Wide x 71in Tall
Sluice Box:
Feed Pan: 23.5in Wide x 21.5in Long
Sluice: 20in Wide x 7ft Long
Legs: 5in Height Adjustment Front and Back Legs
Spray Bar: Steel, 1in Threaded Connection
Drive: Electric Motor
Power Output: 1/3HP
Module Dimensions: 112in Long x 31in Wide x 49in Tall
Feed Pan: 23.5in Wide x 21.5in Long
Sluice: 20in Wide x 7ft Long
Legs: 5in Height Adjustment Front and Back Legs
Spray Bar: Steel, 1in Threaded Connection
Drive: Electric Motor
Power Output: 1/3HP
Power Output: 1/3HP
Module Dimensions: 112in Long x 31in Wide x 49in Tall
Location: Savona, British Columbia, Canada
