USED BEAVER MANUFACTURING KBAC-45

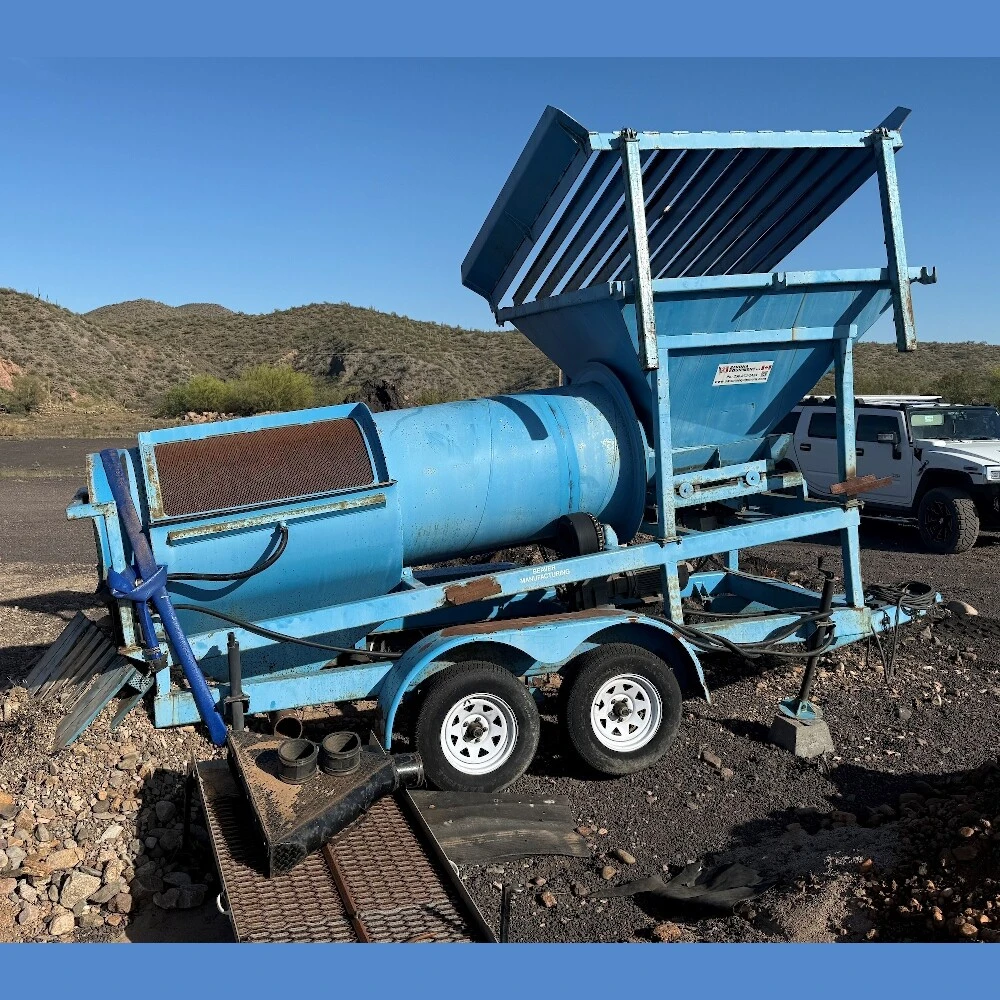

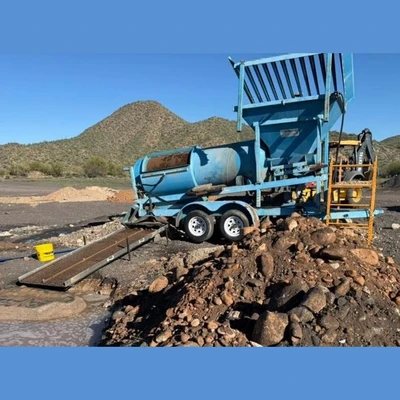

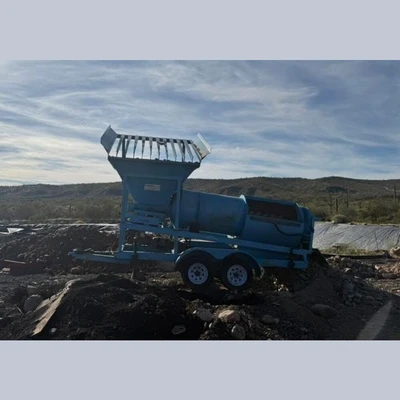

3ft Dia. x 10ft Long Beaver Gold Trommel
Make: Beaver Manufacturing
Type: Gold Trommel Wash Plant
Style: Portable - Trailer Mounted
Condition: Used Condition
Size: 3ft Diameter x 10ft Long
Grizzly:
Size: 6.5ft Long x 6.5ft Wide with 11in Wings on Each Side
Grizzly Bars made of 5/16in x 4.5in T-Bar
Adjustable Taper Openings From 3in to 6in
Hinged/Manual Cleaning
With (5) Fixed-Slope Angle Adjusting Bars
Size: 6.5ft Long x 6.5ft Wide with 11in Wings on Each Side
Grizzly Bars made of 5/16in x 4.5in T-Bar
Adjustable Taper Openings From 3in to 6in
Hinged/Manual Cleaning
With (5) Fixed-Slope Angle Adjusting Bars

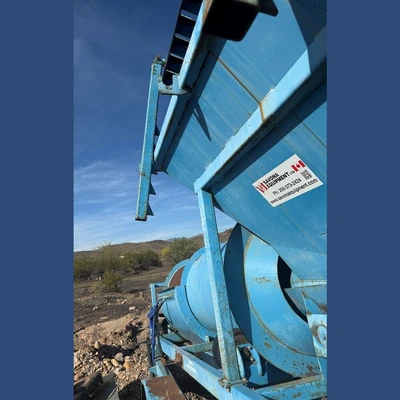

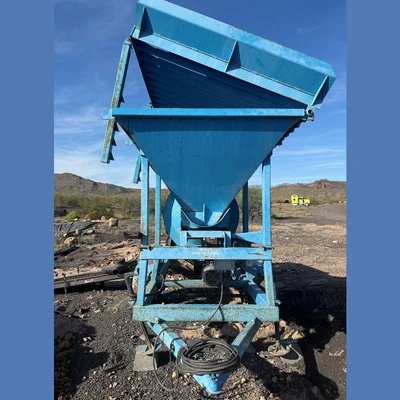

Feed Hopper:
Size: 6.5ft x 6.5ft x 4ft Deep
With 22in Wide x 44in Long Reciprocating Plate Feeder:

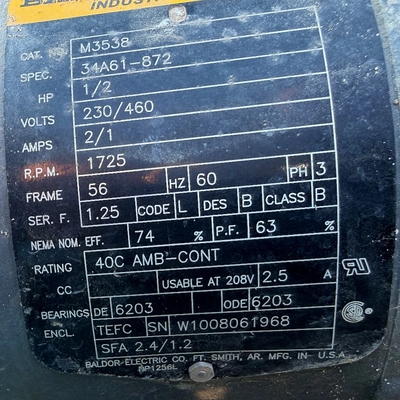

Powered by Baldor Electric Motor
Power: 0.5HP
Voltage: 230/460 Volt
Belt Driven to a Baldor 50:1 Reducer
With Genesis A/C Motor Variable Speed Controller
Model: KBAC-45
Input:
Voltage: 400/460 VAC
Frequency: 50/60Hz
Output:
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz
Size: 6.5ft x 6.5ft x 4ft Deep
With 22in Wide x 44in Long Reciprocating Plate Feeder:
Powered by Baldor Electric Motor
Power: 0.5HP
Voltage: 230/460 Volt
Belt Driven to a Baldor 50:1 Reducer
With Genesis A/C Motor Variable Speed Controller
Model: KBAC-45
Input:
Voltage: 400/460 VAC
Frequency: 50/60Hz
Output:
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz
Powered by Baldor Electric Motor
Power: 0.5HP
Voltage: 230/460 Volt
Belt Driven to a Baldor 50:1 Reducer
With Genesis A/C Motor Variable Speed Controller
Model: KBAC-45
Input:
Voltage: 400/460 VAC
Frequency: 50/60Hz
Output:
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz
Power: 0.5HP
Voltage: 230/460 Volt
Belt Driven to a Baldor 50:1 Reducer
With Genesis A/C Motor Variable Speed Controller
Model: KBAC-45
Input:
Voltage: 400/460 VAC
Frequency: 50/60Hz
Output:
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz
Model: KBAC-45
Input:
Voltage: 400/460 VAC
Frequency: 50/60Hz
Voltage: 400/460 VAC
Frequency: 50/60Hz
Output:
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz
Voltage: 0-460 VAC
Frequency: 0-50, 60, 100, 120 Hz

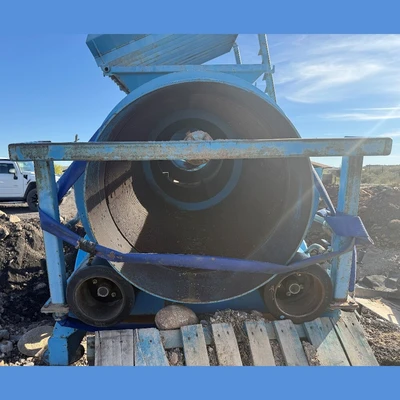

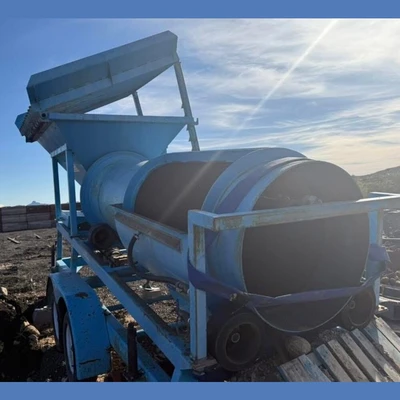

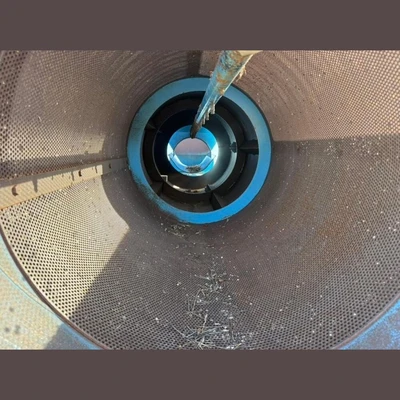

Trommel:
Size: 36in Diameter x 10ft Long
Supported on (4) 12in Dia. x 5in Wide Solid Rubber Tires
Internal Wash Bar
Screening Section: 4ft Section of 0.25in Punch Plate Screen
Enclosed Fines Discharge Chute with 5in Dia. Pipe Discharge on either Side of Trommel (Victaulic Pipe Connections)
5in Pipe to 33in Wide Sluice Box Transition Header
Chain Driven:

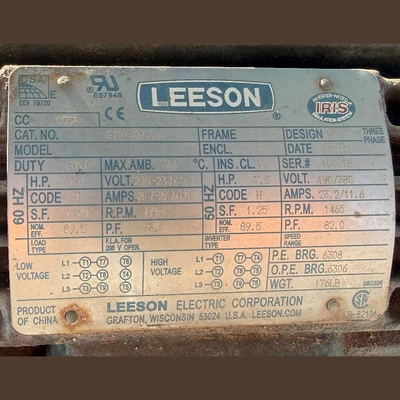

Motor: Leeson 10HP Motor
Voltage: 208-230/460 Volt
With Baldor Reducer HB682CN210TC
Reduction Ratio 13.59:1
Size: 36in Diameter x 10ft Long
Supported on (4) 12in Dia. x 5in Wide Solid Rubber Tires
Internal Wash Bar
Screening Section: 4ft Section of 0.25in Punch Plate Screen
Enclosed Fines Discharge Chute with 5in Dia. Pipe Discharge on either Side of Trommel (Victaulic Pipe Connections)
5in Pipe to 33in Wide Sluice Box Transition Header
Chain Driven:
Motor: Leeson 10HP Motor
Voltage: 208-230/460 Volt
With Baldor Reducer HB682CN210TC
Reduction Ratio 13.59:1
Motor: Leeson 10HP Motor
Voltage: 208-230/460 Volt
With Baldor Reducer HB682CN210TC
Reduction Ratio 13.59:1
Reduction Ratio 13.59:1
Aluminum Sluice Box:
Size: 33in Wide x 10ft Long
Expanded Metal and Carpet
1 Spare Piece of Carpet
(6) 18in Long Adjustable Legs
(4) Lifting Handles
Size: 33in Wide x 10ft Long
Expanded Metal and Carpet
1 Spare Piece of Carpet
(6) 18in Long Adjustable Legs
(4) Lifting Handles
Trailer:
Mounted to a 14ft Double-Axle Trailer
(4) Corner Jack Stands
(2) 7,000 Lbs. Axles
Electrical Hookups (Lights, Axle Brakes) and Battery
Hitch: 2-15/16" Ball Receiver Hitch
Tires: 205/75R15 Tires with Spare
Mounted to a 14ft Double-Axle Trailer
(4) Corner Jack Stands
(2) 7,000 Lbs. Axles
Electrical Hookups (Lights, Axle Brakes) and Battery
Hitch: 2-15/16" Ball Receiver Hitch
Tires: 205/75R15 Tires with Spare
Location: Western USA
