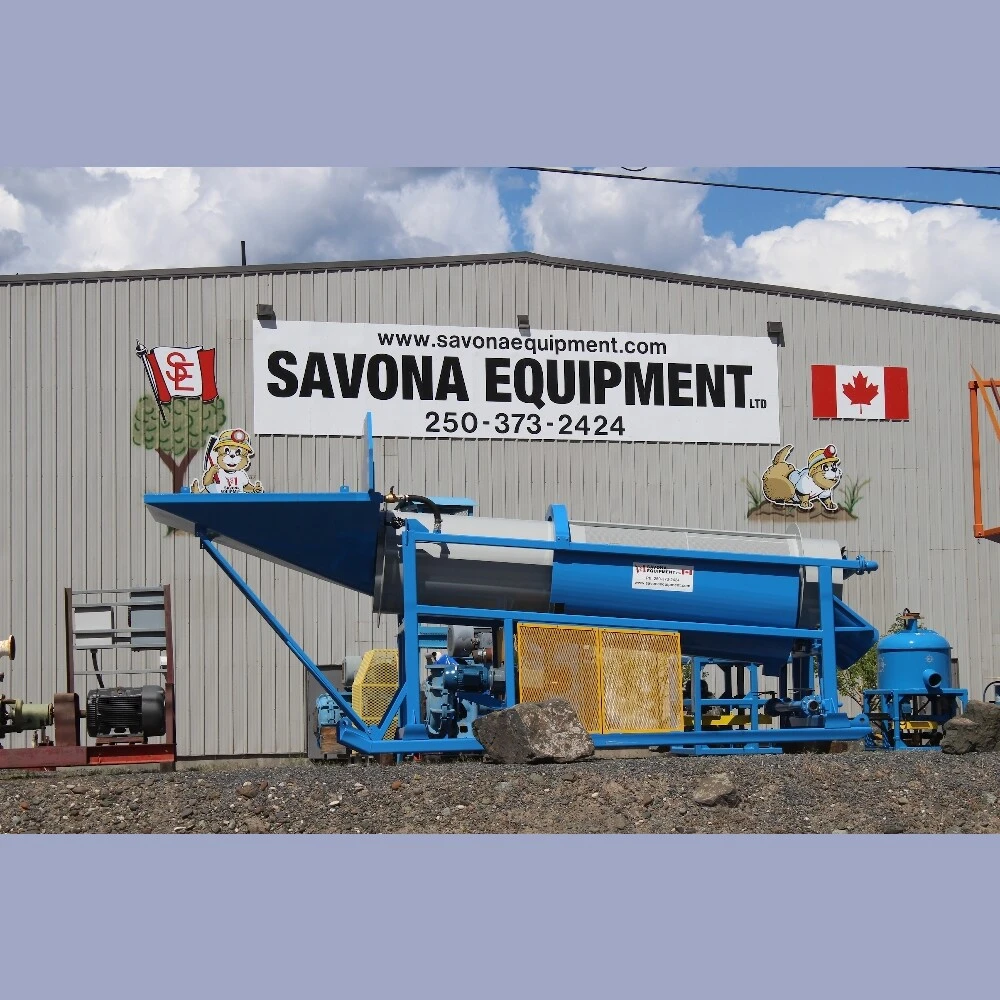

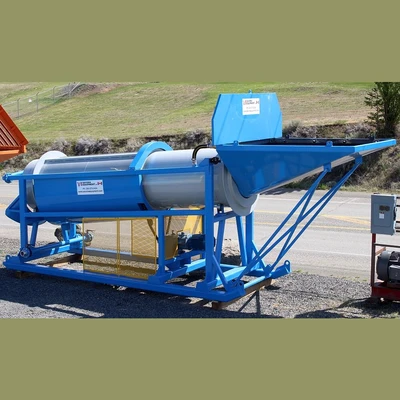

Savona Equipment ST70 Custom Scrubber Trommel Wash Plant
Overview
Specifications
The Savona Equipment ST-Series scrubber trommel wash plants are custom designed and built as user-friendly, heavy duty, and effective wash plants. The wash plants can be operated as stand-alone processing and gold recovery systems with a sluice box or as a processing system that feeds a Hy-G Concentrator gold recovery system.

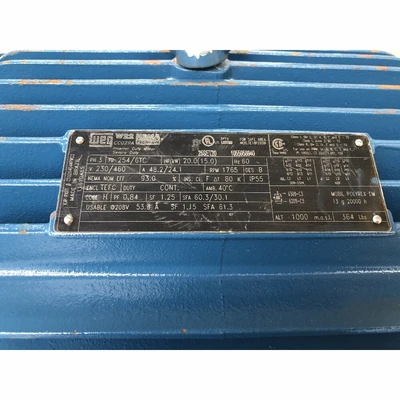

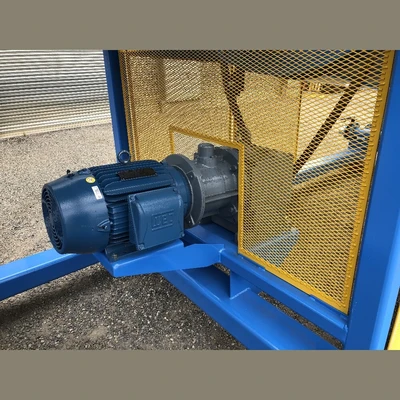

20 HP Electric Drive Motor

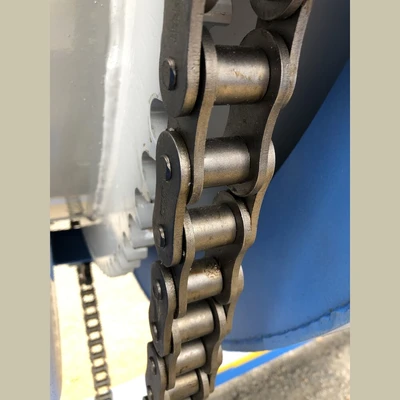

Heavy Duty Gear Reducer, Sprocket, and Chain Driving Trommel Drum

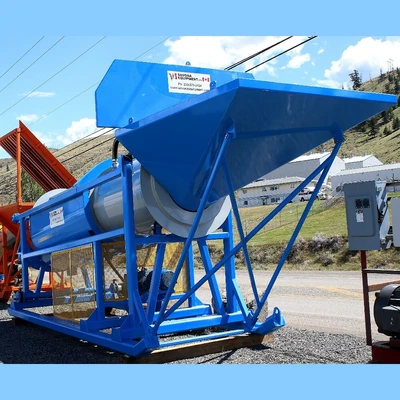

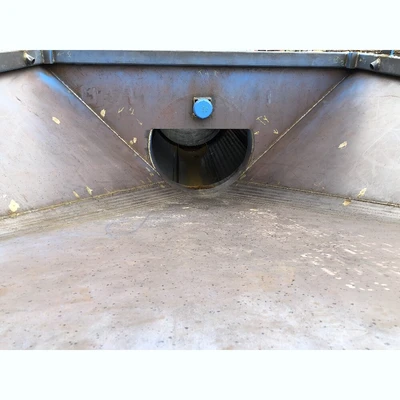

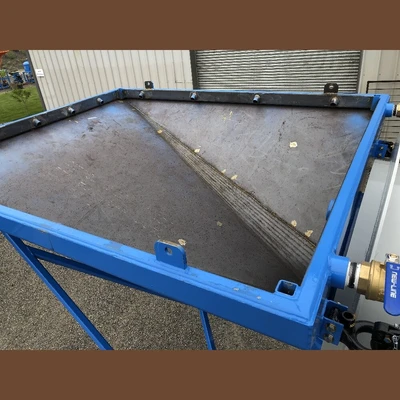

Receiving Hopper with Wash Bars and Deflector Plate

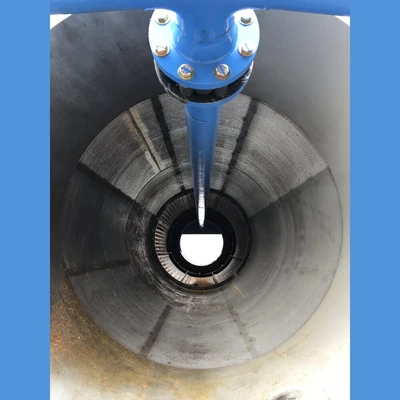

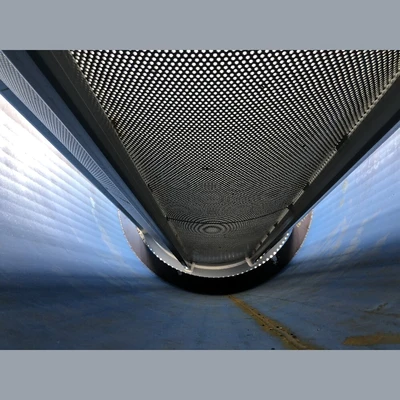

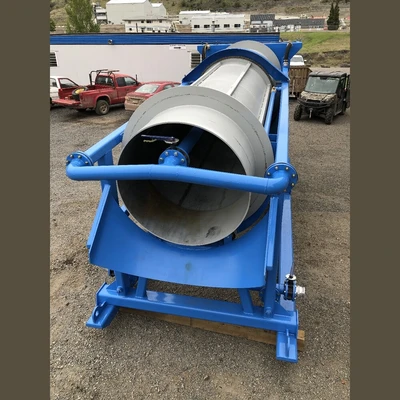

48 in. Diameter Trommel drum with wash bar, lifters, retention rings, and punch plate screen.
Estimated Capacity: 50 to 100 YPH (75 to 150 TPH).
Expected Water Consumption: 500 to 800 GPM at 40 to 60 PSI.
Operating Dimensions and Weight:
28 ft. Long
13 ft. High to top of hopper deflector plate.
9.5 ft. Wide to edges of hopper deflector plate.
Approx. 14,500 lbs.
Made in Canada.
Worldwide shipping available.
