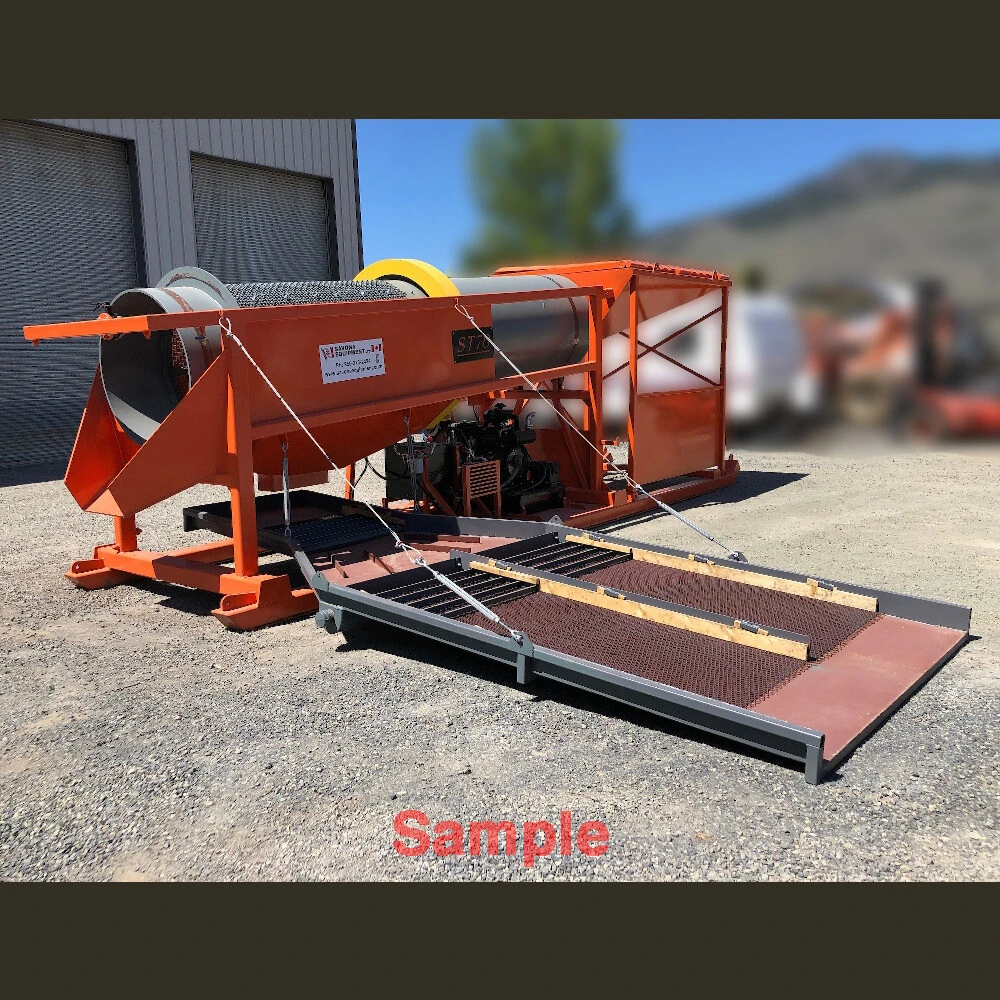

Savona Equipment ST200 6ft Scrubber Trommel

Savona Equipment ST200 6ft Scrubber Trommel
The Savona Equipment ST200 Scrubber Trommel is a semi-custom high-volume commercial wash plant primarily used for alluvial placer gold mining along with general remediation, aggregate, and ore washing applications.
This trommel is built mine duty for effective scrubbing, washing, and screening of placer ores to liberate free gold for further recovery in a sluice box, Hy-G Concentrator, or with other gold recovery methods.
The ST200 is designed and manufactured in Canada and shipped globally.
Savona Equipment ST200 General Specifications:
Capacity: 200 YPH (300 TPH) Approx. Max
Fluidized Drum Size: 6ft Diameter x 20ft Long Approx. (1829mm x 6096mm)
Drive: Approx. 30 HP Electric (Diesel Hydraulic Optional)
Screen: Wire Mesh Standard (Punch Plate, Urethane Optional)
Fluidized Hopper: 8 x 8 (Grizzly Bars Optional)
Water Connection: 8 inches (203mm)
Water Consumption: 1000 GPM Minimum (3785.41 LPM)
Sluice Box Optional Per Customer Request
Location: Western Canada
