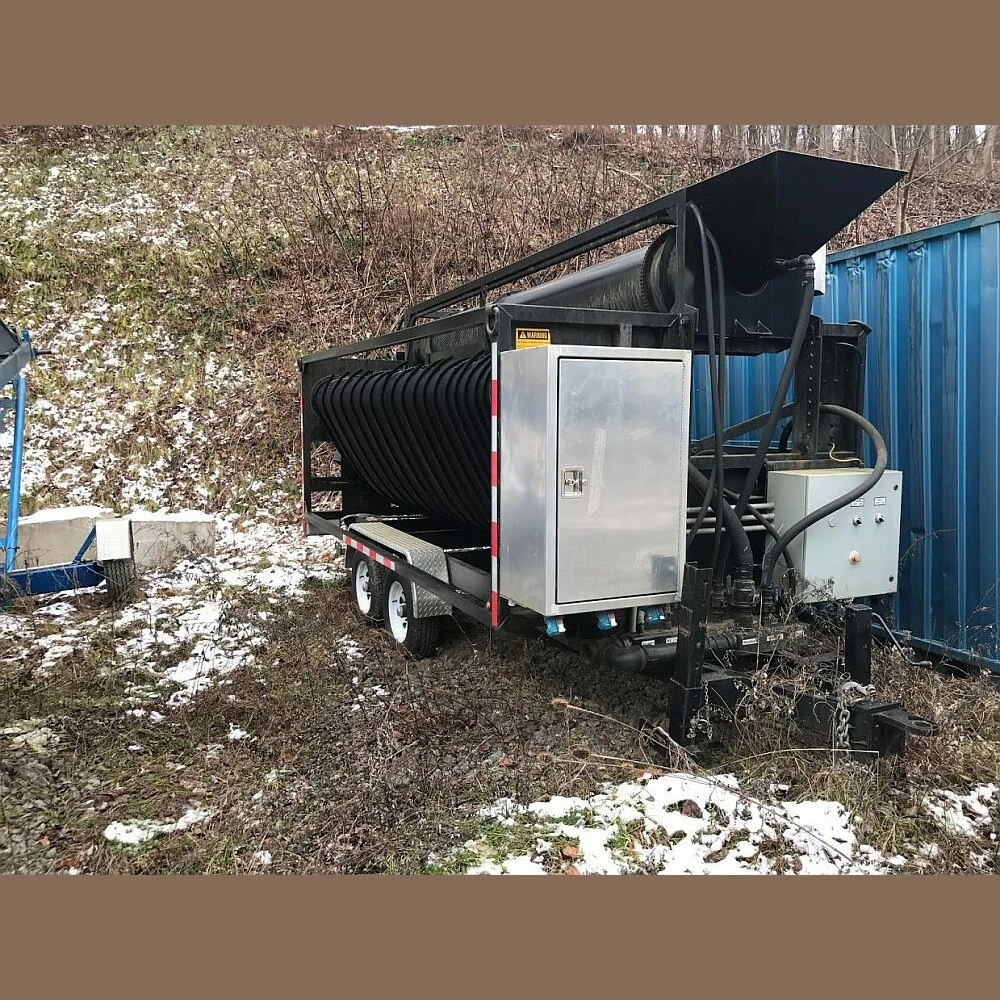

Extrac-Tec HPC-30 Trommel

The HPC-30 is an ideal solution for small-scale and start-up Alluvial Mining or Placer Mining operations. The design of the HPC-30 also makes it suitable for a broad range of heavy particle concentration applications including gravity concentration of minerals such as tin or cassiterite, copper or malachite, lead, silver, garnets and most other minerals, metals and gemstones. The HPC-30 recovery unit is offered with a choice of feed systems to accommodate a broad range of applications, sites and operating conditions.
Year: 2013
Drive System
Digital Variable Frequency Controller Housed within a Waterproof Enclosure
2.2 kW (3.0 HP) 3 - Phase Drive Motor
Reduction Gearbox
Digital Variable Frequency Controller Housed within a Waterproof Enclosure
2.2 kW (3.0 HP) 3 - Phase Drive Motor
Reduction Gearbox
Water Supply
HPC-30 Requires Water Supply of Approx. 100 gallons/min (400 litrs/min or 24m³/hour) at a Pressure of Aprox. 45 psi (310 kPa)
HPC-30 Requires Water Supply of Approx. 100 gallons/min (400 litrs/min or 24m³/hour) at a Pressure of Aprox. 45 psi (310 kPa)
Feed Materials
Max: 6in. (150mm) Minus Material
Recommended: 3in. (75mm) Minus
Max: 6in. (150mm) Minus Material
Recommended: 3in. (75mm) Minus
Trommel
Scrubbing & Screening Trommel: 168in. (4.27m) long with 20in. (0.5m) diameter and 100in. (2.5m) 2-Stage Scrubber
Screen: 1/3in. (8mm)
Trommel Inclination, Height, and Speed are Independently Adjustable
Scrubbing & Screening Trommel: 168in. (4.27m) long with 20in. (0.5m) diameter and 100in. (2.5m) 2-Stage Scrubber
Screen: 1/3in. (8mm)
Trommel Inclination, Height, and Speed are Independently Adjustable
Feed Hopper
Fixed Feed Chute Designed to Receive Feed from 18in. (4500mm) Conveyor
Fixed Feed Chute Designed to Receive Feed from 18in. (4500mm) Conveyor
Dimensions
Length: 230in. (5.84m) with Tail Sluice Stowed / 300in. (7.6m) with Trail Sluice Extended
Width: 90in. (2.30m)
Height: 88in. (2.24m) with Trommel Fully Lowered / 110in. (2.8m) with Trommel Raised
Weight: 7,000 (3,200 kg)
Length: 230in. (5.84m) with Tail Sluice Stowed / 300in. (7.6m) with Trail Sluice Extended
Width: 90in. (2.30m)
Height: 88in. (2.24m) with Trommel Fully Lowered / 110in. (2.8m) with Trommel Raised
Weight: 7,000 (3,200 kg)
Shipping Info
Optimal Shipping Configurations: 1 HPC-30 in 20ft. Container
Optimal Shipping Configurations: 1 HPC-30 in 20ft. Container

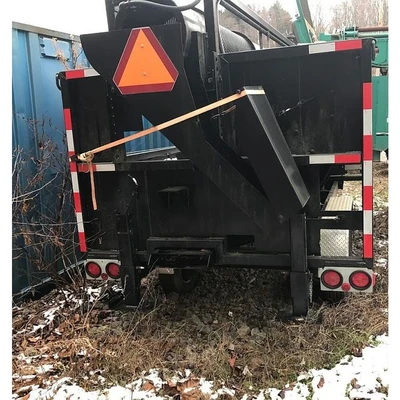

Trailer
Double-Axle Trailer with Pintle-Hitch
Double-Axle Trailer with Pintle-Hitch
Location: Eastern USA
