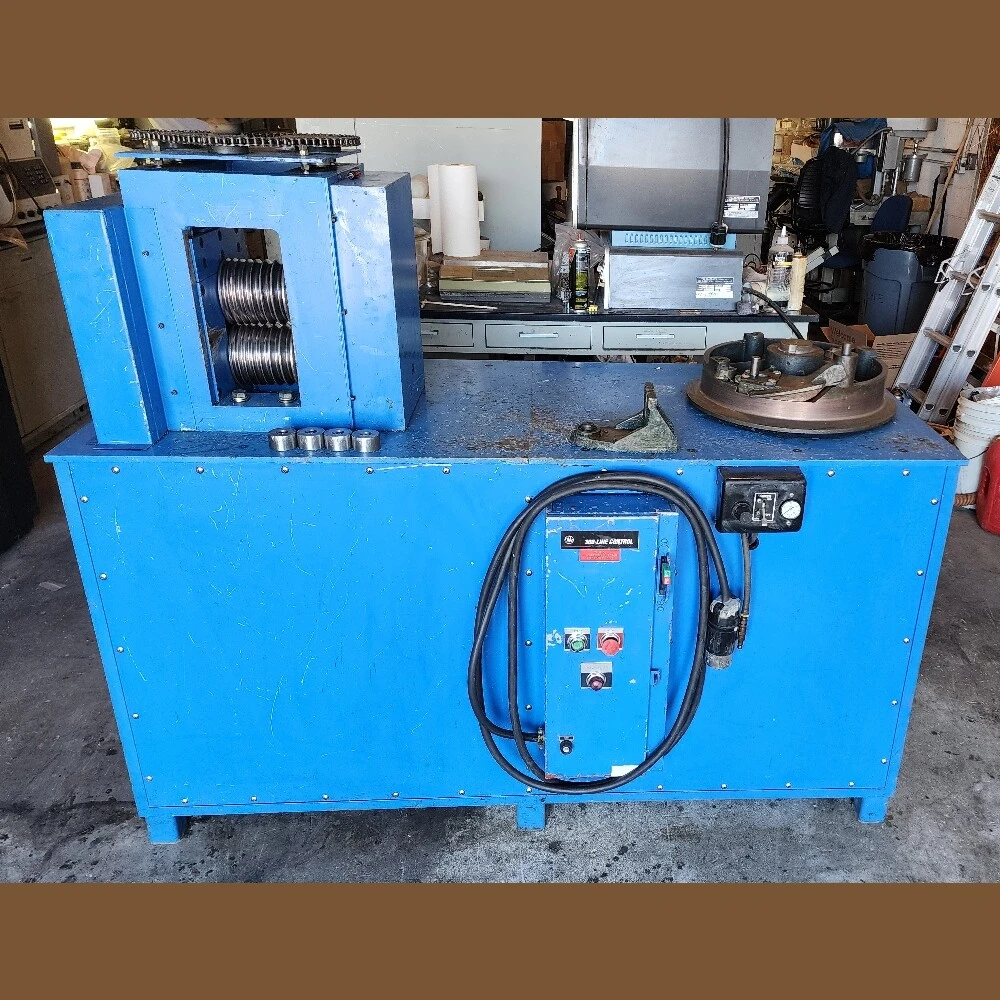

Swage and Draw Wire Machine

Swage and Draw Wire Machine
Make: Custom Fabricated (Based on ASARCO Technical Services Center Wire Machine)
Condition: Used Condition
Used For:
Preparing Wire for Physical Testing and Chemical Analysis
Producing Test Strands for Physical Testing - Elongation, Tensile Strength, Etc.
University Metallurgical Programs
Steel Wire and Cable Manufacturers
Preparing Wire for Physical Testing and Chemical Analysis
Producing Test Strands for Physical Testing - Elongation, Tensile Strength, Etc.
University Metallurgical Programs
Steel Wire and Cable Manufacturers

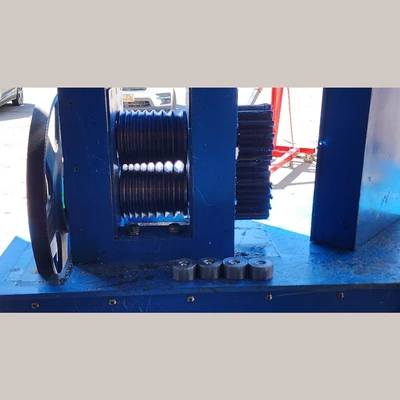

Equipped with Adjustable Hardened Diamond Rolls
Progressive Contours are of Critical Dimensions
Swaging: Capable of Swaging 3/4" Rod to Nominal 3/8"
Drawing: Drawing to Any Gauge or Diameter

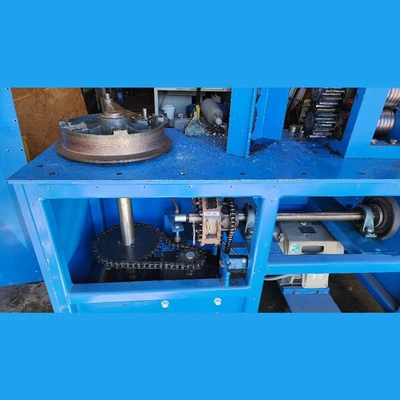

Drive: Electric Motor
Power Output: 5HP
Voltage: 240 Volt
Frequency: 60Hz
Phase: 3-Phase
Wired with SO Cable and Appropriate NEMA Plugs
Power Output: 5HP
Voltage: 240 Volt
Frequency: 60Hz
Phase: 3-Phase
Wired with SO Cable and Appropriate NEMA Plugs
Location: Western USA
