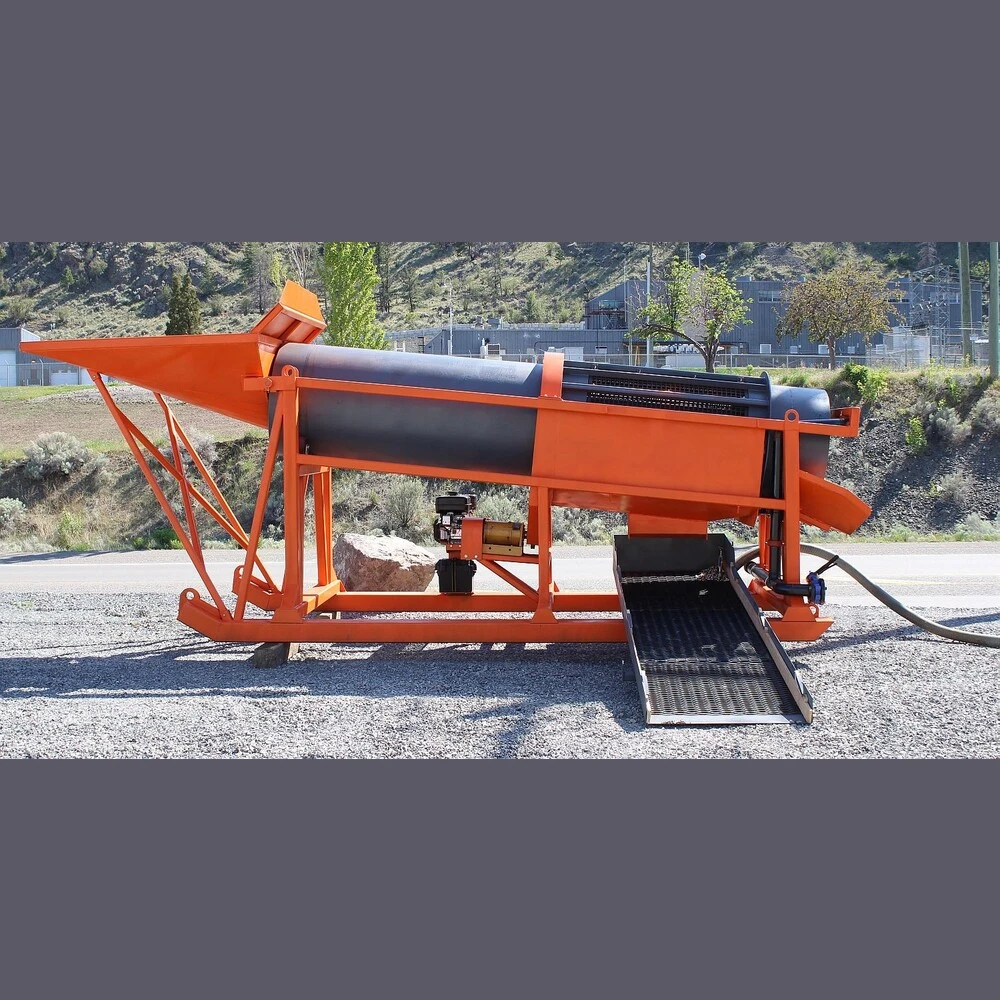

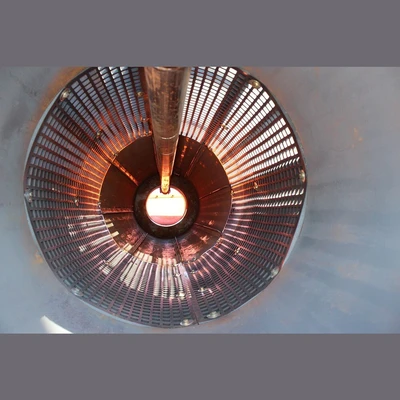

(New) Savona Equipment ST50 Trommel

Savona Equipment ST50 Trommel.
Capacity: 50 YPH (Approx. 75 TPH) Maximum

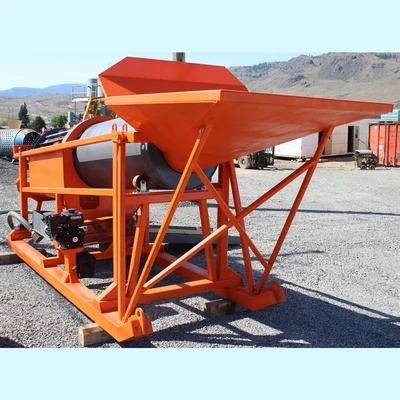

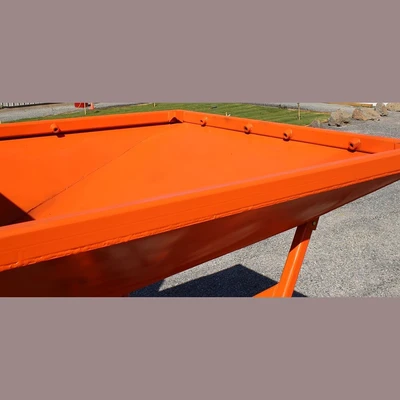

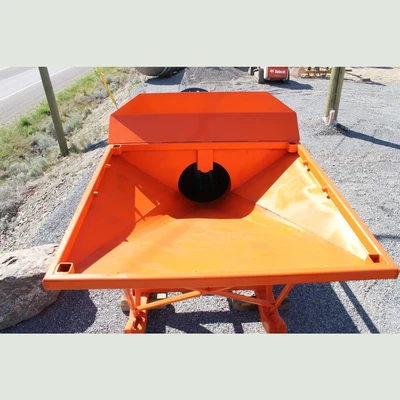

5ft x 5ft (1.52m x 1.52m) Feed Hopper With (8) Heavy-Duty Perimeter Water Feed Nozzles
Corner Stake Pockets for Overhead Grizzly (Grizzly an Additional Option)

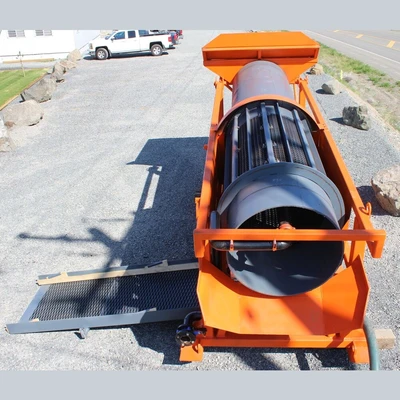

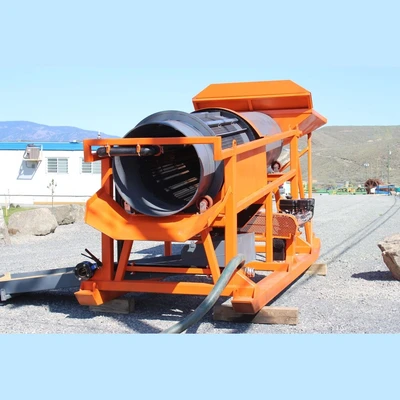

3ft x 14ft (0.91m x 4.27m) Drum
Supplied Standard with Wire Mesh Screen (Urethane Optional)
Length of Screening and Scrubbing Sections Can Be Customized
Screen Opening Size Can Be Customized
Scrubber Section with Internal Lifters
2ft (0.61m) Long Tail Section
3in (7.6cm) Water Manifold and Internal Drum Spray Bar
Drum Supported by 6in (15.2cm) Heavy-Duty Caster Wheels With a 3in (7.6cm) Wide Face
4ft (1.22m) Wide Tails Discharge Chute
Electric Drive:

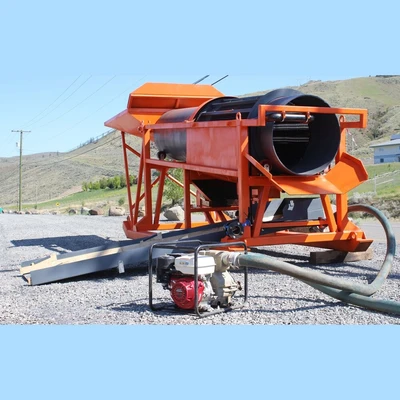

Diesel or Gas Drive Optional

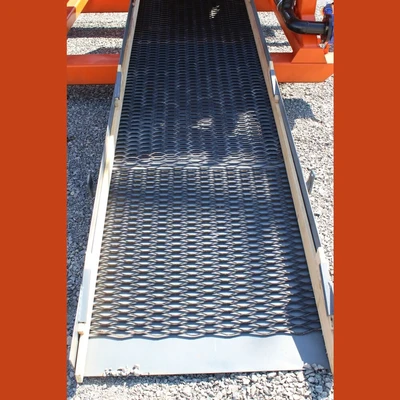

5ft (1.52m) Long Fines Collection Trough with 12in x 24in (30.5cm x 61cm) Discharge to Sluice
Water Consumption: 300 GPM
Custom Sluice Box Options Available at Extra Cost and Designed Per Customer Request
Capacity: 50 YPH (Approx. 75 TPH) Maximum
5ft x 5ft (1.52m x 1.52m) Feed Hopper With (8) Heavy-Duty Perimeter Water Feed Nozzles
Corner Stake Pockets for Overhead Grizzly (Grizzly an Additional Option)
Corner Stake Pockets for Overhead Grizzly (Grizzly an Additional Option)
3ft x 14ft (0.91m x 4.27m) Drum
Supplied Standard with Wire Mesh Screen (Urethane Optional)
Length of Screening and Scrubbing Sections Can Be Customized
Screen Opening Size Can Be Customized
Scrubber Section with Internal Lifters
2ft (0.61m) Long Tail Section
3in (7.6cm) Water Manifold and Internal Drum Spray Bar
Drum Supported by 6in (15.2cm) Heavy-Duty Caster Wheels With a 3in (7.6cm) Wide Face
Supplied Standard with Wire Mesh Screen (Urethane Optional)
Length of Screening and Scrubbing Sections Can Be Customized
Screen Opening Size Can Be Customized
Length of Screening and Scrubbing Sections Can Be Customized
Screen Opening Size Can Be Customized
Scrubber Section with Internal Lifters
2ft (0.61m) Long Tail Section
3in (7.6cm) Water Manifold and Internal Drum Spray Bar
Drum Supported by 6in (15.2cm) Heavy-Duty Caster Wheels With a 3in (7.6cm) Wide Face
4ft (1.22m) Wide Tails Discharge Chute
Electric Drive:
Diesel or Gas Drive Optional
Diesel or Gas Drive Optional
5ft (1.52m) Long Fines Collection Trough with 12in x 24in (30.5cm x 61cm) Discharge to Sluice
Water Consumption: 300 GPM
Custom Sluice Box Options Available at Extra Cost and Designed Per Customer Request
All Heavy-Duty Square Tube Frame
8in x 8in (20.3cm x 20.3cm) Square Tube Skid Base With Pulling Eyes At Each End
Shipping Dimensions:
Length: 18ft Long (5.49m)
Width: 6ft Wide (1.83m)
Height: 7ft 3in High (2.21m)
Length: 18ft Long (5.49m)
Width: 6ft Wide (1.83m)
Height: 7ft 3in High (2.21m)
Savona ST50 Trommels Are Built Upon Order
The new ST50 Trommel manufactured by Savona Equipment is designed for ease of use, effective recovery, and to withstand severe conditions. This trommel is manufactured to fit into shipping containers perfectly and can be easily transported to your locations. We distribute the ST50 Trommel worldwide.
Please contact us for more information.
