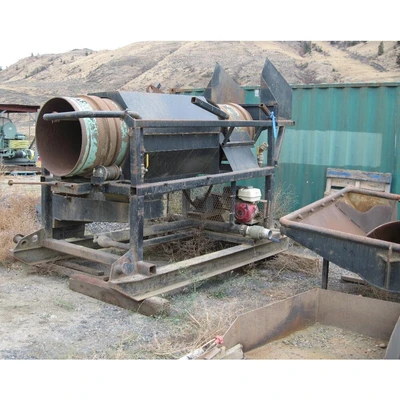

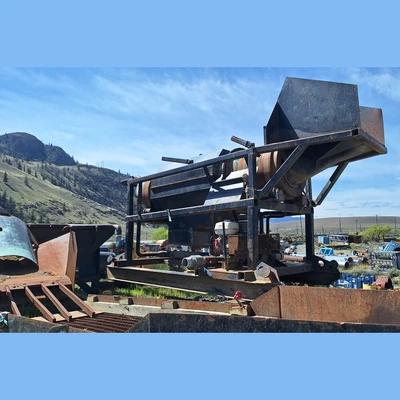

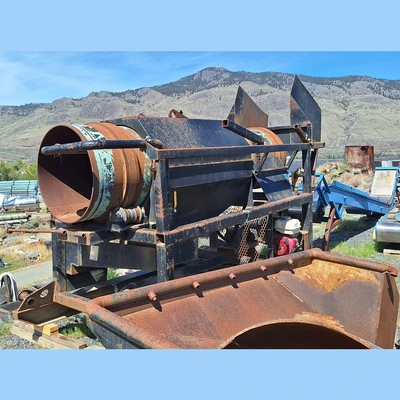

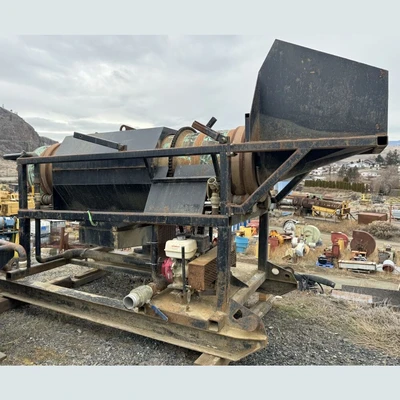

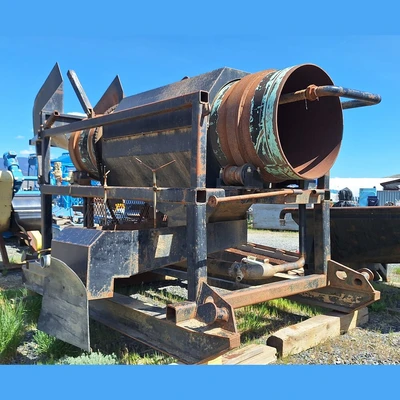

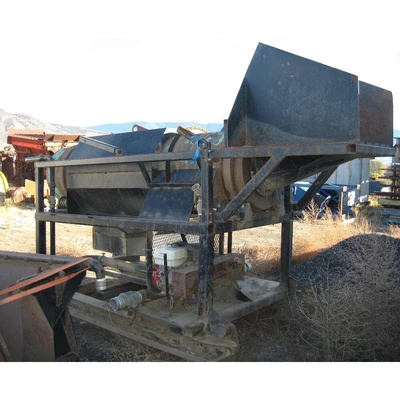

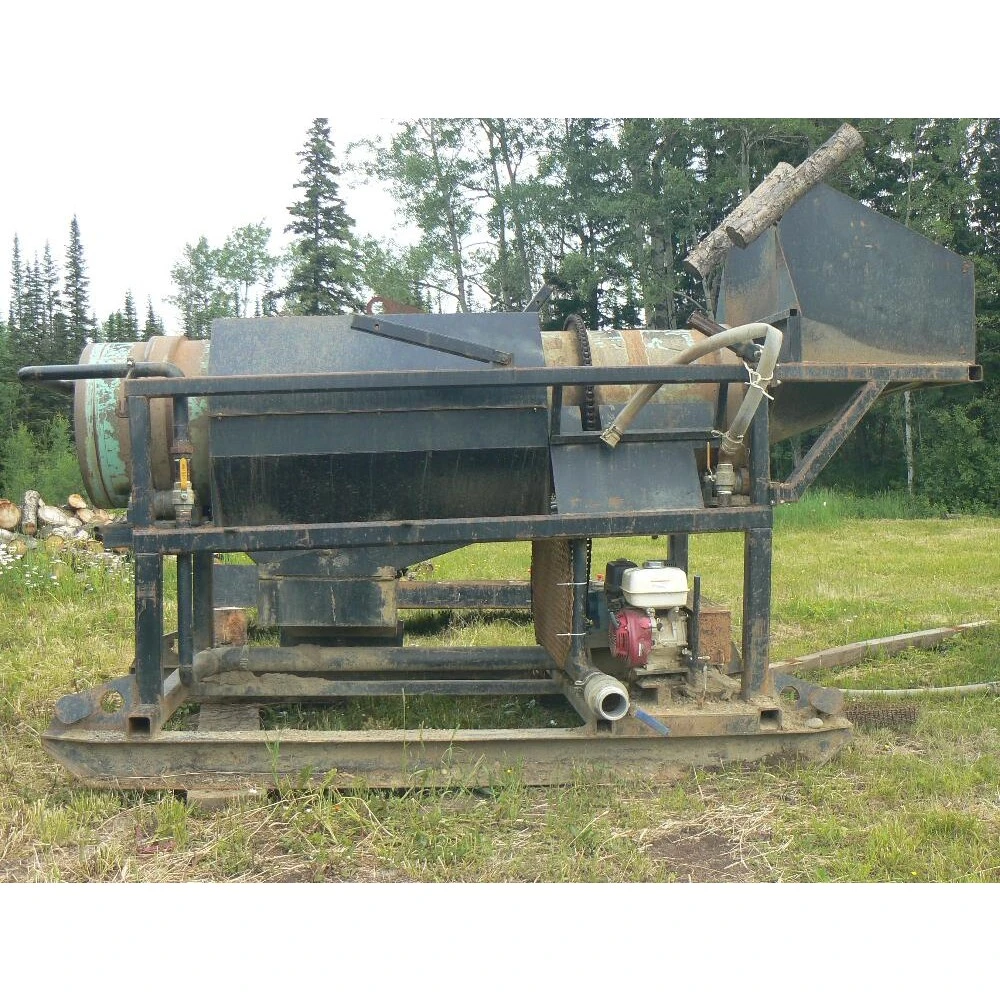

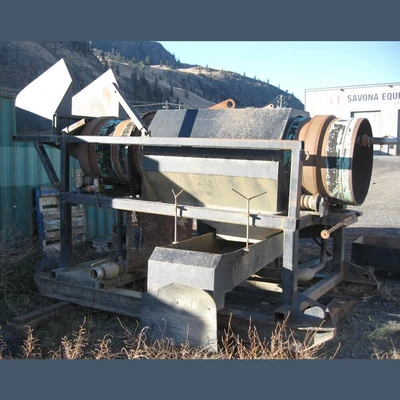

30in Dia. x 10ft Long Trommel

30in Dia. x 10ft Long Trommel
Make: Custom Built
Condition: Used Condition
Type: Trommel
Diameter: 30in Diameter
Length: 10ft Long
Capacity: 30-40 YPH

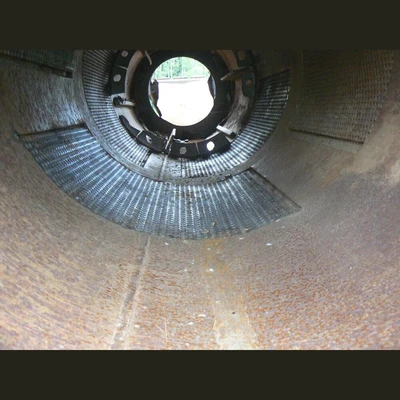

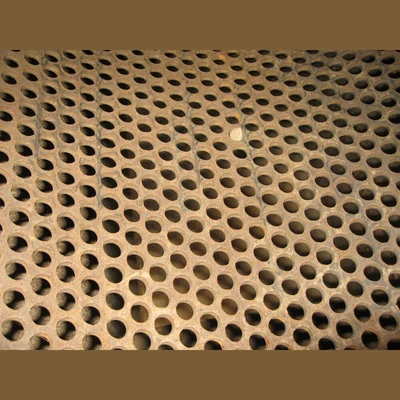

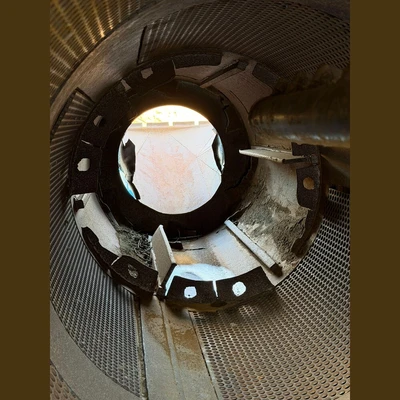

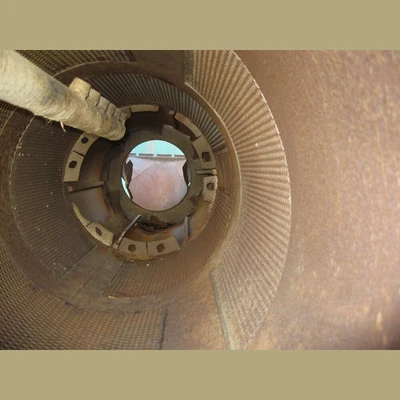

Screening Section: (2) 24in Screening Sections - 1/2in Punch Plate Newly Installed

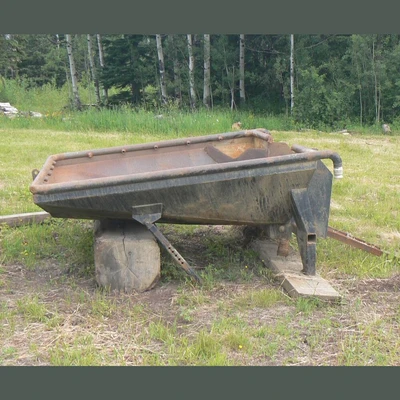

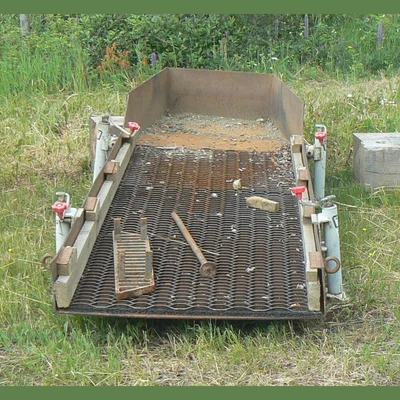

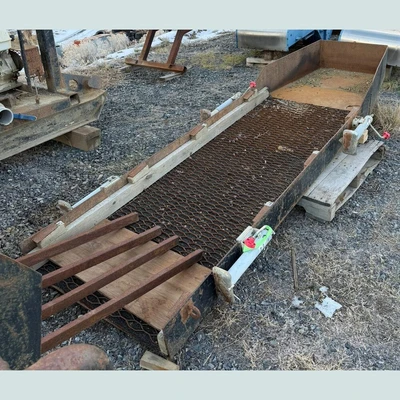

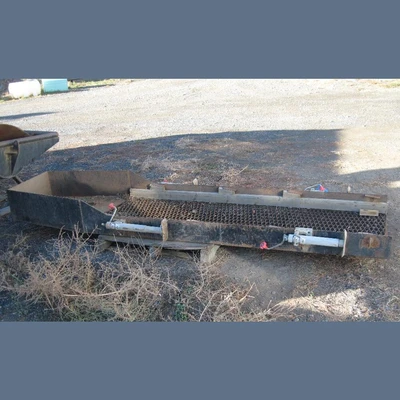

Sluice: 30in Wide x 10ft Long
With Expanded Metal and Miner's Moss
With Expanded Metal and Miner's Moss

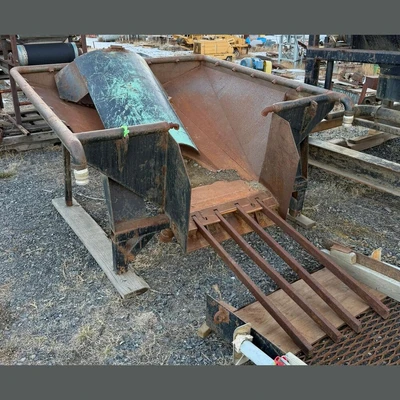

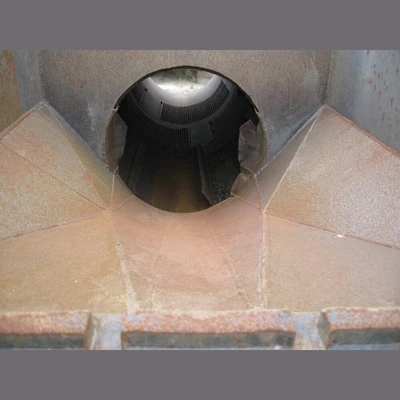

Feed Hopper: 74in Long x 71in Wide x 22in Tapering to 13in (Inner Dimensions)
Adjustable Mounting Positions (Bolt-On)
Adjustable Mounting Positions (Bolt-On)
Water Connection: 4in Dia.

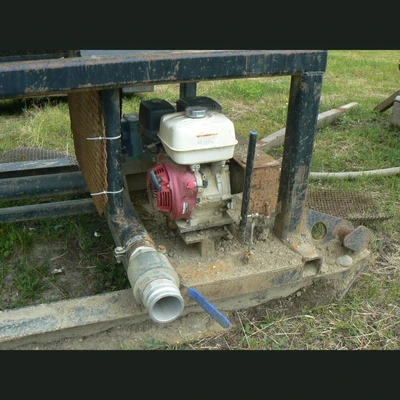

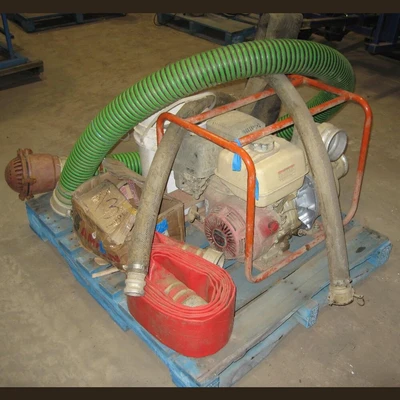

Water Pump: 4in Bearcat SP4422 Water Pump Complete with Suction and Discharge Hoses
Powered by Honda GX390 Gas-Powered Engine
Flow Rate: 422 GPM Max.
Lift: 26ft Suction Lift, 98ft Total Lift
Powered by Honda GX390 Gas-Powered Engine
Flow Rate: 422 GPM Max.
Lift: 26ft Suction Lift, 98ft Total Lift

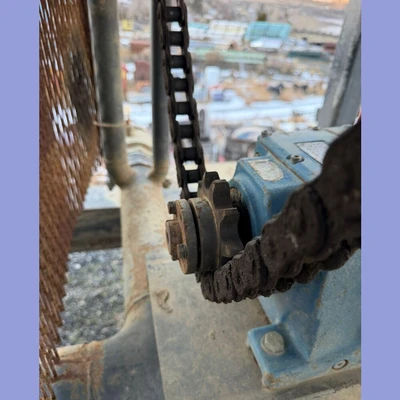

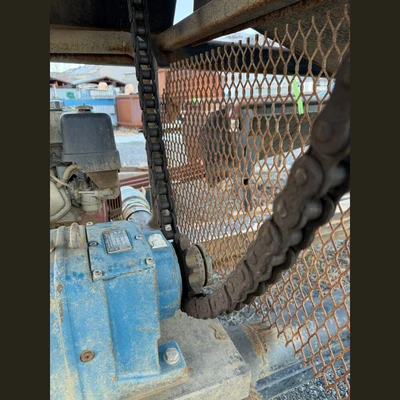

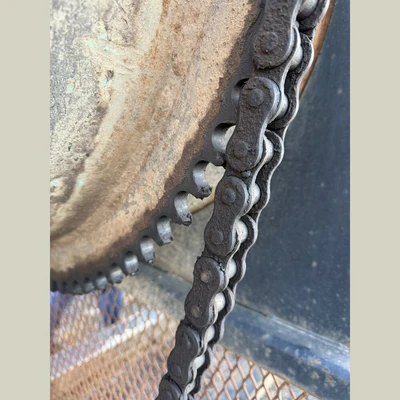

Trommel Drive: Chain-Driven by Honda GX390 Gas-Powered Engine Thru David-Brown Radicon Gear Reducer
Skid Mounted
Overall Dimensions: (Feed Hopper/Chute and Sluice Disconnected)
Length: 13ft 6in
Width: 7ft
Height: 8ft
Weight: 4500 Lbs. (Approx.)
Feeder Chute: 6ft Wide x 6ft 6in Long
Length: 13ft 6in
Width: 7ft
Height: 8ft
Weight: 4500 Lbs. (Approx.)
Feeder Chute: 6ft Wide x 6ft 6in Long
Location: Savona, British Columbia, Canada
