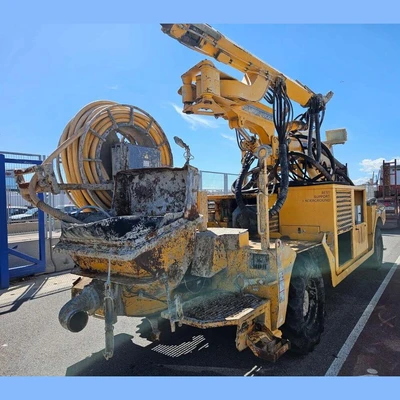

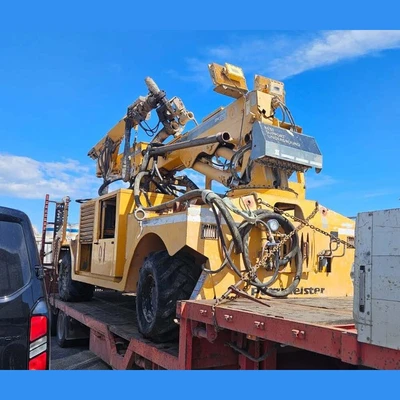

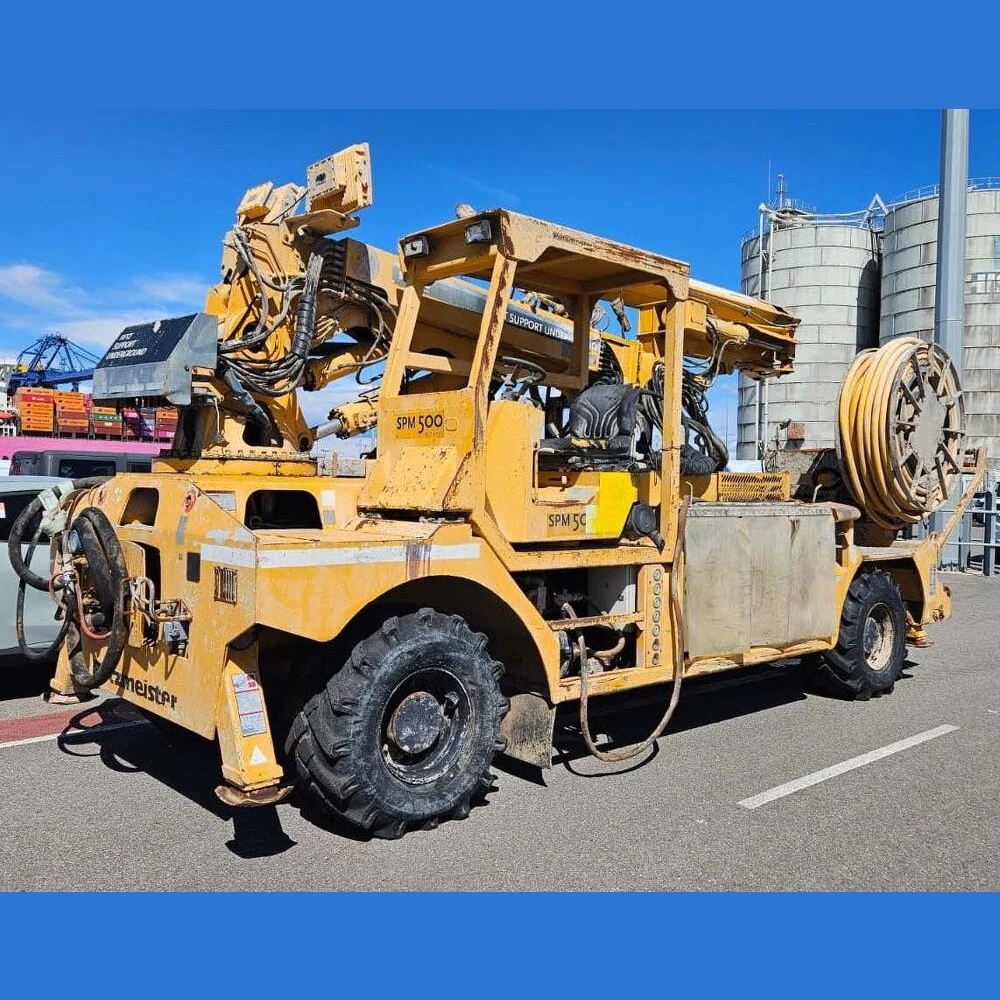

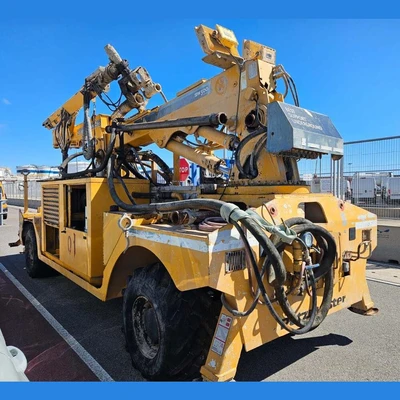

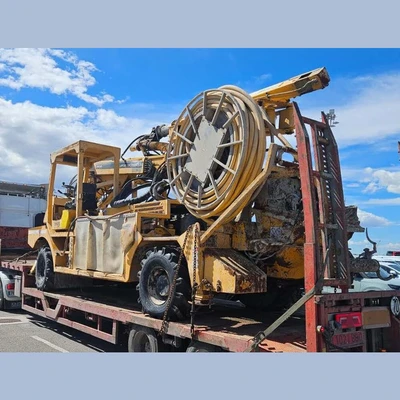

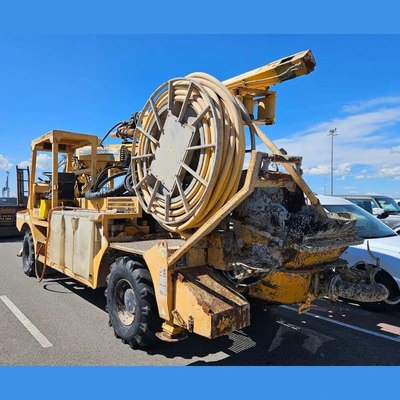

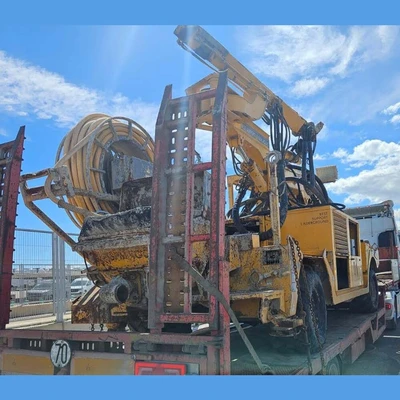

USED 2014 PUTZMEISTER SPM-500 WETKRET

Putzmeister SPM-500 Wetkret Shotcrete Sprayer
Make: Putzmeister
Model: SPM-500 Wetkret
Type: Shotcrete/Concrete Sprayer
Year: 2014
Hours: 2500 Hours (Approx.)
Condition: Used Condition
Spray Reach: 17m
Flow Rate: 30m³/h
General Model Specifications:
Putzmeister Telescopic Spraying Arm SA 17.2
Max Spraying Reach:
Vertical: 17 m
Horizontal: 15 m
Min Unfolding Section:
Vertical: 4 m
Horizontal: 7.7 m
Min Working Section:
Vertical: 3 m
Horizontal: 2.8 m
Number of Arm Extensions: (2) Telescopic
Telescopic stroke: (2) x 2,000 mm
Number of Axles/Degrees of Freedom: 9
Maximum Arm Angle: +60º/+30º -23º/-62º
Lights: (2) Spotlights 750w, Halogen
Spraying Head:
Rotation: 360º
Inclination: +120º / -120º
Nutation: 8º
Nozzle: DN40 / DN50
Putzmeister Concrete Pump PM 1810:
Type: Double-Piston, Hydraulic Drive
Max. Flow (Theor.): 4 – 30 m3/h
Transport Cylinder Diameter: 180 mm
Max. Pressure (Theor.) on Concrete: 75 bar
Max. Aggregate Size: 16 mm
Automatic Lubrication System
Hopper:
Full Hopper Capacity: 350 L
Filling Height: 1,440 mm
Spotlight: 24 V / 70 W
Pumping and Spraying Drive System:
Electric: 55 kW
Diesel (DUAL DRIVE version): Carrier Diesel Engine
Additive Pump Synchronized with Concrete Pumping:
Adjustment Range: 30 - 700 l/h
Max Working Pressure: 10.5 bar
Additive Tank: 1,000 L
Control System: PLC
Cable Reel:
Operation: Hydraulic
Collector: 4 x 300 A, 36 RPM
Cable Length: 50 m / 100 m Optional
Cable Diameter: 53-61 mm
Power 400 Volt/50Hz or 440 Volt/60Hz
Diameter: 1,400 mm
High Pressure Water Pump for Cleaning:
Motor Output: 6 kW
Max. Pressure: 200 bar
Flow: 15 l/min
Hose: 15 m
Putzmeister Off-Road Vehicle, 4-Wheel Drive:
Engine: Diesel, 4 Cylinders
Engine Power: 70 kW @ 2,200 RPM
Engine Emissions: inline with EU-Stage III A / EPA-Tier 3
Transmission: Hydrostatic
Gearbox: 2-Speed in Both Directions
Steering: Four-Wheel Hydraulic Steering (4WS), Crab Mode
Traction: 4-Wheel Drive
Speed: Max. 20 km/h
Braking System:
Service Brakes: 4-Wheel Hydraulic Multi-Disc Brakes in Oil Bath
Parking Brake: 2-Wheel Independent, Hydraulic Multi-Disc Brakes in Oil Bath, Manual
Emergency Brake
Working Lights: 4 Halogen Spotlights - 24V 70W H3
Driver Cabin: FOPS/ROPS Certified, with 180° Swivel Seat
Oil Tank: 390 L
Electrical Equipment: (2) 12V 110A Batteries
Diesel Tank: 150 L
Putzmeister Remote Control:
Drive: Cable / Radio (Optional)
Cable Length: 15 m
Weight: 16,000 kg / 15,500 kg without Compressor Brake Hydraulic
Putzmeister Telescopic Spraying Arm SA 17.2
Max Spraying Reach:
Vertical: 17 m
Horizontal: 15 m
Min Unfolding Section:
Vertical: 4 m
Horizontal: 7.7 m
Min Working Section:
Vertical: 3 m
Horizontal: 2.8 m
Number of Arm Extensions: (2) Telescopic
Telescopic stroke: (2) x 2,000 mm
Number of Axles/Degrees of Freedom: 9
Maximum Arm Angle: +60º/+30º -23º/-62º
Lights: (2) Spotlights 750w, Halogen
Max Spraying Reach:
Vertical: 17 m
Horizontal: 15 m
Vertical: 17 m
Horizontal: 15 m
Min Unfolding Section:
Vertical: 4 m
Horizontal: 7.7 m
Vertical: 4 m
Horizontal: 7.7 m
Min Working Section:
Vertical: 3 m
Horizontal: 2.8 m
Vertical: 3 m
Horizontal: 2.8 m
Number of Arm Extensions: (2) Telescopic
Telescopic stroke: (2) x 2,000 mm
Number of Axles/Degrees of Freedom: 9
Maximum Arm Angle: +60º/+30º -23º/-62º
Lights: (2) Spotlights 750w, Halogen
Spraying Head:
Rotation: 360º
Inclination: +120º / -120º
Nutation: 8º
Nozzle: DN40 / DN50
Rotation: 360º
Inclination: +120º / -120º
Nutation: 8º
Nozzle: DN40 / DN50
Putzmeister Concrete Pump PM 1810:
Type: Double-Piston, Hydraulic Drive
Max. Flow (Theor.): 4 – 30 m3/h
Transport Cylinder Diameter: 180 mm
Max. Pressure (Theor.) on Concrete: 75 bar
Max. Aggregate Size: 16 mm
Automatic Lubrication System
Type: Double-Piston, Hydraulic Drive
Max. Flow (Theor.): 4 – 30 m3/h
Transport Cylinder Diameter: 180 mm
Max. Pressure (Theor.) on Concrete: 75 bar
Max. Aggregate Size: 16 mm
Automatic Lubrication System
Hopper:
Full Hopper Capacity: 350 L
Filling Height: 1,440 mm
Spotlight: 24 V / 70 W
Full Hopper Capacity: 350 L
Filling Height: 1,440 mm
Spotlight: 24 V / 70 W
Pumping and Spraying Drive System:
Electric: 55 kW
Diesel (DUAL DRIVE version): Carrier Diesel Engine
Electric: 55 kW
Diesel (DUAL DRIVE version): Carrier Diesel Engine
Additive Pump Synchronized with Concrete Pumping:
Adjustment Range: 30 - 700 l/h
Max Working Pressure: 10.5 bar
Additive Tank: 1,000 L
Control System: PLC
Adjustment Range: 30 - 700 l/h
Max Working Pressure: 10.5 bar
Additive Tank: 1,000 L
Control System: PLC
Cable Reel:
Operation: Hydraulic
Collector: 4 x 300 A, 36 RPM
Cable Length: 50 m / 100 m Optional
Cable Diameter: 53-61 mm
Power 400 Volt/50Hz or 440 Volt/60Hz
Diameter: 1,400 mm
Operation: Hydraulic
Collector: 4 x 300 A, 36 RPM
Cable Length: 50 m / 100 m Optional
Cable Diameter: 53-61 mm
Power 400 Volt/50Hz or 440 Volt/60Hz
Diameter: 1,400 mm
High Pressure Water Pump for Cleaning:
Motor Output: 6 kW
Max. Pressure: 200 bar
Flow: 15 l/min
Hose: 15 m
Motor Output: 6 kW
Max. Pressure: 200 bar
Flow: 15 l/min
Hose: 15 m
Putzmeister Off-Road Vehicle, 4-Wheel Drive:
Engine: Diesel, 4 Cylinders
Engine Power: 70 kW @ 2,200 RPM
Engine Emissions: inline with EU-Stage III A / EPA-Tier 3
Transmission: Hydrostatic
Gearbox: 2-Speed in Both Directions
Steering: Four-Wheel Hydraulic Steering (4WS), Crab Mode
Traction: 4-Wheel Drive
Speed: Max. 20 km/h
Braking System:
Service Brakes: 4-Wheel Hydraulic Multi-Disc Brakes in Oil Bath
Parking Brake: 2-Wheel Independent, Hydraulic Multi-Disc Brakes in Oil Bath, Manual
Emergency Brake
Working Lights: 4 Halogen Spotlights - 24V 70W H3
Driver Cabin: FOPS/ROPS Certified, with 180° Swivel Seat
Oil Tank: 390 L
Electrical Equipment: (2) 12V 110A Batteries
Diesel Tank: 150 L
Engine: Diesel, 4 Cylinders
Engine Power: 70 kW @ 2,200 RPM
Engine Emissions: inline with EU-Stage III A / EPA-Tier 3
Transmission: Hydrostatic
Gearbox: 2-Speed in Both Directions
Steering: Four-Wheel Hydraulic Steering (4WS), Crab Mode
Traction: 4-Wheel Drive
Speed: Max. 20 km/h
Braking System:
Service Brakes: 4-Wheel Hydraulic Multi-Disc Brakes in Oil Bath
Parking Brake: 2-Wheel Independent, Hydraulic Multi-Disc Brakes in Oil Bath, Manual
Emergency Brake
Service Brakes: 4-Wheel Hydraulic Multi-Disc Brakes in Oil Bath
Parking Brake: 2-Wheel Independent, Hydraulic Multi-Disc Brakes in Oil Bath, Manual
Emergency Brake
Working Lights: 4 Halogen Spotlights - 24V 70W H3
Driver Cabin: FOPS/ROPS Certified, with 180° Swivel Seat
Oil Tank: 390 L
Electrical Equipment: (2) 12V 110A Batteries
Diesel Tank: 150 L
Putzmeister Remote Control:
Drive: Cable / Radio (Optional)
Cable Length: 15 m
Weight: 16,000 kg / 15,500 kg without Compressor Brake Hydraulic
Drive: Cable / Radio (Optional)
Cable Length: 15 m
Weight: 16,000 kg / 15,500 kg without Compressor Brake Hydraulic
Location: Europe
