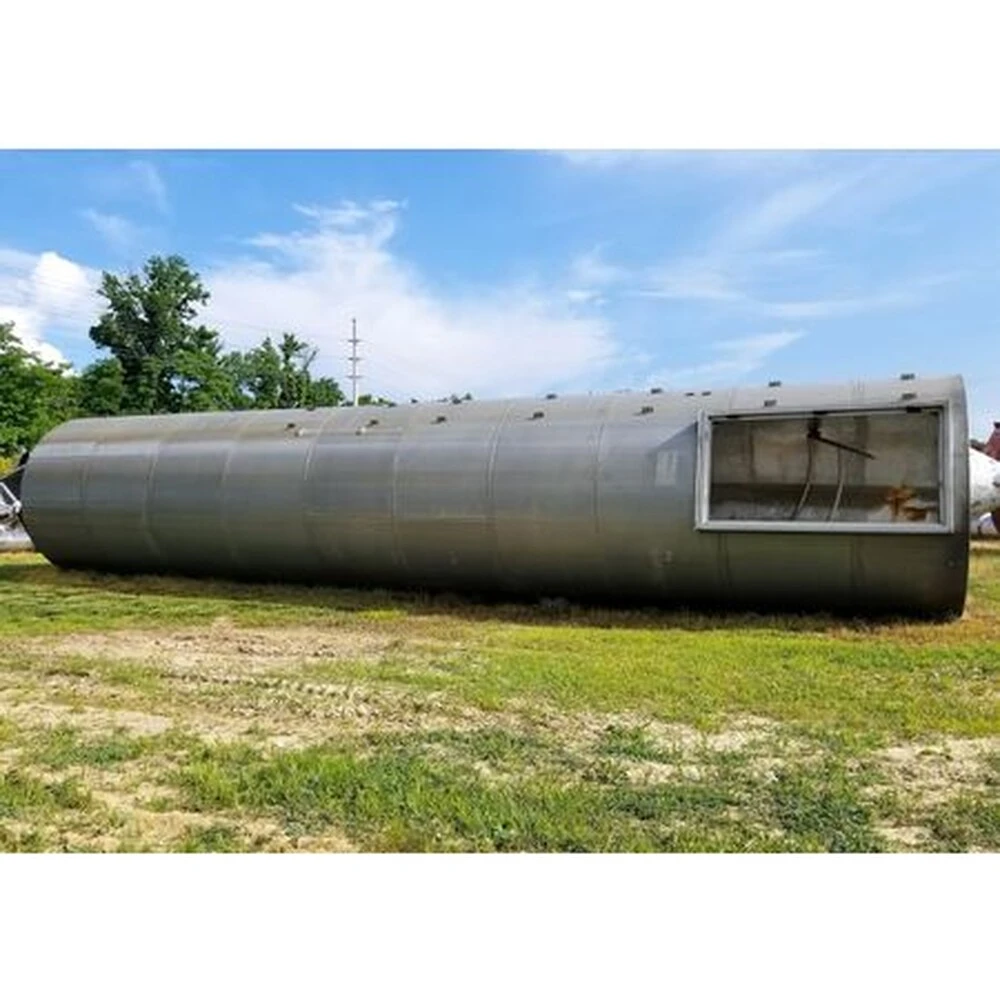

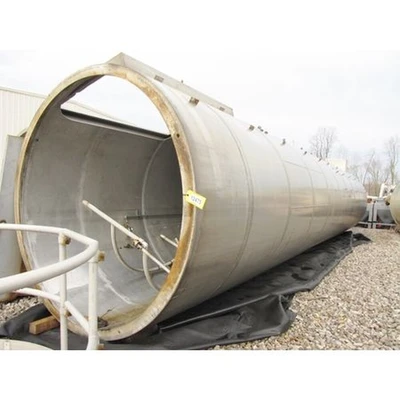

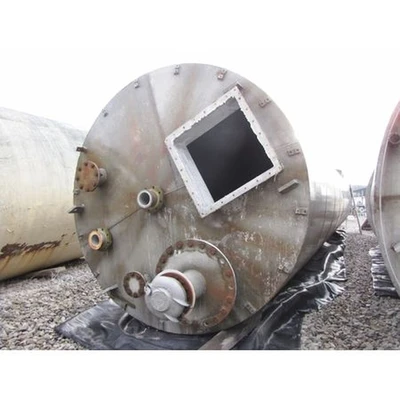

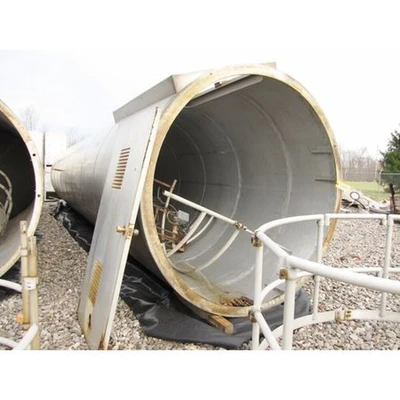

882 Cubic Foot Aluminum Silo

8' Dia. x 39' High
1/4" Thick all Welded 5052 Aluminum Alloy Construction
Multi-Ported Top Fill with:
Sloped Cover & Handrail Ring
Skirted Base
Eccentric Cone Discharge with:
6"ø Ansi 150 Flange Connection with:
15'-3" Clearance to Base.
Sloped Cover & Handrail Ring
Skirted Base
Eccentric Cone Discharge with:
6"ø Ansi 150 Flange Connection with:
15'-3" Clearance to Base.
6"ø Ansi 150 Flange Connection with:
15'-3" Clearance to Base.
15'-3" Clearance to Base.
Designed for 100mph Max
Wind Loads and Zone I Seismic Conditions
For Dry, Free Flowing Material (60lb cu/ft)
Empty Weight: 5034lbs
Flange on Top of the Aluminum Silo is 24" Square
Location: Eastern USA
