7TPH Silica Sand Processing Plant

7TPH Silica Sand Processing Plant
Capacity: 7 Tons Per Hour
Condition: Used Condition

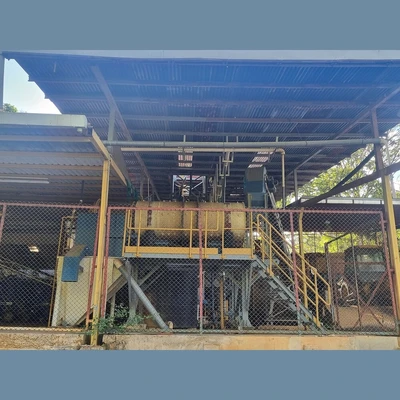

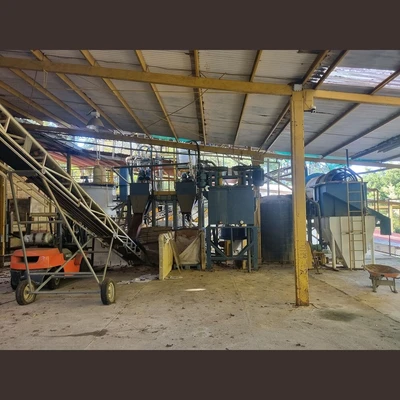

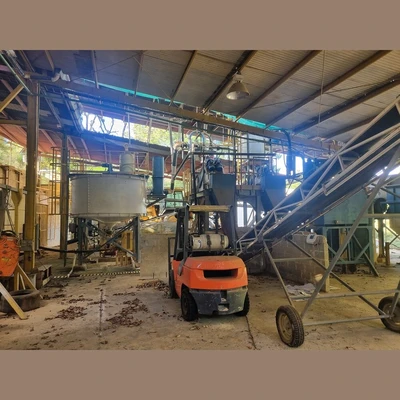

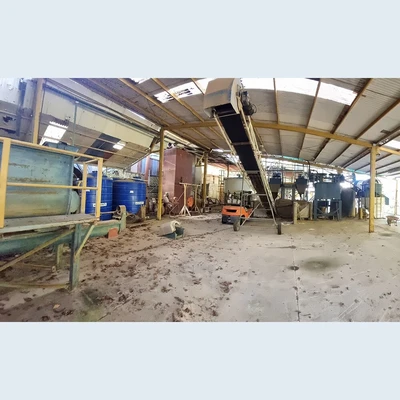

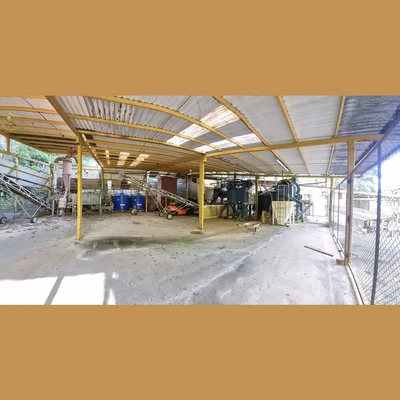

General Description: Compact Siliceous Sands Processing Plant, designed for Washing, Sorting and Recovering Sands for a Production of 7 TPH. Composed of Several Stages including Feeding Module, Washing Cylinder, Pumping Group, Screening Module, Compact Plant, Stacking Belt, Clarifier, Flocculation Equipment, Attrition Scrubber, 10,000 Liter Water Storage Tank, Electrical Cabinet and Equipment Control.

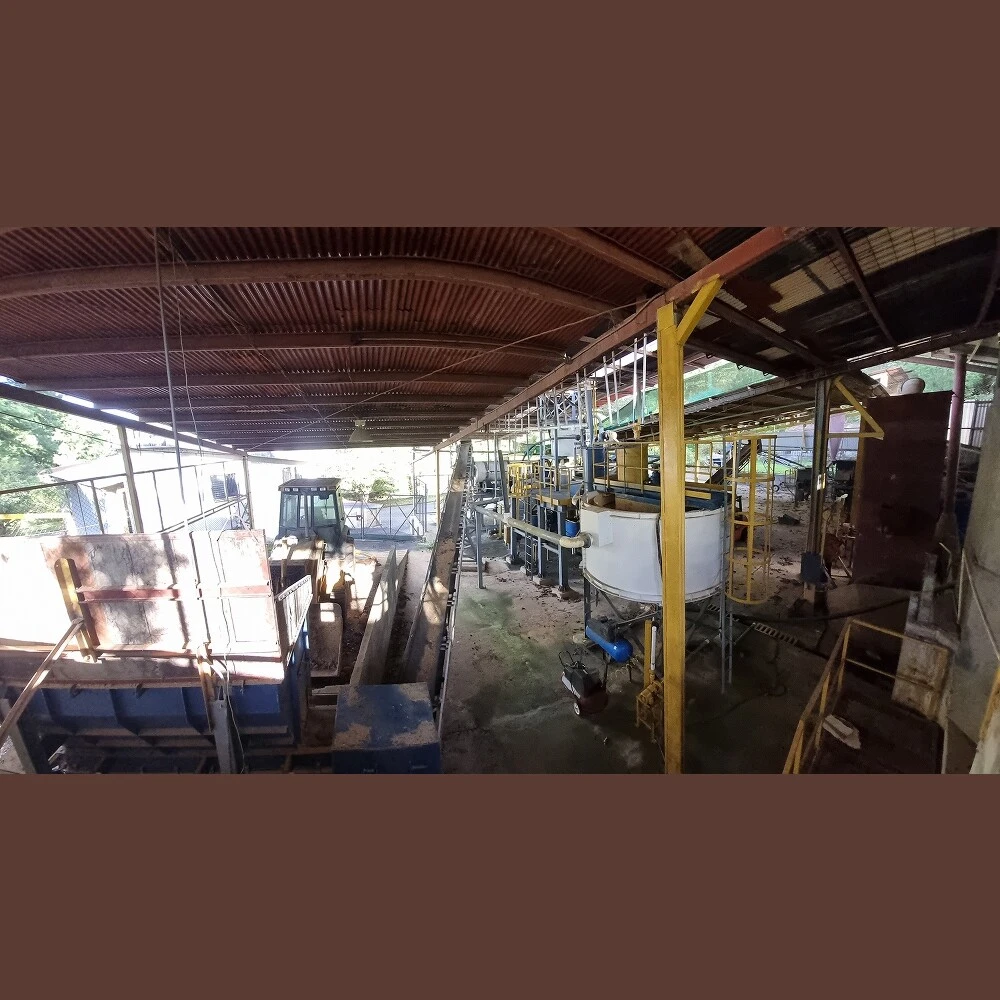

Operation: The feed material, coming from the feed module, which is transported by the conveyor belt to the washing system - in this case a washing cylinder - and is taken by the pumping group to the hydrocyclone stages which eliminates unwanted particles, then passes to the attrition scrubber to remove the impurities adhered to the grains of the material. Subsequently, the washed product goes to several stages of hydrocyclone and finally to the screening module to reduce the humidity of the final product and thus achieve a manipulable product of the highest quality.
Equipment List:
1. Power Module:
a) Feed Hopper
b) Belt Feeder 500x3.5, 2.2kW
2. Conveyor Belt:
a) Conveyor Belt 500x15 3kW
b) Conveyor Belt 500x10 2.2kW
c) Conveyor Belt 500x10 2.2kW
3. Washing Cylinder CM 11.03:
a) Cuba, Sky-Type Structure, Suction Tube and Float
4. Pumping Group:
a) Franklin Electric Pump (10,000 Liter Water Storage Tank)
b) Warman 3/2 Pump with CV Motor Support and Belt Protector (Washing Cylinder Hopper)
c) Unmarked 2/2 Pump with Motor Mount and Belt Guard (Hydro Sorter 1)
d) On-Site 2/2 Pump with Motor Mount and Mail Protector (Hydro Sorter 2)
e) Warman 3/2 Pump with CV Motor Support and Belt Protector (Hydro Classifier 3)
f) Emerson 3/2 Pump (Tower and Sprinklers)
g) Monarch 2/2 Pump (Thickening Tank)
h) Leroy Somer Motor
i) Butterfly Valve
5. Screening Module:
a) Centrifugal Screen ZS-600
6. Hydrocyclone 150mm:
a) Hydrocyclone PP015903 IV (EV-22)
b) Hydrocyclone PP015903 IV (EV-22)
c) Hydrocyclone PP015903 IV (Tower)
d) Hydrocyclone PP015903 IV (Attrition Scrubber)
7. Vibrating Drainers:
a) EV-22 Vibrating Drainer
b) EV-23 Vibrating Drainer
8. Clarifying Tank T-03:
a) T-03 EAR Thickening Tank
b) SOM Reducer
c) Leroy Somer Motor
d) Blade Valve
e) Butterfly Valve
f) PAR Limiter
g) Visualizer
h) Compressor
i) Warman Pump 1.5/1 7.5kW (Sludge)
9. Flocculation Equipment EF-250:
a) Dosing Pump GA 90 P6P3 with 0.12kW Motor
b) Electro Agitator DHR 200/300, with 0.45kW Reducer Motor
c) Funnel Eductor
10. Attrition Scrubber
11. Electrical Cabinet For Whole Plant
1. Power Module:
a) Feed Hopper
b) Belt Feeder 500x3.5, 2.2kW
a) Feed Hopper
b) Belt Feeder 500x3.5, 2.2kW
2. Conveyor Belt:
a) Conveyor Belt 500x15 3kW
b) Conveyor Belt 500x10 2.2kW
c) Conveyor Belt 500x10 2.2kW
a) Conveyor Belt 500x15 3kW
b) Conveyor Belt 500x10 2.2kW
c) Conveyor Belt 500x10 2.2kW
3. Washing Cylinder CM 11.03:
a) Cuba, Sky-Type Structure, Suction Tube and Float
a) Cuba, Sky-Type Structure, Suction Tube and Float
4. Pumping Group:
a) Franklin Electric Pump (10,000 Liter Water Storage Tank)
b) Warman 3/2 Pump with CV Motor Support and Belt Protector (Washing Cylinder Hopper)
c) Unmarked 2/2 Pump with Motor Mount and Belt Guard (Hydro Sorter 1)
d) On-Site 2/2 Pump with Motor Mount and Mail Protector (Hydro Sorter 2)
e) Warman 3/2 Pump with CV Motor Support and Belt Protector (Hydro Classifier 3)
f) Emerson 3/2 Pump (Tower and Sprinklers)
g) Monarch 2/2 Pump (Thickening Tank)
h) Leroy Somer Motor
i) Butterfly Valve
a) Franklin Electric Pump (10,000 Liter Water Storage Tank)
b) Warman 3/2 Pump with CV Motor Support and Belt Protector (Washing Cylinder Hopper)
c) Unmarked 2/2 Pump with Motor Mount and Belt Guard (Hydro Sorter 1)
d) On-Site 2/2 Pump with Motor Mount and Mail Protector (Hydro Sorter 2)
e) Warman 3/2 Pump with CV Motor Support and Belt Protector (Hydro Classifier 3)
f) Emerson 3/2 Pump (Tower and Sprinklers)
g) Monarch 2/2 Pump (Thickening Tank)
h) Leroy Somer Motor
i) Butterfly Valve
5. Screening Module:
a) Centrifugal Screen ZS-600
a) Centrifugal Screen ZS-600
6. Hydrocyclone 150mm:
a) Hydrocyclone PP015903 IV (EV-22)
b) Hydrocyclone PP015903 IV (EV-22)
c) Hydrocyclone PP015903 IV (Tower)
d) Hydrocyclone PP015903 IV (Attrition Scrubber)
a) Hydrocyclone PP015903 IV (EV-22)
b) Hydrocyclone PP015903 IV (EV-22)
c) Hydrocyclone PP015903 IV (Tower)
d) Hydrocyclone PP015903 IV (Attrition Scrubber)
7. Vibrating Drainers:
a) EV-22 Vibrating Drainer
b) EV-23 Vibrating Drainer
a) EV-22 Vibrating Drainer
b) EV-23 Vibrating Drainer
8. Clarifying Tank T-03:
a) T-03 EAR Thickening Tank
b) SOM Reducer
c) Leroy Somer Motor
d) Blade Valve
e) Butterfly Valve
f) PAR Limiter
g) Visualizer
h) Compressor
i) Warman Pump 1.5/1 7.5kW (Sludge)
a) T-03 EAR Thickening Tank
b) SOM Reducer
c) Leroy Somer Motor
d) Blade Valve
e) Butterfly Valve
f) PAR Limiter
g) Visualizer
h) Compressor
i) Warman Pump 1.5/1 7.5kW (Sludge)
9. Flocculation Equipment EF-250:
a) Dosing Pump GA 90 P6P3 with 0.12kW Motor
b) Electro Agitator DHR 200/300, with 0.45kW Reducer Motor
c) Funnel Eductor
a) Dosing Pump GA 90 P6P3 with 0.12kW Motor
b) Electro Agitator DHR 200/300, with 0.45kW Reducer Motor
c) Funnel Eductor
10. Attrition Scrubber
11. Electrical Cabinet For Whole Plant
Equipment Description:

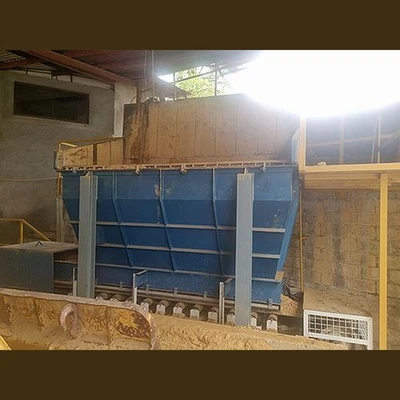

1. Feed Module:
1.a) Description: Feed Hopper
Capacity: 3m³
Date of Construction: 09/05
1. b) Description: Belt Feeder
Model: AB-500mmx3.5mm
Date of Construction: 09/05
Drive: Bauer BF80-04/ D11LA4-TF - 5.5kW, 400V, 50Hz, 1420 RPM

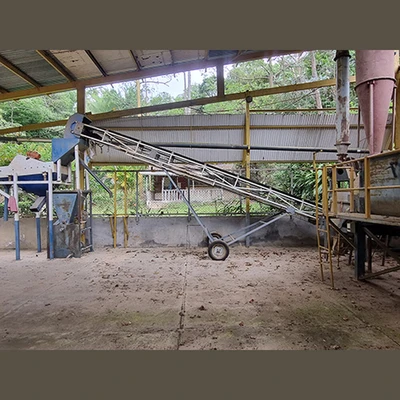

2. Conveyor Belt:
2. a) Description: Conveyor Belt
Model: CT-500mmx15mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, MVF 130P - 3kW, 440/760V, 60Hz, 1128 RPM
2. b) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
2. c) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM

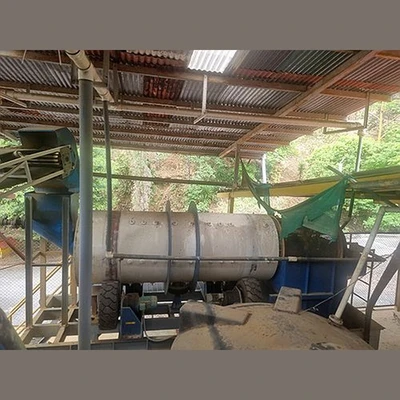

3. Washing Cylinder:
3. a) Description: Cylinder Washer
Model: Cm-11.03 C/RG
Date of Construction: 09/05
1.16m x 3.0m Long Ferrule with Interchangeable Natural Rubber Inner Lining
Trommel Exterior with 4 Metal Sieves = 2.36mm
Trommel Interior Perforated Sheet = 20mm
Feed Hopper of Rubberized Sheet Steel with Feed Water Connection and Opening for Feed Belt Width of 500mm

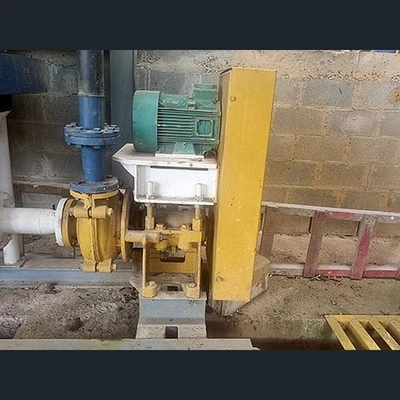

4. Pumping Group:
4. a) Description: Franklin Electric Pump
Model: 75DB3-7
Date of Construction: -

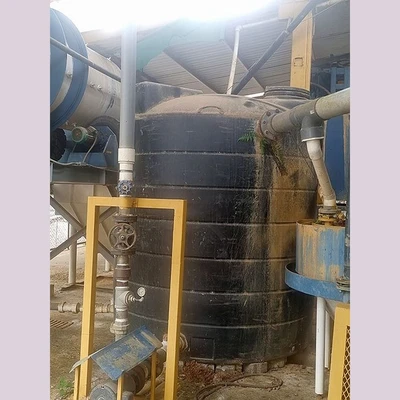

Position: 10,000 Liter Water Storage Tank
Equipped with: Marathon Electric Motor
4. b) Description: Square Pumping Group
Model: GBC-11/50.7
Date of Construction: 09/05
Position: Washing Cylinder Hopper
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly Valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. c) Description: D.I Aceros
Model: -
Date of construction: 2009
Position: Hydro Classifier 1
Equipped: WEG 10HP Motor
4. d) Description: D.I Aceros
Model: -
Date of Construction: 2009
Position: Hydro Classifier 2
Equipped: WEG 10HP Motor
4. e) Description: Pumping Group
Model: GB-11/50.7
Date of Construction: 09/05
Position: Hydro Classifier 3
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. f) Description: Franklin Electric
Model: -
Date of Construction: -
Position: Tower and Sprinklers
Equipped With: Emerson Electric Motor
4. g) Description: Monarch Pumps
Model: -
Date of Construction: -
Position: Feeding Thickener Tank
Equipped With: Baldor Electric Motor
5. Screening Module:
5. a) Description: Centrifugal Screen
Model: ZS-600
Date of Construction: 09/05
6. Hydrocyclone Equipment:
6. a) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: EV-22
6. b) Description: Hydrocyclone
Model: PP015903IV
Date of Construction: 09/05
Position: EV-22
6. c) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Tower
6. d) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Attrition Scrubber

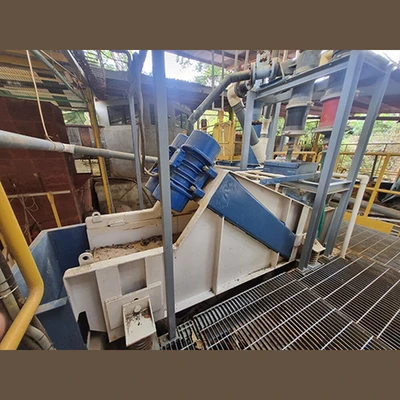

7. Vibrating Drainer Module:
7. a) Description: Vibrating Drainer
Model: EV-22
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/1410 S-90 – 1.05kW/ud., 460V, 60Hz, 1800 RPM
7. b) Description: Vibrating Drainer
Model: EV-23
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/2410 S-90 – 1.7kw/Ud., 460V, 60Hz, 1800 RPM

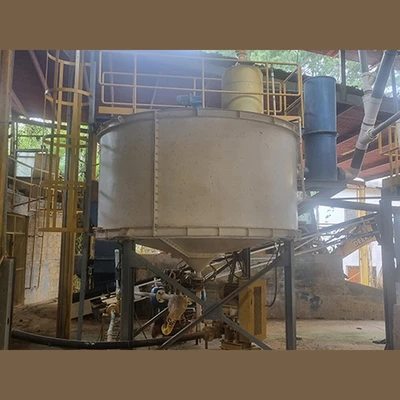

8. Clarifying Tank:
8. a) Description: Thickening Tank
Model: T-03 EAR
Date of Construction: 09/05
Equipped With:
Gearmotor Unit 0.66kW
Butterfly Valve DN-50 with Automatic Actuation
Knife Valve SLN-11 DN-65, Pneumatic Drive, Double Effect, Solenoid Valve (60Hz)
Ball Valves
EL-FI M-20 Torque Limiter (included in Cabinet)
UDM40LSEXXR2XX Display (included in Cabinet)
Air Compressor, 1.5kW, 100Lt.
Warman Pump
Leroy Somer Electric Motor

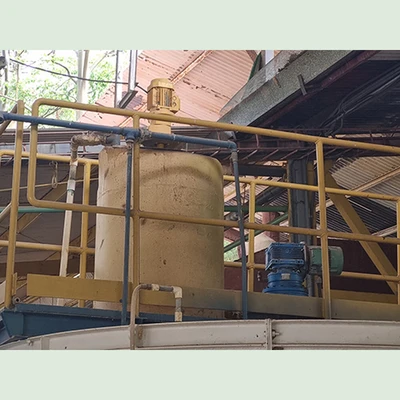

9. Flocculation Equipment:
9. a) Description: Flocculation Equipment
Model: EF-250
Date of Construction: 09/05
Equipped With:
Dosing Pump GA 90P6P3 with 0.12kW Motor
Agitator DHR 200/300, with 0.45kW Geared Motor
Funnel Eductor
10. Attrition Scrubber:
10. a) Description: Rimuca
Model: -
Date of Construction: 04/2010
Equipped With:
Constructed of 1/4" Black Iron Sheets
Polyurethane-Coated Blades
25HP, 880 RPM Motors
Axis
Upwards Pumping Impeller
Downward Pumping Impeller
Metal Drawer

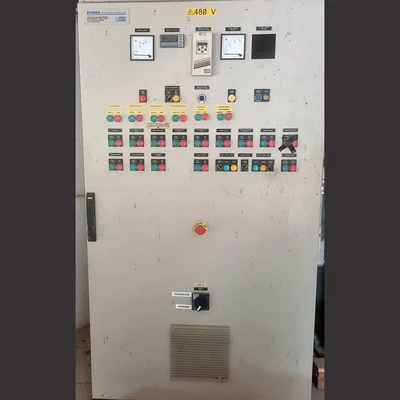

11. Electrical Cabinet:
11. a) Description: Electrical Cabinet
Model: -
Date of Construction: 09/05
Equipped With:
Control and Power Control Cabinet for Drive of Belt Feeder, Feeding Belt, Washing Cylinder, Drainers, Conveyor Belts, Pumping Groups, Thickening Tank, Thickening Equipment, Flocculation, Water Pump, and Compressor
Dimensions: 1900mm x 1000mm x 600mm
IP-55 protection
1. Feed Module:
1.a) Description: Feed Hopper
Capacity: 3m³
Date of Construction: 09/05
1. b) Description: Belt Feeder
Model: AB-500mmx3.5mm
Date of Construction: 09/05
Drive: Bauer BF80-04/ D11LA4-TF - 5.5kW, 400V, 50Hz, 1420 RPM
1.a) Description: Feed Hopper
Capacity: 3m³
Date of Construction: 09/05
Capacity: 3m³
Date of Construction: 09/05
1. b) Description: Belt Feeder
Model: AB-500mmx3.5mm
Date of Construction: 09/05
Drive: Bauer BF80-04/ D11LA4-TF - 5.5kW, 400V, 50Hz, 1420 RPM
Model: AB-500mmx3.5mm
Date of Construction: 09/05
Drive: Bauer BF80-04/ D11LA4-TF - 5.5kW, 400V, 50Hz, 1420 RPM
2. Conveyor Belt:
2. a) Description: Conveyor Belt
Model: CT-500mmx15mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, MVF 130P - 3kW, 440/760V, 60Hz, 1128 RPM
2. b) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
2. c) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
2. a) Description: Conveyor Belt
Model: CT-500mmx15mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, MVF 130P - 3kW, 440/760V, 60Hz, 1128 RPM
Model: CT-500mmx15mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, MVF 130P - 3kW, 440/760V, 60Hz, 1128 RPM
2. b) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
2. c) Description: Conveyor Belt
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
Model: CT-500mmx10mm
Date of Construction: 09/05
Drive: Bonfiglioli Motor-Reducer, W 110 UP - 2.2kW, 260/400V, 60Hz, 1692 RPM
3. Washing Cylinder:
3. a) Description: Cylinder Washer
Model: Cm-11.03 C/RG
Date of Construction: 09/05
1.16m x 3.0m Long Ferrule with Interchangeable Natural Rubber Inner Lining
Trommel Exterior with 4 Metal Sieves = 2.36mm
Trommel Interior Perforated Sheet = 20mm
Feed Hopper of Rubberized Sheet Steel with Feed Water Connection and Opening for Feed Belt Width of 500mm
3. a) Description: Cylinder Washer
Model: Cm-11.03 C/RG
Date of Construction: 09/05
1.16m x 3.0m Long Ferrule with Interchangeable Natural Rubber Inner Lining
Trommel Exterior with 4 Metal Sieves = 2.36mm
Trommel Interior Perforated Sheet = 20mm
Feed Hopper of Rubberized Sheet Steel with Feed Water Connection and Opening for Feed Belt Width of 500mm
Model: Cm-11.03 C/RG
Date of Construction: 09/05
1.16m x 3.0m Long Ferrule with Interchangeable Natural Rubber Inner Lining
Trommel Exterior with 4 Metal Sieves = 2.36mm
Trommel Interior Perforated Sheet = 20mm
Feed Hopper of Rubberized Sheet Steel with Feed Water Connection and Opening for Feed Belt Width of 500mm
4. Pumping Group:
4. a) Description: Franklin Electric Pump
Model: 75DB3-7
Date of Construction: -
Position: 10,000 Liter Water Storage Tank
Equipped with: Marathon Electric Motor
4. b) Description: Square Pumping Group
Model: GBC-11/50.7
Date of Construction: 09/05
Position: Washing Cylinder Hopper
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly Valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. c) Description: D.I Aceros
Model: -
Date of construction: 2009
Position: Hydro Classifier 1
Equipped: WEG 10HP Motor
4. d) Description: D.I Aceros
Model: -
Date of Construction: 2009
Position: Hydro Classifier 2
Equipped: WEG 10HP Motor
4. e) Description: Pumping Group
Model: GB-11/50.7
Date of Construction: 09/05
Position: Hydro Classifier 3
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. f) Description: Franklin Electric
Model: -
Date of Construction: -
Position: Tower and Sprinklers
Equipped With: Emerson Electric Motor
4. g) Description: Monarch Pumps
Model: -
Date of Construction: -
Position: Feeding Thickener Tank
Equipped With: Baldor Electric Motor
4. a) Description: Franklin Electric Pump
Model: 75DB3-7
Date of Construction: -
Position: 10,000 Liter Water Storage Tank
Equipped with: Marathon Electric Motor
Model: 75DB3-7
Date of Construction: -
Position: 10,000 Liter Water Storage Tank
Equipped with: Marathon Electric Motor
4. b) Description: Square Pumping Group
Model: GBC-11/50.7
Date of Construction: 09/05
Position: Washing Cylinder Hopper
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly Valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
Model: GBC-11/50.7
Date of Construction: 09/05
Position: Washing Cylinder Hopper
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly Valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly Valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. c) Description: D.I Aceros
Model: -
Date of construction: 2009
Position: Hydro Classifier 1
Equipped: WEG 10HP Motor
Model: -
Date of construction: 2009
Position: Hydro Classifier 1
Equipped: WEG 10HP Motor
4. d) Description: D.I Aceros
Model: -
Date of Construction: 2009
Position: Hydro Classifier 2
Equipped: WEG 10HP Motor
4. e) Description: Pumping Group
Model: GB-11/50.7
Date of Construction: 09/05
Position: Hydro Classifier 3
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
Model: GB-11/50.7
Date of Construction: 09/05
Position: Hydro Classifier 3
Equipped With:
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
Tank Sky Type Structure, Suction Tube, Deflector and Float
Butterfly valve DN-65 (2.5"), 316 Stainless Steel Disc, EPDM Seat Iron Body
Leroy Somer Motor
4. f) Description: Franklin Electric
Model: -
Date of Construction: -
Position: Tower and Sprinklers
Equipped With: Emerson Electric Motor
Model: -
Date of Construction: -
Position: Tower and Sprinklers
Equipped With: Emerson Electric Motor
4. g) Description: Monarch Pumps
Model: -
Date of Construction: -
Position: Feeding Thickener Tank
Equipped With: Baldor Electric Motor
Model: -
Date of Construction: -
Position: Feeding Thickener Tank
Equipped With: Baldor Electric Motor
5. Screening Module:
5. a) Description: Centrifugal Screen
Model: ZS-600
Date of Construction: 09/05
5. a) Description: Centrifugal Screen
Model: ZS-600
Date of Construction: 09/05
Model: ZS-600
Date of Construction: 09/05
6. Hydrocyclone Equipment:
6. a) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: EV-22
6. b) Description: Hydrocyclone
Model: PP015903IV
Date of Construction: 09/05
Position: EV-22
6. c) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Tower
6. d) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Attrition Scrubber
6. a) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: EV-22
Model: PP015903 IV
Date of Construction: 09/05
Position: EV-22
6. b) Description: Hydrocyclone
Model: PP015903IV
Date of Construction: 09/05
Position: EV-22
Model: PP015903IV
Date of Construction: 09/05
Position: EV-22
6. c) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Tower
Model: PP015903 IV
Date of Construction: 09/05
Position: Tower
6. d) Description: Hydrocyclone
Model: PP015903 IV
Date of Construction: 09/05
Position: Attrition Scrubber
Model: PP015903 IV
Date of Construction: 09/05
Position: Attrition Scrubber
7. Vibrating Drainer Module:
7. a) Description: Vibrating Drainer
Model: EV-22
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/1410 S-90 – 1.05kW/ud., 460V, 60Hz, 1800 RPM
7. b) Description: Vibrating Drainer
Model: EV-23
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/2410 S-90 – 1.7kw/Ud., 460V, 60Hz, 1800 RPM
7. a) Description: Vibrating Drainer
Model: EV-22
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/1410 S-90 – 1.05kW/ud., 460V, 60Hz, 1800 RPM
Model: EV-22
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/1410 S-90 – 1.05kW/ud., 460V, 60Hz, 1800 RPM
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/1410 S-90 – 1.05kW/ud., 460V, 60Hz, 1800 RPM
7. b) Description: Vibrating Drainer
Model: EV-23
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/2410 S-90 – 1.7kw/Ud., 460V, 60Hz, 1800 RPM
Model: EV-23
Date of Construction: 09/05
Equipped With:
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/2410 S-90 – 1.7kw/Ud., 460V, 60Hz, 1800 RPM
Draining Trough
Feed Drawer
Discharge Channel
Bottom Filter Hopper
Rear Filter Hopper
Discharge Skirt (Natural Rubber)
(2) Vibrators Motors MVSI-15/2410 S-90 – 1.7kw/Ud., 460V, 60Hz, 1800 RPM
8. Clarifying Tank:
8. a) Description: Thickening Tank
Model: T-03 EAR
Date of Construction: 09/05
Equipped With:
Gearmotor Unit 0.66kW
Butterfly Valve DN-50 with Automatic Actuation
Knife Valve SLN-11 DN-65, Pneumatic Drive, Double Effect, Solenoid Valve (60Hz)
Ball Valves
EL-FI M-20 Torque Limiter (included in Cabinet)
UDM40LSEXXR2XX Display (included in Cabinet)
Air Compressor, 1.5kW, 100Lt.
Warman Pump
Leroy Somer Electric Motor
8. a) Description: Thickening Tank
Model: T-03 EAR
Date of Construction: 09/05
Equipped With:
Gearmotor Unit 0.66kW
Butterfly Valve DN-50 with Automatic Actuation
Knife Valve SLN-11 DN-65, Pneumatic Drive, Double Effect, Solenoid Valve (60Hz)
Ball Valves
EL-FI M-20 Torque Limiter (included in Cabinet)
UDM40LSEXXR2XX Display (included in Cabinet)
Air Compressor, 1.5kW, 100Lt.
Warman Pump
Leroy Somer Electric Motor
Model: T-03 EAR
Date of Construction: 09/05
Equipped With:
Gearmotor Unit 0.66kW
Butterfly Valve DN-50 with Automatic Actuation
Knife Valve SLN-11 DN-65, Pneumatic Drive, Double Effect, Solenoid Valve (60Hz)
Ball Valves
EL-FI M-20 Torque Limiter (included in Cabinet)
UDM40LSEXXR2XX Display (included in Cabinet)
Air Compressor, 1.5kW, 100Lt.
Warman Pump
Leroy Somer Electric Motor
Gearmotor Unit 0.66kW
Butterfly Valve DN-50 with Automatic Actuation
Knife Valve SLN-11 DN-65, Pneumatic Drive, Double Effect, Solenoid Valve (60Hz)
Ball Valves
EL-FI M-20 Torque Limiter (included in Cabinet)
UDM40LSEXXR2XX Display (included in Cabinet)
Air Compressor, 1.5kW, 100Lt.
Warman Pump
Leroy Somer Electric Motor
9. Flocculation Equipment:
9. a) Description: Flocculation Equipment
Model: EF-250
Date of Construction: 09/05
Equipped With:
Dosing Pump GA 90P6P3 with 0.12kW Motor
Agitator DHR 200/300, with 0.45kW Geared Motor
Funnel Eductor
9. a) Description: Flocculation Equipment
Model: EF-250
Date of Construction: 09/05
Equipped With:
Dosing Pump GA 90P6P3 with 0.12kW Motor
Agitator DHR 200/300, with 0.45kW Geared Motor
Funnel Eductor
Model: EF-250
Date of Construction: 09/05
Equipped With:
Dosing Pump GA 90P6P3 with 0.12kW Motor
Agitator DHR 200/300, with 0.45kW Geared Motor
Funnel Eductor
Dosing Pump GA 90P6P3 with 0.12kW Motor
Agitator DHR 200/300, with 0.45kW Geared Motor
Funnel Eductor
10. Attrition Scrubber:
10. a) Description: Rimuca
Model: -
Date of Construction: 04/2010
Equipped With:
Constructed of 1/4" Black Iron Sheets
Polyurethane-Coated Blades
25HP, 880 RPM Motors
Axis
Upwards Pumping Impeller
Downward Pumping Impeller
Metal Drawer
10. a) Description: Rimuca
Model: -
Date of Construction: 04/2010
Equipped With:
Constructed of 1/4" Black Iron Sheets
Polyurethane-Coated Blades
25HP, 880 RPM Motors
Axis
Upwards Pumping Impeller
Downward Pumping Impeller
Metal Drawer
Model: -
Date of Construction: 04/2010
Equipped With:
Constructed of 1/4" Black Iron Sheets
Polyurethane-Coated Blades
25HP, 880 RPM Motors
Axis
Upwards Pumping Impeller
Downward Pumping Impeller
Metal Drawer
Constructed of 1/4" Black Iron Sheets
Polyurethane-Coated Blades
25HP, 880 RPM Motors
Axis
Upwards Pumping Impeller
Downward Pumping Impeller
Metal Drawer
11. Electrical Cabinet:
11. a) Description: Electrical Cabinet
Model: -
Date of Construction: 09/05
Equipped With:
Control and Power Control Cabinet for Drive of Belt Feeder, Feeding Belt, Washing Cylinder, Drainers, Conveyor Belts, Pumping Groups, Thickening Tank, Thickening Equipment, Flocculation, Water Pump, and Compressor
Dimensions: 1900mm x 1000mm x 600mm
IP-55 protection
11. a) Description: Electrical Cabinet
Model: -
Date of Construction: 09/05
Equipped With:
Control and Power Control Cabinet for Drive of Belt Feeder, Feeding Belt, Washing Cylinder, Drainers, Conveyor Belts, Pumping Groups, Thickening Tank, Thickening Equipment, Flocculation, Water Pump, and Compressor
Dimensions: 1900mm x 1000mm x 600mm
IP-55 protection
Model: -
Date of Construction: 09/05
Equipped With:
Control and Power Control Cabinet for Drive of Belt Feeder, Feeding Belt, Washing Cylinder, Drainers, Conveyor Belts, Pumping Groups, Thickening Tank, Thickening Equipment, Flocculation, Water Pump, and Compressor
Dimensions: 1900mm x 1000mm x 600mm
IP-55 protection
Control and Power Control Cabinet for Drive of Belt Feeder, Feeding Belt, Washing Cylinder, Drainers, Conveyor Belts, Pumping Groups, Thickening Tank, Thickening Equipment, Flocculation, Water Pump, and Compressor
Dimensions: 1900mm x 1000mm x 600mm
IP-55 protection
Location: Central America
View More Wash Plants
