NEW 2025 GURSAN EE19CM

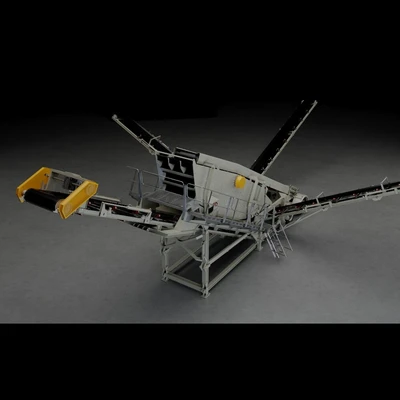

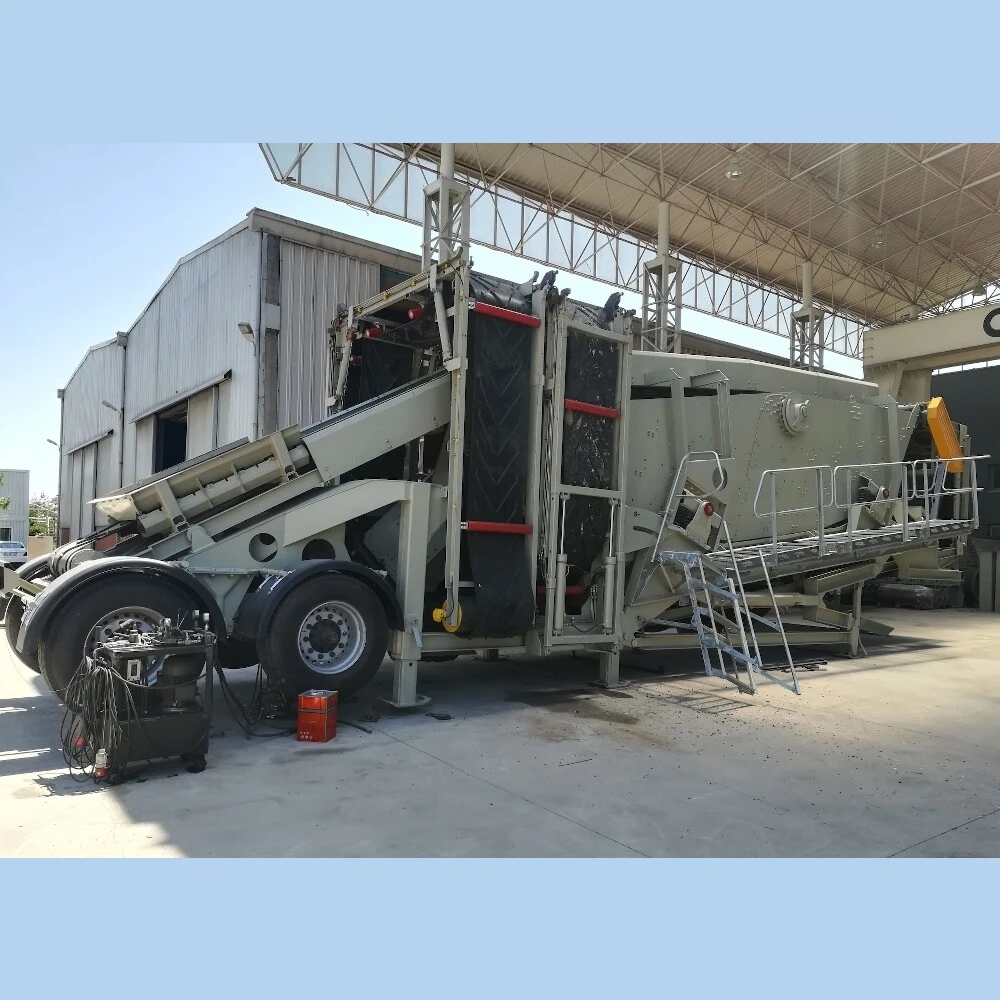

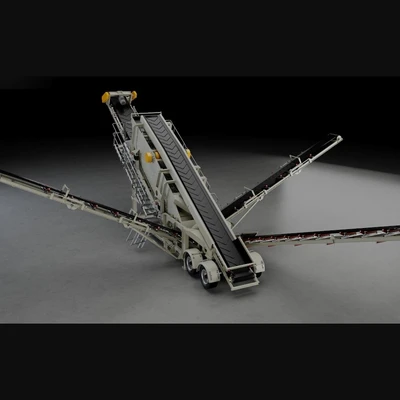

Gursan EE19CM 3-Deck Portable Screen Plant
Make: GURSAN
Model: EE19CM
Type: Portable Screen Plant
Year: 2025
Condition: New, Unused Condition
Screen:
Type: Incline - Banana Configuration
Size: 1,800mm Wide x 6,000mm Long (70in Wide x 236in Long Approx.)
Decks: 3 Decks
Deck Inclination Angles: 15°, 25°, 35°
Drive: Electric Motor - Driven with Cardan Shaft from the Top
Power Output: 22kW
Rotation Speed: 1000RPM
Voltage: 380 Volts
Frequency: 50Hz
Adjustable Eccentric Weight System
Vibration Damper System
Bearings: Double 22322 Bearings - with Shaft in Between to Prevent Compression
Body Construction: Single-Piece, 12mm Thick Bolted Steel Plate
Mounted on (16) Springs - Vibration-Type Design
Type: Incline - Banana Configuration
Size: 1,800mm Wide x 6,000mm Long (70in Wide x 236in Long Approx.)
Decks: 3 Decks
Deck Inclination Angles: 15°, 25°, 35°
Drive: Electric Motor - Driven with Cardan Shaft from the Top
Power Output: 22kW
Rotation Speed: 1000RPM
Voltage: 380 Volts
Frequency: 50Hz
Power Output: 22kW
Rotation Speed: 1000RPM
Voltage: 380 Volts
Frequency: 50Hz
Adjustable Eccentric Weight System
Vibration Damper System
Bearings: Double 22322 Bearings - with Shaft in Between to Prevent Compression
Body Construction: Single-Piece, 12mm Thick Bolted Steel Plate
Mounted on (16) Springs - Vibration-Type Design

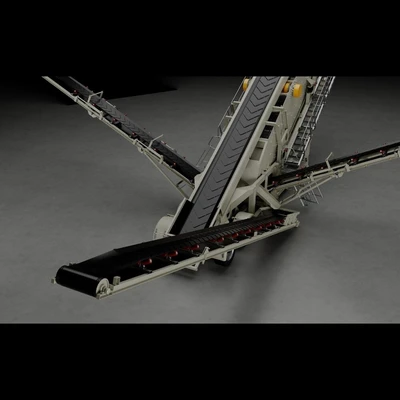

Conveyors:
Feed Conveyor: B02/F/13 Belt Conveyor
Size: 1,000mm Wide x 13,000mm Long
Drive: 15kW Drum Motor
NPU Profile Frame
(2) Discharge Conveyors: B02/H/10 Belt Conveyors
Size: 650mm Wide x 10,000mm Long
Drive: 7.5kW Drum Motor
NPU Profile Frame
Under-Screen Discharge Conveyor: B02/G/13 Belt Conveyor
Size: 1,200mm Wide x 13,000mm Long
Drive: 18.5kW Bevel Geared Motor Reducer
NPU Profile Frame
Belting: Chevron Belt
Return Conveyor: B02/H/12 Belt Conveyor
Size: 650mm Wide x 12,000mm Long
Drive: 7.5kW Drum Motor
NPU Frame Profile
Feed Conveyor: B02/F/13 Belt Conveyor
Size: 1,000mm Wide x 13,000mm Long
Drive: 15kW Drum Motor
NPU Profile Frame
Size: 1,000mm Wide x 13,000mm Long
Drive: 15kW Drum Motor
NPU Profile Frame
(2) Discharge Conveyors: B02/H/10 Belt Conveyors
Size: 650mm Wide x 10,000mm Long
Drive: 7.5kW Drum Motor
NPU Profile Frame
Size: 650mm Wide x 10,000mm Long
Drive: 7.5kW Drum Motor
NPU Profile Frame
Under-Screen Discharge Conveyor: B02/G/13 Belt Conveyor
Size: 1,200mm Wide x 13,000mm Long
Drive: 18.5kW Bevel Geared Motor Reducer
NPU Profile Frame
Belting: Chevron Belt
Size: 1,200mm Wide x 13,000mm Long
Drive: 18.5kW Bevel Geared Motor Reducer
NPU Profile Frame
Belting: Chevron Belt
Return Conveyor: B02/H/12 Belt Conveyor
Size: 650mm Wide x 12,000mm Long
Drive: 7.5kW Drum Motor
NPU Frame Profile
Size: 650mm Wide x 12,000mm Long
Drive: 7.5kW Drum Motor
NPU Frame Profile
Hydraulic Unit

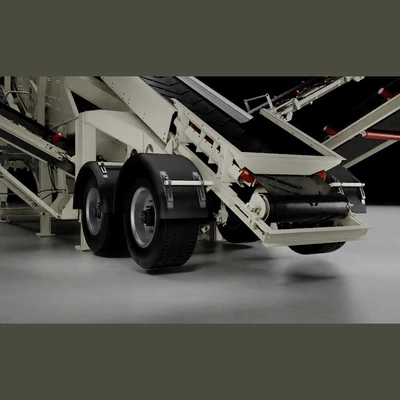

Chassis:
Construction: Reinforced Welded Construction from NPI 380 Profiles
Axles: Tandem Axles - Light Duty with Reverse Leaf Springs
Tires: (4) 385/65R22.5 Tires
Comes With: Air Brake System, Signal and Lighting Equipment (Road Legal)
Construction: Reinforced Welded Construction from NPI 380 Profiles
Axles: Tandem Axles - Light Duty with Reverse Leaf Springs
Tires: (4) 385/65R22.5 Tires
Comes With: Air Brake System, Signal and Lighting Equipment (Road Legal)
Location: Turkey
