USED NORD DRIVE SYSTEMS SK 90LP/4 CUS TW
Overview
Specifications

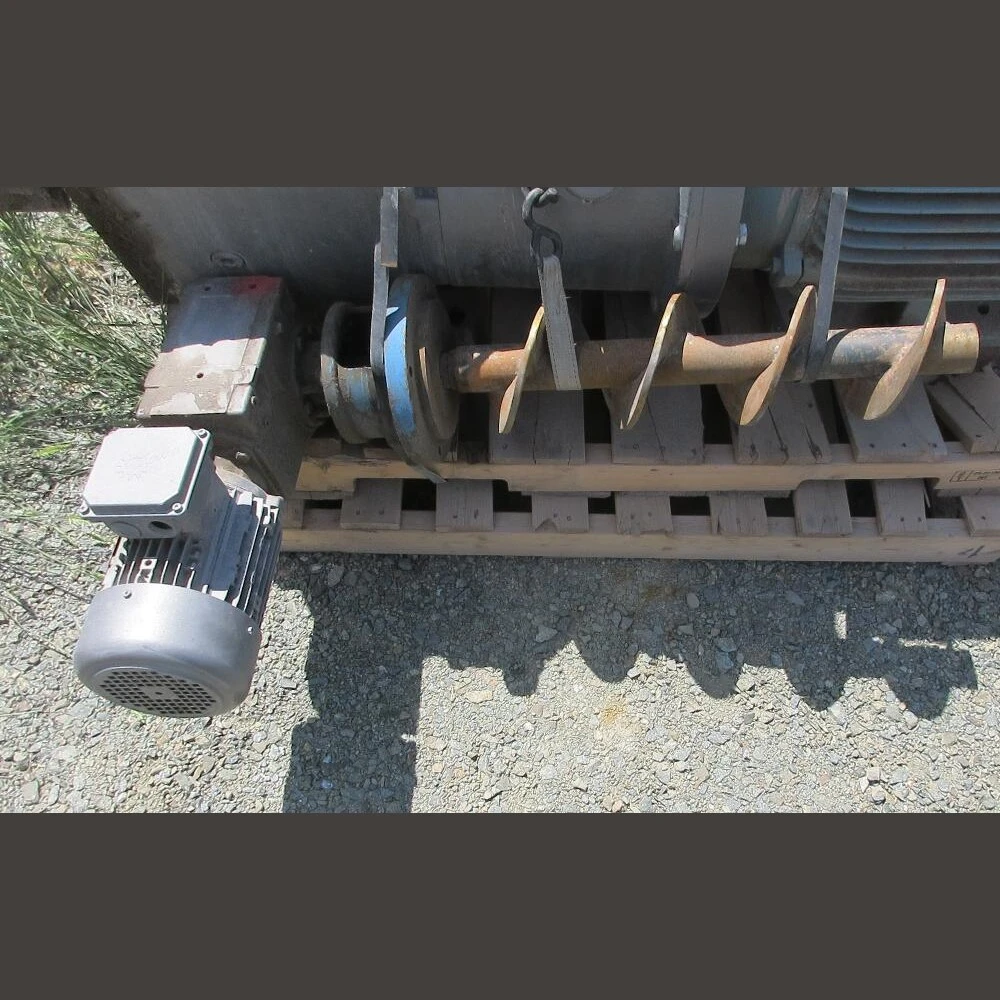

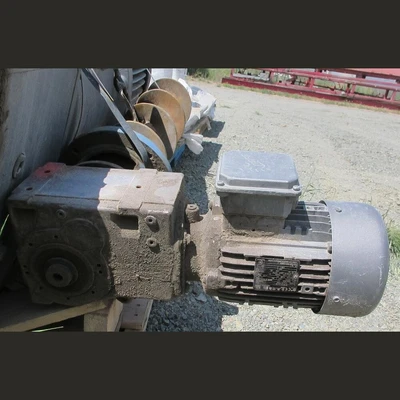

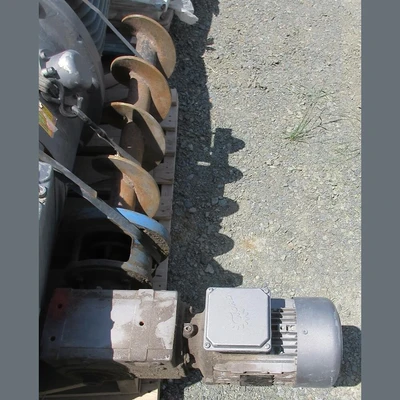

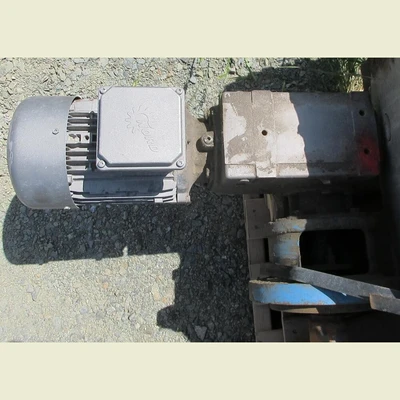

2HP Nord Gearmotor and Auger

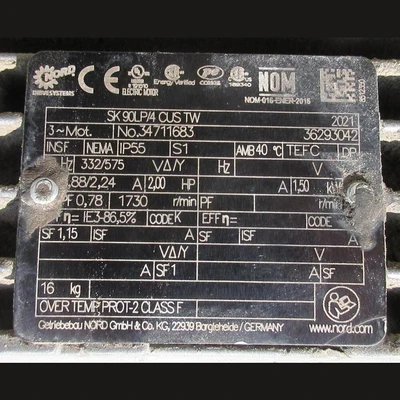

Make: Nord Drive Systems
Model: SK 90LP/4 CUS TW
Type: Electric Gearmotor
Condition: Used Condition
Power Output: 2HP
Rotating Speed: 1730 RPM
Voltage: 332/575 Volt
Current: 3.88/2.24 Amps
Frequency: 60Hz
Phase: 3-Phase

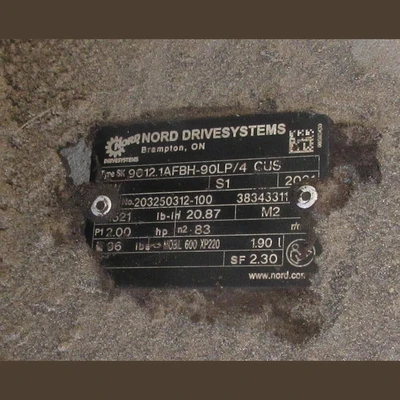

Nord Gear Reducer:
Type: Right Angle
Size: SK 9012.1AFBH-90LP/4 CUS
Ratio: 20.87:1
Power Rating: 2HP
Speed Output: 83 RPM
Type: Right Angle
Size: SK 9012.1AFBH-90LP/4 CUS
Ratio: 20.87:1
Power Rating: 2HP
Speed Output: 83 RPM

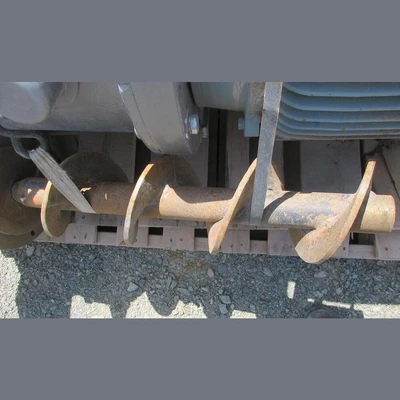

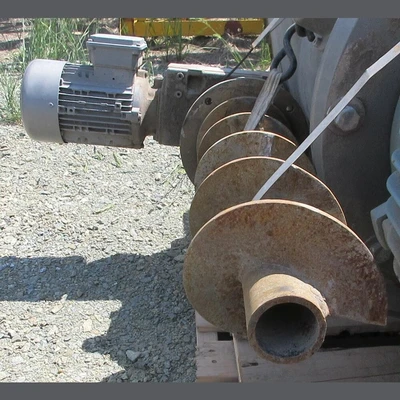

Auger:
Length: 26.5in
Outer Diameter: 7in Dia.
Inner Diameter: 2in Dia.
Flight Width: 5in
Helix Direction: Left Hand
Length: 26.5in
Outer Diameter: 7in Dia.
Inner Diameter: 2in Dia.
Flight Width: 5in
Helix Direction: Left Hand
Overall Dimensions:
Length: 40in
Width: 23in
Height: 15in
Length: 40in
Width: 23in
Height: 15in
Location: Savona, British Columbia, Canada
