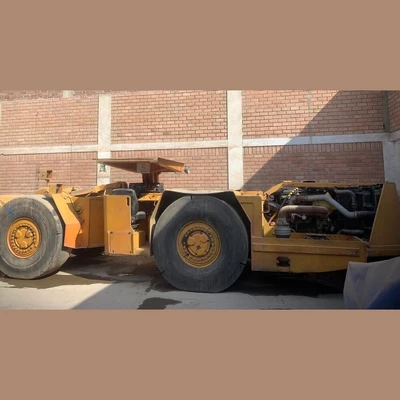

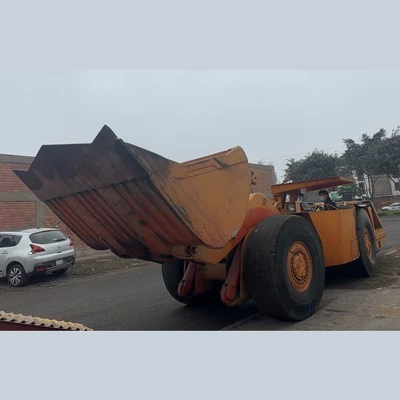

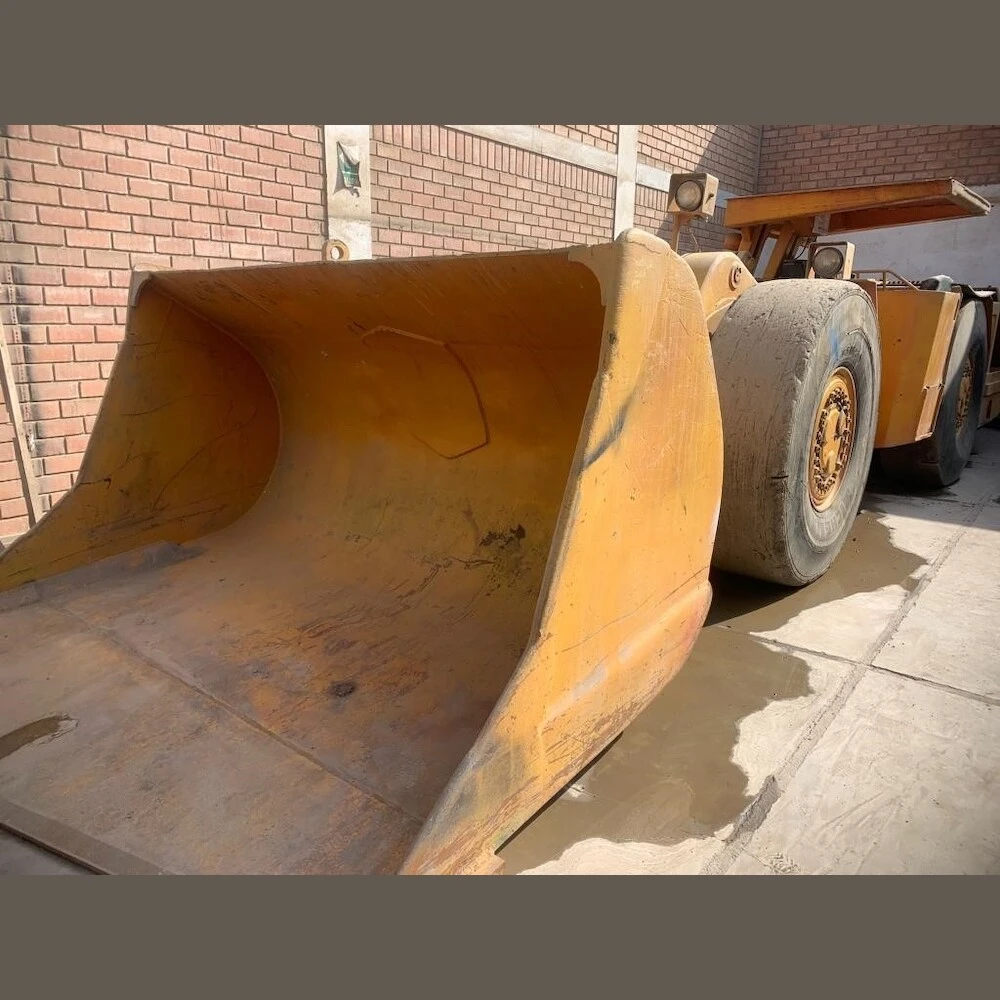

EJC 245 6-Yard Scooptram
Make: Eimco Jarvis Clark (EJC)
Model: EJC 245
Year: 2002
Hours: 3,500 Hours
Condition: Used, Reported in Operating Condition
Bucket Condition: 6yd³
Engine: Detroit Diesel 50 Series Diesel Engine
ROPS Canopy
General Model Specifications:
Capacities:
Tramming Capacity: 11,110kg (24,500lbs)
Break Out Force, Lift: 97kN (9,910kg) (21,850lb-ft)
Break Out Force, Tilt: 168kN (917,123kg) (37,750lbs)
Bucket Motion Times:
Raising Time: 5.5 sec
Lowering Time: 4.0 sec
Tipping Time: 5.0 sec
Engine: Detroit Diesel Series 50 DDEC
Power Output: 205kW (275HP) @ 2,100RPM
Torque: 1,186Nm (875lb-ft) @ 1,350RPM
Converter: Clark C 5502, Single Stage
Transmission: Clark 4421
4-Speed Forward and Reverse
Max Driving Speed: 23.3km/h (14.5mph)
Tires: 18.00 x 25, 32 PLY L5S
Capacities:
Tramming Capacity: 11,110kg (24,500lbs)
Break Out Force, Lift: 97kN (9,910kg) (21,850lb-ft)
Break Out Force, Tilt: 168kN (917,123kg) (37,750lbs)
Tramming Capacity: 11,110kg (24,500lbs)
Break Out Force, Lift: 97kN (9,910kg) (21,850lb-ft)
Break Out Force, Tilt: 168kN (917,123kg) (37,750lbs)
Bucket Motion Times:
Raising Time: 5.5 sec
Lowering Time: 4.0 sec
Tipping Time: 5.0 sec
Raising Time: 5.5 sec
Lowering Time: 4.0 sec
Tipping Time: 5.0 sec
Engine: Detroit Diesel Series 50 DDEC
Power Output: 205kW (275HP) @ 2,100RPM
Torque: 1,186Nm (875lb-ft) @ 1,350RPM
Power Output: 205kW (275HP) @ 2,100RPM
Torque: 1,186Nm (875lb-ft) @ 1,350RPM
Converter: Clark C 5502, Single Stage
Transmission: Clark 4421
4-Speed Forward and Reverse
Max Driving Speed: 23.3km/h (14.5mph)
4-Speed Forward and Reverse
Max Driving Speed: 23.3km/h (14.5mph)
Tires: 18.00 x 25, 32 PLY L5S
Location: South America
