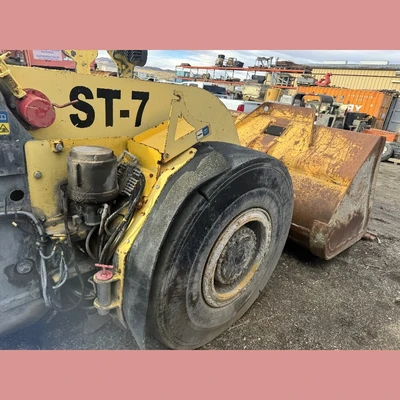

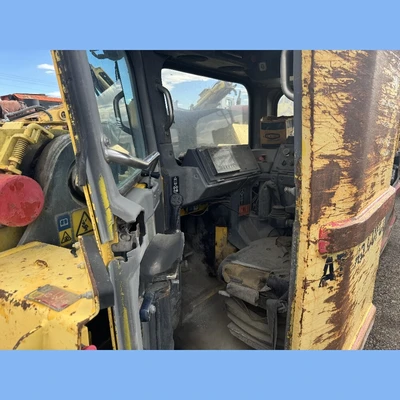

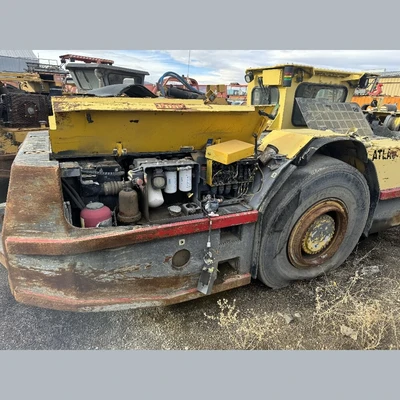

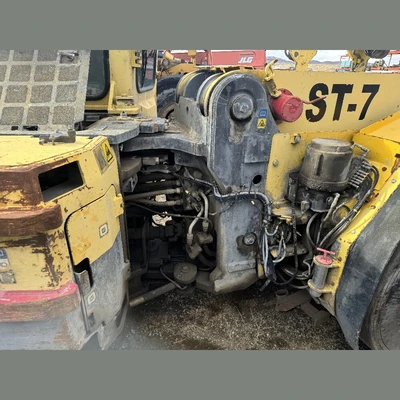

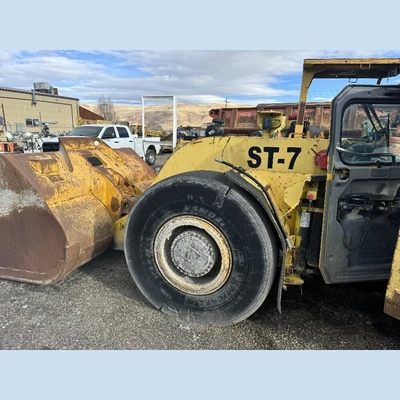

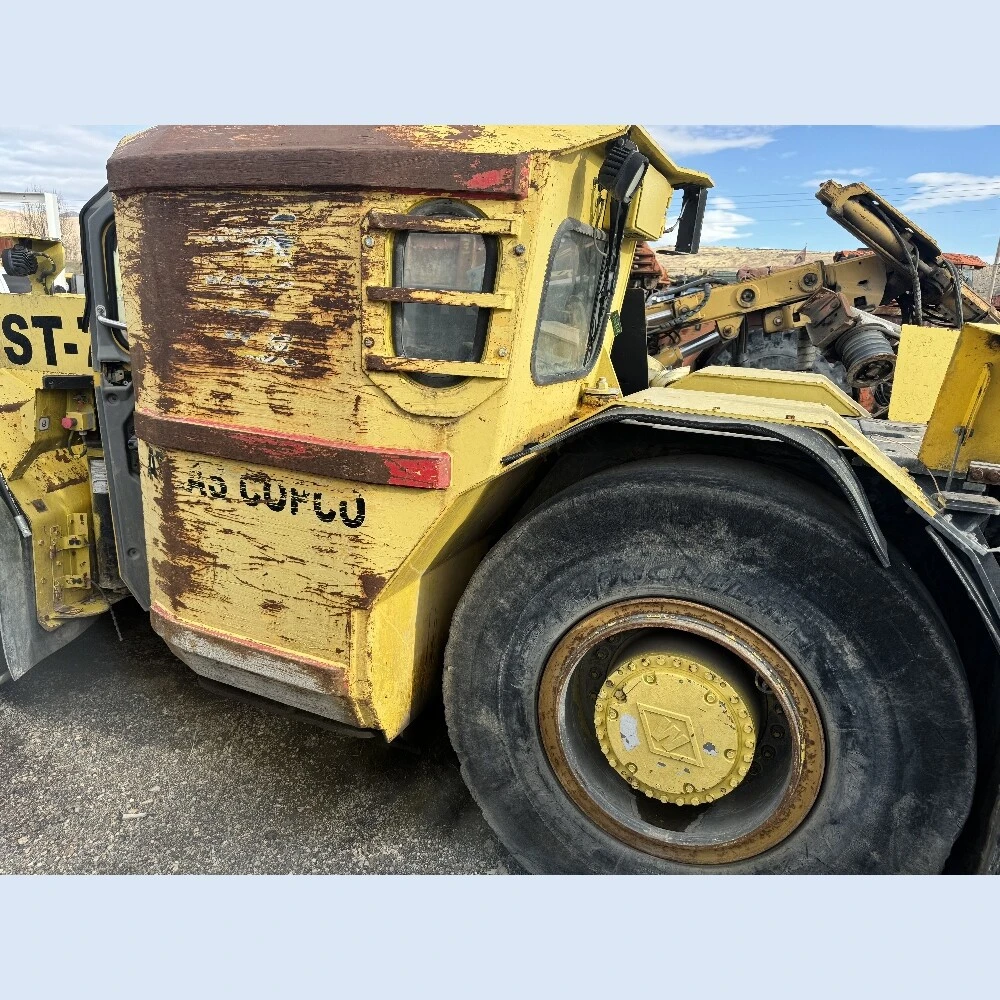

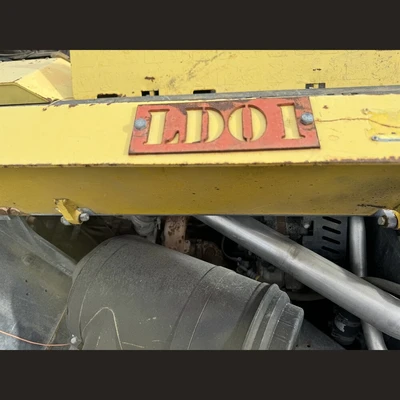

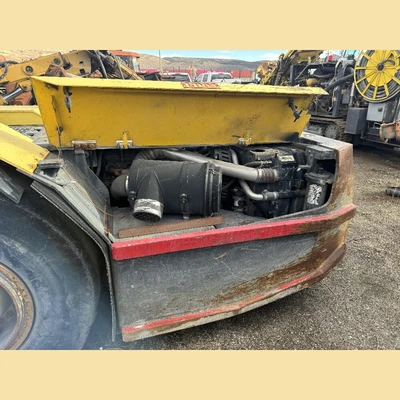

USED 2013 ATLAS COPCO ST7

2013 Atlas Copco ST7 4-Yard Scooptram
Make: Atlas Copco
Model: ST7
Type: Scooptram (LHD)
Year: 2013
Hours: 5,184 Hours
Condition: Used Condition
Bucket Size: 4yd³ (3.1m³)
General Model Specifications:
Tramming Capacity: 6,800 Kgs
Breakout Force:
Hydraulic: 13,350 Kgs
Mechanical: 11,750 Kgs
Engine: Cummins QSB6.7 EPA Tier 3 (193HP@2200RPM)
Transmission/Torque Converter: Funk DF150 Transmission/Torque Converter
Axles: Okubo Rock Tough 406
Differentials:
Front: No-Spin
Rear: Open, 14° Oscillation (7° Per Side)
Brakes: SAHR Wet Multi-Disc
Tires: 17.5 x 25 20 Ply L5S
Canopy: ROPS/FOPS
Bucket Motion Times
Boom Raising: 5.3 Sec
Boom Lowering: 3.5 Sec
Dumping: 2.1 Sec
Tramming Capacity: 6,800 Kgs
Breakout Force:
Hydraulic: 13,350 Kgs
Mechanical: 11,750 Kgs
Hydraulic: 13,350 Kgs
Mechanical: 11,750 Kgs
Engine: Cummins QSB6.7 EPA Tier 3 (193HP@2200RPM)
Transmission/Torque Converter: Funk DF150 Transmission/Torque Converter
Axles: Okubo Rock Tough 406
Differentials:
Front: No-Spin
Rear: Open, 14° Oscillation (7° Per Side)
Front: No-Spin
Rear: Open, 14° Oscillation (7° Per Side)
Brakes: SAHR Wet Multi-Disc
Tires: 17.5 x 25 20 Ply L5S
Canopy: ROPS/FOPS
Bucket Motion Times
Boom Raising: 5.3 Sec
Boom Lowering: 3.5 Sec
Dumping: 2.1 Sec
Boom Raising: 5.3 Sec
Boom Lowering: 3.5 Sec
Dumping: 2.1 Sec
View Spec Sheet Below
Overall Dimensions:
Length: 8,705mm
Width: 2,230mm
Height: 2,160mm
Weight: 42,550 Lbs. (19,300 Kgs)
Length: 8,705mm
Width: 2,230mm
Height: 2,160mm
Weight: 42,550 Lbs. (19,300 Kgs)
Location: Western USA
