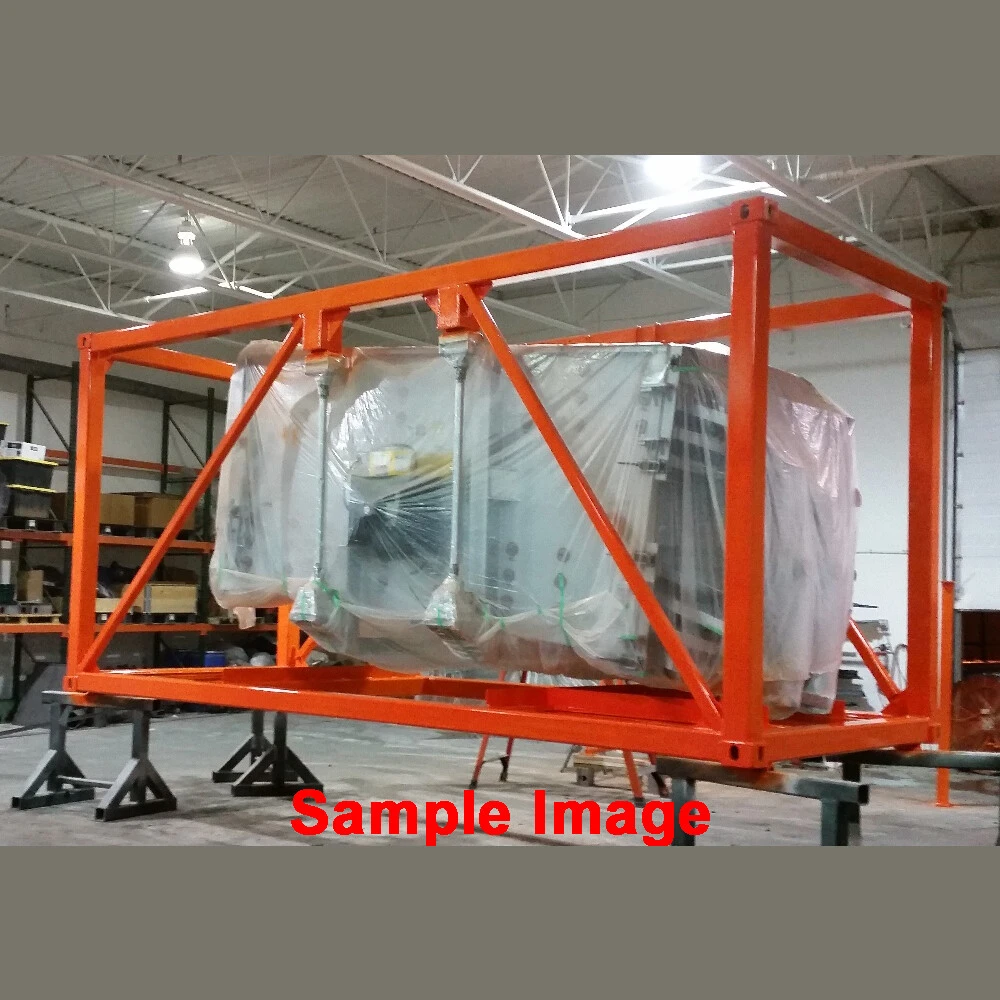

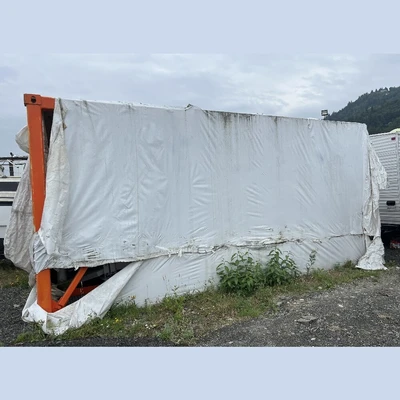

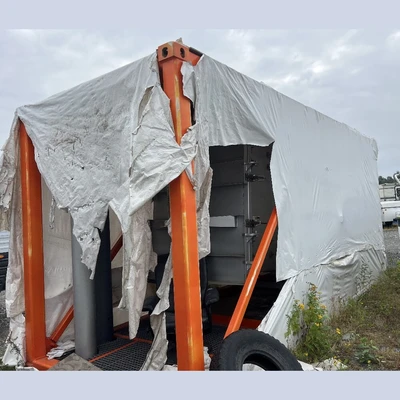

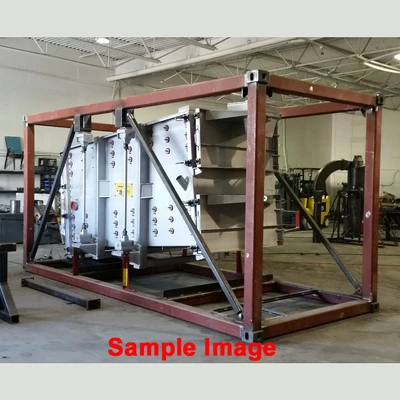

USED SWECO BIGMAX GPY-512AR

Sweco BigMax GPY-512AR Gyratory Sifter
Description: The new SWECO BigMax™ Gyratory Sifter builds on the unparalleled success of the GyraMax line of sifters. Known for their durability, reliability and accuracy of separation, GyraMax sifters are used throughout the world to handle the most demanding screening applications such as frac sand, resin coated sand, ceramic proppant, activated carbon, fertilizer, limestone, petroleum coke, plastic pellets, PVC powder, roofing granules, salt, sugar, and more. With the BigMax™, SWECO adds high capacity screening to the list of GyraMax features. The BigMax™ provides extremely high capacity in a very compact, energy efficient footprint.
Make: Sweco
Model: BigMax GPY-512AR
Type: Horizontal Screen Separator
Style: Vibrating Gyratory Sifter
Condition: Unused, New Surplus
Construction: Carbon Steel
Capacity: 15 TPH
Number of Decks: 6 Decks
Screen Size: 5ft x 12ft - 60in x 144in
Decks:
Deck 1:
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.0054in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 2:
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 3:
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 4:
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.005in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 5:
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 6:
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 1:
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.0054in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.0054in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 2:
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 3:
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 4:
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.005in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 3MG Mesh 0.279in (7.09mm) Open
Screen Material: T316SS 0.005in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 5:
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 46TBC Mesh 0.162in (0.41mm) Open
Screen Material: T316SS 0.0055in (0.14mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Deck 6:
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Openings: 120TBC Mesh 0.0058in (0.15mm) Open
Screen Material: T316SS 0.0025in (0.06mm) Wire Dia.
Number of Sections: 1
Section Size: 57in x 144in (14448mm x 3658mm)
Screen Area:
360ft² (33m²) of Screen Area in “One Mesh” (Two Fractions) Configurations
240ft² (22m²) of Screen Area in “Two Mesh” Configurations
120ft² (11m²) of Screen Area in “Three Mesh” and “Four Mesh” Configurations
360ft² (33m²) of Screen Area in “One Mesh” (Two Fractions) Configurations
240ft² (22m²) of Screen Area in “Two Mesh” Configurations
120ft² (11m²) of Screen Area in “Three Mesh” and “Four Mesh” Configurations
Ball Deck: Equipped with "Ball Deck" Below Each Screen for Self-Cleaning Action
Balls: Synthetic in Metal Frames
Balls: Synthetic in Metal Frames
Access Doors: Yes
Support: Lugs
Support Details: Mounted on a Stand
Controls: Yes
Drive: Electric Motor
Power Output: 10HP
Rotating Speed: 1200 RPM
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase
Power Output: 10HP
Rotating Speed: 1200 RPM
Voltage: 230/460 Volt
Frequency: 60Hz
Phase: 3-Phase
Location: Western Canada
