USED 2013 EXODUS (CAT) MX447L
Overview
Specs

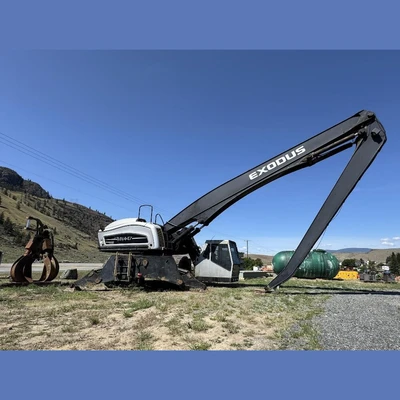

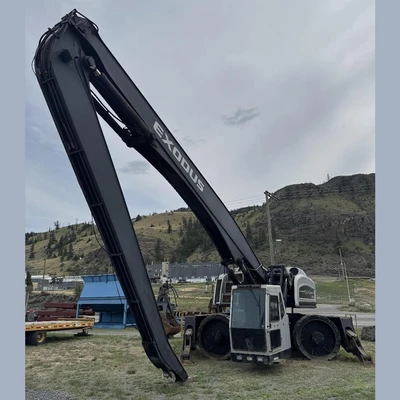

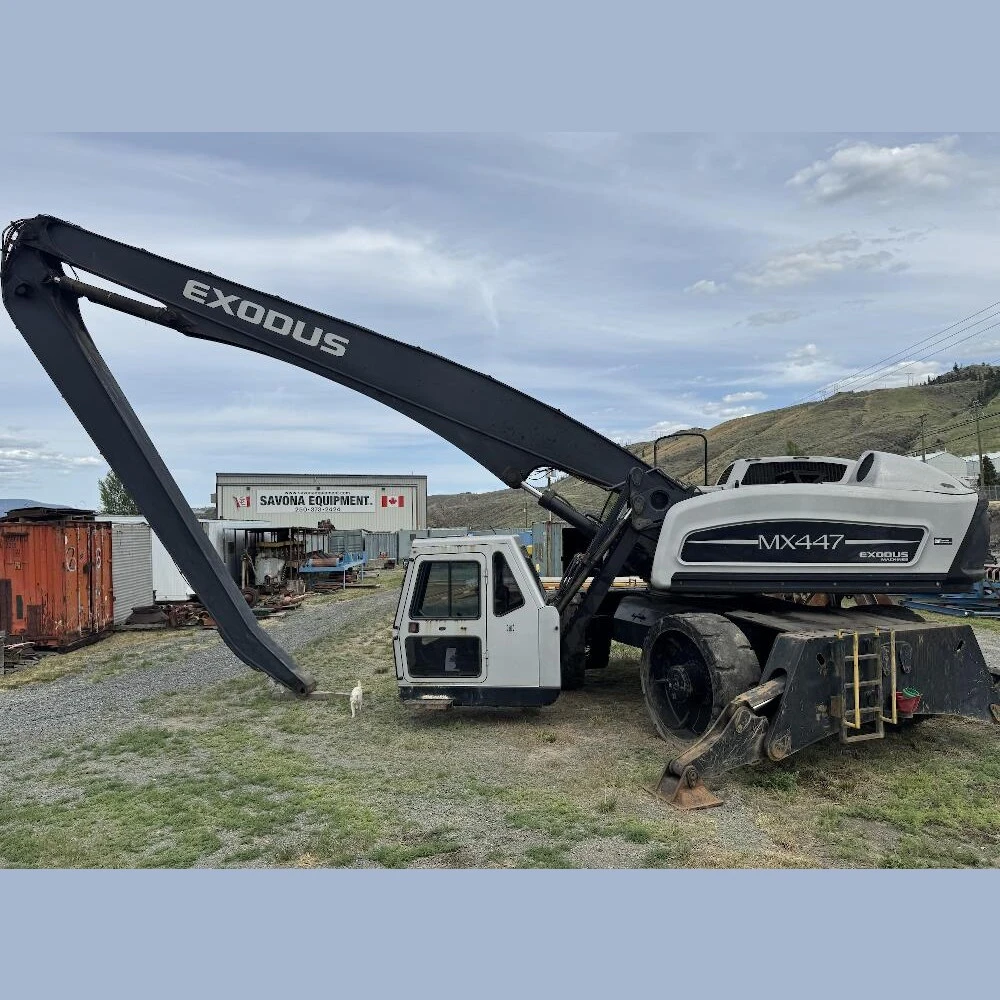

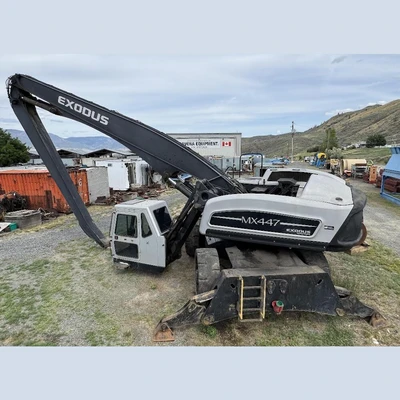

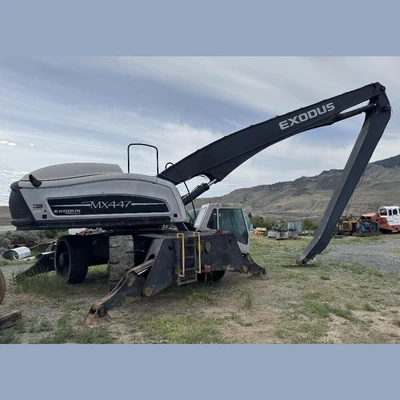

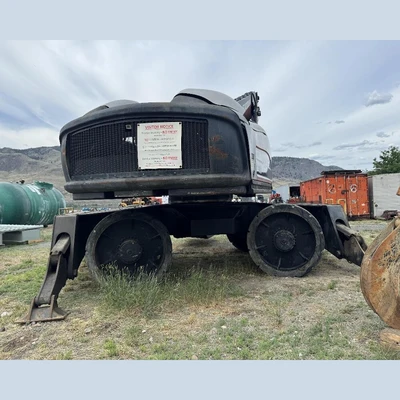

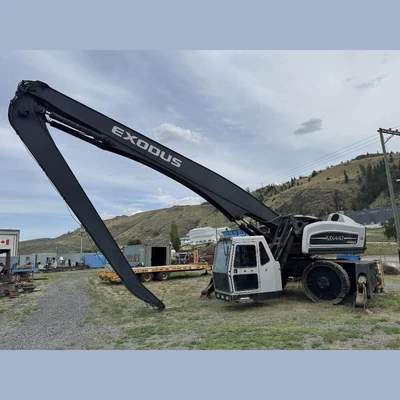

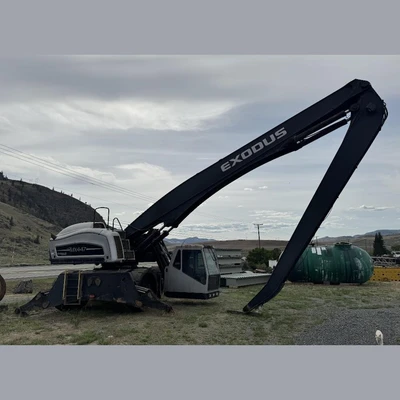

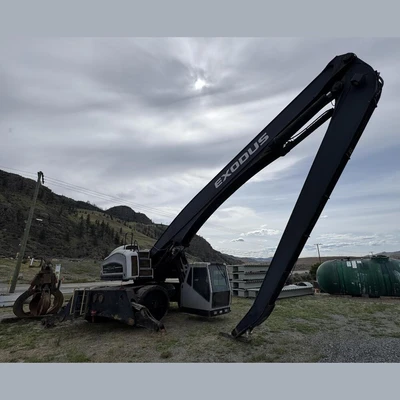

Exodus MX447L Material Handler
Make: Exodus (CAT)
Model: MX447L
Type: Wheeled Material Handler
Year: 2013
Hours: Meter Shows 16,000 Hours
Condition: Used Condition - Service Records Available
Lifting Capacity: 24,290lbs
Main Boom Length: 32ft
Stick Length: 27ft
Engine: Caterpillar ACERT C9 6-Cyl Diesel Engine - Tier III Emissions
Power Output: 300HP @ 2,000RPM
Displacement: 8.8L
Power Output: 300HP @ 2,000RPM
Displacement: 8.8L
Hydraulics:
Main Pumps: (2) Bosch Rexroth Pumps
Capacity Individually: 75 GPM
Capacity Together: 150 GPM to Main Functions @ 4,800psi
Electro-Hydraulic Pilot Controls
Main Pumps: (2) Bosch Rexroth Pumps
Capacity Individually: 75 GPM
Capacity Together: 150 GPM to Main Functions @ 4,800psi
Capacity Individually: 75 GPM
Capacity Together: 150 GPM to Main Functions @ 4,800psi
Electro-Hydraulic Pilot Controls

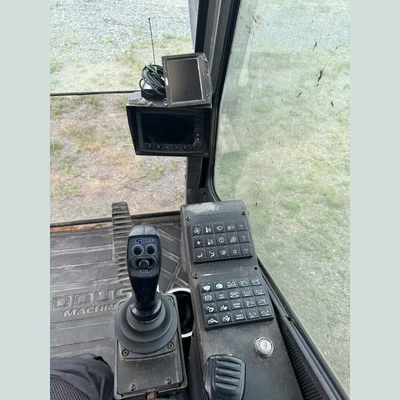

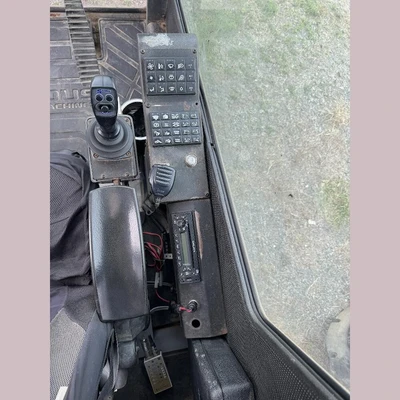

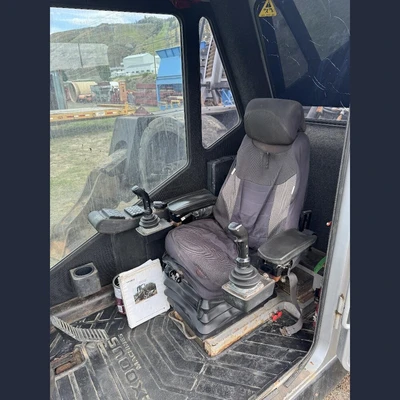

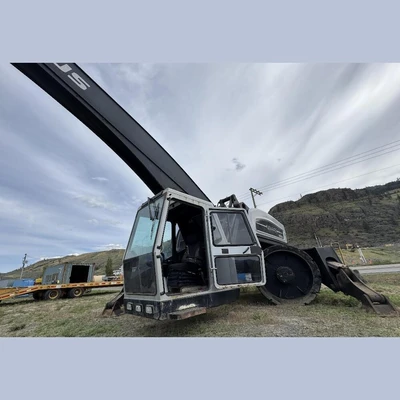

Cab:
Lifting Range: Ground Access Cab over the Sides and Up to 18ft 8in at Eye Level
LED Display
Steering Joystick Control
Heating & AC
Can Be Lowered to Ground for Easy Operation Access
Lifting Range: Ground Access Cab over the Sides and Up to 18ft 8in at Eye Level
LED Display
Steering Joystick Control
Heating & AC
Can Be Lowered to Ground for Easy Operation Access
Drives: 4-Wheel Independent Drives with Planetary Gearboxes
Tires: 20.5 x 59 Solid
Dimensions: 59in Dia. x 21in Wide
Dimensions: 59in Dia. x 21in Wide
Stabilization: (4) Corner Out-Riggers
Operating Weight: 111,000lbs

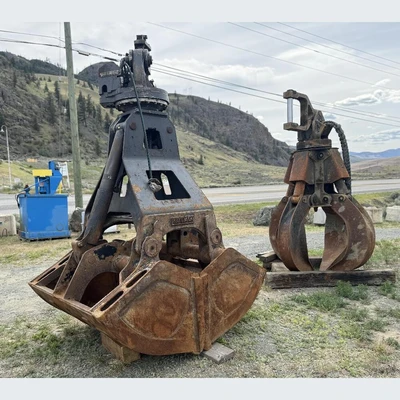

Complete With:

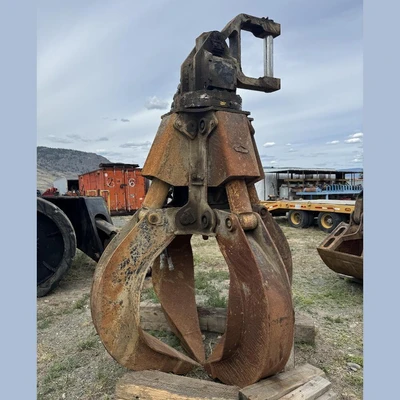

4-Jaw Orange Peel Grapple:
Grapple Jaw Dimensions (Each): 5ft Long x 11in Wide x 18in High
Swing Pin Connection: 3.75in Dia. x 24in Long
Hydraulic Ram (Each): 6in Dia. x 24in Long

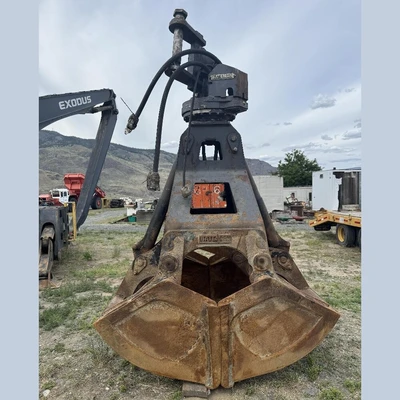

Bateman Clam Shell Bucket:
Capacity: 2.5yd³
Size: 60in Wide
Double Hydraulic Cylinders
Heavy-Duty Bearing Rotators
Rotation: 360° Continuous Rotation
4-Jaw Orange Peel Grapple:
Grapple Jaw Dimensions (Each): 5ft Long x 11in Wide x 18in High
Swing Pin Connection: 3.75in Dia. x 24in Long
Hydraulic Ram (Each): 6in Dia. x 24in Long
Grapple Jaw Dimensions (Each): 5ft Long x 11in Wide x 18in High
Swing Pin Connection: 3.75in Dia. x 24in Long
Hydraulic Ram (Each): 6in Dia. x 24in Long
Bateman Clam Shell Bucket:
Capacity: 2.5yd³
Size: 60in Wide
Double Hydraulic Cylinders
Heavy-Duty Bearing Rotators
Rotation: 360° Continuous Rotation
Capacity: 2.5yd³
Size: 60in Wide
Double Hydraulic Cylinders
Heavy-Duty Bearing Rotators
Rotation: 360° Continuous Rotation
Location: Savona, British Columbia, Canada
View Spec Sheet Below
View More Scrap Handling and Processing
Watch YouTube Video Here: https://www.youtube.com/watch?v=k3tGx2X8LcY
