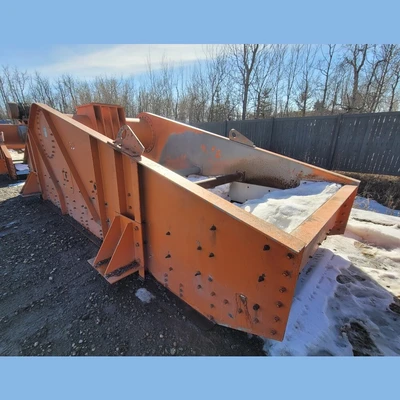

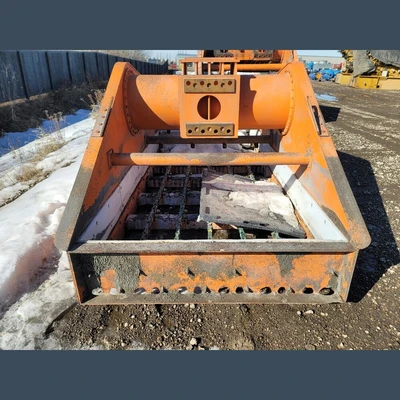

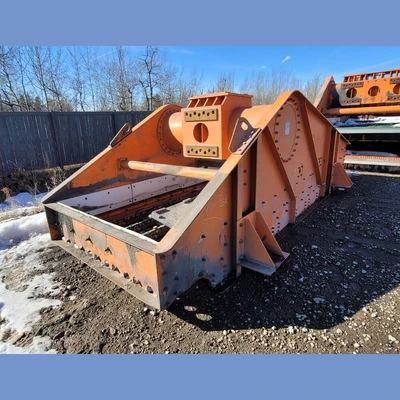

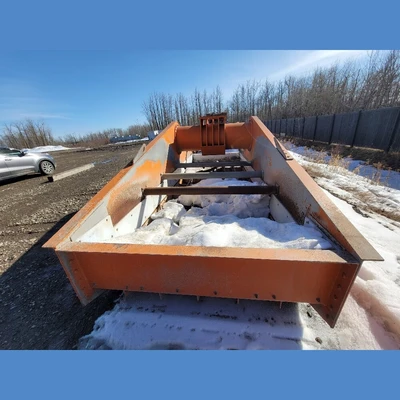

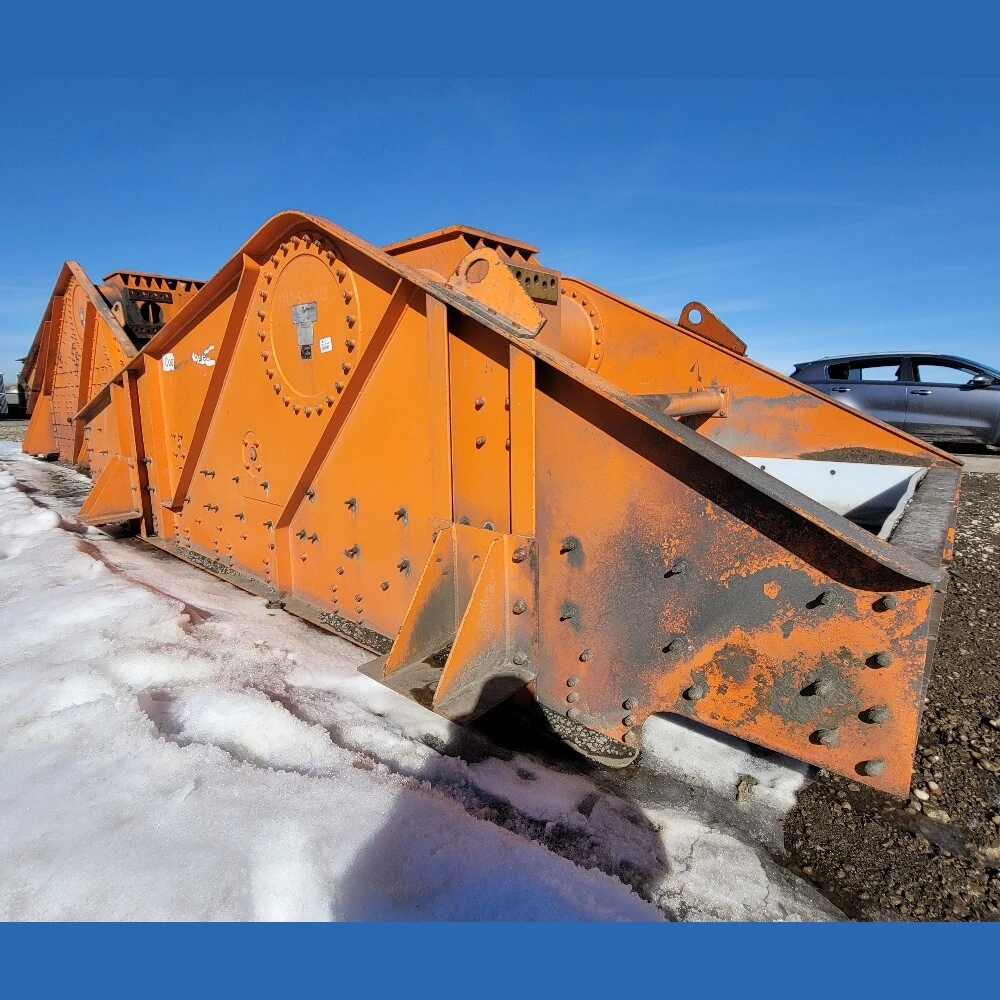

USED VIBRAMECH H1-48-18

Vibramech H1-48-18 Horizontal Screen
Make: Vibramech
Model: H1-48-18
Type: Horizontal Screen
Style: Coarse Feed Prep Screen (Single-Deck)
Condition: Used, Reported in Good Condition
General Specifications:
Number of Decks: 1
Deck Size: 1830 x 4880mm
Deck: 1.4 x 8mm Hi-Flow Poly
Deck Spray Pressure: 45m³/hr, 150kPA
Deck Cut-Off Size: 1.5mm
Inclination: Horizontal
Water Sprays: 1 x Spray Pipes w/ HDF 18 Nozzles
Isolators: Rubber Buffers
Max./Avg. Solids Oversize: 135/94 TPH
Max./Avg. Solids Undersize: 2/2 TPH
Max./Avg. Solids Design Cap: 137/96 TPH
Vibration Motors (Missing): (2) URAS KEEH-135-8
Power Output: 9kW
RPM: 890 RPM
Number of Decks: 1
Deck Size: 1830 x 4880mm
Deck: 1.4 x 8mm Hi-Flow Poly
Deck Spray Pressure: 45m³/hr, 150kPA
Deck Cut-Off Size: 1.5mm
Inclination: Horizontal
Water Sprays: 1 x Spray Pipes w/ HDF 18 Nozzles
Isolators: Rubber Buffers
Max./Avg. Solids Oversize: 135/94 TPH
Max./Avg. Solids Undersize: 2/2 TPH
Max./Avg. Solids Design Cap: 137/96 TPH
Vibration Motors (Missing): (2) URAS KEEH-135-8
Power Output: 9kW
RPM: 890 RPM
Power Output: 9kW
RPM: 890 RPM
Overall Dimensions:
Length: 5,670mm
Width: 2,540mm
Height: 1,907mm
Weight: 4,600 Kgs
Length: 5,670mm
Width: 2,540mm
Height: 1,907mm
Weight: 4,600 Kgs
Location: Western Canada
