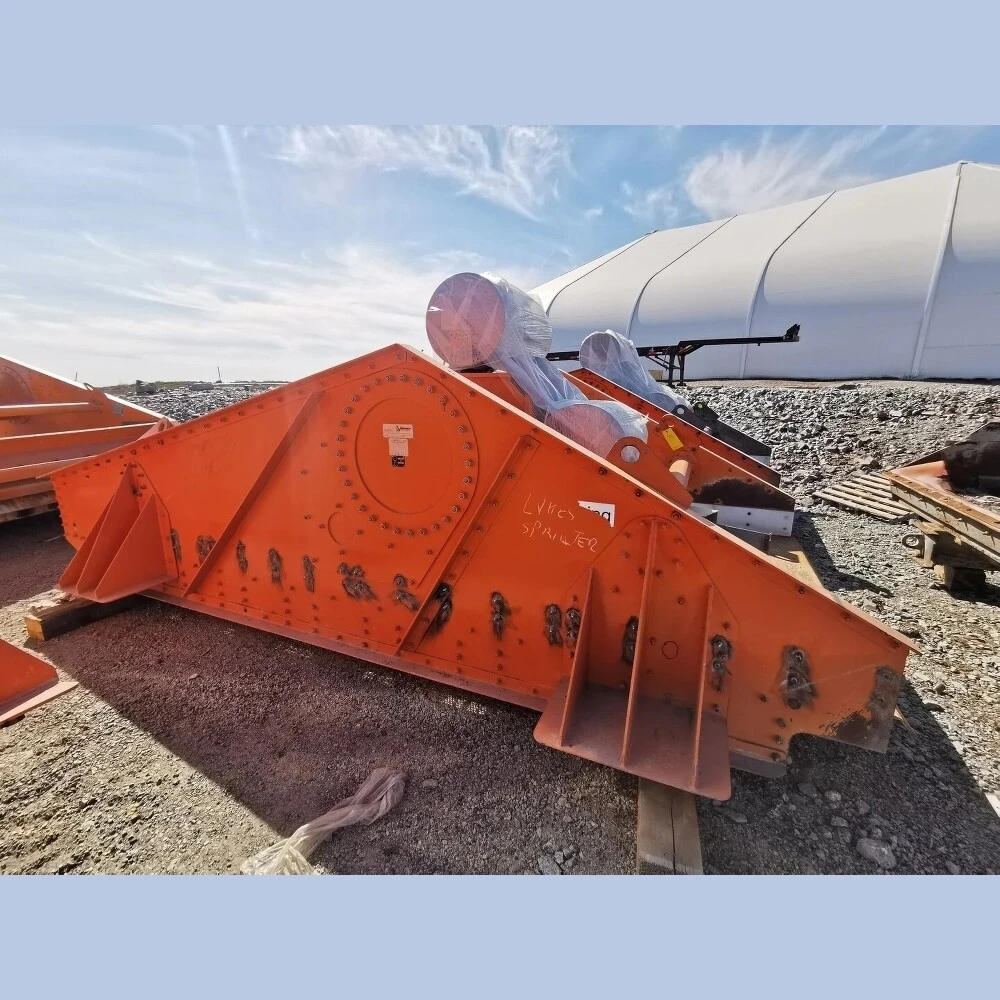

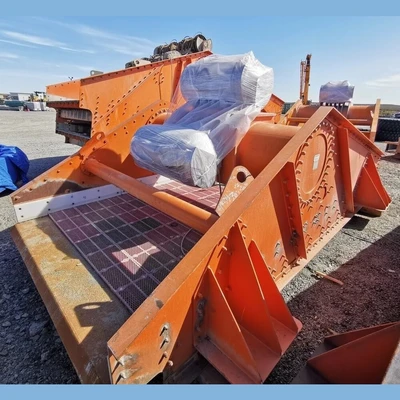

USED VIBRAMECH H1-48-24

Vibramech H1-48-24 Single Deck Horizontal Screen

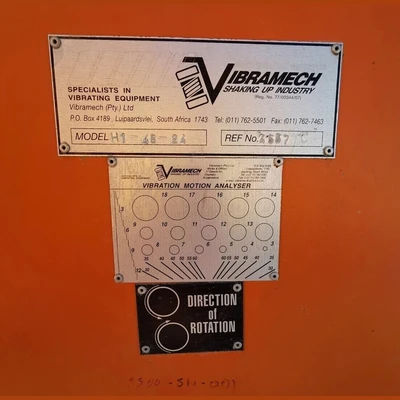

Make: Vibramech
Model: H1-48-24
Condition: Used, Reported in Good Condition
General Specifications:
Number of Decks: 1
Inclination: Horizontal

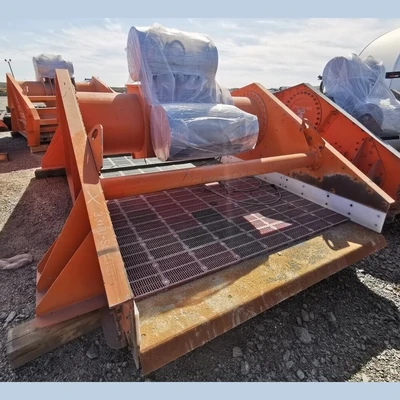

Deck: 1.4 x 8mm Hiflow
Deck Spray Pressure: 120m³/hr, 150kPa
Deck Cut-Off Size: 1.5mm
Water Sprays: 2 x Spray Pipes with HDF 18 Nozzles
Isolators: Rubber Buffers
Vibration Motors: 2 x 11kW
Solids Oversize:
Max: 133 TPH
Average: 93 TPH
Solids Design Cap:
Max: 133 TPH
Average: 93 TPH
Deck Width: 2,440mm (96in)
Deck Length: 4,880mm (192in)
Overall Width: 3,160mm (124in)
Overall Length: 5,752mm (226in)
Overall Height: 2,252mm (87in)
Weight: 8,200 kg  (18,078 lbs.)
Number of Decks: 1
Inclination: Horizontal
Deck: 1.4 x 8mm Hiflow
Deck Spray Pressure: 120m³/hr, 150kPa
Deck Cut-Off Size: 1.5mm
Water Sprays: 2 x Spray Pipes with HDF 18 Nozzles
Isolators: Rubber Buffers
Vibration Motors: 2 x 11kW
Solids Oversize:
Max: 133 TPH
Average: 93 TPH
Max: 133 TPH
Average: 93 TPH
Solids Design Cap:
Max: 133 TPH
Average: 93 TPH
Max: 133 TPH
Average: 93 TPH
Deck Width: 2,440mm (96in)
Deck Length: 4,880mm (192in)
Overall Width: 3,160mm (124in)
Overall Length: 5,752mm (226in)
Overall Height: 2,252mm (87in)
Weight: 8,200 kg  (18,078 lbs.)
Location: Western Canada
