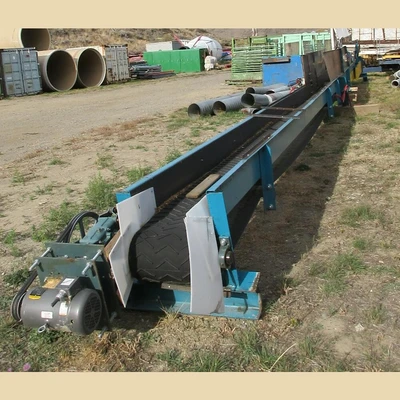

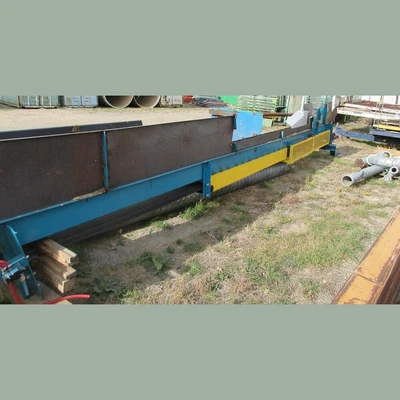

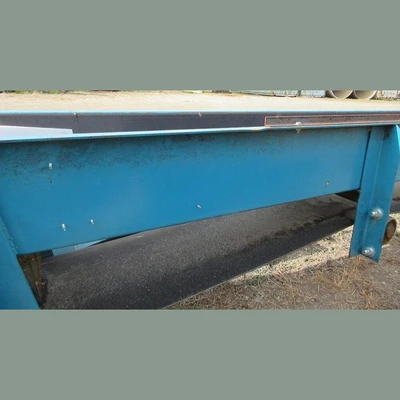

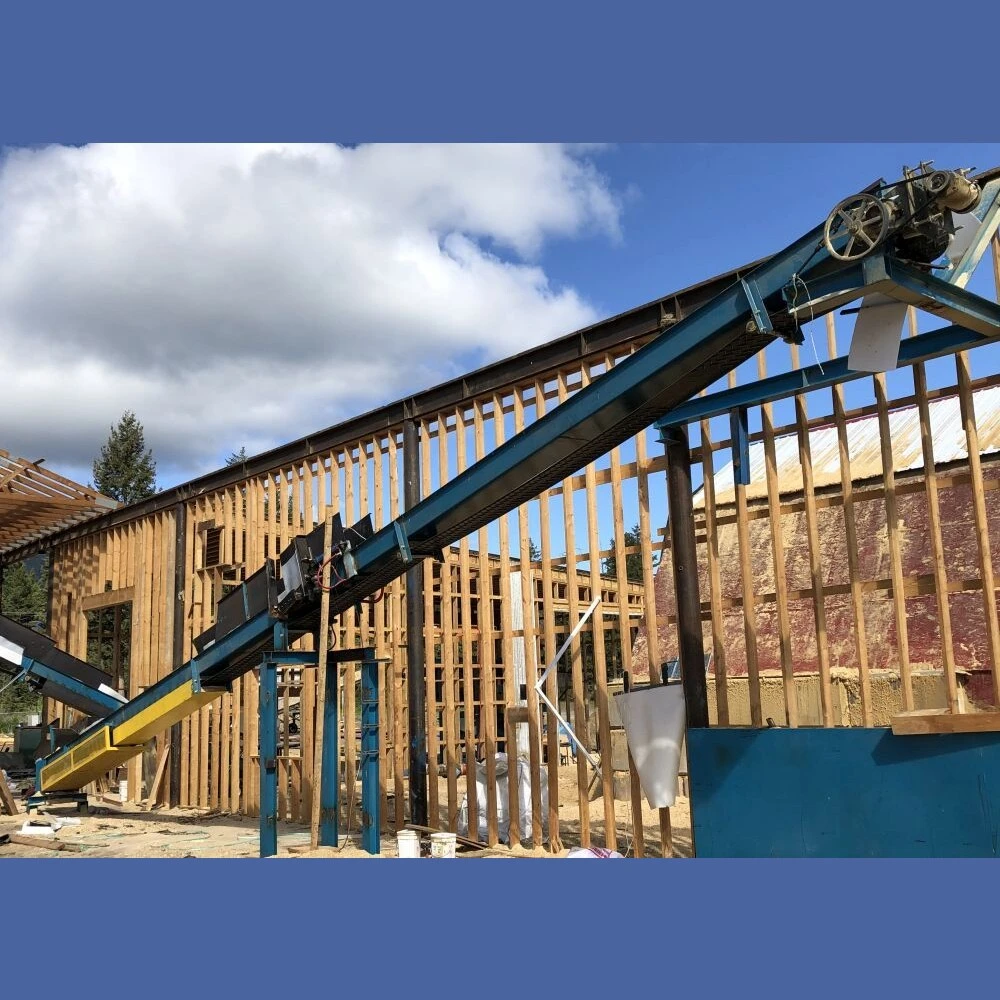

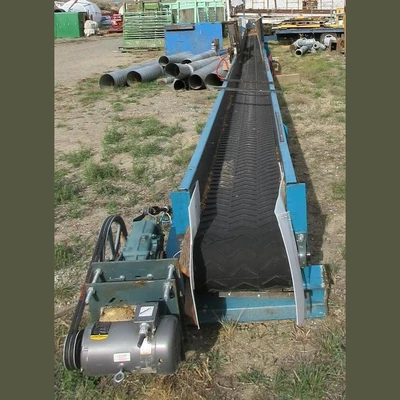

18" x 58' Troughed Channel Conveyor

18 Inch x 58 Feet Troughed Channel Conveyor
Size: 18" Wide x 58' Long x 28" High
Overall Dimensions: 48" Wide x 63' Long x 51" High

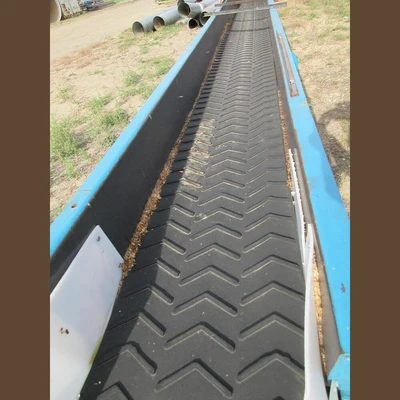

Belt
18" Wide
0.25" Thick 3 PLY
Cheveron (V6) Style Belting
18" Wide
0.25" Thick 3 PLY
Cheveron (V6) Style Belting

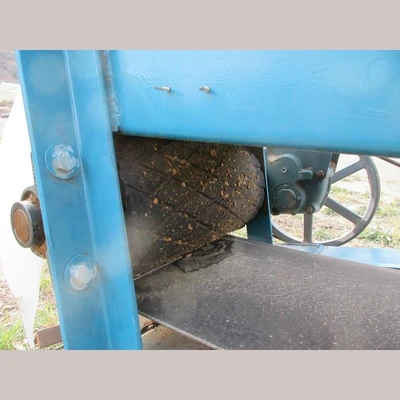

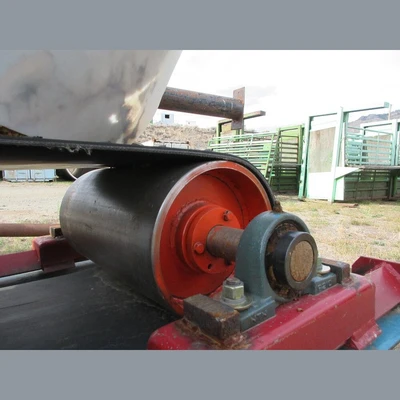

Head Pulley
10" Diameter x 19" Long
Rubberized
10" Diameter x 19" Long
Rubberized
Tail Pulley
10" Diameter x 19" Long
Steel
10" Diameter x 19" Long
Steel

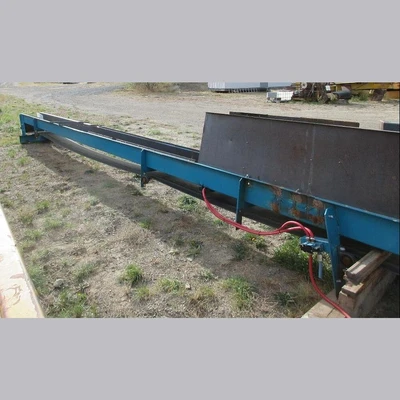

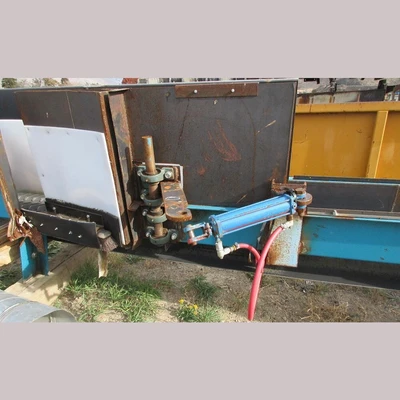

Hydraulically Controlled Side Chute
Located 27' From Head Pulley

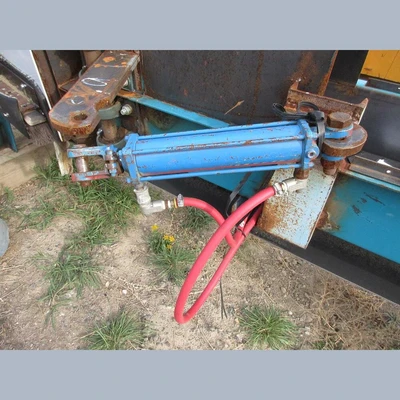

Cross Hydraulic Ram Dimensions: 3" Diameter x 15" Long (2.5" Bore)
24" High Steel Sides at Chute
Located 27' From Head Pulley
Cross Hydraulic Ram Dimensions: 3" Diameter x 15" Long (2.5" Bore)
24" High Steel Sides at Chute

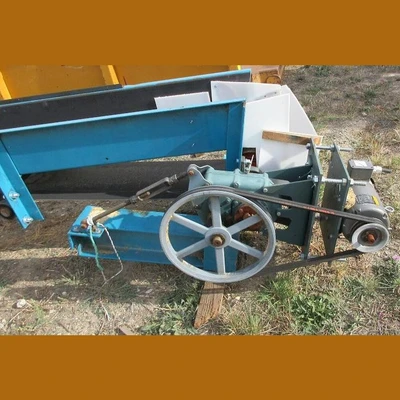

Motor and Reducer

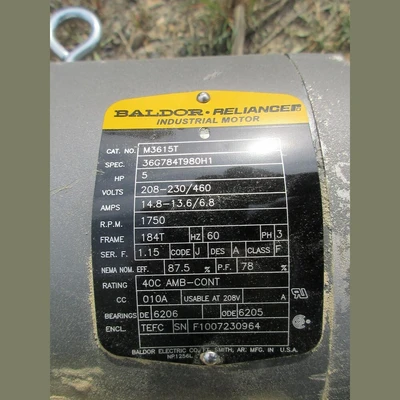

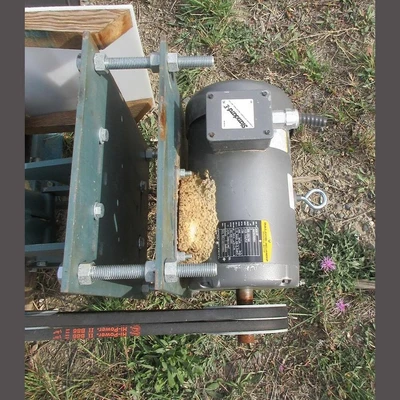

Motor
Baldor TEFC 3 Phase
5 HP
208-230/460 Volt
1750 RPM
184T Frame

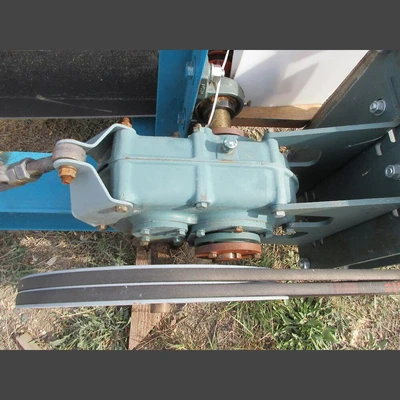

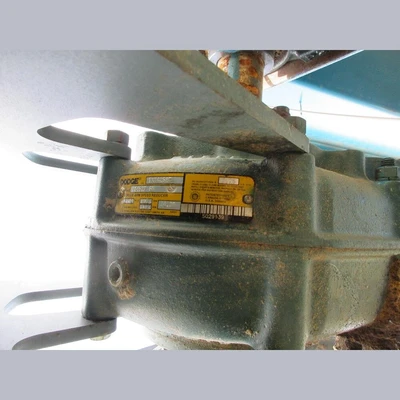

Reducer
Dodge Torque-Arm Shaft Mount Speed Reducer
Model: TXT425BT
Ratio: 24.38 To 1
Motor
Baldor TEFC 3 Phase
5 HP
208-230/460 Volt
1750 RPM
184T Frame
Baldor TEFC 3 Phase
5 HP
208-230/460 Volt
1750 RPM
184T Frame
Reducer
Dodge Torque-Arm Shaft Mount Speed Reducer
Model: TXT425BT
Ratio: 24.38 To 1
Dodge Torque-Arm Shaft Mount Speed Reducer
Model: TXT425BT
Ratio: 24.38 To 1
Location: British Columbia, Canada
