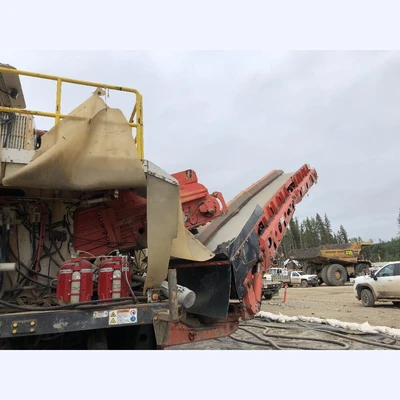

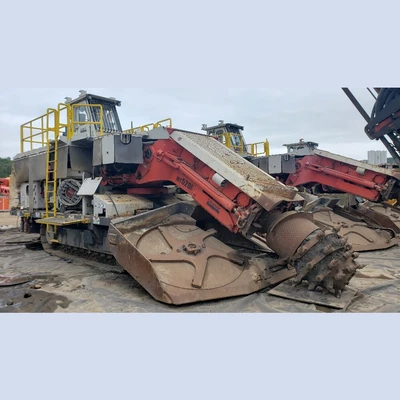

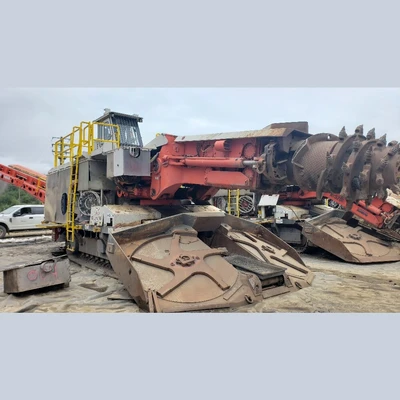

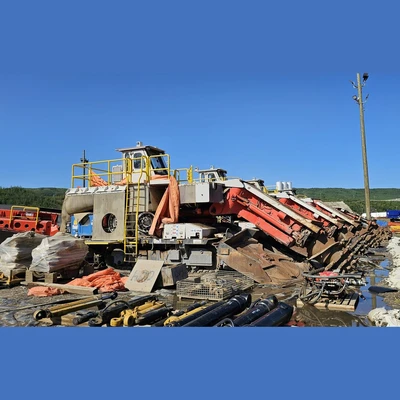

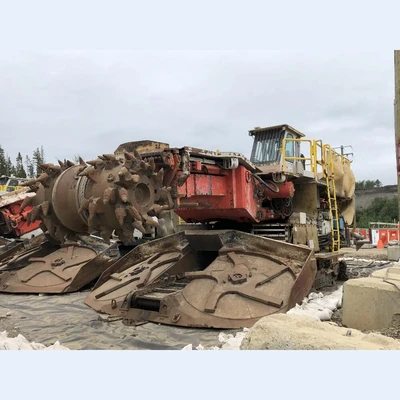

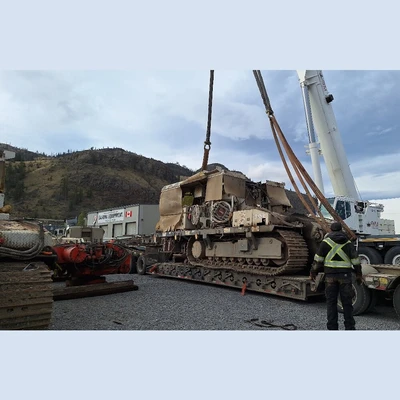

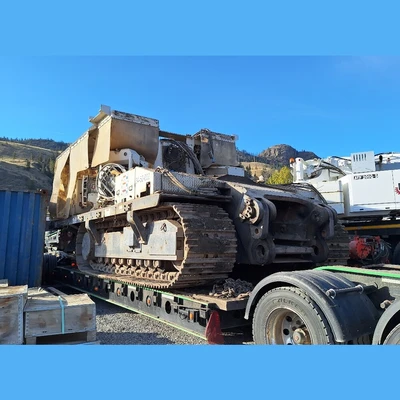

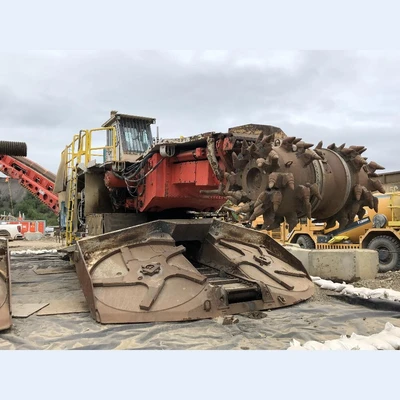

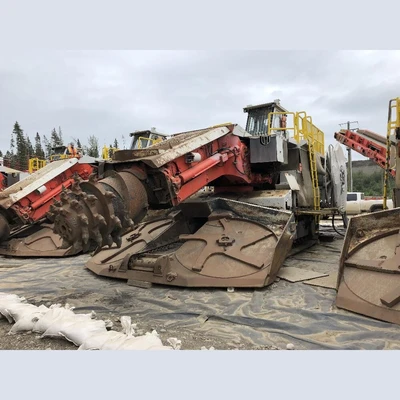

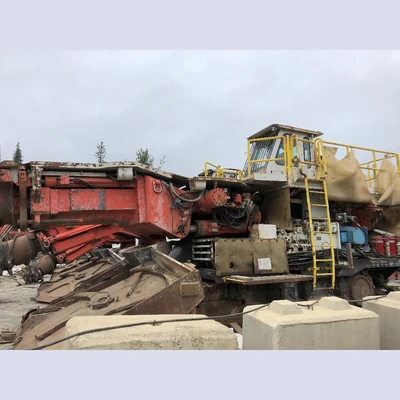

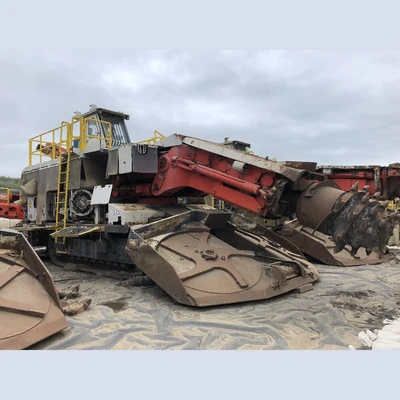

USED 2015 SANDVIK MT520

Sandvik MT520 & MT720 Roadheaders Package
Sandvik Inspection Reports Completed and Available

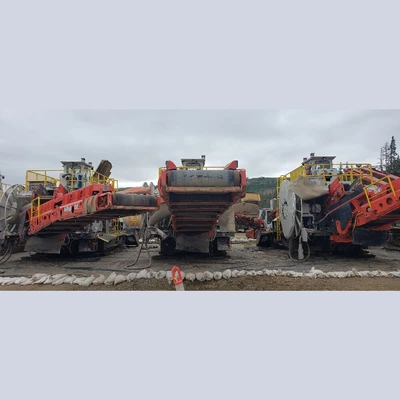

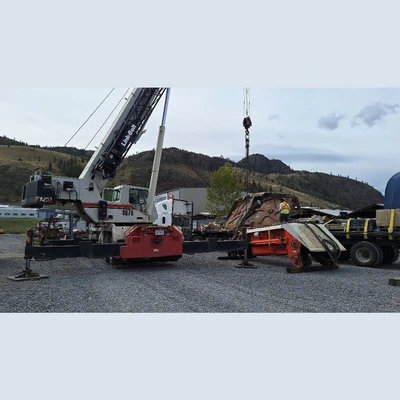

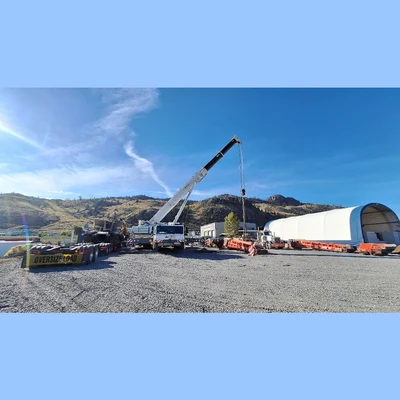

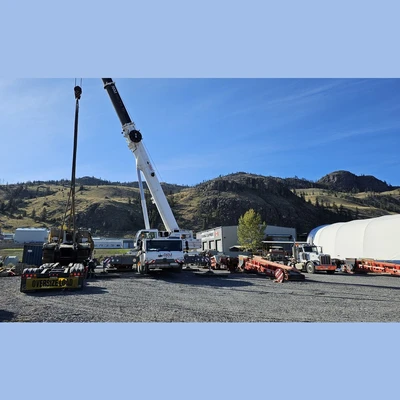

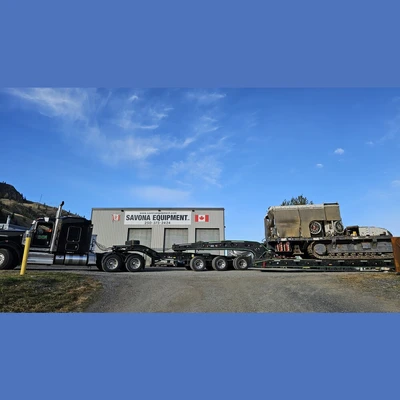

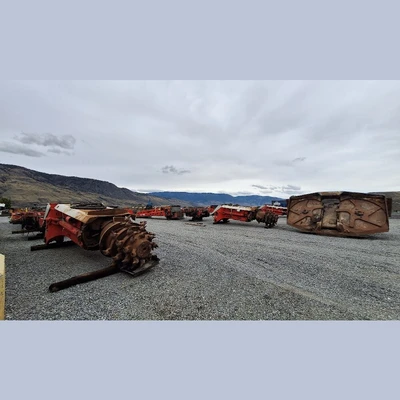

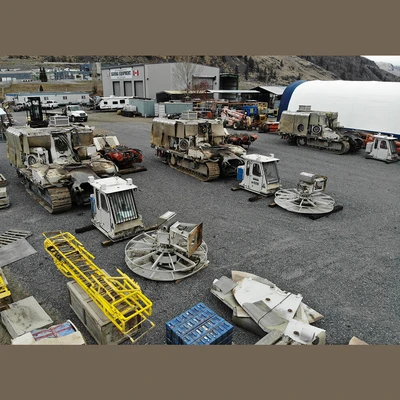

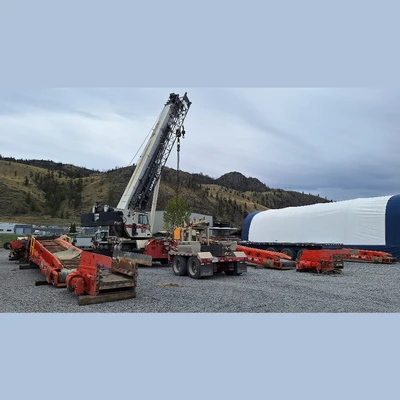

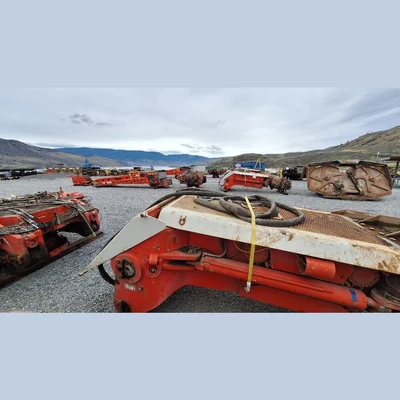

Now Located at Our Site in Savona, B.C. Canada!Inquire Today!
Quantity: 4 Units 3 Units Remaining

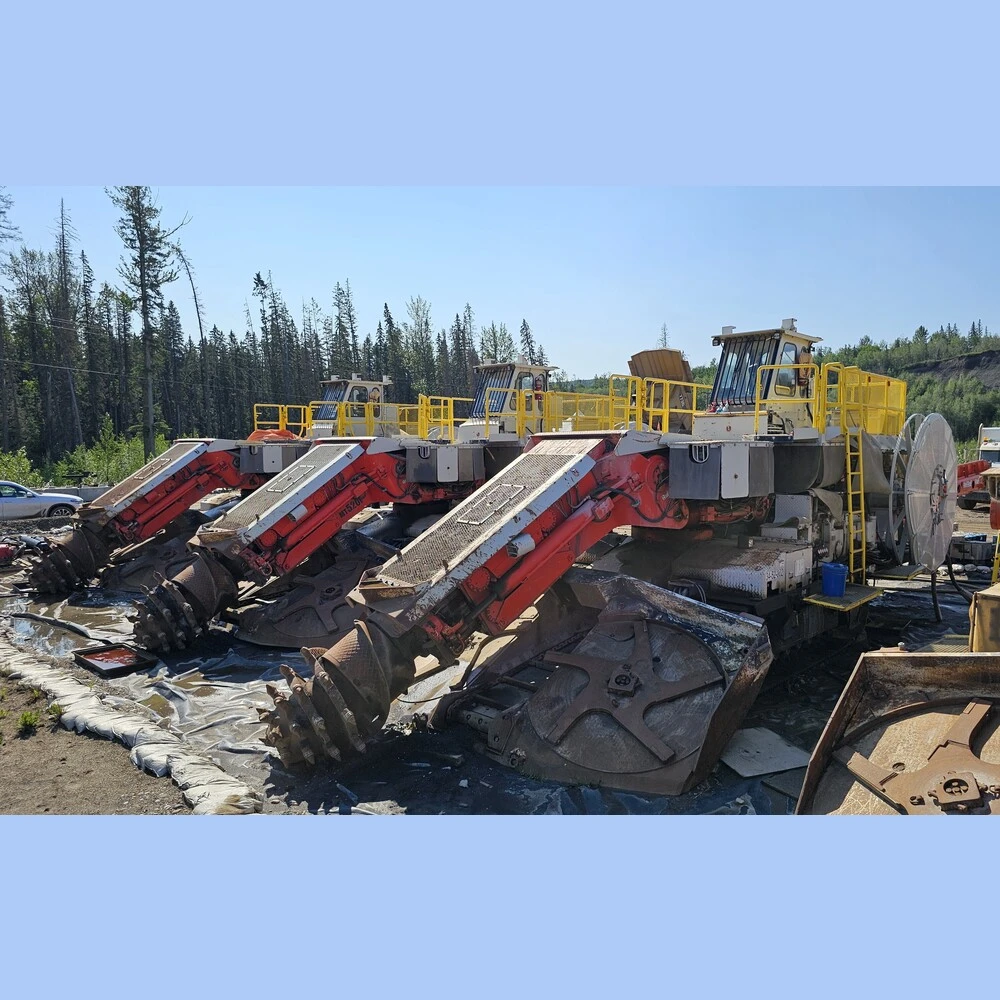

Sandvik MT520 (3 Units)

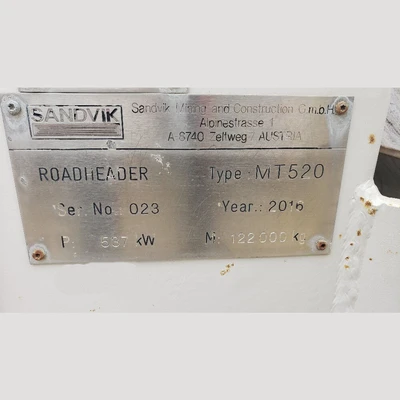

Make: Sandvik
Model: MT520
Type: Roadheader

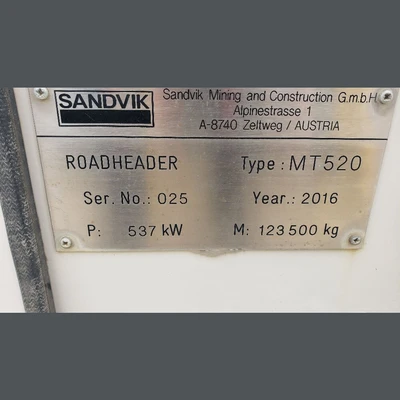

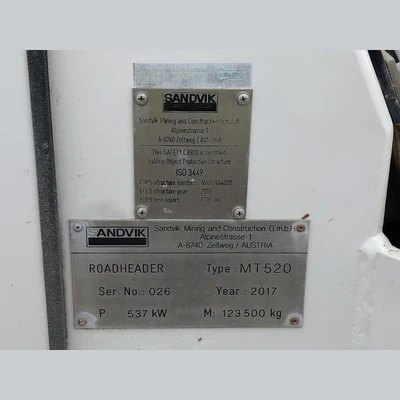

Serials: 023, 025, 026,
Condition: Used, Reported In Good Condition
Years:
023: 2016
025: 2016
026: 2017
Hours:
023:
Hydraulic Motor: 5,542 Hours
Cutting Head Motor: 3,756 Hours

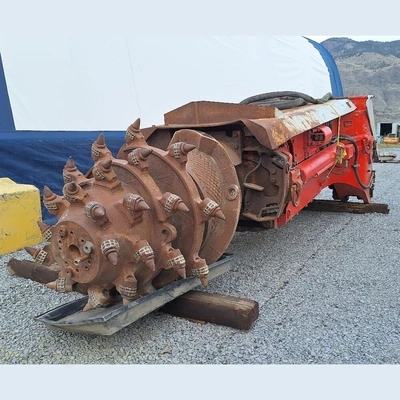

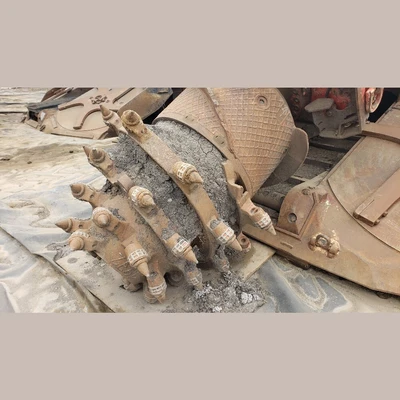

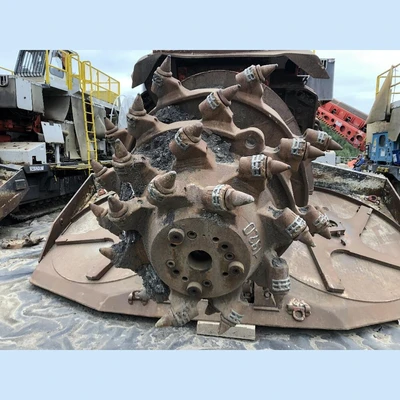

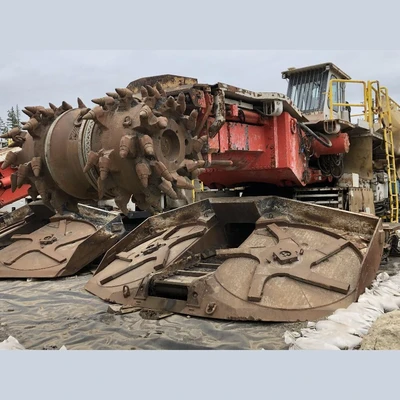

Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
025:
Hydraulic Motor: 1,564 Hours
Cutting Head Motor: 1,048 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
 026:
Hydraulic Motor: 2,817 Hours
Cutting Head Motor: 1,705 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Make: Sandvik
Model: MT520
Type: Roadheader
Serials: 023, 025, 026,
Condition: Used, Reported In Good Condition
Years:
023: 2016
025: 2016
026: 2017
023: 2016
025: 2016
026: 2017
Hours:
023:
Hydraulic Motor: 5,542 Hours
Cutting Head Motor: 3,756 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
025:
Hydraulic Motor: 1,564 Hours
Cutting Head Motor: 1,048 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
 026:
Hydraulic Motor: 2,817 Hours
Cutting Head Motor: 1,705 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
023:
Hydraulic Motor: 5,542 Hours
Cutting Head Motor: 3,756 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Hydraulic Motor: 5,542 Hours
Cutting Head Motor: 3,756 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
025:
Hydraulic Motor: 1,564 Hours
Cutting Head Motor: 1,048 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Hydraulic Motor: 1,564 Hours
Cutting Head Motor: 1,048 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
 026:
Hydraulic Motor: 2,817 Hours
Cutting Head Motor: 1,705 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Hydraulic Motor: 2,817 Hours
Cutting Head Motor: 1,705 Hours
Cutter Head: R315-IC39
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Optimum Application: Rock with Compressive Strength from 40-60 MPa
Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
Diameter: 1430mm
Width: 1160mm
Description: The Sandvik Roadheaders are equipped with powerful, geometrically optimized, inline or transverse cutter heads proven to give the best cutting performance in a wide range of rock conditions. Subway tunnels, road tunnels, shaft sinking, rehabilitation of existing tunnels and excavation of underground caverns are just a few examples where these machines have demonstrated their great flexibility. Our Sandvik MT520 PLC-controlled Roadheader has been designed for use in tunneling, as well as salt, potash and chalk mining with a maximum profile up to 70m². It has a modular design that offers more flexibility than standard Roadheaders and works in most rock conditions up to 100 MPa compressive strength.
General Model Specifications:
General Data:
Total Length with Belt Conveyor: 20,000mm (Approx.)
Total Length: 12,900mm (Approx.)
Machine Width - Chassis: 3,695mm
Machine Width - Tracks: 3,300mm
Min Travel Height: 4,800mm (Approx.)
Total Height: 4,950mm
Loading Table Width: 4,620mm
Crawler Track Width: 800mm
Total Weight Basic Machine: 123 Tons (Approx.)
Ground Clearance: 242mm
Total Available Power: 537kW
Machine Ground Pressure: 0.23 MPa
Navigable Area of Application:
Cone Radius - Min: 25m (Approx.)
Basin Radius -  Min: 20m (Approx.)
Max Side Tilt Angle during Tramming: ±5°
Max Front Tilt Angle During Tramming: ±18°
Cuttable Uniaxial Compressive Strength: 80-140 MPa
Power Supply: 1000 Volt / 60Hz

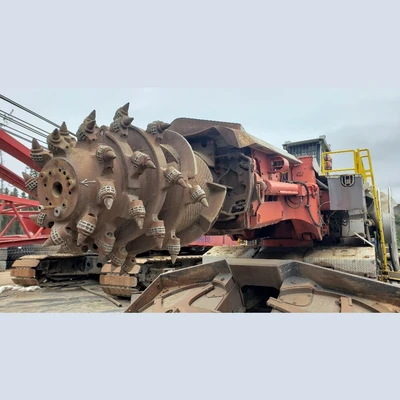

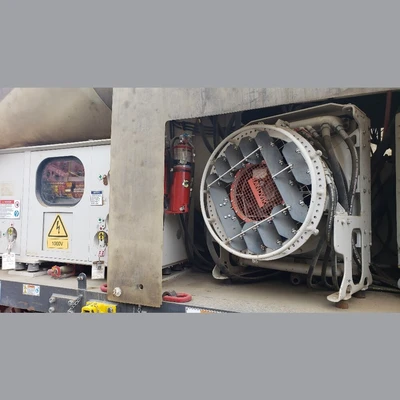

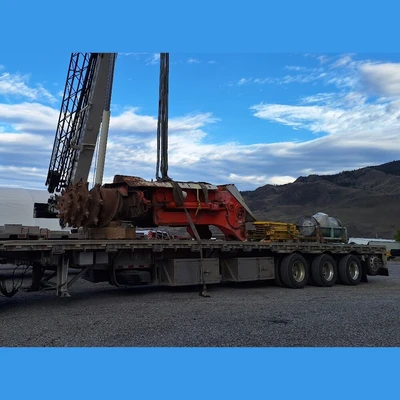

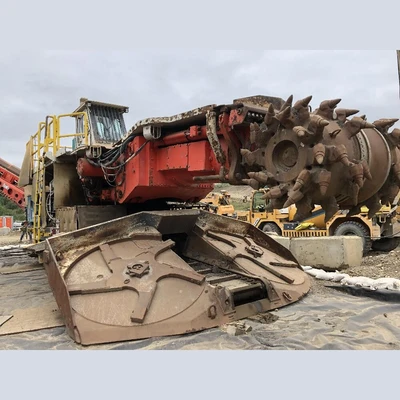

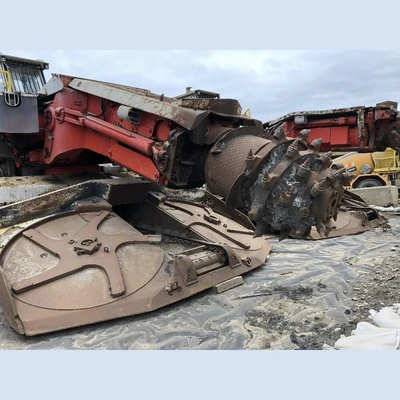

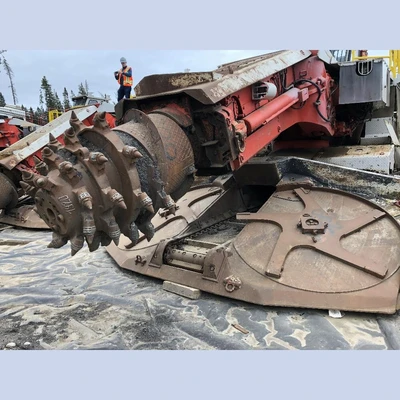

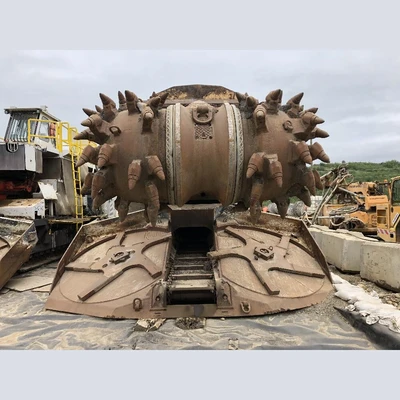

 Cutter Head:
Max Cutting Height Above Track Level: 7,100mm
Min Cutting Height above Track Level: 6,350mm
Cutting Width: 7,900-9,300mm (±37­° Horizontal Angle)
Max Undercut Below Floor Level: 750mm
Head Diameter: 1,460mm
Head Width: 1,160mm
Max Cutting Speed: 1.5m/sec
Optimum Swivel Speed: 0.05-0.08m/sec
Cross-Sectional Area to Floor Level: 47-70m²
Available Power: 315kW

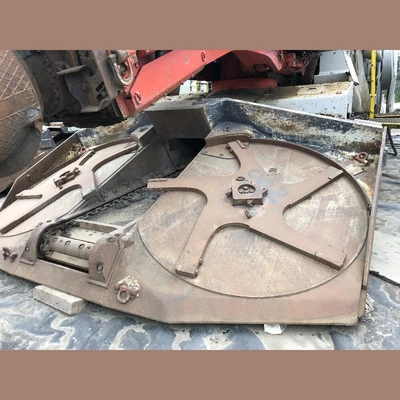

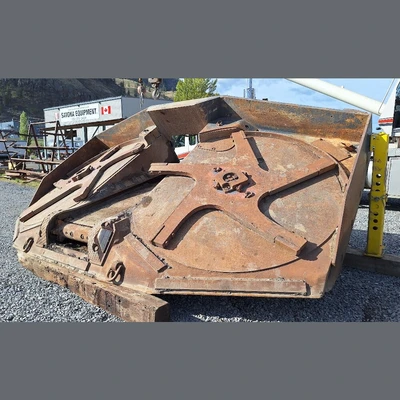

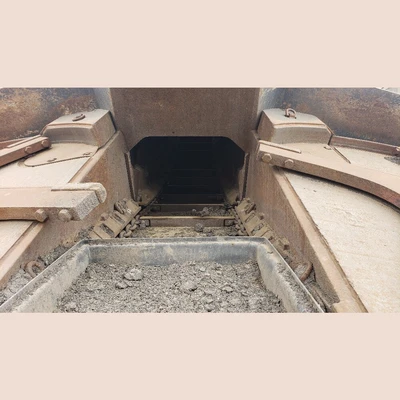

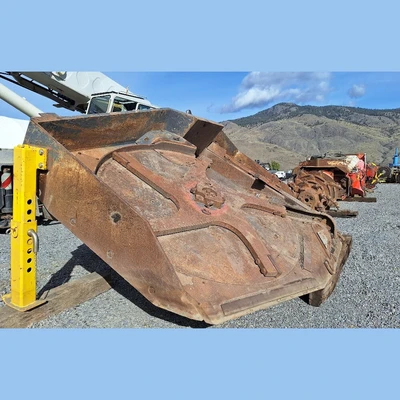

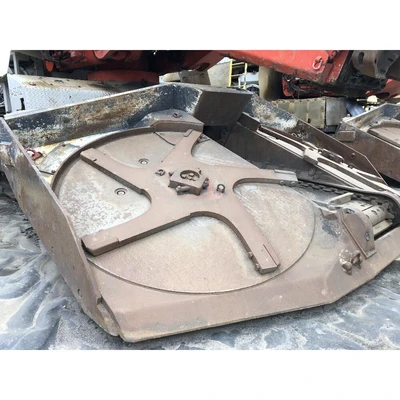

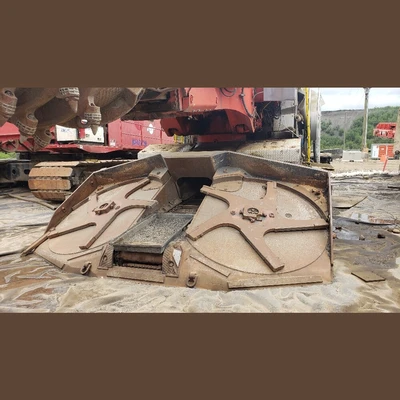

Loading Device:
Device: Spinner
Loading Capacity: 350m³/h Max.
Loading Width: 4,620mm
Loading Device Height Above Floor Level: 635mm
Loading Device Height Below Floor Level: 230mm
Available Power: (2) 36kW

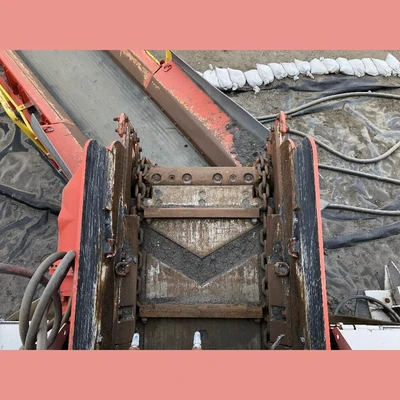

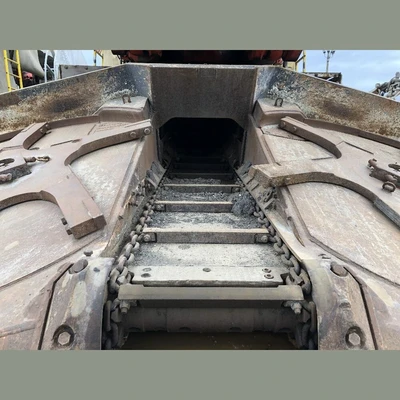

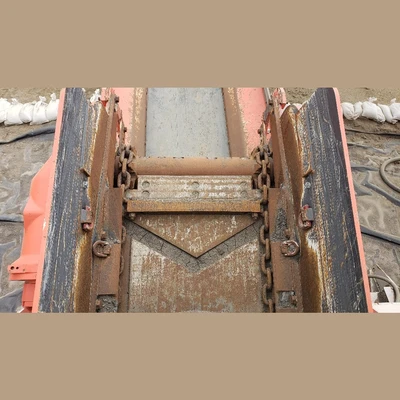

Conveyor:
Conveyor Width: 840mm
Conveyor Chain Speed: 0.5-0.9 m/sec
Conveyor Capacity: 350m³/h Max
Installed Power (Hydraulic Driven): 90kW

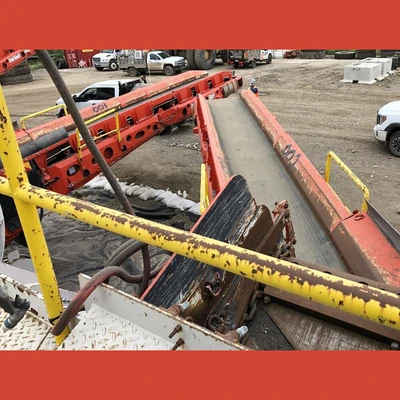

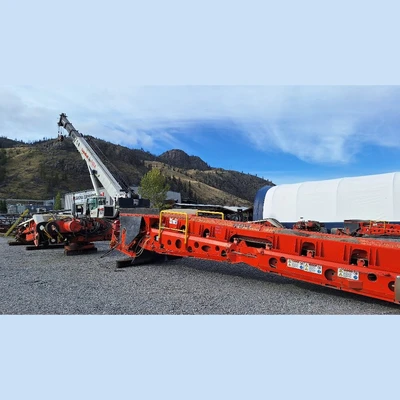

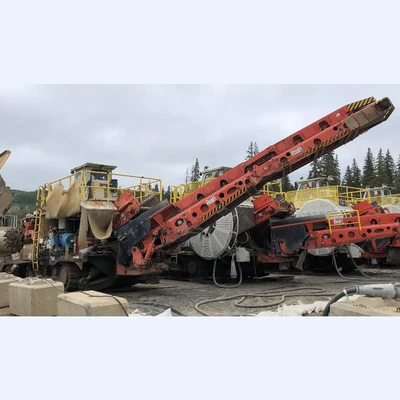

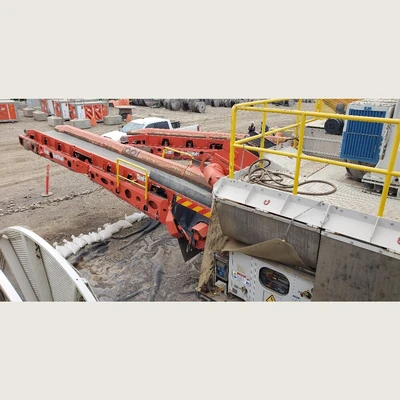

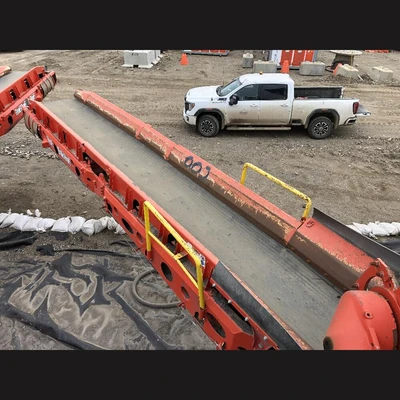

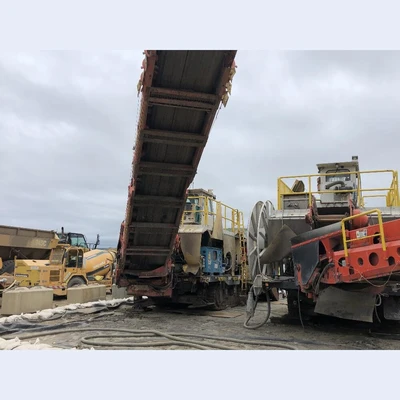

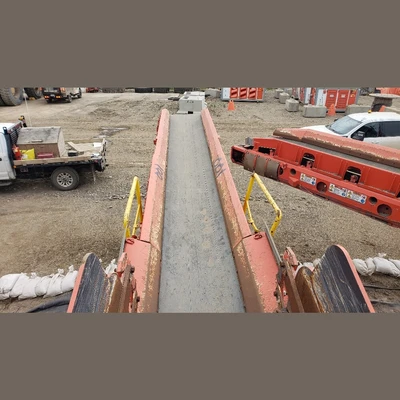

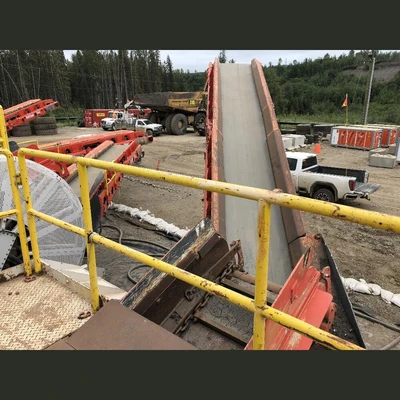

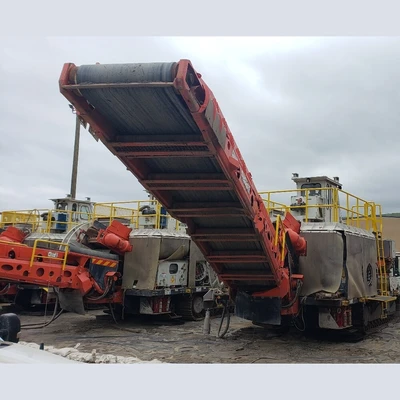

Swivel Belt Conveyor:
Swivel Belt Conveyor Width: 1,000mm
Swivel Belt Conveyor Overhang: 6,600mm
Swivel Belt Conveyor Chain Speed: 2m/sec Max
Swivel Belt Conveyor Max Discharge Height: 6,000mm
Swivel Belt Conveyor Min Discharge Height: 3,500mm
Available Power: 25kW

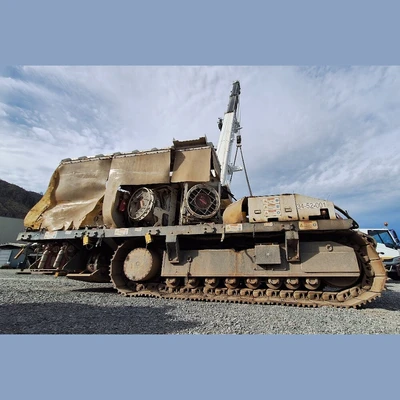

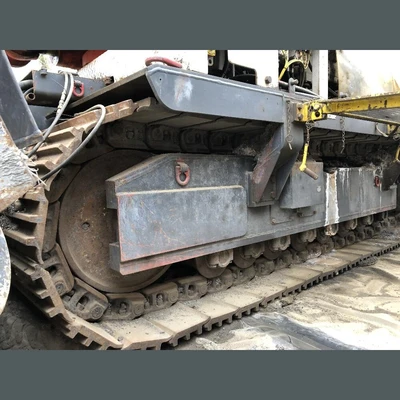

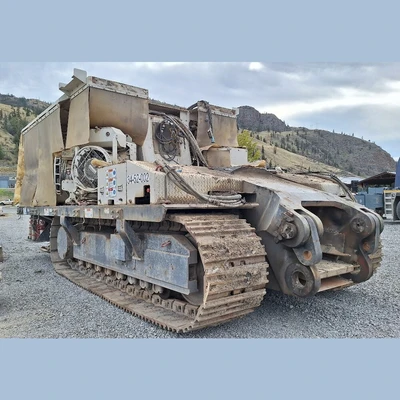

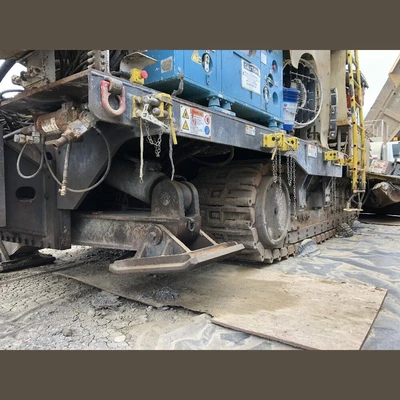

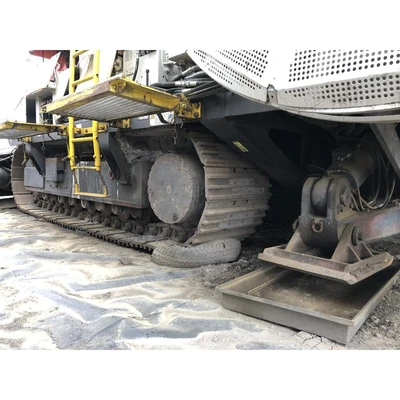

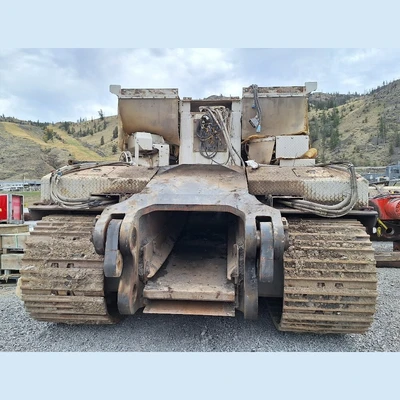

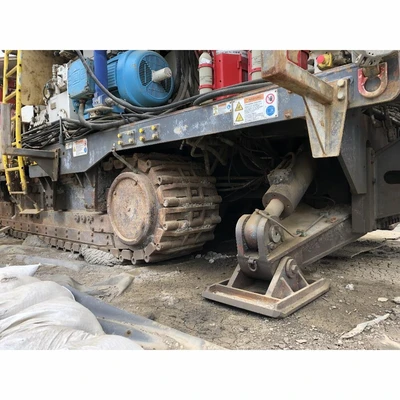

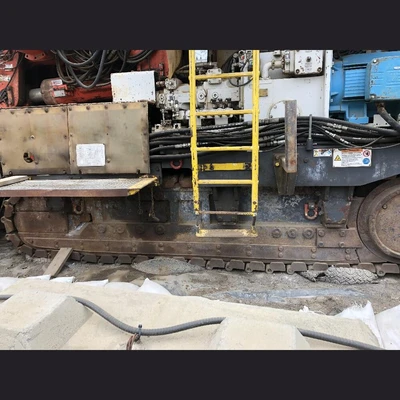

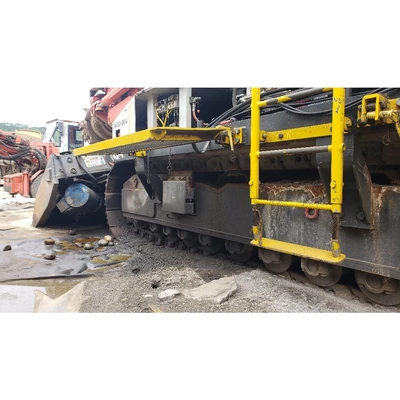

Frame/Crawler Track:
Tramming Speed: 0-18 m/min
Track Force Per Track: 465kN
Track Overall Width - Track Exterior: 3,300mm (Approx.)
Track Ground Length: 3,800mm (Approx.)
Track Chain Width: 800mm

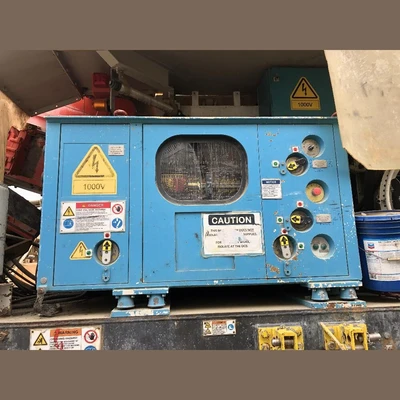

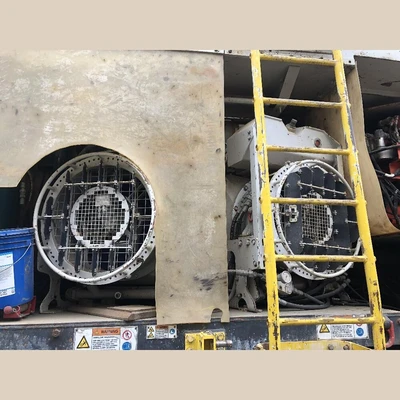

Electrical System:
Electrical Potential: 1000 Volt / 60Hz
Available Power:
Cutter Motor - Water Cooled: 315kW
Rotational Speed: 1475 RPM
Nominal Torque: 1,942Nm

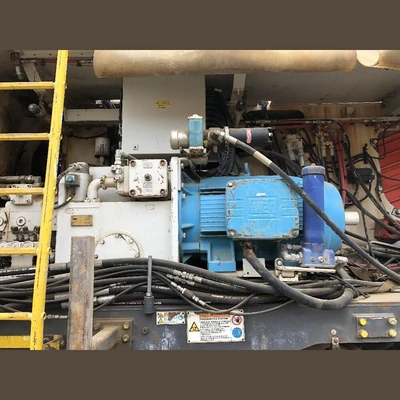

Hydraulic Motor - Air Cooled: 150kW
Rotational Speed: 1489 RPM
Nominal Torque: 962Nm
Loader Motors - Water Cooled: (2) 36kW
Rotational Speed: 1450 RPM
Nominal Torque: (2) 237Nm

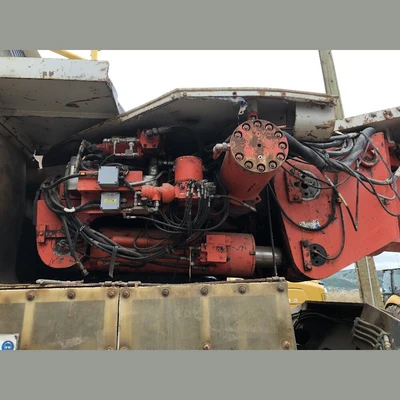

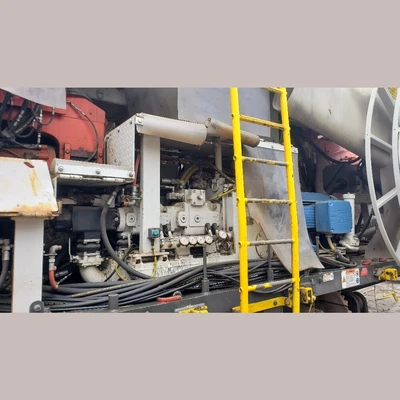

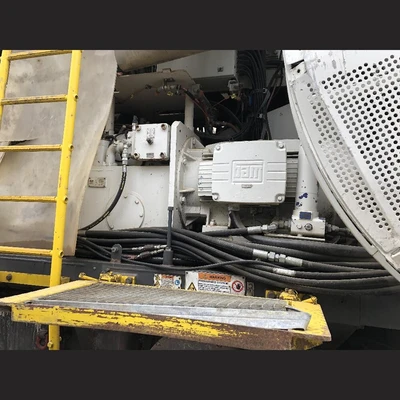

Hydraulic System:
Available Power: 150kW
Pressure - Machine: 280 bar
Pressure - Chain Conveyor: 330 bar
Tank Capacity: 480 Liters
Total Oil Capacity: 680 Liters
Water System:
Quantity of Water, min.: 43 L/min
Pressure: 4 bar Min, 20 bar Max
Water Temperature: 12-35° C
Spraying System Type: Cutterhead and Cabin
Additional Equipment:

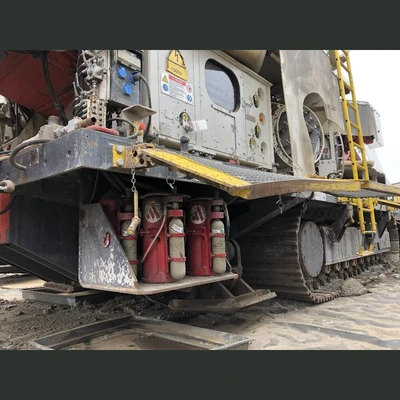

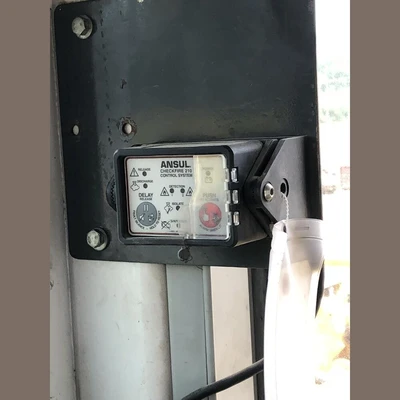

Fire Protection: Fire Suppression/Detection System + (2) Hand Extinguishers
Overall Dimensions:
Length: 20m (20,000mm)
Width: 4.62m (4,620mm)
Height: 5.15m (5,150mm)
Weight: 123 Tons (123,000 kgs)
General Data:
Total Length with Belt Conveyor: 20,000mm (Approx.)
Total Length: 12,900mm (Approx.)
Machine Width - Chassis: 3,695mm
Machine Width - Tracks: 3,300mm
Min Travel Height: 4,800mm (Approx.)
Total Height: 4,950mm
Loading Table Width: 4,620mm
Crawler Track Width: 800mm
Total Weight Basic Machine: 123 Tons (Approx.)
Ground Clearance: 242mm
Total Available Power: 537kW
Machine Ground Pressure: 0.23 MPa
Total Length with Belt Conveyor: 20,000mm (Approx.)
Total Length: 12,900mm (Approx.)
Machine Width - Chassis: 3,695mm
Machine Width - Tracks: 3,300mm
Min Travel Height: 4,800mm (Approx.)
Total Height: 4,950mm
Loading Table Width: 4,620mm
Crawler Track Width: 800mm
Total Weight Basic Machine: 123 Tons (Approx.)
Ground Clearance: 242mm
Total Available Power: 537kW
Machine Ground Pressure: 0.23 MPa
Navigable Area of Application:
Cone Radius - Min: 25m (Approx.)
Basin Radius -  Min: 20m (Approx.)
Max Side Tilt Angle during Tramming: ±5°
Max Front Tilt Angle During Tramming: ±18°
Cuttable Uniaxial Compressive Strength: 80-140 MPa
Power Supply: 1000 Volt / 60Hz
Cone Radius - Min: 25m (Approx.)
Basin Radius -  Min: 20m (Approx.)
Max Side Tilt Angle during Tramming: ±5°
Max Front Tilt Angle During Tramming: ±18°
Cuttable Uniaxial Compressive Strength: 80-140 MPa
Power Supply: 1000 Volt / 60Hz
 Cutter Head:
Max Cutting Height Above Track Level: 7,100mm
Min Cutting Height above Track Level: 6,350mm
Cutting Width: 7,900-9,300mm (±37­° Horizontal Angle)
Max Undercut Below Floor Level: 750mm
Head Diameter: 1,460mm
Head Width: 1,160mm
Max Cutting Speed: 1.5m/sec
Optimum Swivel Speed: 0.05-0.08m/sec
Cross-Sectional Area to Floor Level: 47-70m²
Available Power: 315kW
Max Cutting Height Above Track Level: 7,100mm
Min Cutting Height above Track Level: 6,350mm
Cutting Width: 7,900-9,300mm (±37­° Horizontal Angle)
Max Undercut Below Floor Level: 750mm
Head Diameter: 1,460mm
Head Width: 1,160mm
Max Cutting Speed: 1.5m/sec
Optimum Swivel Speed: 0.05-0.08m/sec
Cross-Sectional Area to Floor Level: 47-70m²
Available Power: 315kW
Loading Device:
Device: Spinner
Loading Capacity: 350m³/h Max.
Loading Width: 4,620mm
Loading Device Height Above Floor Level: 635mm
Loading Device Height Below Floor Level: 230mm
Available Power: (2) 36kW
Device: Spinner
Loading Capacity: 350m³/h Max.
Loading Width: 4,620mm
Loading Device Height Above Floor Level: 635mm
Loading Device Height Below Floor Level: 230mm
Available Power: (2) 36kW
Conveyor:
Conveyor Width: 840mm
Conveyor Chain Speed: 0.5-0.9 m/sec
Conveyor Capacity: 350m³/h Max
Installed Power (Hydraulic Driven): 90kW
Conveyor Width: 840mm
Conveyor Chain Speed: 0.5-0.9 m/sec
Conveyor Capacity: 350m³/h Max
Installed Power (Hydraulic Driven): 90kW
Swivel Belt Conveyor:
Swivel Belt Conveyor Width: 1,000mm
Swivel Belt Conveyor Overhang: 6,600mm
Swivel Belt Conveyor Chain Speed: 2m/sec Max
Swivel Belt Conveyor Max Discharge Height: 6,000mm
Swivel Belt Conveyor Min Discharge Height: 3,500mm
Available Power: 25kW
Swivel Belt Conveyor Width: 1,000mm
Swivel Belt Conveyor Overhang: 6,600mm
Swivel Belt Conveyor Chain Speed: 2m/sec Max
Swivel Belt Conveyor Max Discharge Height: 6,000mm
Swivel Belt Conveyor Min Discharge Height: 3,500mm
Available Power: 25kW
Frame/Crawler Track:
Tramming Speed: 0-18 m/min
Track Force Per Track: 465kN
Track Overall Width - Track Exterior: 3,300mm (Approx.)
Track Ground Length: 3,800mm (Approx.)
Track Chain Width: 800mm
Tramming Speed: 0-18 m/min
Track Force Per Track: 465kN
Track Overall Width - Track Exterior: 3,300mm (Approx.)
Track Ground Length: 3,800mm (Approx.)
Track Chain Width: 800mm
Electrical System:
Electrical Potential: 1000 Volt / 60Hz
Available Power:
Cutter Motor - Water Cooled: 315kW
Rotational Speed: 1475 RPM
Nominal Torque: 1,942Nm
Hydraulic Motor - Air Cooled: 150kW
Rotational Speed: 1489 RPM
Nominal Torque: 962Nm
Loader Motors - Water Cooled: (2) 36kW
Rotational Speed: 1450 RPM
Nominal Torque: (2) 237Nm
Electrical Potential: 1000 Volt / 60Hz
Available Power:
Cutter Motor - Water Cooled: 315kW
Rotational Speed: 1475 RPM
Nominal Torque: 1,942Nm
Hydraulic Motor - Air Cooled: 150kW
Rotational Speed: 1489 RPM
Nominal Torque: 962Nm
Loader Motors - Water Cooled: (2) 36kW
Rotational Speed: 1450 RPM
Nominal Torque: (2) 237Nm
Cutter Motor - Water Cooled: 315kW
Rotational Speed: 1475 RPM
Nominal Torque: 1,942Nm
Rotational Speed: 1475 RPM
Nominal Torque: 1,942Nm
Hydraulic Motor - Air Cooled: 150kW
Rotational Speed: 1489 RPM
Nominal Torque: 962Nm
Rotational Speed: 1489 RPM
Nominal Torque: 962Nm
Loader Motors - Water Cooled: (2) 36kW
Rotational Speed: 1450 RPM
Nominal Torque: (2) 237Nm
Rotational Speed: 1450 RPM
Nominal Torque: (2) 237Nm
Hydraulic System:
Available Power: 150kW
Pressure - Machine: 280 bar
Pressure - Chain Conveyor: 330 bar
Tank Capacity: 480 Liters
Total Oil Capacity: 680 Liters
Available Power: 150kW
Pressure - Machine: 280 bar
Pressure - Chain Conveyor: 330 bar
Tank Capacity: 480 Liters
Total Oil Capacity: 680 Liters
Water System:
Quantity of Water, min.: 43 L/min
Pressure: 4 bar Min, 20 bar Max
Water Temperature: 12-35° C
Spraying System Type: Cutterhead and Cabin
Quantity of Water, min.: 43 L/min
Pressure: 4 bar Min, 20 bar Max
Water Temperature: 12-35° C
Spraying System Type: Cutterhead and Cabin
Additional Equipment:
Fire Protection: Fire Suppression/Detection System + (2) Hand Extinguishers
Fire Protection: Fire Suppression/Detection System + (2) Hand Extinguishers
Overall Dimensions:
Length: 20m (20,000mm)
Width: 4.62m (4,620mm)
Height: 5.15m (5,150mm)
Weight: 123 Tons (123,000 kgs)
Length: 20m (20,000mm)
Width: 4.62m (4,620mm)
Height: 5.15m (5,150mm)
Weight: 123 Tons (123,000 kgs)

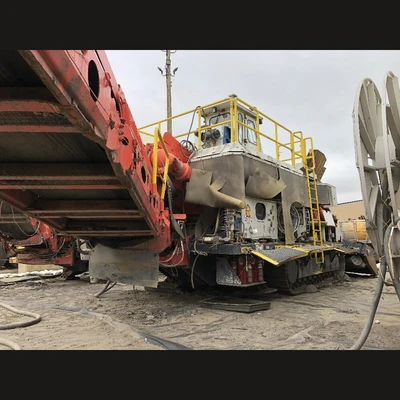

Sandvik MT720 Roadheader - SOLD
Make: Sandvik
Model: MT720
Type: Roadheader
Serial: 084
Hours:
Hydraulic Motor: 7282 Hours
Cutting Motor: 5141 Hours
Year: 2015
Sandvik MT720 Roadheader - SOLD
Make: Sandvik
Model: MT720
Type: Roadheader
Serial: 084
Hours:
Hydraulic Motor: 7282 Hours
Cutting Motor: 5141 Hours
Hydraulic Motor: 7282 Hours
Cutting Motor: 5141 Hours
Year: 2015
Description: Sandvik MT720 is an electrically powered and crawler-mounted boom-type Roadheader which is engineered to cut hard and abrasive rock mass of up to 140 MPa unconfined compressive strength (UCS), and in extreme cases of even up to 180 MPa in tunneling applications. This extremely powerful 100+ tons-class Roadheader has a powerful transversal cutter head mounted on an extremely robust telescopic boom.
General Model Specifications:
Total Weight (+/-5): 130t
Machine Ground Pressure: 0.25MPa
Overall Length: 19.35m
Height: 4.62m
Loading Table Width: 4.56m
Cutter Boom Telescope: 650mm
Cutting Height, Max: 6.6m
Cutting Width, Max: 9.1m
Undercut -Extended Telescope: 480mm
Cutter - Retracted Telescope: 230mm
Cutting Speed, (50Hz): 1.4m/sec
Navigable Gradient, Incline/Decline: ±18°
Capacity of Conveyor, Max: 400m³/h
Electric Supply Voltage: 1000/1140 Volts
Cutter Motor: 300kW
Tramming Speed: 0-18m/min
Total Installed Power: 522kW
Total Weight (+/-5): 130t
Machine Ground Pressure: 0.25MPa
Overall Length: 19.35m
Height: 4.62m
Loading Table Width: 4.56m
Cutter Boom Telescope: 650mm
Cutting Height, Max: 6.6m
Cutting Width, Max: 9.1m
Undercut -Extended Telescope: 480mm
Cutter - Retracted Telescope: 230mm
Cutting Speed, (50Hz): 1.4m/sec
Navigable Gradient, Incline/Decline: ±18°
Capacity of Conveyor, Max: 400m³/h
Electric Supply Voltage: 1000/1140 Volts
Cutter Motor: 300kW
Tramming Speed: 0-18m/min
Total Installed Power: 522kW
Overall Dimensions:
Length: 19.35m
Width: 4.56m
Height: 4.62m
Weight: 135,000 Kg
Length: 19.35m
Width: 4.56m
Height: 4.62m
Weight: 135,000 Kg
Location: Savona, British Columbia, Canada
View More Roadheaders
Watch YouTube Video Here: https://www.youtube.com/watch?v=_lBd1Gq-Bgo
