USED 2018 GALLAND HENNING NOPAK INC. 12DC
Overview
Specifications

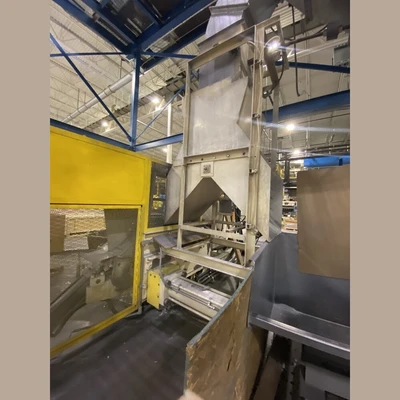

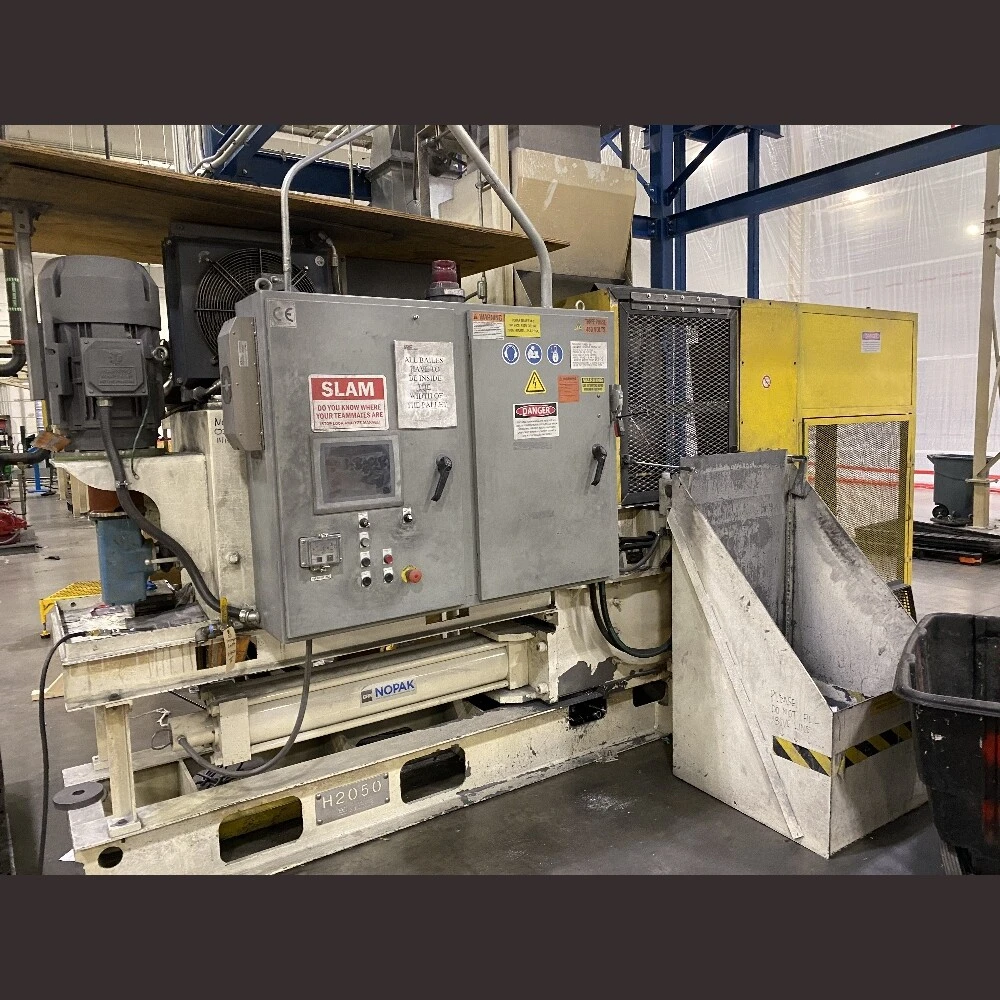

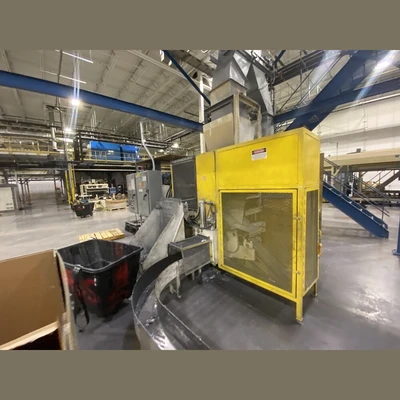

Galland Henning 12DC Horizontal Baler

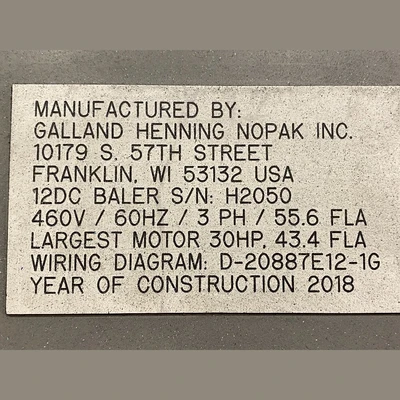

Make: Galland Henning Nopak Inc.
Model: 12DC
Type: Baler
Year: 2018
Condition: Used Condition
Design: Dual Compression
Bale Size: 12” x 6” x Variable
Bale Weight:
Aluminum: 20 lbs.
Steel: 40 lbs.
Aluminum: 20 lbs.
Steel: 40 lbs.
Cycle Time: 45 Seconds
Output: 80 Bales per Hour
Motor: 30HP
General Model Specifications:
Charging Box:
Charging Box Dimensions: 48" L x 21" W x 32" Deep - High Side
Charging Box Volume: 12 Cubic Feet (18 Cubic Feet - High Sides)
Charging Box Clear Opening: 48" L x 21" W
Bales:
Bale Size: 12" x 6" x Variable
Bale Weight:
Steel: 40 - 70 Lbs. (Depending on Material Type)
Aluminum: 20 - 30 Lbs.
Complete Operational Cycle: 45 Seconds (Approx.)
Cycles per Hour: 80 Bales
1st Compression Cylinder:
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 400 PSI (27.6 bar)
2nd Compression Cylinder:
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 1390 PSI (95.8 bar)
Gate Cylinder:
Piston Diameter: 2.5" Dia.
Force in Tons (US, short tons): 4.9 Tons (at 2000 PSI)
Cover Cylinder:
Piston Diameter: 6" Dia.
Force in Tons (US, short tons): 28 Tons (at 2000 PSI)
Side Hopper Cylinder:
Piston Diameter: 3.25" Dia.
Force in Tons (US, short tons): 8.3 Tons (at 2000 PSI)
Total HP of Motors:
(1) 30HP, 1775 RPM, 460 Volt, 3 Phase, 60HZ,

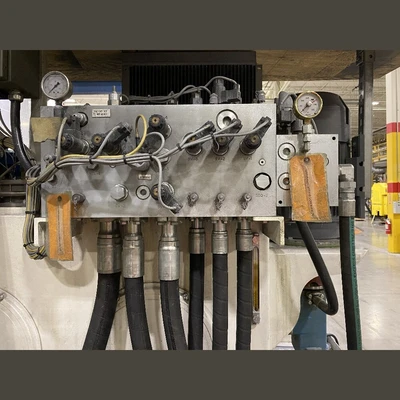

Hydraulic System:
Gallons Required for System: 150 Gallons (180 Gallons Total Capacity)
System Relief Pressure: 2000 PSI (138 bar)
Flow Rate: 60 GPM
Floor Area for Baler: 10'-0" x 15'-0"
Shipping Weight: 18,500 lbs.
Charging Box:
Charging Box Dimensions: 48" L x 21" W x 32" Deep - High Side
Charging Box Volume: 12 Cubic Feet (18 Cubic Feet - High Sides)
Charging Box Clear Opening: 48" L x 21" W
Charging Box Dimensions: 48" L x 21" W x 32" Deep - High Side
Charging Box Volume: 12 Cubic Feet (18 Cubic Feet - High Sides)
Charging Box Clear Opening: 48" L x 21" W
Bales:
Bale Size: 12" x 6" x Variable
Bale Weight:
Steel: 40 - 70 Lbs. (Depending on Material Type)
Aluminum: 20 - 30 Lbs.
Complete Operational Cycle: 45 Seconds (Approx.)
Cycles per Hour: 80 Bales
Bale Size: 12" x 6" x Variable
Bale Weight:
Steel: 40 - 70 Lbs. (Depending on Material Type)
Aluminum: 20 - 30 Lbs.
Steel: 40 - 70 Lbs. (Depending on Material Type)
Aluminum: 20 - 30 Lbs.
Complete Operational Cycle: 45 Seconds (Approx.)
Cycles per Hour: 80 Bales
1st Compression Cylinder:
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 400 PSI (27.6 bar)
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 400 PSI (27.6 bar)
2nd Compression Cylinder:
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 1390 PSI (95.8 bar)
Piston Diameter: 8" Dia.
Force in Tons (US, short tons): 50 Tons (at 2000 PSI)
Ramhead Face Pressure: 1390 PSI (95.8 bar)
Gate Cylinder:
Piston Diameter: 2.5" Dia.
Force in Tons (US, short tons): 4.9 Tons (at 2000 PSI)
Piston Diameter: 2.5" Dia.
Force in Tons (US, short tons): 4.9 Tons (at 2000 PSI)
Cover Cylinder:
Piston Diameter: 6" Dia.
Force in Tons (US, short tons): 28 Tons (at 2000 PSI)
Piston Diameter: 6" Dia.
Force in Tons (US, short tons): 28 Tons (at 2000 PSI)
Side Hopper Cylinder:
Piston Diameter: 3.25" Dia.
Force in Tons (US, short tons): 8.3 Tons (at 2000 PSI)
Piston Diameter: 3.25" Dia.
Force in Tons (US, short tons): 8.3 Tons (at 2000 PSI)
Total HP of Motors:
(1) 30HP, 1775 RPM, 460 Volt, 3 Phase, 60HZ,
(1) 30HP, 1775 RPM, 460 Volt, 3 Phase, 60HZ,
Hydraulic System:
Gallons Required for System: 150 Gallons (180 Gallons Total Capacity)
System Relief Pressure: 2000 PSI (138 bar)
Flow Rate: 60 GPM
Gallons Required for System: 150 Gallons (180 Gallons Total Capacity)
System Relief Pressure: 2000 PSI (138 bar)
Flow Rate: 60 GPM
Floor Area for Baler: 10'-0" x 15'-0"
Shipping Weight: 18,500 lbs.
Location: East Central USA
