USED GLASS AGGREGATE SYSTEMS H-200

H-200 Glass Aggregate Processor

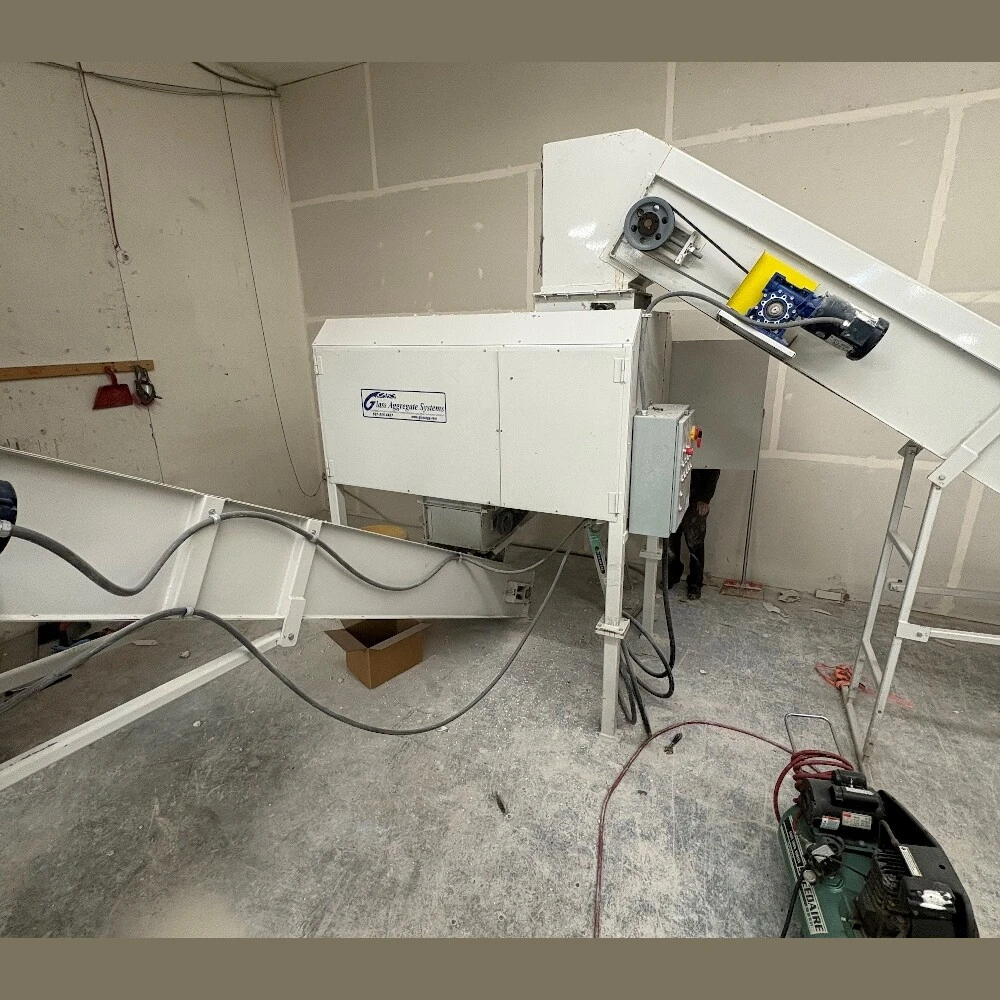

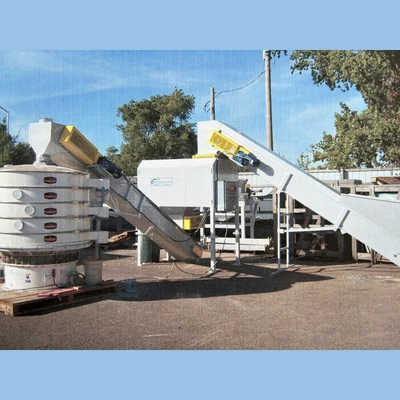

Description: The Glass Aggregate System Model H-200 is a high-capacity (approx. 2 tons /hour) industrial crusher designed to convert glass waste into useable aggregate. It features a three-stage process—pre-breaking, shearing, and sizing—which removes labels, metal caps, and reduces glass to specific sizes, from coarse to sand-like, using a conveyor fed system.
Make: Glass Aggregate Systems
Model: H-200
Type: Glass Crusher
Condition: Used, Reported in Good Working Condition
Capacity: 2 TPH
Product Output: Versatile Output - Ideal for Producing High-Value Cullet, Construction Aggregate, or Sand
Applications: Recycling Facilities, Construction Materials, Terrazzo Manufacturing, and Industrial Waste Management

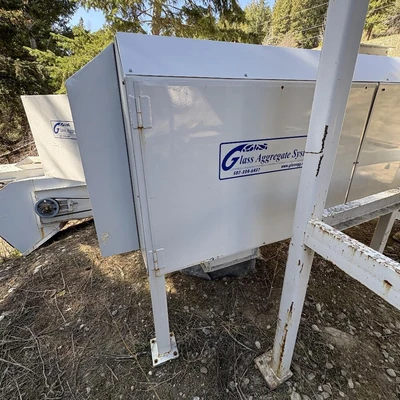

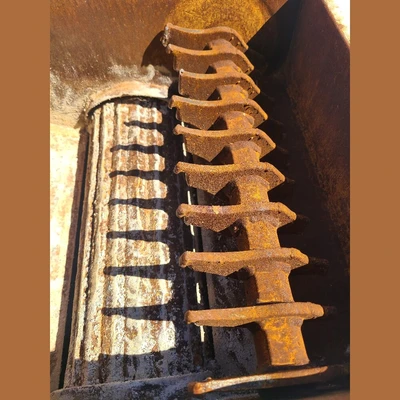

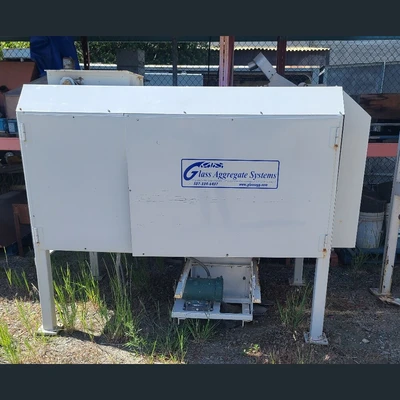

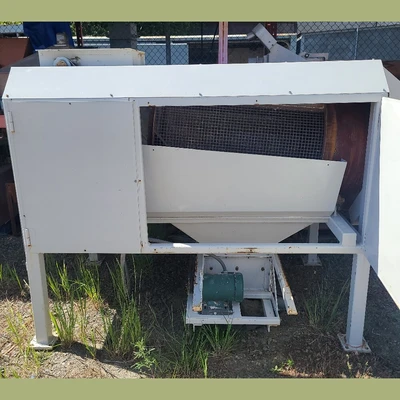

Processing/Crusher Unit:
Trommel: 24in Dia. x 25.375in Long - Integrated in Processing Unit

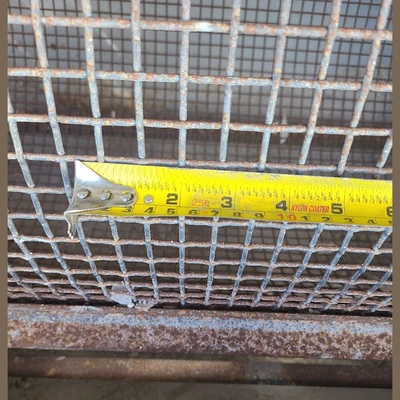

Trommel Screen Spacing: 5/8in

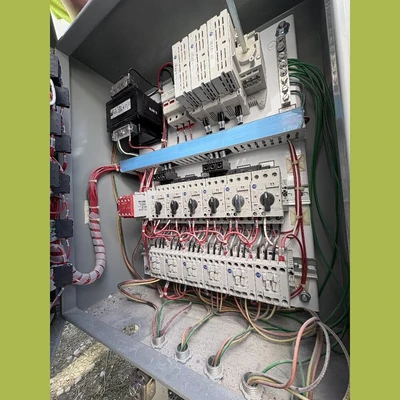

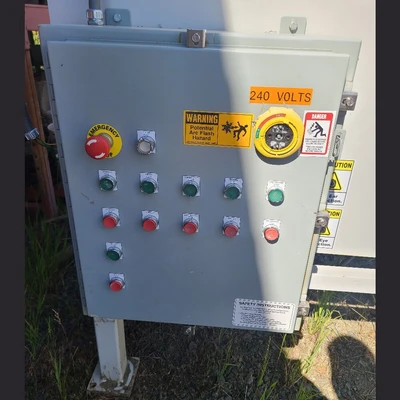

Control Panel - With Start/Stop Controls for Components
Drive: 2HP, 208-230/460, 50/60Hz Electric Motor

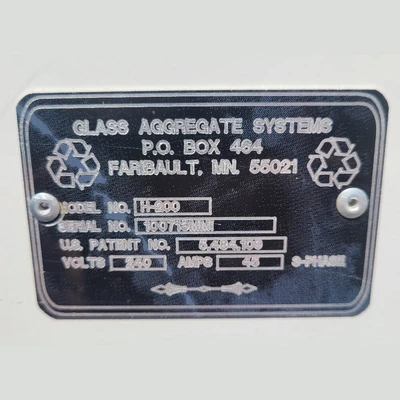

Electrical Requirements: 240 Volt, 45 Amps, 3-Phase
Trommel: 24in Dia. x 25.375in Long - Integrated in Processing Unit
Trommel Screen Spacing: 5/8in
Control Panel - With Start/Stop Controls for Components
Drive: 2HP, 208-230/460, 50/60Hz Electric Motor
Electrical Requirements: 240 Volt, 45 Amps, 3-Phase

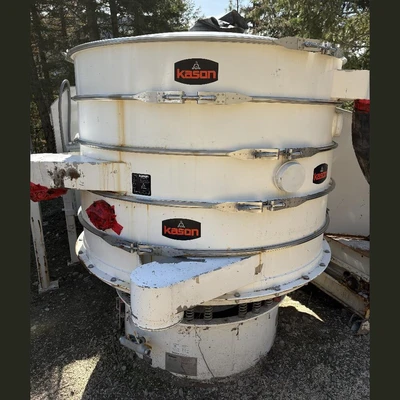

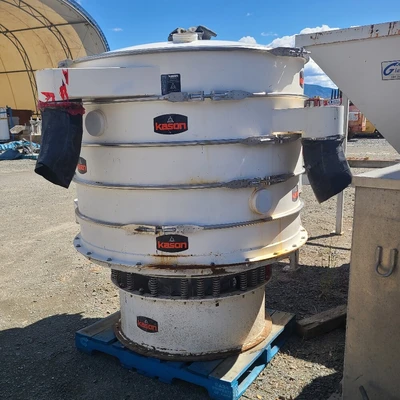

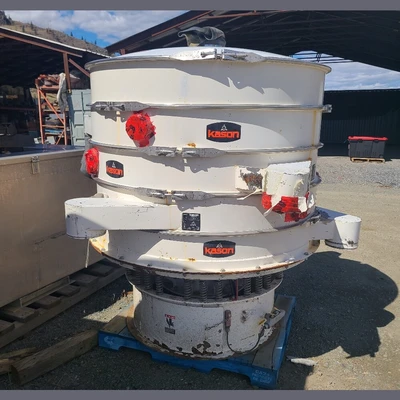

Screen: Kason 60in 4-Deck Circular Screen
Model: K60-4-SS
Size: 60in Dia.
Decks: (4) Decks
Inlet: 8in Dia.
Outlets: 8in Dia.
Drive: 2HP, 230/460V Electric Motor
Model: K60-4-SS
Size: 60in Dia.
Decks: (4) Decks
Inlet: 8in Dia.
Outlets: 8in Dia.
Drive: 2HP, 230/460V Electric Motor

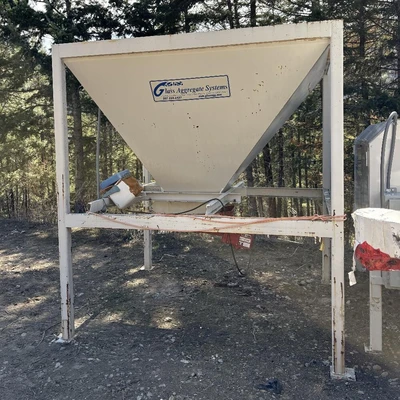

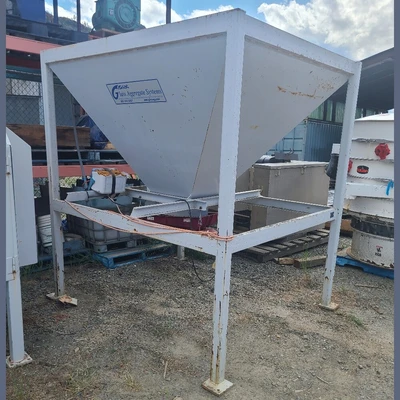

Feed Hopper:
Model: HP-2.5
Capacity: 2.2yd³ (2m³)
Hopper Opening: 76in x 66in
Discharge: 21in x 16in

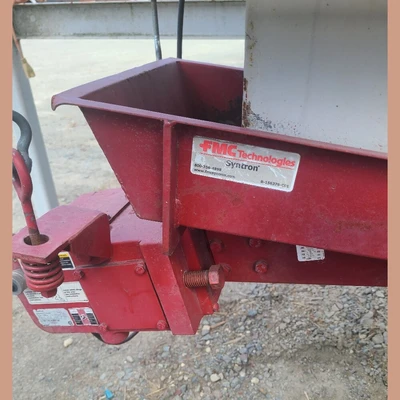

Equipped with Syntron Vibrating Pan Feeder
Model: F-152-A
Voltage: 230 Volt
Current: 1.25 Amps
Model: HP-2.5
Capacity: 2.2yd³ (2m³)
Hopper Opening: 76in x 66in
Discharge: 21in x 16in
Equipped with Syntron Vibrating Pan Feeder
Model: F-152-A
Voltage: 230 Volt
Current: 1.25 Amps
Model: F-152-A
Voltage: 230 Volt
Current: 1.25 Amps

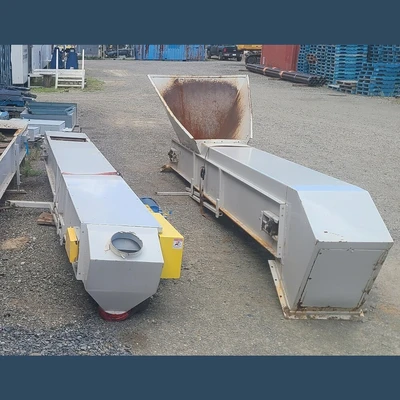

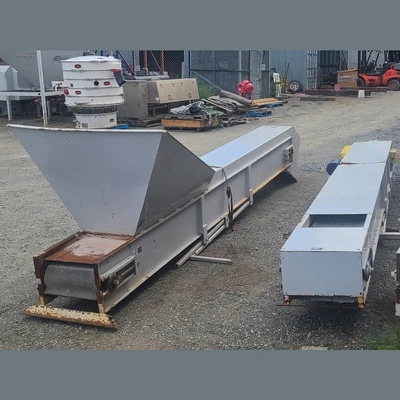

Feed Conveyor: 18in Wide x 18ft Long
Hopper: 1.5yd³
Discharge Opening: 18.75in x 18.75in (Approx.)
Pulley Center to Pulley Center: 182.25in (15.18ft)
Drive: 2HP, 208-230/460 Volt Electric
Hopper: 1.5yd³
Discharge Opening: 18.75in x 18.75in (Approx.)
Pulley Center to Pulley Center: 182.25in (15.18ft)
Drive: 2HP, 208-230/460 Volt Electric
Discharge Conveyor: 18in Wide x 17ft Long
Intake Opening: 14.75in x 18.375in
Discharge Opening: 8in Dia.
Pulley Center to Pulley Center: 181.75in (15.14ft)
Drive: 2HP, 208-230/460 Volt Electric
Intake Opening: 14.75in x 18.375in
Discharge Opening: 8in Dia.
Pulley Center to Pulley Center: 181.75in (15.14ft)
Drive: 2HP, 208-230/460 Volt Electric

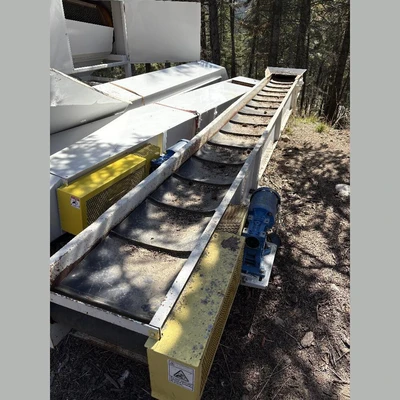

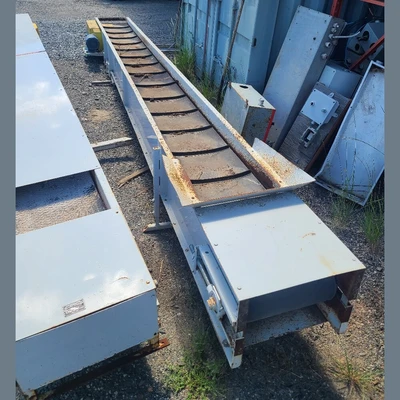

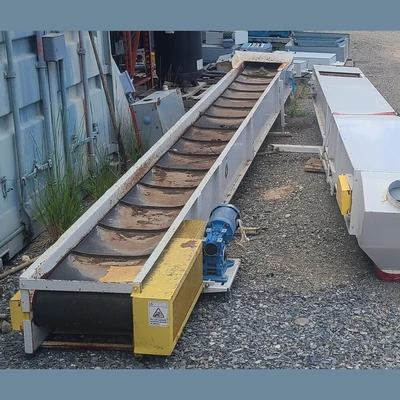

Transfer Conveyor: 18in x 18ft
Cleat Spacing 14in
Cleat Height: 5/8in
Pulley Center to Pulley Center: 227.5in (18.95ft)
Drive: 1.5HP, 208-230/460 Volt Electric Motor
Cleat Spacing 14in
Cleat Height: 5/8in
Pulley Center to Pulley Center: 227.5in (18.95ft)
Drive: 1.5HP, 208-230/460 Volt Electric Motor
Location: Savona, British Columbia, Canada
