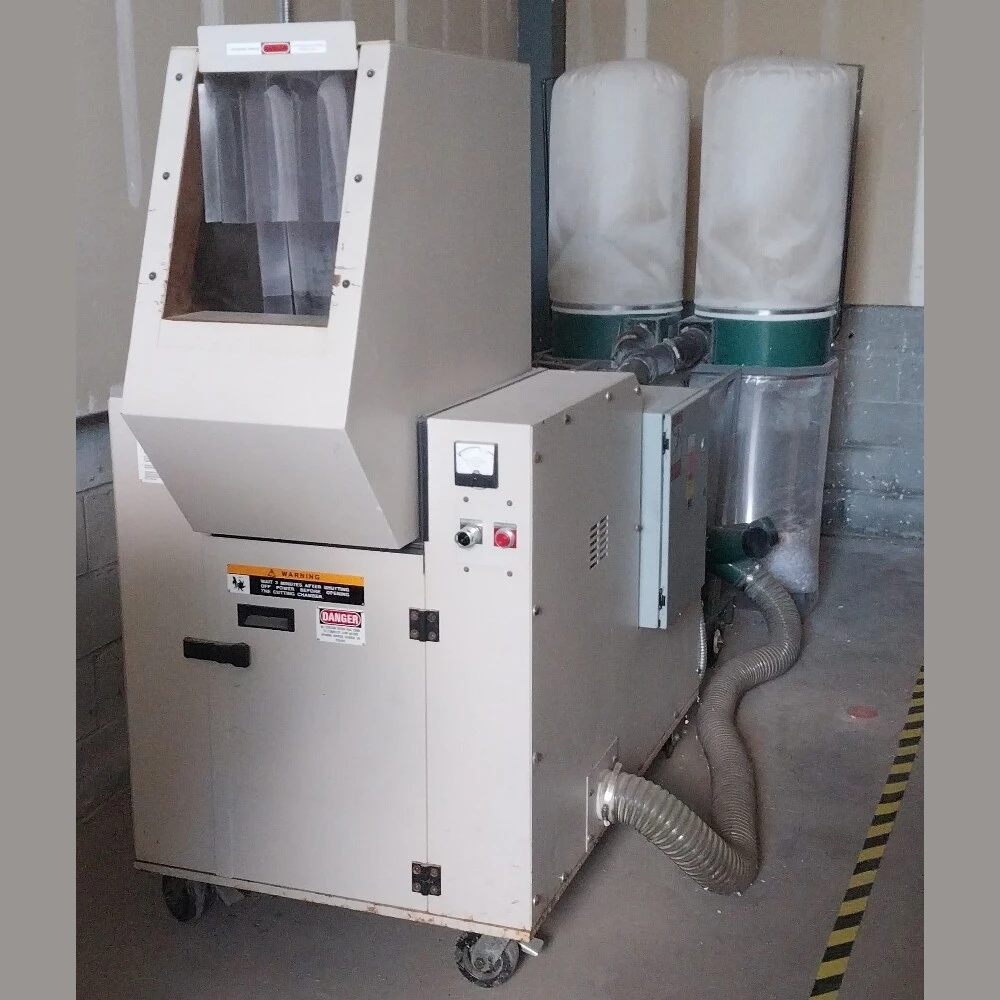

Whitaker Brothers Model 145 Disintegrator System
Make: Whitaker Brothers
Model: 145 Disintegrator
Year: 2009
Condition: Used, Refurbished by Whitaker Brothers
Includes:
(2) Screens - 3/32" for High Security, 1/4" for Confidential Material
20HP/220V/3Ph/60Hz Electric Motor
Fan Cyclone - 2-Bag Evacuation System
Spare Knife Set - 3-Rotor/2-Bed
(2) Screens - 3/32" for High Security, 1/4" for Confidential Material
20HP/220V/3Ph/60Hz Electric Motor
Fan Cyclone - 2-Bag Evacuation System
Spare Knife Set - 3-Rotor/2-Bed
Model 145 Disintegrator Specifications:
Throughput: Up To 950 Lbs. Per Hour (Depending on Type and Weight of Material)
Throat Size: 12" x 12"
Infeed: 12" x 12"
Sound-Proofed Tray Feed
Cut Chamber: Modified Offset. 2-Bed Knives Pivoting, Drop-Down Cradle
Rotor: 3-Knife, Slant Cut, Scooped Rotor
Knives: HCHC, Landed Bed Knives. HCHC, 2-Edge
Screens: 3/32", 3/16"
Base Caster, Modular
Discharge: Fan Cyclone-Type Waste Evacuation System
Electric Motor:
Power Part: 20HP
Voltage: 220 Volts
Frequency: 60Hz
Phase: 3-Phase
Dimensions:
Height: 73"
Width: 40"
Depth: 43-3/8"
Weight: 1,750 Lbs. (Dimensions are Approximate)
Throughput: Up To 950 Lbs. Per Hour (Depending on Type and Weight of Material)
Throat Size: 12" x 12"
Infeed: 12" x 12"
Sound-Proofed Tray Feed
Cut Chamber: Modified Offset. 2-Bed Knives Pivoting, Drop-Down Cradle
Rotor: 3-Knife, Slant Cut, Scooped Rotor
Knives: HCHC, Landed Bed Knives. HCHC, 2-Edge
Screens: 3/32", 3/16"
Base Caster, Modular
Discharge: Fan Cyclone-Type Waste Evacuation System
Electric Motor:
Power Part: 20HP
Voltage: 220 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Part: 20HP
Voltage: 220 Volts
Frequency: 60Hz
Phase: 3-Phase
Dimensions:
Height: 73"
Width: 40"
Depth: 43-3/8"
Weight: 1,750 Lbs. (Dimensions are Approximate)
Height: 73"
Width: 40"
Depth: 43-3/8"
Weight: 1,750 Lbs. (Dimensions are Approximate)
Fan Cyclone Waste Evacuation System Specifications:
Flow Rate: 2300 CFM
Static Pressure: 12"
Impeller: 12" Dia.
Inlets: 4"
75dB Features
Mobile - 6" Steel-Hubbed, Rubber Wheels - "Belt Height" Extension Handles
Compact Footprint: 50" x 50" - Sturdy, All-Welded Steel Frame with Low Center of Gravity
Weight: 200 Lbs. (Approx.)
Drive: 3HP Electric Motor
Voltage: 220 Volts
Current: 14 Amps
Flow Rate: 2300 CFM
Static Pressure: 12"
Impeller: 12" Dia.
Inlets: 4"
75dB Features
Mobile - 6" Steel-Hubbed, Rubber Wheels - "Belt Height" Extension Handles
Compact Footprint: 50" x 50" - Sturdy, All-Welded Steel Frame with Low Center of Gravity
Weight: 200 Lbs. (Approx.)
Drive: 3HP Electric Motor
Voltage: 220 Volts
Current: 14 Amps
Voltage: 220 Volts
Current: 14 Amps
Location: Eastern Canada
