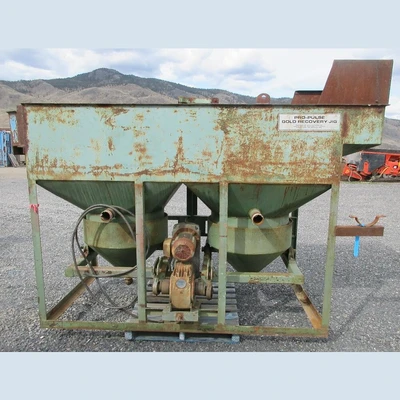

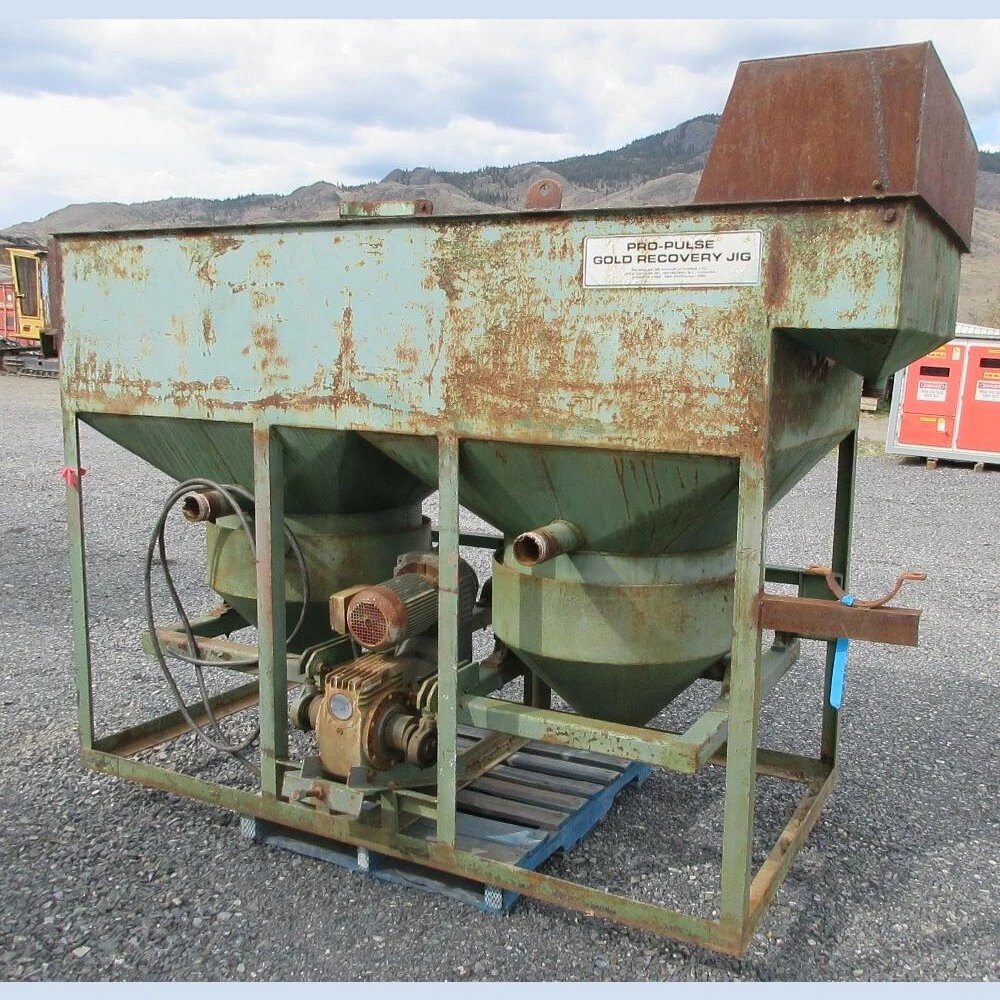

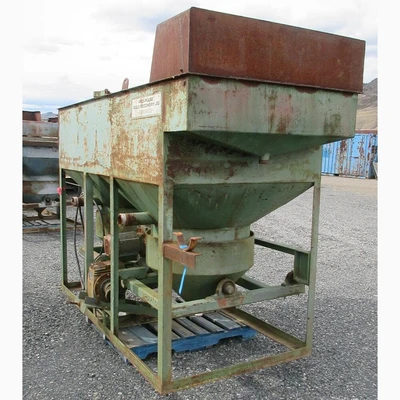

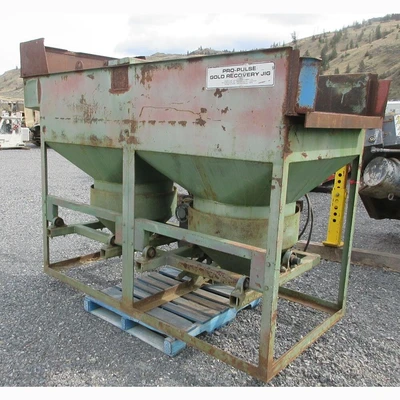

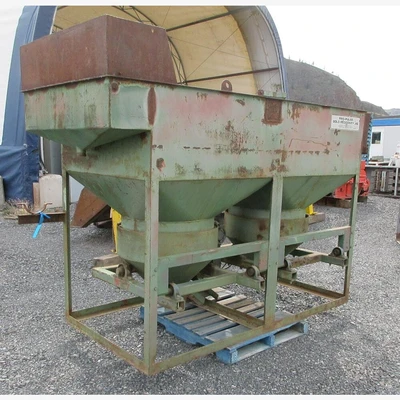

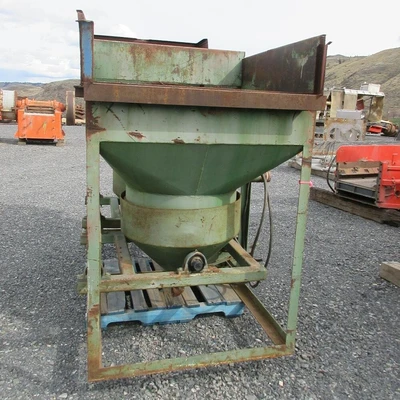

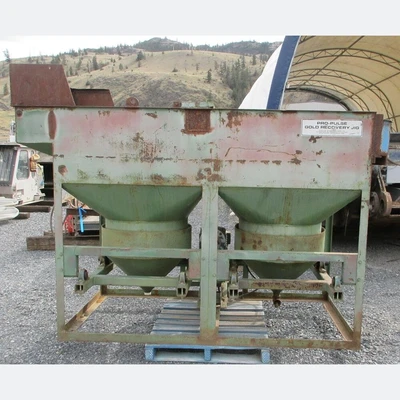

Pro Pulse 4ft Mineral Jig

Pro Pulse 4ft Mineral Jig
Make: Pro Pulse
Type: Gold Recovery Jig / Mineral Jig

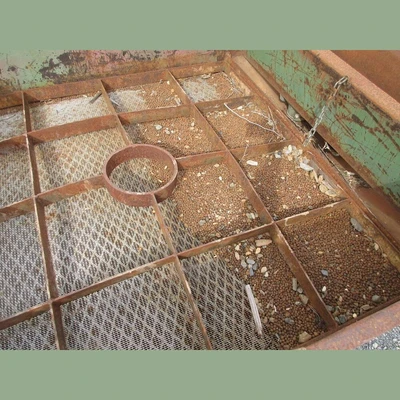

Hydraulically-Activated Removable Screen Bed
Size: 4ft Wide x 8ft Long

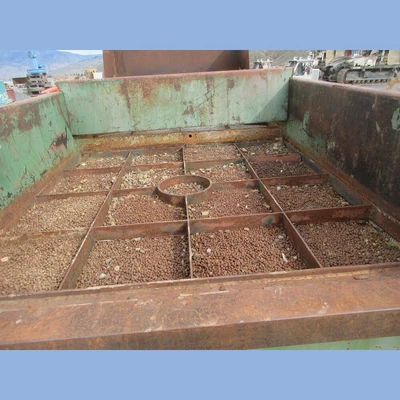

Screen Beds: Duplex - (2) Screen Beds
Screen Bed Size: 48in x 48in
Screen Bed Size: 48in x 48in
Capacity: 24-32 YPH Per Screen Bed - 1.5-2yds³ of Solids Per Hour Per Square Foot of Screen Bed Area
Max Feed Size: Minus 0.5in (½")
Dilution of Feed: 1:1 - 2:1 by Weight
Water Requirements: 12-16 GPM Per Square Foot of Jig Area
Pressure: 6-8 Lbs. PSI
Pressure: 6-8 Lbs. PSI
12in High Welded Extension
Fresh Water Inlet Diameter: 3in Dia.
Bottom Discharge: 2in Dia.

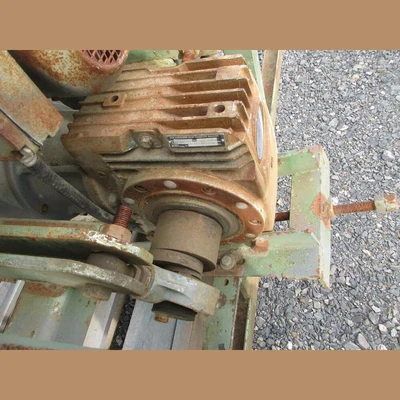

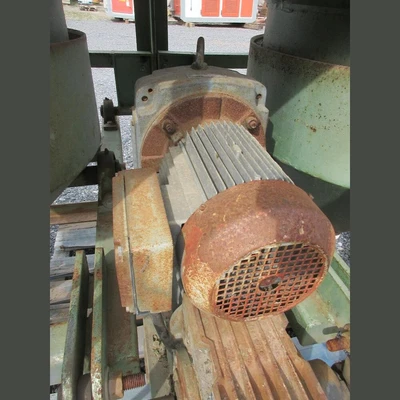

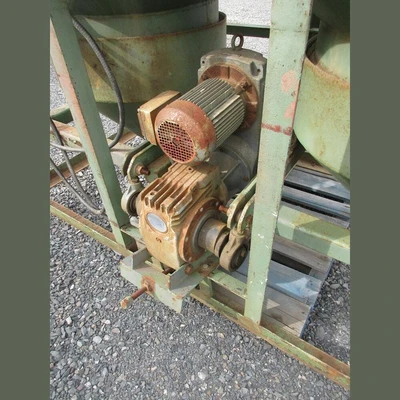

Drive: SEW Eurodrive Electric Motor
Power Output: 5HP
Rotating Speed: 47-279 RPM
Voltage: 330/575 Volt
Current: 9.41/5.40 Amps
Frequency: 60Hz
Phase: 3-Phase

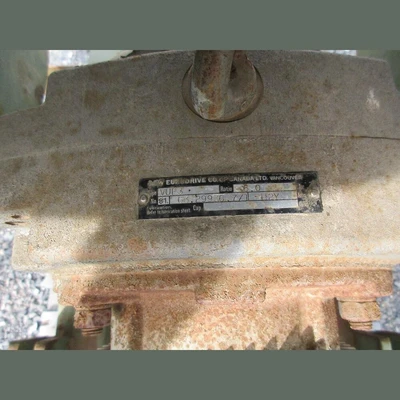

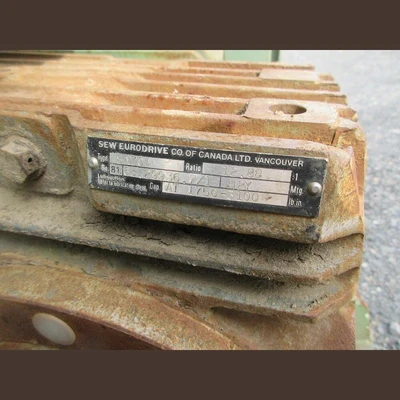

Reducer(s):
SEW Eurodrive VUF
Ratio: 6.0-1
SEW Eurodrive SA70A
Ratio: 12.88-1
Power Output: 5HP
Rotating Speed: 47-279 RPM
Voltage: 330/575 Volt
Current: 9.41/5.40 Amps
Frequency: 60Hz
Phase: 3-Phase
Reducer(s):
SEW Eurodrive VUF
Ratio: 6.0-1
SEW Eurodrive SA70A
Ratio: 12.88-1
SEW Eurodrive VUF
Ratio: 6.0-1
Ratio: 6.0-1
SEW Eurodrive SA70A
Ratio: 12.88-1
Ratio: 12.88-1
Overall Dimensions:
Length: 117in
Width: 64in
Height: 86in
Length: 117in
Width: 64in
Height: 86in
Location: Savona, British Columbia, Canada
