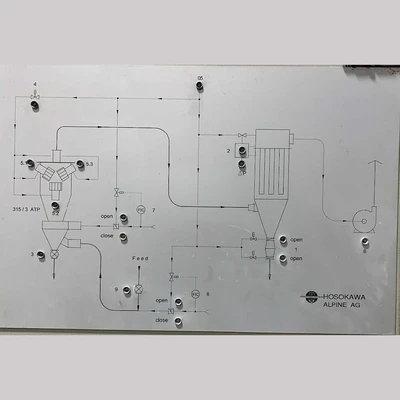

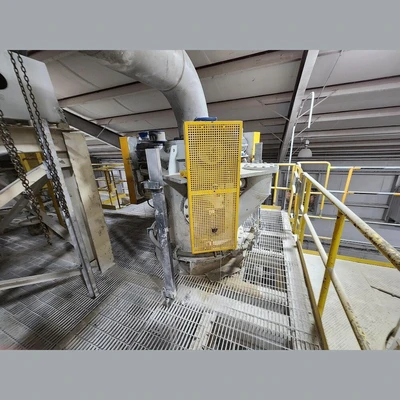

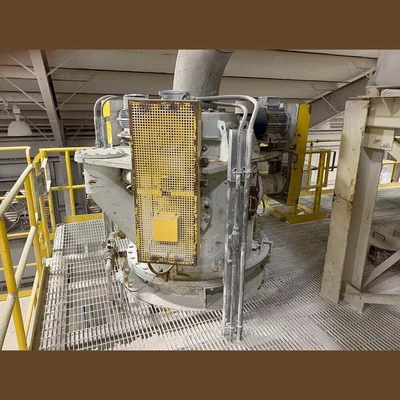

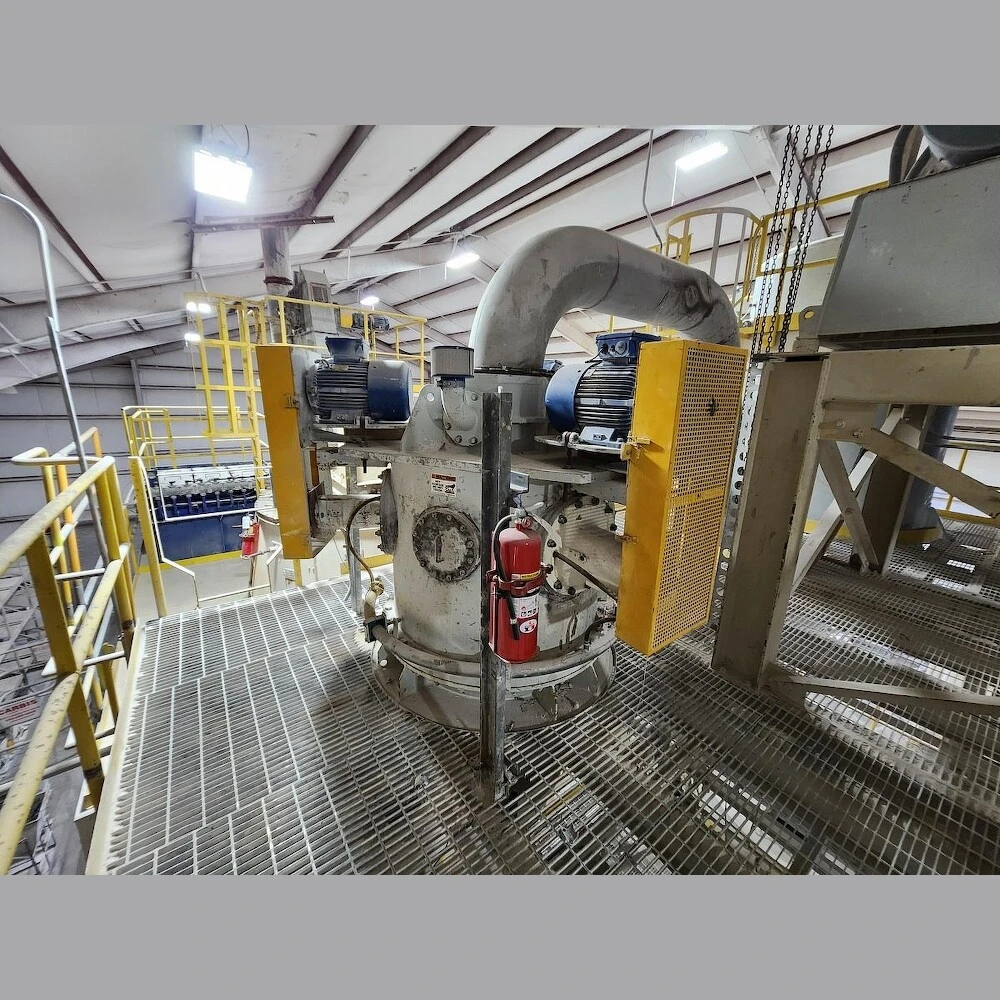

USED HOSOKAWA - ALPINE TURBOPLEX 315/3 ATP

Hosokawa Alpine Turboplex 315/3 ATP Air Classifier System
Quantity: (2) Units Available

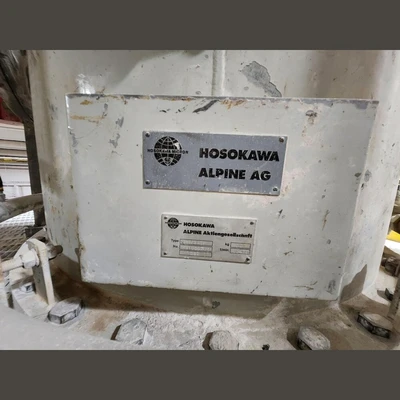

Make: Hosokawa - Alpine
Model: Turboplex 315/3 ATP
Type: Air Classifier/Micronizer System
Condition: Used Condition
Size Rating: 6 - 150 microns
Capacity: 1,500 - 7,500kg/h
Classifying Wheels:
Quantity: (3)
Size: 315mm Dia.
Liner: Ceramic
Rotation Speed: 400 - 4000RPM
Quantity: (3)
Size: 315mm Dia.
Liner: Ceramic
Rotation Speed: 400 - 4000RPM
Drive: (3) Electric Motors
Power Output, Each: 11kW
Power Output, Each: 11kW
Output: @ 9,000m³ Flow Rate
1 t/h at 8µm
2.1 t/h at 20µm
3 t/h at 45µm
1 t/h at 8µm
2.1 t/h at 20µm
3 t/h at 45µm

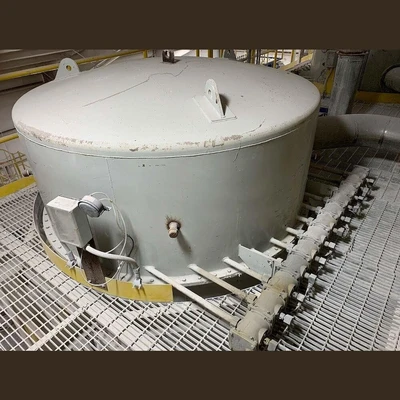

Dust Collector: Hokokawa Alpine High Performance Filter Baghouse

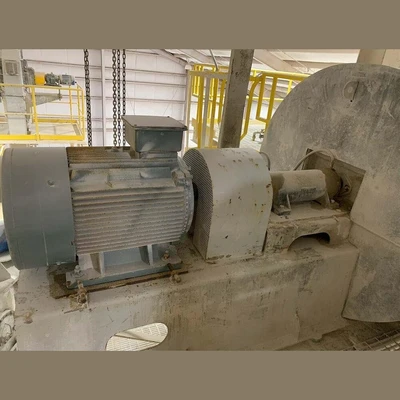

Blower: Reitz Ventilatoren High Performance Blower
Flow Rate: 125m³/min
Static Pressure: 3 PSI
Drive: 90kW Electric Motor
Flow Rate: 125m³/min
Static Pressure: 3 PSI
Drive: 90kW Electric Motor
Location: Eastern USA
