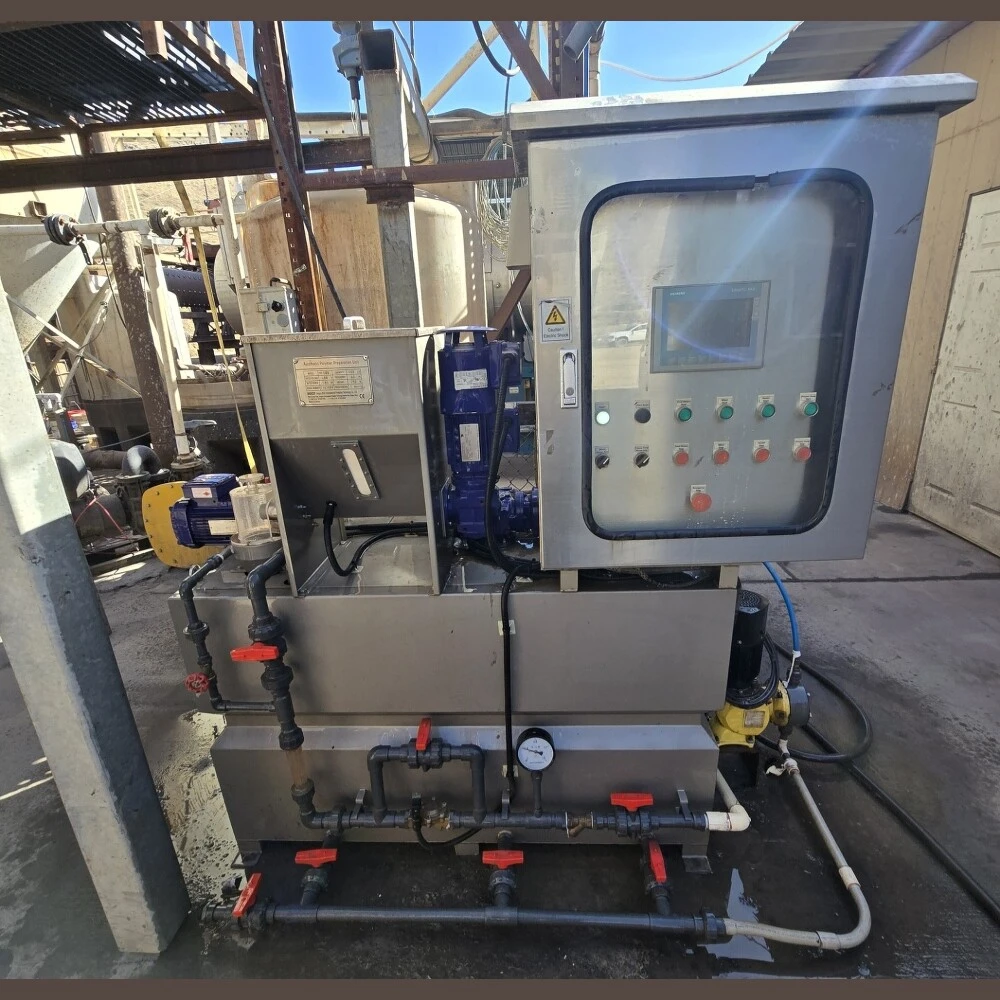

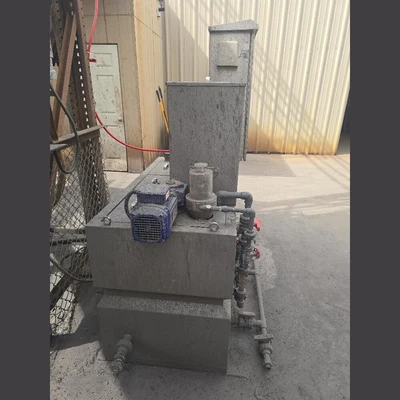

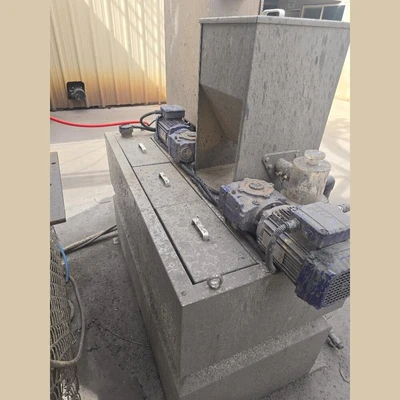

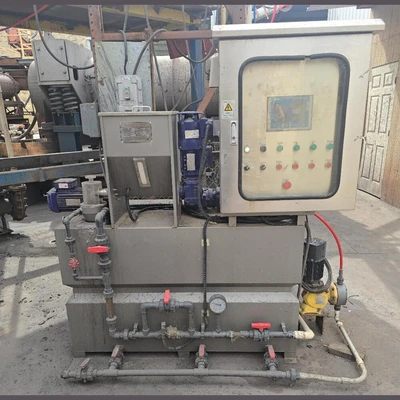

Polymer Prep Dosing Unit

Polymer Prep Dosing Unit
Quantity: 2 Units Available
Model: YTH 500

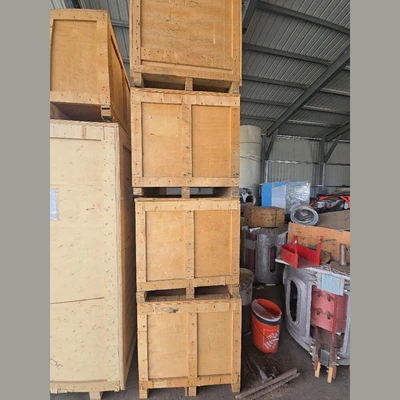

Condition: New, Unused Surplus - Units Still in Crates
Application: PAM Polymer Preparation Unit
Material: Stainless Steel 304
Operation: Automatic
Capacity - Curing for 1 Hour: 500 Liters per Hour
Power: 0.94kW
PAM Dosage: 1-5 kg/hr.
Water Inlet: 0.3-1.5 m³/hr.
Powder Feed Port: DN25
Water Inlet Port: DN25
Overflow Port: DN32
Vent Port: DN25
Includes:
Dry Powder Hopper
Infiltration Device
Tank
Level Controller
Mixers
Water Inlet Pipe
Dosing Pumps
Electric Cabinet
Dry Powder Hopper
Infiltration Device
Tank
Level Controller
Mixers
Water Inlet Pipe
Dosing Pumps
Electric Cabinet
Overall Dimensions:
Length: 1370mm
Width: 680mm
Height: 1485mm
Weight: 250kg
Length: 1370mm
Width: 680mm
Height: 1485mm
Weight: 250kg
Location: Western USA
