USED 2014 SALA MACHINE WORKS X800

300 TPD Crushing, Milling, Gravity and Flotation Plant with Assay Lab
Equipment Included:
Jaw Crusher
3ft Shorthead Cone Crusher
Ball Mill
Step Deck Screen SOLD
(2) Falcon Concentrators SOLD
Flotation Cells
Filter Press
Holman-Wilfley Shaker Table
Action Mining Wave Table SOLD
Induction Furnace

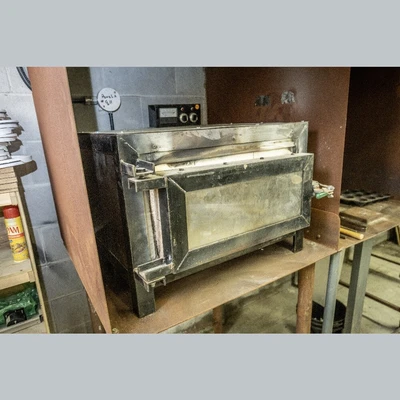

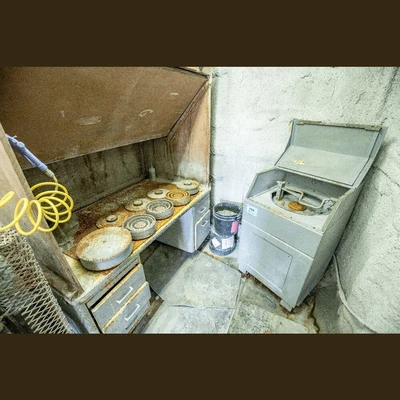

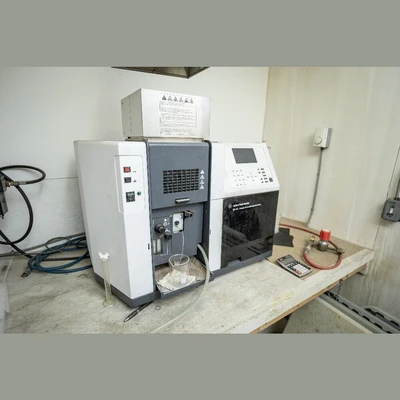

Full Assay Prep and Assay Lab, including an Atomic Absorption Spectrometer SOLD
Many Pumps
Jaw Crusher
3ft Shorthead Cone Crusher
Ball Mill
Step Deck Screen SOLD
(2) Falcon Concentrators SOLD
Flotation Cells
Filter Press
Holman-Wilfley Shaker Table
Action Mining Wave Table SOLD
Induction Furnace
Full Assay Prep and Assay Lab, including an Atomic Absorption Spectrometer SOLD
Many Pumps

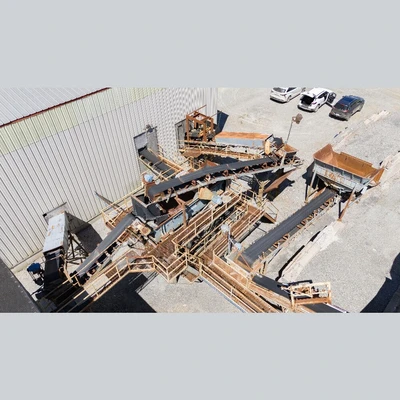

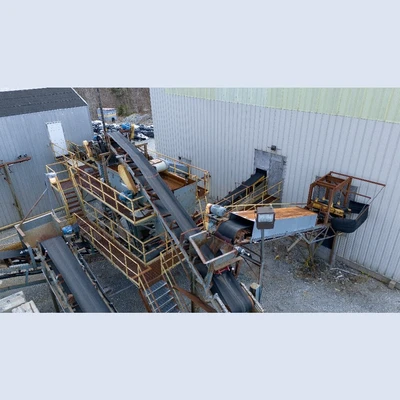

Crushing Circuit:

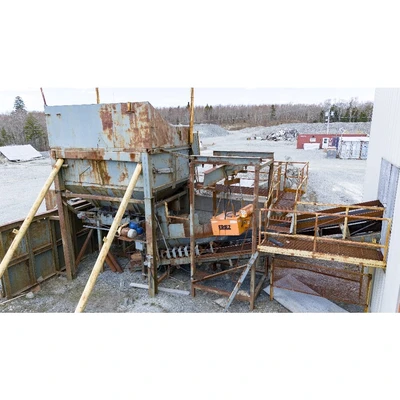

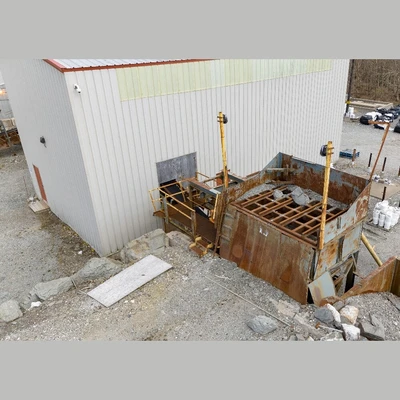

Hopper/Feeder: 10 Yard Course Ore Bin with 42" Wide X 10' Belt Feeder:
Dimensions: 148in Wide x 100in Long x 7ft Deep
Grizzly: 19in x 13in Grizzly Bar Spacing
Output Belt Drive: 10HP General Electric Motor through Renold WM5 60:1 Reducer
Eriez SE7330 36in Electromagnet SOLD
30in x 40ft Transfer Conveyor
Mounted on 14.5ft High Legs

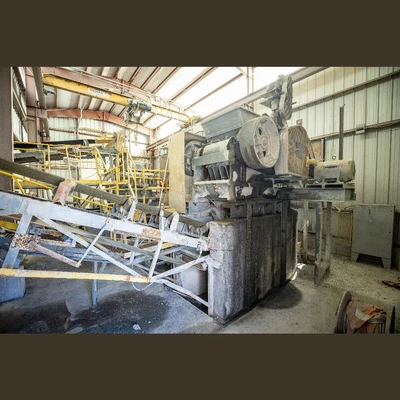

Cedarapids 1836 Jaw Crusher:
Drive: General Electric 125HP Motor
Sitting on 12in I-Beam Frame
Outputting Via 30in x 40ft Conveyor with Eriez 30in x 30in Crossbelt to Screen (Via Additional 24in x 25ft Transfer Conveyor)
With Guarding

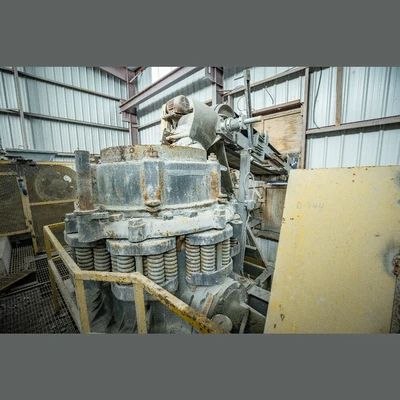

3ft Symons Nordberg Shorthead Cone Crusher:
Drive: 100HP Fader Agencies Electric Motor
Fed Via 24in x 40ft Conveyor from Screen
Outputting Via 18in x 30ft Conveyor to 24in x 40ft Transfer Conveyor to Screen
With Guarding
Demag 5-Ton Overhead Crane:
With Pendant Control and 70ft of Rails
Hopper/Feeder: 10 Yard Course Ore Bin with 42" Wide X 10' Belt Feeder:
Dimensions: 148in Wide x 100in Long x 7ft Deep
Grizzly: 19in x 13in Grizzly Bar Spacing
Output Belt Drive: 10HP General Electric Motor through Renold WM5 60:1 Reducer
Eriez SE7330 36in Electromagnet SOLD
30in x 40ft Transfer Conveyor
Mounted on 14.5ft High Legs
Dimensions: 148in Wide x 100in Long x 7ft Deep
Grizzly: 19in x 13in Grizzly Bar Spacing
Output Belt Drive: 10HP General Electric Motor through Renold WM5 60:1 Reducer
Eriez SE7330 36in Electromagnet SOLD
30in x 40ft Transfer Conveyor
Mounted on 14.5ft High Legs
Cedarapids 1836 Jaw Crusher:
Drive: General Electric 125HP Motor
Sitting on 12in I-Beam Frame
Outputting Via 30in x 40ft Conveyor with Eriez 30in x 30in Crossbelt to Screen (Via Additional 24in x 25ft Transfer Conveyor)
With Guarding
Drive: General Electric 125HP Motor
Sitting on 12in I-Beam Frame
Outputting Via 30in x 40ft Conveyor with Eriez 30in x 30in Crossbelt to Screen (Via Additional 24in x 25ft Transfer Conveyor)
With Guarding
3ft Symons Nordberg Shorthead Cone Crusher:
Drive: 100HP Fader Agencies Electric Motor
Fed Via 24in x 40ft Conveyor from Screen
Outputting Via 18in x 30ft Conveyor to 24in x 40ft Transfer Conveyor to Screen
With Guarding
Drive: 100HP Fader Agencies Electric Motor
Fed Via 24in x 40ft Conveyor from Screen
Outputting Via 18in x 30ft Conveyor to 24in x 40ft Transfer Conveyor to Screen
With Guarding
Demag 5-Ton Overhead Crane:
With Pendant Control and 70ft of Rails
With Pendant Control and 70ft of Rails
Screening Circuit:
Allis Chalmers 5ft x 16ft 2-Deck Screen:
Top Deck Spacing: 1in x 1in
Bottom Deck Spacing: 0.5in x 0.5in
Drive: 25HP WEG Electric Motor
Oversize Conveyed Back to Cone Crusher
Fines to Fine Ore Bin in Mill Circuit
Allis Chalmers 5ft x 16ft 2-Deck Screen:
Top Deck Spacing: 1in x 1in
Bottom Deck Spacing: 0.5in x 0.5in
Drive: 25HP WEG Electric Motor
Oversize Conveyed Back to Cone Crusher
Fines to Fine Ore Bin in Mill Circuit
Top Deck Spacing: 1in x 1in
Bottom Deck Spacing: 0.5in x 0.5in
Drive: 25HP WEG Electric Motor
Oversize Conveyed Back to Cone Crusher
Fines to Fine Ore Bin in Mill Circuit

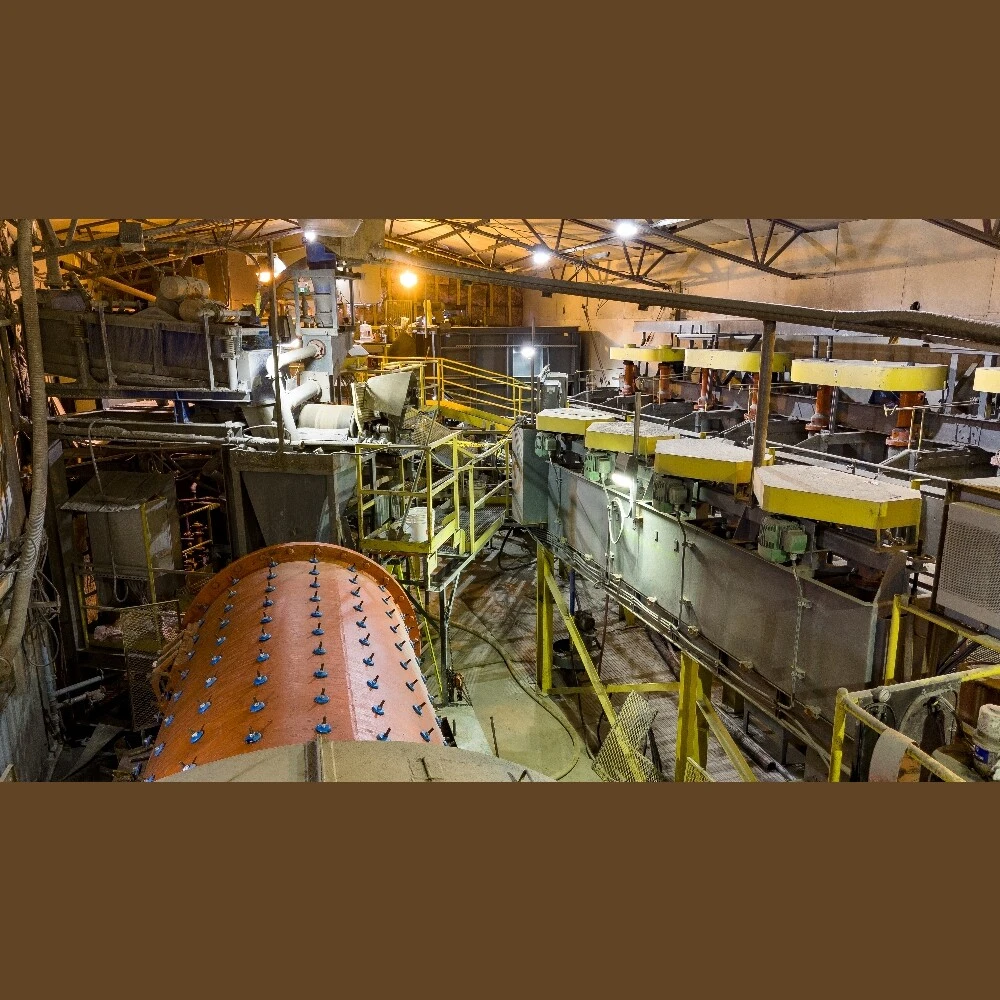

Mill Circuit:
Shutdown/Surge Bin:
Dimensions: 12.5ft Long x 9ft Long x 6ft Deep
Discharge: 5ft Long x 1ft Wide
Outputting Via 30in Wide x 30ft Long Conveyor (10HP) to 24in x 20ft Conveyor with Belt Gate to Fine Ore Hopper
Mounted on 9ft High Legs
Fine Ore Hopper:
Shop Built
Dimensions: 14ft Long x 130in Wide x 90in Deep
Vibco Vibrating Motor on Bottom of Bin
Output Via 30in Wide x 15ft Long Belt (5HP) to 24in x 30ft Transfer Conveyor

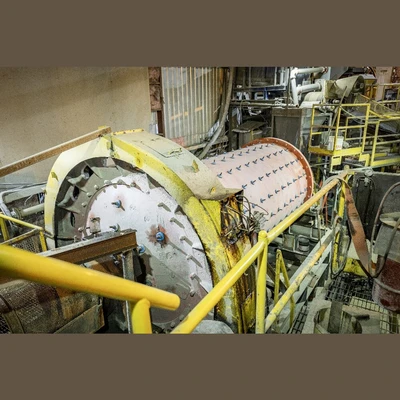

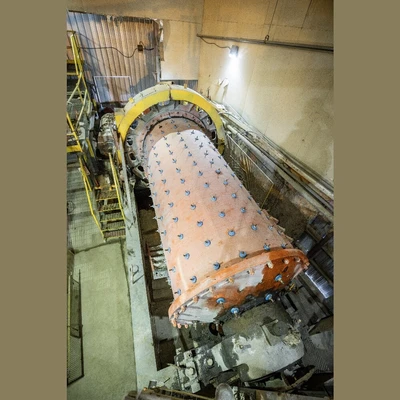

Allis Chalmers 5ft Dia. x 16ft Long Ball Mill:
New Unused Liners
Drive: General Electric 250HP Reconditioned Electric Motor
Feed: Spout Fed from Fine Ore Bin
Discharge: Overflow With Trommel Screen on Output
I-Beam Frame
Guarding
Krebs Cyclone:
Model GMAX 10-20-3253
Sizetec Stepdeck Screen: SOLD
Model: SDS28-6MV-5
Size: 28in Wide x 9ft Long
DOM: Aug 16, 2013
With 4 Screen Caps

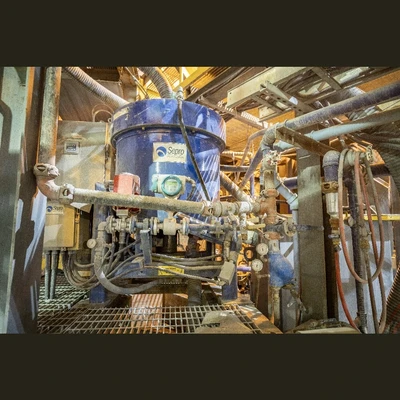

Sepro Falcon Concentrator: SOLD
Model: SB750
DOM: December 2009
With AutoPac Control
Sepro Falcon Concentrator: SOLD
Model: SB750BSE
DOM: Aug 2013
With AutoPac Control
Hangzhou Leo Filter Press:
Model: X800
DOM: Jan 10, 2013
Plate Size: 31.5in x 31.5in
# of Plates: 40
Not Functioning in CNC Mode, May need Repairs
Output Conveyor: 19.5in Wide x 14ft Long Conveyor Mounted Underneath

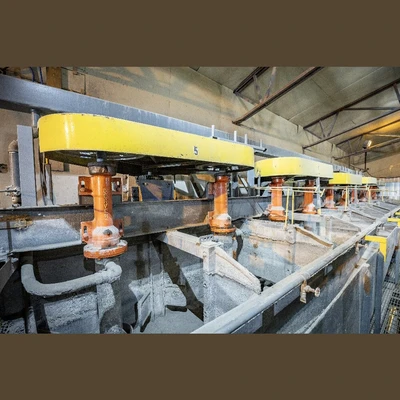

Denver #24 DR Flotation Cells: SOLD
Banks: (2) Banks - Bank of 6, Bank of 4
Model: #24 DR
Capacity: 50ft³ Per Cell
Drive: (5) 15HP, 1180 RPM Belt-Drive Electric Motors - 2 Cells per Motor
Comes With:
Overflow Launder Trough
Sealed Standpipe with Forced Air Control
Belt Guards

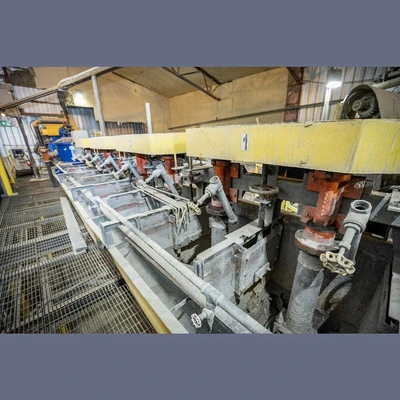

Denver #18 Special Flotation Cells:
Bank of 8
Model: #18 Special
Capacity: 24ft³ Per Cell
Manual Cell to Cell Flow Control Gate
Naturally Aspirated Sealed Standpipe
Drive: (4) 5HP, 1735 RPM Westinghouse Belt-Drive Electric Motors - 2 Cells per Motor
Thickener:
Custom Built Thickener/Agitator
Size: 18ft Dia. x 8ft Deep (Approx.)
Head: Dorrco Head (Approx. 40in Diameter)
New York Blower High Pressure Blower
Wheel Size and Type: 33510 ALM
Year: 2014
Arrangement: ARR-4
Flow Rate: 2,400 CFM
Static Pressure: 98" SP
Suction/Discharge Sizes: 10in Diameter
Drive: 75HP, 3555 RPM Baldor Electric Motor

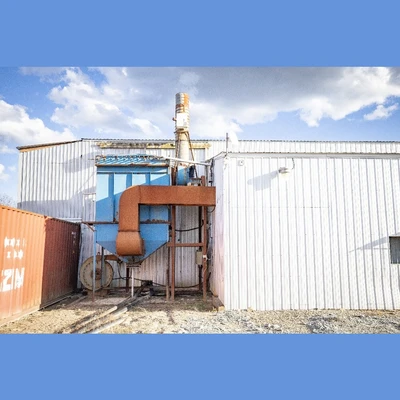

Sheldons 10,000 CFM Dust Collector
Speed: 1370 RPM
30in Wide x 18in High Dirty Air Inlet
Discharge: 12in Dust Discharge
Clean Air Outlet: Dual 9in Wide x 12in High Outlets
Drive: 30HP Electric Motor
Sullair Air Compressor
Model: LS25S 250 AC
Year: 2013
Flow Rate: 1,075 CFM (30.4m³/min.)
Pressure: 125 PSI (8.6 bar)
Drive: 275HP, 60Hz, 3-Phase
Shutdown/Surge Bin:
Dimensions: 12.5ft Long x 9ft Long x 6ft Deep
Discharge: 5ft Long x 1ft Wide
Outputting Via 30in Wide x 30ft Long Conveyor (10HP) to 24in x 20ft Conveyor with Belt Gate to Fine Ore Hopper
Mounted on 9ft High Legs
Dimensions: 12.5ft Long x 9ft Long x 6ft Deep
Discharge: 5ft Long x 1ft Wide
Outputting Via 30in Wide x 30ft Long Conveyor (10HP) to 24in x 20ft Conveyor with Belt Gate to Fine Ore Hopper
Mounted on 9ft High Legs
Fine Ore Hopper:
Shop Built
Dimensions: 14ft Long x 130in Wide x 90in Deep
Vibco Vibrating Motor on Bottom of Bin
Output Via 30in Wide x 15ft Long Belt (5HP) to 24in x 30ft Transfer Conveyor
Shop Built
Dimensions: 14ft Long x 130in Wide x 90in Deep
Vibco Vibrating Motor on Bottom of Bin
Output Via 30in Wide x 15ft Long Belt (5HP) to 24in x 30ft Transfer Conveyor
Allis Chalmers 5ft Dia. x 16ft Long Ball Mill:
New Unused Liners
Drive: General Electric 250HP Reconditioned Electric Motor
Feed: Spout Fed from Fine Ore Bin
Discharge: Overflow With Trommel Screen on Output
I-Beam Frame
Guarding
New Unused Liners
Drive: General Electric 250HP Reconditioned Electric Motor
Feed: Spout Fed from Fine Ore Bin
Discharge: Overflow With Trommel Screen on Output
I-Beam Frame
Guarding
Krebs Cyclone:
Model GMAX 10-20-3253
Model GMAX 10-20-3253
Sizetec Stepdeck Screen: SOLD
Model: SDS28-6MV-5
Size: 28in Wide x 9ft Long
DOM: Aug 16, 2013
With 4 Screen Caps
Model: SDS28-6MV-5
Size: 28in Wide x 9ft Long
DOM: Aug 16, 2013
With 4 Screen Caps
Sepro Falcon Concentrator: SOLD
Model: SB750
DOM: December 2009
With AutoPac Control
Model: SB750
DOM: December 2009
With AutoPac Control
Sepro Falcon Concentrator: SOLD
Model: SB750BSE
DOM: Aug 2013
With AutoPac Control
Model: SB750BSE
DOM: Aug 2013
With AutoPac Control
Hangzhou Leo Filter Press:
Model: X800
DOM: Jan 10, 2013
Plate Size: 31.5in x 31.5in
# of Plates: 40
Not Functioning in CNC Mode, May need Repairs
Output Conveyor: 19.5in Wide x 14ft Long Conveyor Mounted Underneath
Model: X800
DOM: Jan 10, 2013
Plate Size: 31.5in x 31.5in
# of Plates: 40
Not Functioning in CNC Mode, May need Repairs
Output Conveyor: 19.5in Wide x 14ft Long Conveyor Mounted Underneath
Denver #24 DR Flotation Cells: SOLD
Banks: (2) Banks - Bank of 6, Bank of 4
Model: #24 DR
Capacity: 50ft³ Per Cell
Drive: (5) 15HP, 1180 RPM Belt-Drive Electric Motors - 2 Cells per Motor
Comes With:
Overflow Launder Trough
Sealed Standpipe with Forced Air Control
Belt Guards
Banks: (2) Banks - Bank of 6, Bank of 4
Model: #24 DR
Capacity: 50ft³ Per Cell
Drive: (5) 15HP, 1180 RPM Belt-Drive Electric Motors - 2 Cells per Motor
Comes With:
Overflow Launder Trough
Sealed Standpipe with Forced Air Control
Belt Guards
Overflow Launder Trough
Sealed Standpipe with Forced Air Control
Belt Guards
Denver #18 Special Flotation Cells:
Bank of 8
Model: #18 Special
Capacity: 24ft³ Per Cell
Manual Cell to Cell Flow Control Gate
Naturally Aspirated Sealed Standpipe
Drive: (4) 5HP, 1735 RPM Westinghouse Belt-Drive Electric Motors - 2 Cells per Motor
Bank of 8
Model: #18 Special
Capacity: 24ft³ Per Cell
Manual Cell to Cell Flow Control Gate
Naturally Aspirated Sealed Standpipe
Drive: (4) 5HP, 1735 RPM Westinghouse Belt-Drive Electric Motors - 2 Cells per Motor
Thickener:
Custom Built Thickener/Agitator
Size: 18ft Dia. x 8ft Deep (Approx.)
Head: Dorrco Head (Approx. 40in Diameter)
Custom Built Thickener/Agitator
Size: 18ft Dia. x 8ft Deep (Approx.)
Head: Dorrco Head (Approx. 40in Diameter)
New York Blower High Pressure Blower
Wheel Size and Type: 33510 ALM
Year: 2014
Arrangement: ARR-4
Flow Rate: 2,400 CFM
Static Pressure: 98" SP
Suction/Discharge Sizes: 10in Diameter
Drive: 75HP, 3555 RPM Baldor Electric Motor
Wheel Size and Type: 33510 ALM
Year: 2014
Arrangement: ARR-4
Flow Rate: 2,400 CFM
Static Pressure: 98" SP
Suction/Discharge Sizes: 10in Diameter
Drive: 75HP, 3555 RPM Baldor Electric Motor
Sheldons 10,000 CFM Dust Collector
Speed: 1370 RPM
30in Wide x 18in High Dirty Air Inlet
Discharge: 12in Dust Discharge
Clean Air Outlet: Dual 9in Wide x 12in High Outlets
Drive: 30HP Electric Motor
Speed: 1370 RPM
30in Wide x 18in High Dirty Air Inlet
Discharge: 12in Dust Discharge
Clean Air Outlet: Dual 9in Wide x 12in High Outlets
Drive: 30HP Electric Motor
Sullair Air Compressor
Model: LS25S 250 AC
Year: 2013
Flow Rate: 1,075 CFM (30.4m³/min.)
Pressure: 125 PSI (8.6 bar)
Drive: 275HP, 60Hz, 3-Phase
Model: LS25S 250 AC
Year: 2013
Flow Rate: 1,075 CFM (30.4m³/min.)
Pressure: 125 PSI (8.6 bar)
Drive: 275HP, 60Hz, 3-Phase
Gold Room:

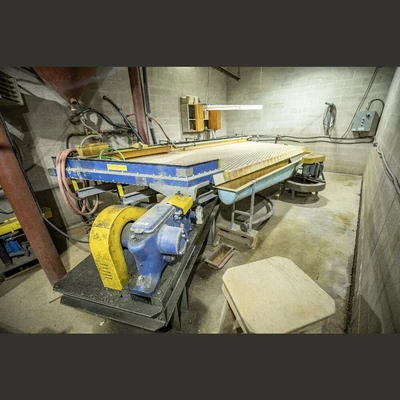

Holman Wilfley Concentrating Table
Model: 8000SD
Year: 2014
Deck Area: 7.5m²
Capacity: Up to 2,500 kgs/Hour
Drive: 3HP Baldor Electric Motor
Action Mining Concentrating Wave Table SOLD
Model: M7
Capacity: 600-2500 Lbs. Wet Slurry Feed Per Hour (Depending on Material Run)
Water Requirements: 3-8 GPM (can be recycled), 2 Adjustable Spray Bars
Drive: 0.5HP, 115 Volt Electric Motor

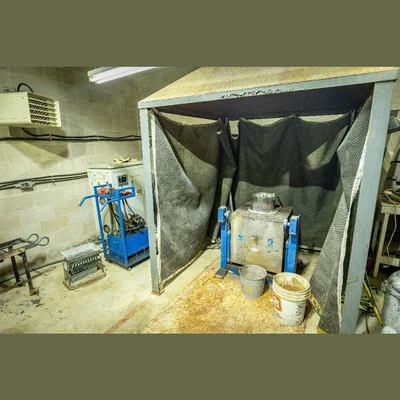

RDO Induction Melting Furnace:
Model: LC-50 P.S.
Output Power: 50kW @ 4-20kHz
Input Voltage: 460 Volt, 65 Amps, 3-Phase, 50/60Hz
Spout Diameter: 8.5in
Spout Depth: 18in Deep
With 1HP Electric Hydraulic Power Pack for Tilting
Conical Tank
Size: 5.5ft Diameter x 8ft Tall (4ft Conical Bottom)
Dual 2in Dia. Bottom Discharge
(2) Pressure Filters
Manual
Size: 9in Dia. x 12.5in High
Pumps:
Gold Room Tank Pump:
Size: 32in Diameter x 1ft Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Gold Room Sump Pump
Drive: 2HP Electric Motor
Ball Mill Sump Pump
Make: SALA Machine Works
Type: VASA G-80-234-2S
Drive: 7.5HP Westinghouse Electric Motor
(2) Sepro Centrifugal Pumps
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Rubber Impellers
Drive: 30HP Electric Motors
Svedala Vertical Tank Pump - Falcon Discharge Pump SOLD
Model: SPV232-2
Discharge: 2in Dia.
Pump Box: 29in Long x 34in Wide x 18in Deep
Drive: 7.5HP WEG Electric Motor
Sepro Centrifugal Pump With Pump Box
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Drive: 30HP Electric Motor
Pump Box: 40in x 40in x 5ft
Sala Sump Pump
Model VASA G80-234-20
Drive: 7.5HP Westinghouse Electric Motor
Allis Chalmers 2x2x10 SRL Centrifugal Pump
Overhead Motor Mount
Vertical Tank Pump SOLD
32in Dia. x 12in Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Vertical Tank Pump SOLD
Model: SPV-181-1½
32in Dia. x 12in Deep Tank
Discharge: 1.5in Discharge
Drive: 5HP Electric Motor
Pump Box
Make: Industrial Machine and Iron Works Ltd.
Capacity: 1200 Liters
Size: 1,000mm x 1,000mm x 1,600mm
Discharge: 3in Dia. Output with Butterfly Valve
Sala Tank Pump SOLD
Tank: 29in Long x 34in Wide x 20in Deep
Discharge: 2in Dia.
Drive: 10HP Electric Motor
Benshaw/I Curtiss Wright Panel For Cleaner Tailings Pump
Model: RSI-S5-0-030-600-SD-04-CB-OP
Hours: 6036.0
Horsepower Rating: 30HP
Current: 32 Amps
Sepro Centrifugal Pump
Model: HD80AR-C
Rubber Liners
Suction: 4in
Discharge: 3in
Drive: 30HP WEG Electric Motor
Pump Box with Auto Sampler
Capacity: 1319 Liters
Overflow Weir with 6in Output (Capped)
Discharge:
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
Holman Wilfley Concentrating Table
Model: 8000SD
Year: 2014
Deck Area: 7.5m²
Capacity: Up to 2,500 kgs/Hour
Drive: 3HP Baldor Electric Motor
Model: 8000SD
Year: 2014
Deck Area: 7.5m²
Capacity: Up to 2,500 kgs/Hour
Drive: 3HP Baldor Electric Motor
Action Mining Concentrating Wave Table SOLD
Model: M7
Capacity: 600-2500 Lbs. Wet Slurry Feed Per Hour (Depending on Material Run)
Water Requirements: 3-8 GPM (can be recycled), 2 Adjustable Spray Bars
Drive: 0.5HP, 115 Volt Electric Motor
Model: M7
Capacity: 600-2500 Lbs. Wet Slurry Feed Per Hour (Depending on Material Run)
Water Requirements: 3-8 GPM (can be recycled), 2 Adjustable Spray Bars
Drive: 0.5HP, 115 Volt Electric Motor
RDO Induction Melting Furnace:
Model: LC-50 P.S.
Output Power: 50kW @ 4-20kHz
Input Voltage: 460 Volt, 65 Amps, 3-Phase, 50/60Hz
Spout Diameter: 8.5in
Spout Depth: 18in Deep
With 1HP Electric Hydraulic Power Pack for Tilting
Model: LC-50 P.S.
Output Power: 50kW @ 4-20kHz
Input Voltage: 460 Volt, 65 Amps, 3-Phase, 50/60Hz
Spout Diameter: 8.5in
Spout Depth: 18in Deep
With 1HP Electric Hydraulic Power Pack for Tilting
Conical Tank
Size: 5.5ft Diameter x 8ft Tall (4ft Conical Bottom)
Dual 2in Dia. Bottom Discharge
Size: 5.5ft Diameter x 8ft Tall (4ft Conical Bottom)
Dual 2in Dia. Bottom Discharge
(2) Pressure Filters
Manual
Size: 9in Dia. x 12.5in High
Manual
Size: 9in Dia. x 12.5in High
Pumps:
Gold Room Tank Pump:
Size: 32in Diameter x 1ft Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Gold Room Sump Pump
Drive: 2HP Electric Motor
Ball Mill Sump Pump
Make: SALA Machine Works
Type: VASA G-80-234-2S
Drive: 7.5HP Westinghouse Electric Motor
(2) Sepro Centrifugal Pumps
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Rubber Impellers
Drive: 30HP Electric Motors
Svedala Vertical Tank Pump - Falcon Discharge Pump SOLD
Model: SPV232-2
Discharge: 2in Dia.
Pump Box: 29in Long x 34in Wide x 18in Deep
Drive: 7.5HP WEG Electric Motor
Sepro Centrifugal Pump With Pump Box
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Drive: 30HP Electric Motor
Pump Box: 40in x 40in x 5ft
Sala Sump Pump
Model VASA G80-234-20
Drive: 7.5HP Westinghouse Electric Motor
Allis Chalmers 2x2x10 SRL Centrifugal Pump
Overhead Motor Mount
Vertical Tank Pump SOLD
32in Dia. x 12in Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Vertical Tank Pump SOLD
Model: SPV-181-1½
32in Dia. x 12in Deep Tank
Discharge: 1.5in Discharge
Drive: 5HP Electric Motor
Pump Box
Make: Industrial Machine and Iron Works Ltd.
Capacity: 1200 Liters
Size: 1,000mm x 1,000mm x 1,600mm
Discharge: 3in Dia. Output with Butterfly Valve
Sala Tank Pump SOLD
Tank: 29in Long x 34in Wide x 20in Deep
Discharge: 2in Dia.
Drive: 10HP Electric Motor
Benshaw/I Curtiss Wright Panel For Cleaner Tailings Pump
Model: RSI-S5-0-030-600-SD-04-CB-OP
Hours: 6036.0
Horsepower Rating: 30HP
Current: 32 Amps
Sepro Centrifugal Pump
Model: HD80AR-C
Rubber Liners
Suction: 4in
Discharge: 3in
Drive: 30HP WEG Electric Motor
Pump Box with Auto Sampler
Capacity: 1319 Liters
Overflow Weir with 6in Output (Capped)
Discharge:
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
Gold Room Tank Pump:
Size: 32in Diameter x 1ft Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Size: 32in Diameter x 1ft Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Gold Room Sump Pump
Drive: 2HP Electric Motor
Drive: 2HP Electric Motor
Ball Mill Sump Pump
Make: SALA Machine Works
Type: VASA G-80-234-2S
Drive: 7.5HP Westinghouse Electric Motor
Make: SALA Machine Works
Type: VASA G-80-234-2S
Drive: 7.5HP Westinghouse Electric Motor
(2) Sepro Centrifugal Pumps
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Rubber Impellers
Drive: 30HP Electric Motors
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Rubber Impellers
Drive: 30HP Electric Motors
Svedala Vertical Tank Pump - Falcon Discharge Pump SOLD
Model: SPV232-2
Discharge: 2in Dia.
Pump Box: 29in Long x 34in Wide x 18in Deep
Drive: 7.5HP WEG Electric Motor
Model: SPV232-2
Discharge: 2in Dia.
Pump Box: 29in Long x 34in Wide x 18in Deep
Drive: 7.5HP WEG Electric Motor
Sepro Centrifugal Pump With Pump Box
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Drive: 30HP Electric Motor
Pump Box: 40in x 40in x 5ft
Model: HD80AR-C
Suction: 4in Dia.
Discharge: 3in Dia.
Drive: 30HP Electric Motor
Pump Box: 40in x 40in x 5ft
Sala Sump Pump
Model VASA G80-234-20
Drive: 7.5HP Westinghouse Electric Motor
Model VASA G80-234-20
Drive: 7.5HP Westinghouse Electric Motor
Allis Chalmers 2x2x10 SRL Centrifugal Pump
Overhead Motor Mount
Overhead Motor Mount
Vertical Tank Pump SOLD
32in Dia. x 12in Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
32in Dia. x 12in Deep Tank
Discharge: 1in Dia.
Drive: 5HP Electric Motor
Vertical Tank Pump SOLD
Model: SPV-181-1½
32in Dia. x 12in Deep Tank
Discharge: 1.5in Discharge
Drive: 5HP Electric Motor
Model: SPV-181-1½
32in Dia. x 12in Deep Tank
Discharge: 1.5in Discharge
Drive: 5HP Electric Motor
Pump Box
Make: Industrial Machine and Iron Works Ltd.
Capacity: 1200 Liters
Size: 1,000mm x 1,000mm x 1,600mm
Discharge: 3in Dia. Output with Butterfly Valve
Make: Industrial Machine and Iron Works Ltd.
Capacity: 1200 Liters
Size: 1,000mm x 1,000mm x 1,600mm
Discharge: 3in Dia. Output with Butterfly Valve
Sala Tank Pump SOLD
Tank: 29in Long x 34in Wide x 20in Deep
Discharge: 2in Dia.
Drive: 10HP Electric Motor
Tank: 29in Long x 34in Wide x 20in Deep
Discharge: 2in Dia.
Drive: 10HP Electric Motor
Benshaw/I Curtiss Wright Panel For Cleaner Tailings Pump
Model: RSI-S5-0-030-600-SD-04-CB-OP
Hours: 6036.0
Horsepower Rating: 30HP
Current: 32 Amps
Model: RSI-S5-0-030-600-SD-04-CB-OP
Hours: 6036.0
Horsepower Rating: 30HP
Current: 32 Amps
Sepro Centrifugal Pump
Model: HD80AR-C
Rubber Liners
Suction: 4in
Discharge: 3in
Drive: 30HP WEG Electric Motor
Pump Box with Auto Sampler
Capacity: 1319 Liters
Overflow Weir with 6in Output (Capped)
Discharge:
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
Model: HD80AR-C
Rubber Liners
Suction: 4in
Discharge: 3in
Drive: 30HP WEG Electric Motor
Pump Box with Auto Sampler
Capacity: 1319 Liters
Overflow Weir with 6in Output (Capped)
Discharge:
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
Capacity: 1319 Liters
Overflow Weir with 6in Output (Capped)
Discharge:
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
8in Output Reduced to 4in (To Pump)
4in Output with Butterfly Valve
4in Bottom Output (Capped)
Laboratory: SOLD
Agilent Technologies Atomic Absorption Spectrometer
Model: 55 AA

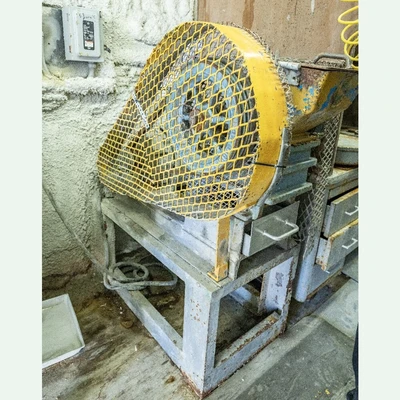

Whitelaw Lab Jaw Crusher:
Model: Model 0
Feed Opening: 5in x 6in
Hopper: 9in x 10in
Drive: 1.5HP, 115/230 Volt GE Electric Motor
With Sample Collection Drawer and (3) Spare Jaw Liner Plates
TM Engineering Ring and Puck Mill
Model: TM/STLX
With Control Timer
With 4 Full 250mL Ring and Puck Sets and 1 Fine Puck Set
Knelson MD3 Gold Concentrator
Model: KC-MD3
Type: Lab Size Concentrator
(2) Vcella 240-Volt Klins
Model: Model 21
Condition: (1) Working, (1) In Need of Repair
Vcella 120-Volt Kiln
Model: D9
Fisher ISOTEMP Drying Oven:
Series: 200 Series
Model: 230F
Drying Oven:
4 Rack Oven
Temperature Control: 0-550°F
W.S. Tyler Sieve Shaker:
Model: RX-29
Year: 2017
Voltage: 115 Volt
Sepor Seive Shaker
Model: 5FTT3
Drive: 115 Volt, 60Hz
Legend Jar Mill:
Counter Top HD Drive Roll
Roll: 3 Rows, 32in Long Each
Drive: 0.5HP, 230/460 Volt, 50/60Hz With TECO Fluxmaster FM50 Speed Control
Grobet Benchtop Rolling Mill
Lortone Rotary Tumbler
Model: QT12/QT66
Jar Size: 7.5in Diameter x 8.5in Long
Drive: 115 Volt, 60Hz
Mettler Toledo Assay Electric Scale/Balance
Model: XS3DU
(2) Ohaus Large Electric Scale/Balance
Model: Explorer
Ohaus Medium Electric Scale/Balance
Model: Adventurer
Camel Mining Products Gold Panning Machine
Model: Pro-Camel-24
(2) Thermo Scientific Hot Plates
Type: 2200
Model: HPA2245M
(2) Sample Splitters
(1) Humboldt 16 Chute Splitter
Chute Width: 1in
Input: 20in Wide x 9in Deep
(1) 14 Chute Splitter
Chute Width: 0.75in
Input: 14.5in Wide x 7in Deep
Labconco Protector Premier Fume Hood
Catalog No.: 10040000010814
Working Area: 37in Wide x 23in Deep
Mounted on Protector Acid Storage Cabinet
Agilent Technologies Atomic Absorption Spectrometer
Model: 55 AA
Model: 55 AA
Whitelaw Lab Jaw Crusher:
Model: Model 0
Feed Opening: 5in x 6in
Hopper: 9in x 10in
Drive: 1.5HP, 115/230 Volt GE Electric Motor
With Sample Collection Drawer and (3) Spare Jaw Liner Plates
Model: Model 0
Feed Opening: 5in x 6in
Hopper: 9in x 10in
Drive: 1.5HP, 115/230 Volt GE Electric Motor
With Sample Collection Drawer and (3) Spare Jaw Liner Plates
TM Engineering Ring and Puck Mill
Model: TM/STLX
With Control Timer
With 4 Full 250mL Ring and Puck Sets and 1 Fine Puck Set
Model: TM/STLX
With Control Timer
With 4 Full 250mL Ring and Puck Sets and 1 Fine Puck Set
Knelson MD3 Gold Concentrator
Model: KC-MD3
Type: Lab Size Concentrator
Model: KC-MD3
Type: Lab Size Concentrator
(2) Vcella 240-Volt Klins
Model: Model 21
Condition: (1) Working, (1) In Need of Repair
Model: Model 21
Condition: (1) Working, (1) In Need of Repair
Vcella 120-Volt Kiln
Model: D9
Model: D9
Fisher ISOTEMP Drying Oven:
Series: 200 Series
Model: 230F
Series: 200 Series
Model: 230F
Drying Oven:
4 Rack Oven
Temperature Control: 0-550°F
4 Rack Oven
Temperature Control: 0-550°F
W.S. Tyler Sieve Shaker:
Model: RX-29
Year: 2017
Voltage: 115 Volt
Model: RX-29
Year: 2017
Voltage: 115 Volt
Sepor Seive Shaker
Model: 5FTT3
Drive: 115 Volt, 60Hz
Model: 5FTT3
Drive: 115 Volt, 60Hz
Legend Jar Mill:
Counter Top HD Drive Roll
Roll: 3 Rows, 32in Long Each
Drive: 0.5HP, 230/460 Volt, 50/60Hz With TECO Fluxmaster FM50 Speed Control
Counter Top HD Drive Roll
Roll: 3 Rows, 32in Long Each
Drive: 0.5HP, 230/460 Volt, 50/60Hz With TECO Fluxmaster FM50 Speed Control
Grobet Benchtop Rolling Mill
Lortone Rotary Tumbler
Model: QT12/QT66
Jar Size: 7.5in Diameter x 8.5in Long
Drive: 115 Volt, 60Hz
Model: QT12/QT66
Jar Size: 7.5in Diameter x 8.5in Long
Drive: 115 Volt, 60Hz
Mettler Toledo Assay Electric Scale/Balance
Model: XS3DU
Model: XS3DU
(2) Ohaus Large Electric Scale/Balance
Model: Explorer
Model: Explorer
Ohaus Medium Electric Scale/Balance
Model: Adventurer
Model: Adventurer
Camel Mining Products Gold Panning Machine
Model: Pro-Camel-24
Model: Pro-Camel-24
(2) Thermo Scientific Hot Plates
Type: 2200
Model: HPA2245M
Type: 2200
Model: HPA2245M
(2) Sample Splitters
(1) Humboldt 16 Chute Splitter
Chute Width: 1in
Input: 20in Wide x 9in Deep
(1) 14 Chute Splitter
Chute Width: 0.75in
Input: 14.5in Wide x 7in Deep
(1) Humboldt 16 Chute Splitter
Chute Width: 1in
Input: 20in Wide x 9in Deep
Chute Width: 1in
Input: 20in Wide x 9in Deep
(1) 14 Chute Splitter
Chute Width: 0.75in
Input: 14.5in Wide x 7in Deep
Chute Width: 0.75in
Input: 14.5in Wide x 7in Deep
Labconco Protector Premier Fume Hood
Catalog No.: 10040000010814
Working Area: 37in Wide x 23in Deep
Mounted on Protector Acid Storage Cabinet
Catalog No.: 10040000010814
Working Area: 37in Wide x 23in Deep
Mounted on Protector Acid Storage Cabinet
Location: Eastern Canada
View More Ore Processing Plants
View YouTube Video Here: https://www.youtube.com/watch?v=qTuIy2_5THE
