Frac Sand Resin Coating and Drying Plant

Frac Sand Resin Coating and Drying Plant
Make: Custom Built
Year: 2010
Condition: Used Condition
Ran 3 Years, Idled Since, Mothballed for Restarting, Under Power, Guarded
Ran 3 Years, Idled Since, Mothballed for Restarting, Under Power, Guarded
Capacity: 24 TPH - 300 TPH
Currently Limited by the Sand Dryers Combined 24 TPH Total Production, the Bulk Handling System Components are Capable of Moving Up To 300 TPH of Sand
Currently Limited by the Sand Dryers Combined 24 TPH Total Production, the Bulk Handling System Components are Capable of Moving Up To 300 TPH of Sand
Primary Product: Polymer Coated Fracking Sand
Process Description: Sand Resin Coating and Drying for Fracking. Coating to Increase Crush Strength and Produces More Spherical Particles Required for Porosity and Depth. Also Suitable for Clinker and Cement Powder with Modifications
Primary Components:

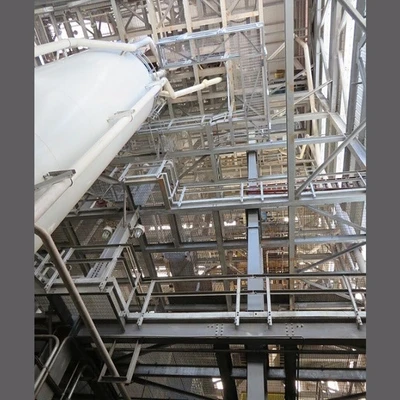

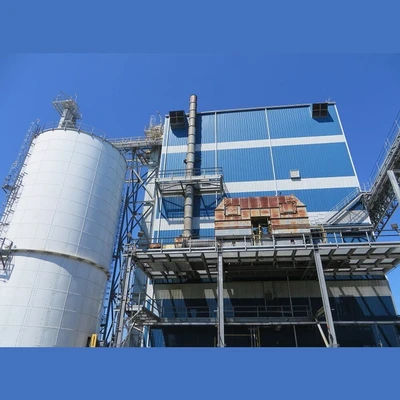

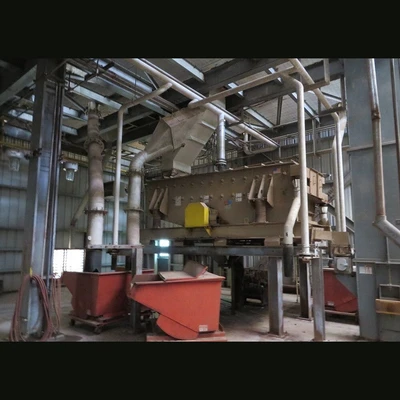

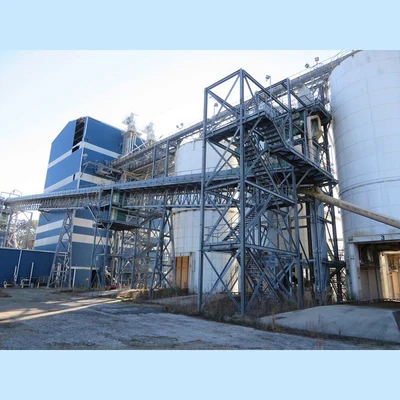

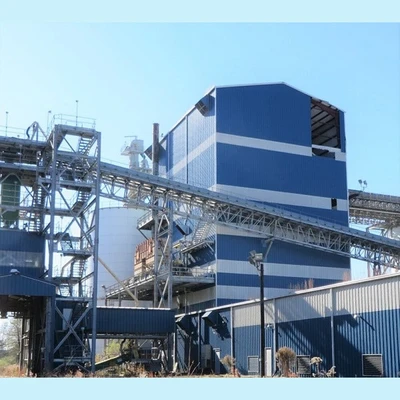

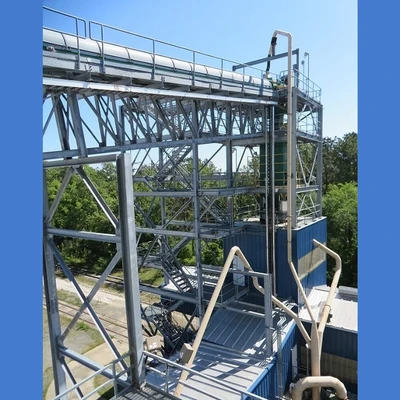

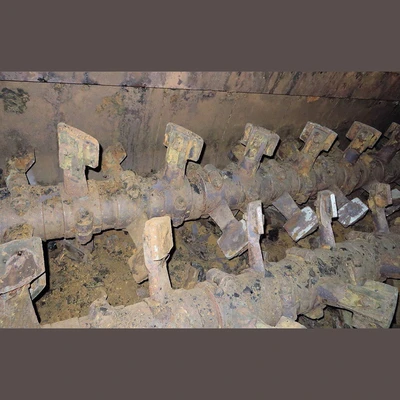

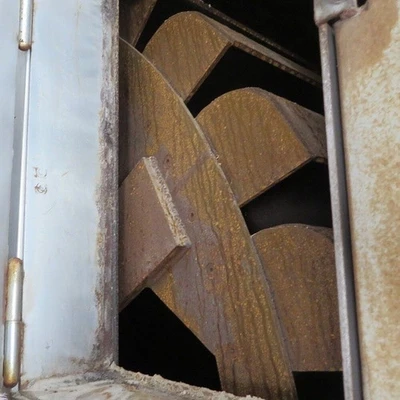

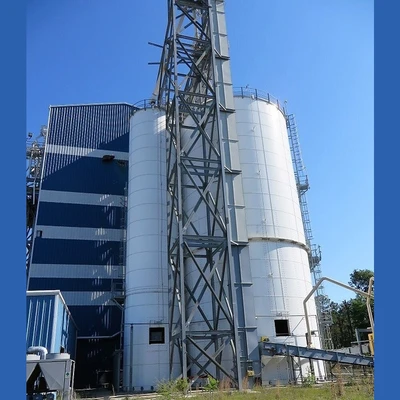

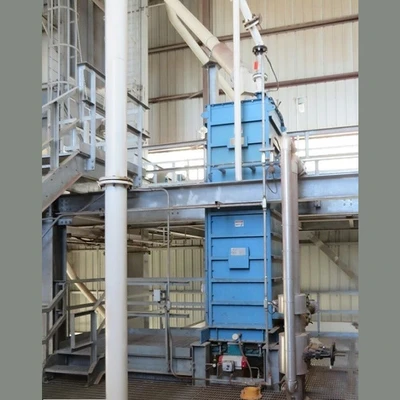

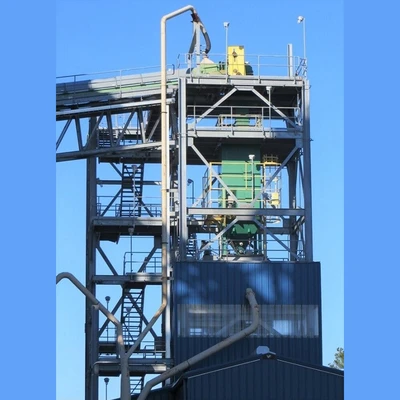

Structural Steel Tower with the Dual Circuit Production System including Bucket Elevators, Conveyors, Dryers, Pug Mills, Screeners, Silos and Emission Control Systems including Cartridge Dust Collectors and a RTO (Regenerative Thermal Oxidizer) to destroy VOC’s.

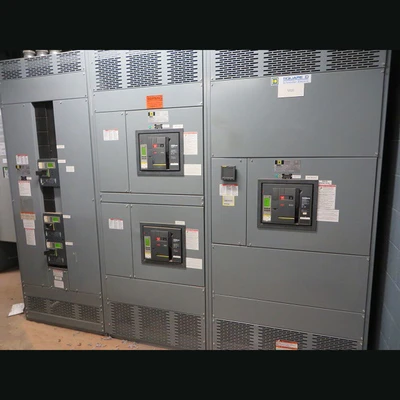

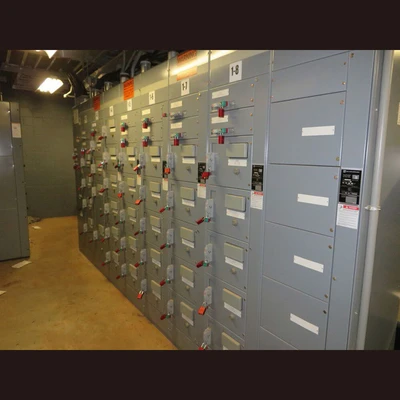

The 2000 kVA, 480V Electrical System is Operated by a Honeywell Control System through PLC’s and MCC’s with Numerous VFD’s. There is a Battery UPS for the Controls, and a Natural Gas 250 kW Standby Generator with ATS.

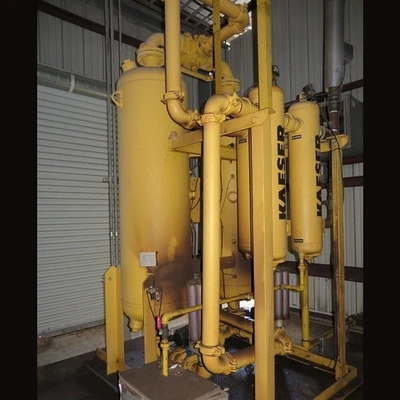

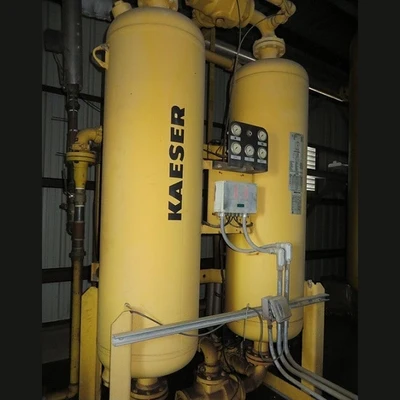

(2) Kaeser Air Compressors with Dryers and Reservoirs Serve the Pneumatic Systems
Full Original Documentation of the Plant and Equipment is Included

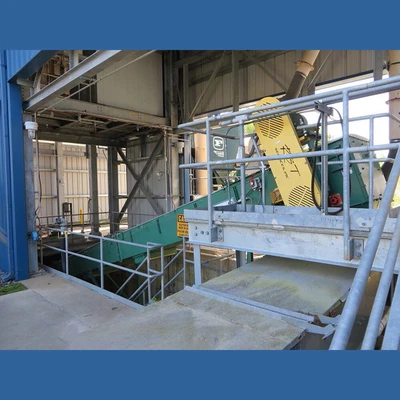

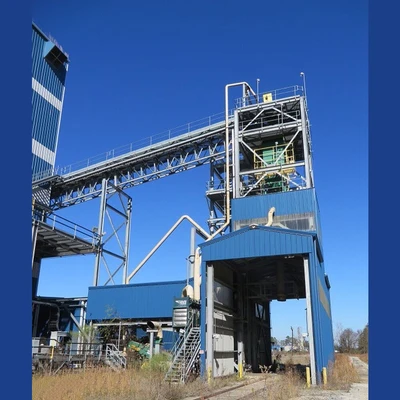

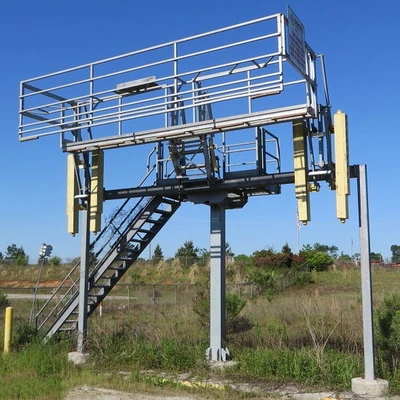

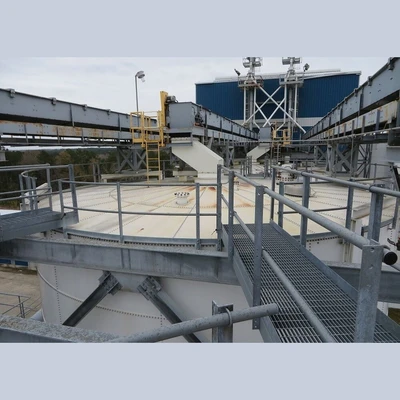

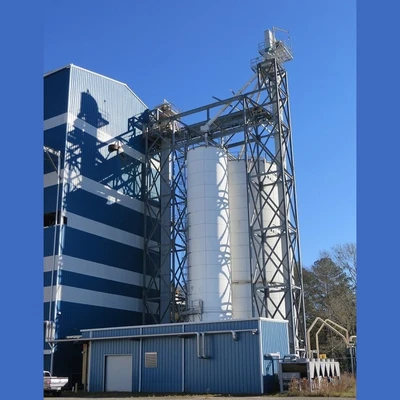

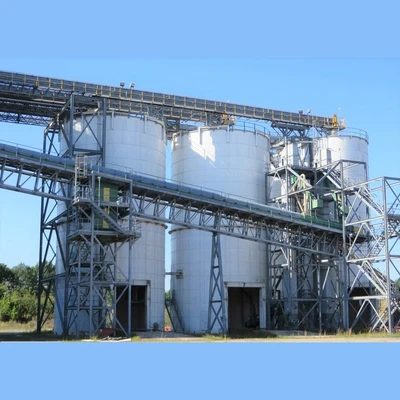

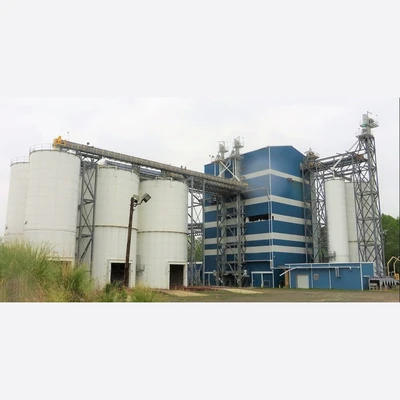

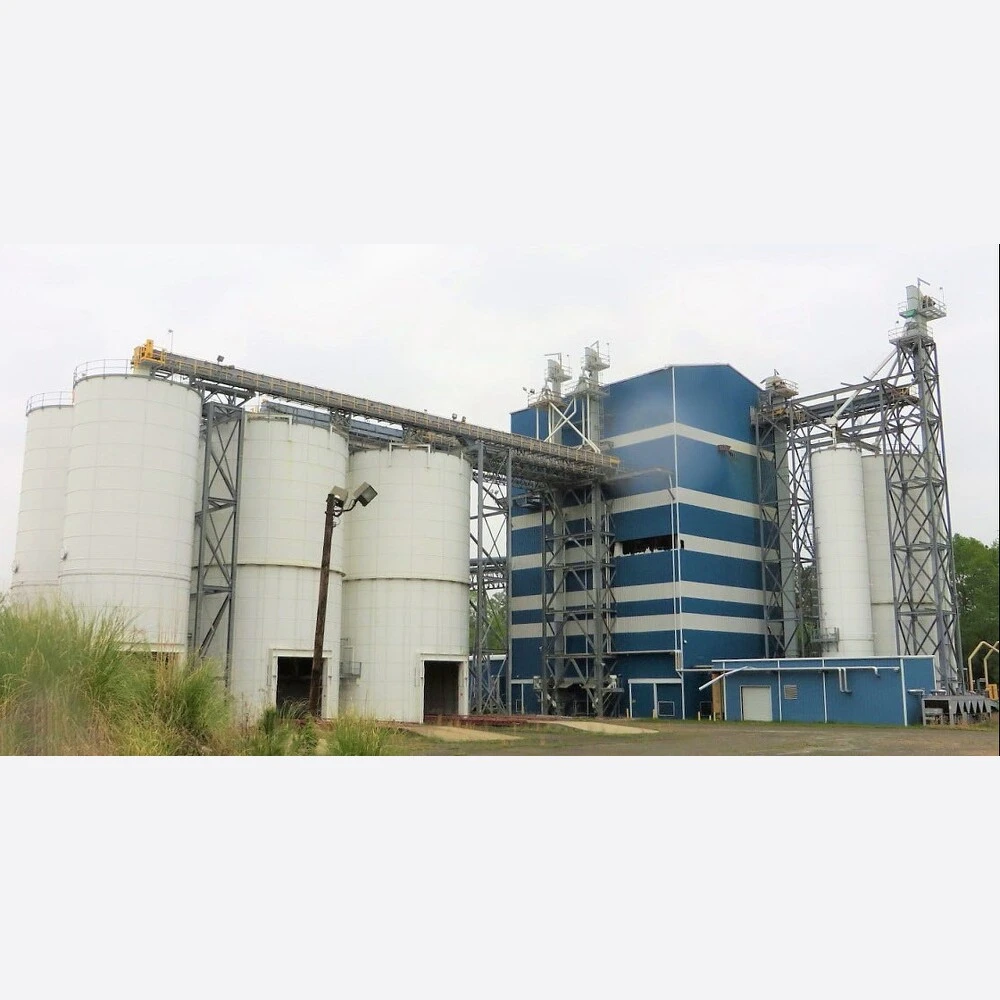

Product was Brought In by Rail or Truck, and Unloaded into an Under-Track Conveyor Feeding to (2) Bulk Silos. From There, it was Conveyed into the Processing Tower and Resin Coated. Then it was Conveyed to One of Four Finished Product Silos with Direct Truck Loading Systems over Truck Scales. Product was Also Conveyed Back to the Rail Tower for Loading into Cars on Rail Scales

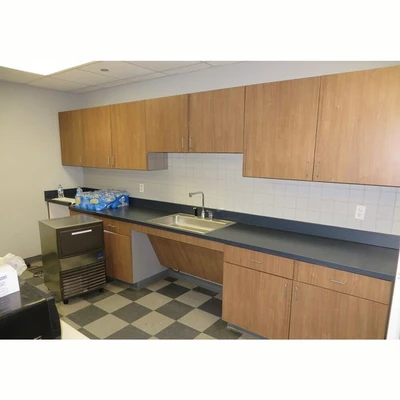

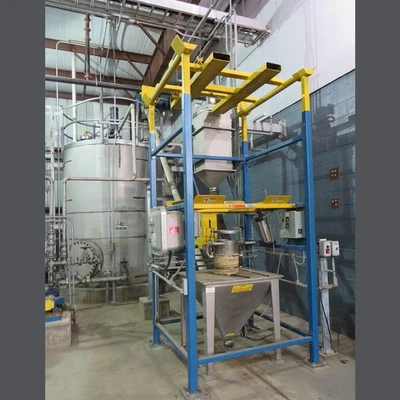

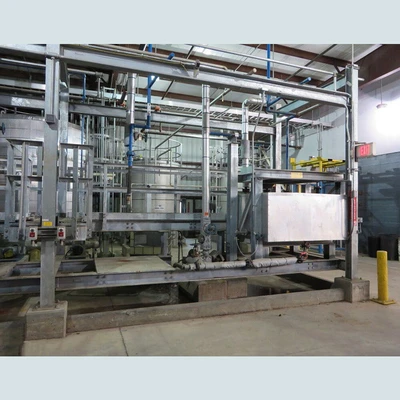

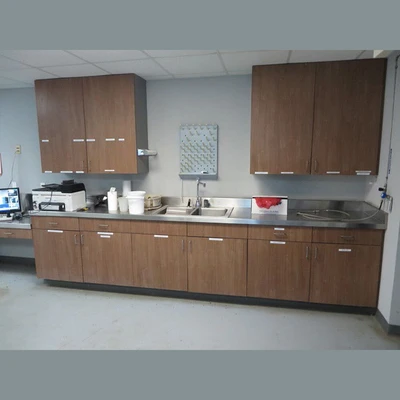

Office Building Includes Laboratory Facilities, Employee Areas with Kitchen and Shower Facilities, a Large Shop and a Second Floor of Undeveloped Space. There is Also Warehouse Space, Resin Production Areas and the Electrical Room in the Main Building
Structural Steel Tower with the Dual Circuit Production System including Bucket Elevators, Conveyors, Dryers, Pug Mills, Screeners, Silos and Emission Control Systems including Cartridge Dust Collectors and a RTO (Regenerative Thermal Oxidizer) to destroy VOC’s.
The 2000 kVA, 480V Electrical System is Operated by a Honeywell Control System through PLC’s and MCC’s with Numerous VFD’s. There is a Battery UPS for the Controls, and a Natural Gas 250 kW Standby Generator with ATS.
(2) Kaeser Air Compressors with Dryers and Reservoirs Serve the Pneumatic Systems
Full Original Documentation of the Plant and Equipment is Included
Product was Brought In by Rail or Truck, and Unloaded into an Under-Track Conveyor Feeding to (2) Bulk Silos. From There, it was Conveyed into the Processing Tower and Resin Coated. Then it was Conveyed to One of Four Finished Product Silos with Direct Truck Loading Systems over Truck Scales. Product was Also Conveyed Back to the Rail Tower for Loading into Cars on Rail Scales
Office Building Includes Laboratory Facilities, Employee Areas with Kitchen and Shower Facilities, a Large Shop and a Second Floor of Undeveloped Space. There is Also Warehouse Space, Resin Production Areas and the Electrical Room in the Main Building
Location: Southern USA
