USED 2018 HENGDA AC-3CP-MD

5 TPH Gold Ore Processing and Thiourea Leaching Plant
Plant Includes: Crushing, Milling, Conveying, Pumping, Leaching, and Filtering Equipment.
Description: The process starts with filling the hopper with ore.
The ore is transported to Jaw crusher mill via a conveyor belt,  then the ground ore falls in to the Hammer mill,  and then into the fine grinding mill – Impact mill. The ground ore is transported via the screw conveyor to the bucket conveyor, which transports the ore to the storage tank.
The ore from the hopper is weighed via the Belt conveyor with the processor-controlled scale, before it goes into the leaching reactors.
After the leaching process:   The process liquid is filtered on a hydraulic membrane filter press. The filtered liquid flows into the storage tank. When the leaching reactor is empty, liquid from the storage tanks is pumped back into the reactor. The same liquid is used until the appropriate concentration of gold in the liquid is reached.
When a high concentration of dissolved gold is reached, the liquid is stored in a storage tank for the further process of extracting gold from the liquid – absorption, desorption, reduction.
Year: 2018
Capacity: 5 Tons Per Hour
Condition: Used, Reported in Good Condition
Equipment List:

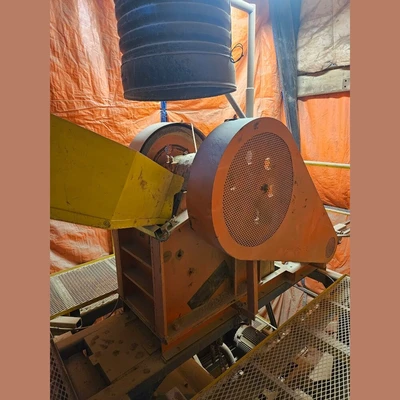

10in x 16in Jaw Crusher:
Hours: Approx. 30 Hours
Capacity: 5 - 20 TPH
Feed Size: 9in
Discharge: 3/4 - 3in
Drive: Electric Motor
Power Output: 30HP
Rotation Speed: 1,175RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase

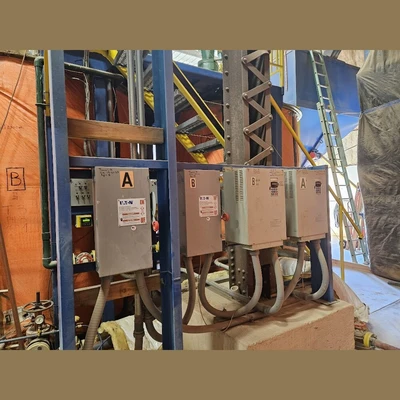

Soft Inverter
Hours: Approx. 30 Hours
Capacity: 5 - 20 TPH
Feed Size: 9in
Discharge: 3/4 - 3in
Drive: Electric Motor
Power Output: 30HP
Rotation Speed: 1,175RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 30HP
Rotation Speed: 1,175RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase
Soft Inverter

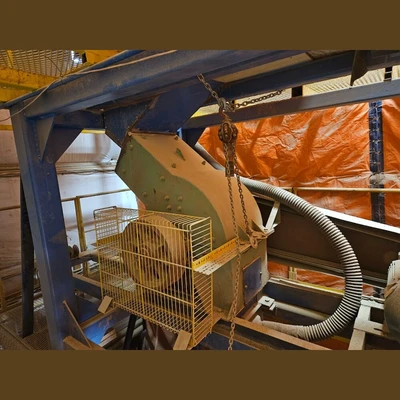

24in x 16in Hammer Mill:
Hours: Approx. 30 Hours
Capacity: 5 - 10 TPH
Feed Size: 5in
Discharge: 1/4in
Drive: Electric Motor
Power Output: 30HP
Rotation Speed: 1,779RPM
Voltage: 480 Volts
Frequency: 60Hz
Phase: 3-Phase
Soft Inverter
Hours: Approx. 30 Hours
Capacity: 5 - 10 TPH
Feed Size: 5in
Discharge: 1/4in
Drive: Electric Motor
Power Output: 30HP
Rotation Speed: 1,779RPM
Voltage: 480 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 30HP
Rotation Speed: 1,779RPM
Voltage: 480 Volts
Frequency: 60Hz
Phase: 3-Phase
Soft Inverter
Stutenroth Impact Mill:
Hours: Approx. 30 Hours
Capacity: 5 TPH
Feed Size: 1/2in
Discharge: 100mic.
Drive: Electric Motor
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase
Hours: Approx. 30 Hours
Capacity: 5 TPH
Feed Size: 1/2in
Discharge: 100mic.
Drive: Electric Motor
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 460 Volts
Frequency: 60Hz
Phase: 3-Phase

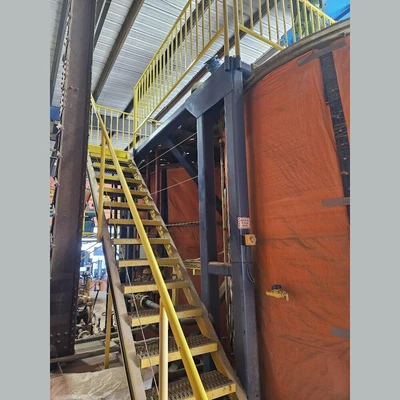

Fiberglass Leaching Tanks and Agitators
Agitators:
Qty: 2
Hours: Approx. 50 Hours
Drive: Electric Motor
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Includes:
VFD Motor
Soft Start Inverter
Leaching Tanks:
Qty: 2
Capacity: 16,500L
Diameter: 2,743mm
Height: 2,895mm
Wall Thickness: 16mm
Construction: FRP
Includes:
Heating System
Multi-Parameter Controller
Agitators:
Qty: 2
Hours: Approx. 50 Hours
Drive: Electric Motor
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Includes:
VFD Motor
Soft Start Inverter
Qty: 2
Hours: Approx. 50 Hours
Drive: Electric Motor
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Power Output: 40HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Includes:
VFD Motor
Soft Start Inverter
VFD Motor
Soft Start Inverter
Leaching Tanks:
Qty: 2
Capacity: 16,500L
Diameter: 2,743mm
Height: 2,895mm
Wall Thickness: 16mm
Construction: FRP
Includes:
Heating System
Multi-Parameter Controller
Qty: 2
Capacity: 16,500L
Diameter: 2,743mm
Height: 2,895mm
Wall Thickness: 16mm
Construction: FRP
Includes:
Heating System
Multi-Parameter Controller
Heating System
Multi-Parameter Controller
12m³/Hour Pneumatic Double Diaphragm Pumps:
Qty: 3
Capacity: 12m³/hour
Discharge Pressure: 6 bar
Max Air Pressure: 7 bar
Max Air Consumption: 0.9m³/hour
For Chemicals Up to 1.5 PH
21m³/Hour Pneumatic Double Diaphragm Pumps:
Qty: 4
Capacity: 21m³/hour
Discharge Pressure: 5 - 8 bar
Max Air Pressure: 8.4 bar
Max Air Consumption: 1.5m³/hour
PTFE (Teflon)
Qty: 4
Capacity: 21m³/hour
Discharge Pressure: 5 - 8 bar
Max Air Pressure: 8.4 bar
Max Air Consumption: 1.5m³/hour
PTFE (Teflon)
35m³m/Hour Pneumatic Double Diaphragm Pump:
Capacity: 35m³/hour
Discharge Pressure: 5 - 8 bar
Max Air Consumption: 1.5 - 2.5m³/hour
PTFE (Teflon)
Capacity: 35m³/hour
Discharge Pressure: 5 - 8 bar
Max Air Consumption: 1.5 - 2.5m³/hour
PTFE (Teflon)

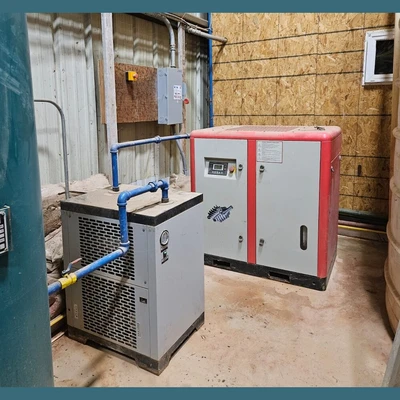

Hengda Double Screw Air Compressor
Make: Hengda
Hours: Approx. 20 Hours
Output: 2m³/min
Pressure: 10 bar
Air Tank Capacity: 600L
Drive: Electric Motor
Pressure Output: 20HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Includes: Refridgerated Air Dryer with Filters
Make: Hengda
Hours: Approx. 20 Hours
Output: 2m³/min
Pressure: 10 bar
Air Tank Capacity: 600L
Drive: Electric Motor
Pressure Output: 20HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Pressure Output: 20HP
Rotation Speed: 1,770RPM
Voltage: 230 Volts
Current: 610 Amps
Frequency: 60Hz
Phase: 3-Phase
Includes: Refridgerated Air Dryer with Filters

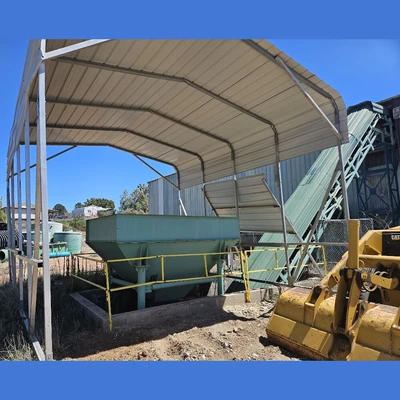

Outdoor Ore Hopper:
Hopper Capacity: 15m³
Vibrating Feeder
Hopper Capacity: 15m³
Vibrating Feeder

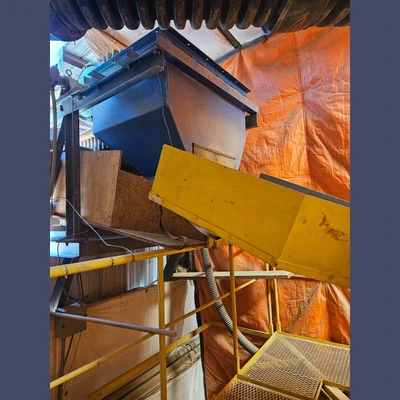

Indoor Ore Hopper:
Hopper Capacity: 15m³
Vibrator 1:
Drive: Electric Motor
Power Output: 0.75kW
Rotation Speed: 1,680RPM
Frequency: 60Hz
Vibrator 2:
0 - 5 kN
Drive: Electric Motor
Power Output: 0.4kW
Rotation Speed: 1,729RPM
Voltage: 240 Volts
Current: 1.62 Amps
Frequency: 60Hz
Hopper Capacity: 15m³
Vibrator 1:
Drive: Electric Motor
Power Output: 0.75kW
Rotation Speed: 1,680RPM
Frequency: 60Hz
Drive: Electric Motor
Power Output: 0.75kW
Rotation Speed: 1,680RPM
Frequency: 60Hz
Power Output: 0.75kW
Rotation Speed: 1,680RPM
Frequency: 60Hz
Vibrator 2:
0 - 5 kN
Drive: Electric Motor
Power Output: 0.4kW
Rotation Speed: 1,729RPM
Voltage: 240 Volts
Current: 1.62 Amps
Frequency: 60Hz
0 - 5 kN
Drive: Electric Motor
Power Output: 0.4kW
Rotation Speed: 1,729RPM
Voltage: 240 Volts
Current: 1.62 Amps
Frequency: 60Hz
Power Output: 0.4kW
Rotation Speed: 1,729RPM
Voltage: 240 Volts
Current: 1.62 Amps
Frequency: 60Hz

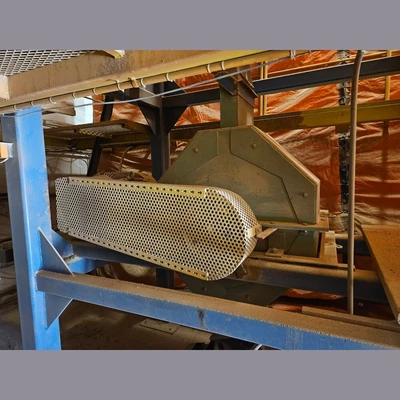

0.8m x 15m Belt Conveyor
Hours: Approx. 30 Hours
Belt Width: 800mm
Belt Length: 15m
Belt Speed: 0.8m/second
Drive: Electric Motor
Power Output: 7.5kW
Voltage: 240 Volts
Current: 17 Amps
Hours: Approx. 30 Hours
Belt Width: 800mm
Belt Length: 15m
Belt Speed: 0.8m/second
Drive: Electric Motor
Power Output: 7.5kW
Voltage: 240 Volts
Current: 17 Amps
Power Output: 7.5kW
Voltage: 240 Volts
Current: 17 Amps
6m Mobile Stainless Steel Screw Conveyor:
Length: 6m
Feeder Hopper: 1m³
Drive: Electric Motor
Power Output: 0.75kW
Voltage: 240 Volts
Current: 3.51 Amps
Frequency: 60Hz
Length: 6m
Feeder Hopper: 1m³
Drive: Electric Motor
Power Output: 0.75kW
Voltage: 240 Volts
Current: 3.51 Amps
Frequency: 60Hz
Power Output: 0.75kW
Voltage: 240 Volts
Current: 3.51 Amps
Frequency: 60Hz
4.6m Screw Conveyor:
Hours: Approx. 30 Hours
Length: 4.6m
Screw Diameter: 28cm Dia.
Drive: Electric Motor
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Current: 10.2 Amps
Frequency: 60Hz
Hours: Approx. 30 Hours
Length: 4.6m
Screw Diameter: 28cm Dia.
Drive: Electric Motor
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Current: 10.2 Amps
Frequency: 60Hz
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Current: 10.2 Amps
Frequency: 60Hz

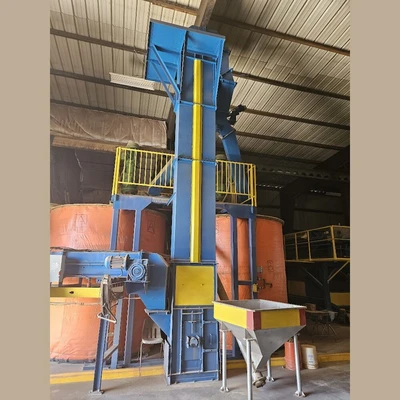

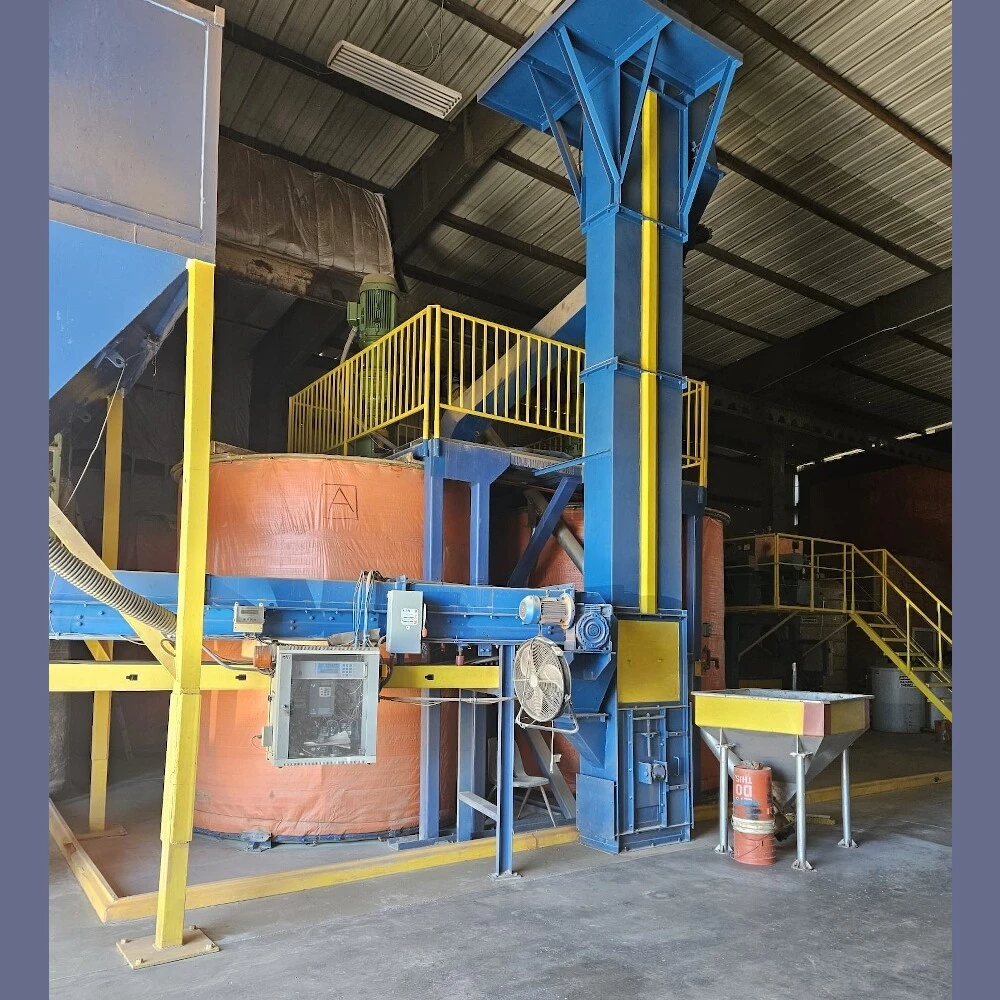

Bucket Elevators:
Qty: 2
Hours: Approx. 30 Hours
Height: 8m
Angle: 90°
Drive: Electric Motor
Power Output: 2.2kW
Rotation Speed: 1,704RPM
Voltage: 240 Volts
Current: 7.7 Amps
Frequency: 60Hz
Qty: 2
Hours: Approx. 30 Hours
Height: 8m
Angle: 90°
Drive: Electric Motor
Power Output: 2.2kW
Rotation Speed: 1,704RPM
Voltage: 240 Volts
Current: 7.7 Amps
Frequency: 60Hz
Power Output: 2.2kW
Rotation Speed: 1,704RPM
Voltage: 240 Volts
Current: 7.7 Amps
Frequency: 60Hz

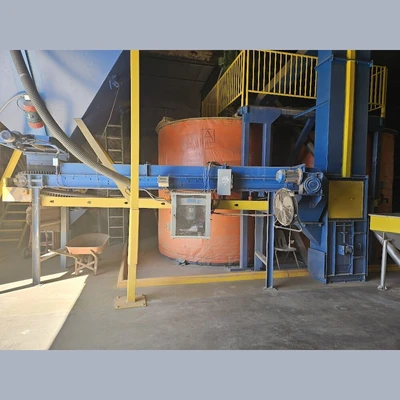

Belt Conveyor with Scale:
Hours: Approx. 10 Hours
Capacity: 10 TPH
Length: 5.3m
Width: 85cm
Drive: Electric Motor
Power Output: 4kW
Rotation Speed: 1,740RPM
Voltage: 240 Volts
Frequency: 60Hz
Hours: Approx. 10 Hours
Capacity: 10 TPH
Length: 5.3m
Width: 85cm
Drive: Electric Motor
Power Output: 4kW
Rotation Speed: 1,740RPM
Voltage: 240 Volts
Frequency: 60Hz
Power Output: 4kW
Rotation Speed: 1,740RPM
Voltage: 240 Volts
Frequency: 60Hz

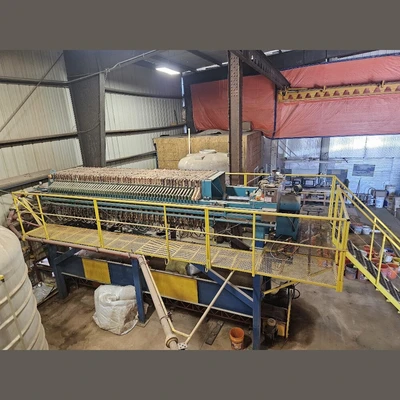

Hydraulic Membrane Plate Filter Press:
Capacity: 5.4 TPH
Filter Chamber Volume: 1,500L (396gal)
Filter Area: 100m² (1,076.4ft²)
Design Pressure: 0.6Mpa
Plates: 57 Plates
Plate Size: 1m x 1m (3ft 3/8in x 3ft 3/8in) Plates
Cake Thickness: 30mm
Cake Size: 2.7 Ton Cake per Batch
Drive: Hidravlik Electric Motor
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Frequency: 60HZ
Capacity: 5.4 TPH
Filter Chamber Volume: 1,500L (396gal)
Filter Area: 100m² (1,076.4ft²)
Design Pressure: 0.6Mpa
Plates: 57 Plates
Plate Size: 1m x 1m (3ft 3/8in x 3ft 3/8in) Plates
Cake Thickness: 30mm
Cake Size: 2.7 Ton Cake per Batch
Drive: Hidravlik Electric Motor
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Frequency: 60HZ
Power Output: 3kW
Rotation Speed: 1,728RPM
Voltage: 210 Volts
Frequency: 60HZ
Belt Conveyor under Filter Press:
Length: 12.5m
Drive: Electric Motor
Power Output: 3.8kW
Rotation Speed:
Voltage: 240 Volts
Current: 13.5 Amps
Frequency: 60Hz
Weight: 4,290kg (9,457lbs)
Length: 12.5m
Drive: Electric Motor
Power Output: 3.8kW
Rotation Speed:
Voltage: 240 Volts
Current: 13.5 Amps
Frequency: 60Hz
Power Output: 3.8kW
Rotation Speed:
Voltage: 240 Volts
Current: 13.5 Amps
Frequency: 60Hz
Weight: 4,290kg (9,457lbs)

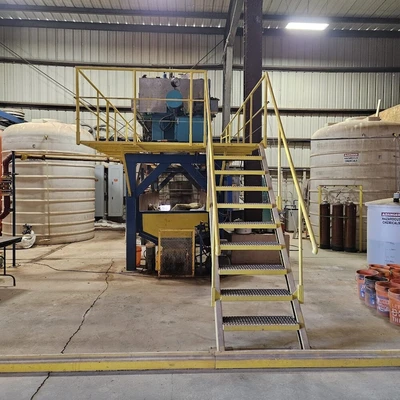

Storage Tanks:
Qty: 4
Capacity: 15,000L
Diameter: 2,500mm
Overall Height: 3,400mm
Wall Thickness: 16mm
Construction: Polyethylene
2 Tanks Equipped with Heating Systems
Qty: 4
Capacity: 15,000L
Diameter: 2,500mm
Overall Height: 3,400mm
Wall Thickness: 16mm
Construction: Polyethylene
2 Tanks Equipped with Heating Systems

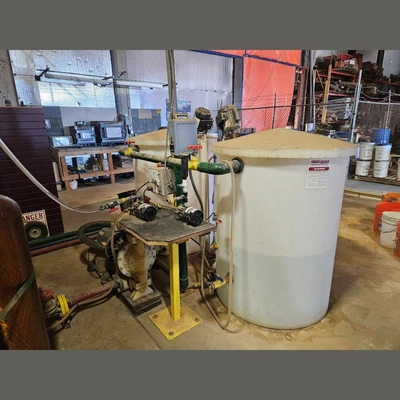

Reactor for Reduction Process:
Qty: 2
Tank:
Capacity: 1,000L
Diameter: 800mm
Height: 1,300mm
Wall Thickness: 6mm
Mixer:
Power Output: 1/3HP
Rotation Speed: 1,720RPM
Voltage: 208-230 Volts
Frequency: 60Hz
Pump:
Model: AC-3CP-MD
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Qty: 2
Tank:
Capacity: 1,000L
Diameter: 800mm
Height: 1,300mm
Wall Thickness: 6mm
Capacity: 1,000L
Diameter: 800mm
Height: 1,300mm
Wall Thickness: 6mm
Mixer:
Power Output: 1/3HP
Rotation Speed: 1,720RPM
Voltage: 208-230 Volts
Frequency: 60Hz
Power Output: 1/3HP
Rotation Speed: 1,720RPM
Voltage: 208-230 Volts
Frequency: 60Hz
Pump:
Model: AC-3CP-MD
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Model: AC-3CP-MD
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Carbon Towers:
Tanks:
Qty: 3
Capacity: 100L
Construction: FRP
Pump:
Qty: 1
Model: AC-3CP-MD
Flowrate: 15L/min
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Filter Housing:
Capacity: 50L
Construction: Stainless Steel
Tanks:
Qty: 3
Capacity: 100L
Construction: FRP
Qty: 3
Capacity: 100L
Construction: FRP
Pump:
Qty: 1
Model: AC-3CP-MD
Flowrate: 15L/min
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Qty: 1
Model: AC-3CP-MD
Flowrate: 15L/min
Power Output: 1/15HP
Rotation Speed: 3,000RPM
Voltage: 115 Volts
Current: 2.3 Amps
Frequency: 60Hz
Filter Housing:
Capacity: 50L
Construction: Stainless Steel
Capacity: 50L
Construction: Stainless Steel

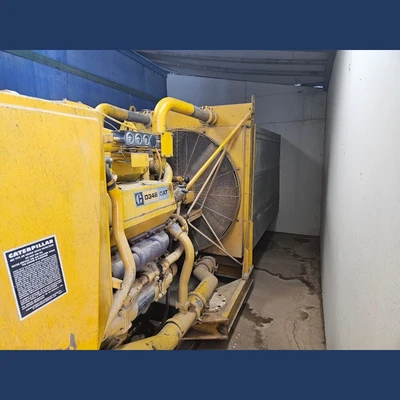

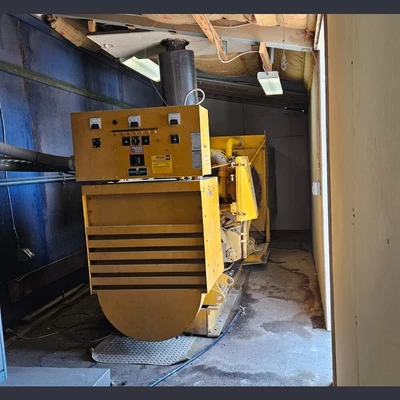

CAT Diesel Generator:
Year: 1994
Hours: 2,150 Hours
Condition: Used, Reported in Good Condition
Voltage: 600 Volts
Current: 800 Amps
Frequency: 60Hz
Year: 1994
Hours: 2,150 Hours
Condition: Used, Reported in Good Condition
Voltage: 600 Volts
Current: 800 Amps
Frequency: 60Hz

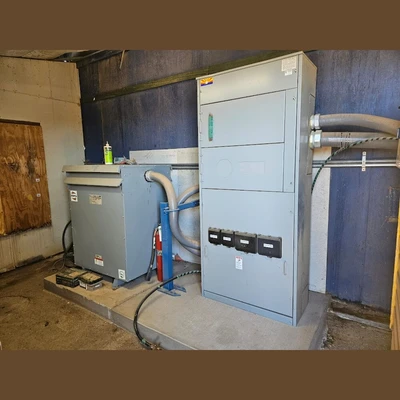

Electrical Panel:
Make: Sun Valley Electric
Model: SW WCTML8-8-4 D
Year: 2016
4 Wire
Voltage: Voltage: 480/277 Volts
Supply Current: 800 Amps
Frequency: 60Hz
Phase: 3-Phase
Make: Sun Valley Electric
Model: SW WCTML8-8-4 D
Year: 2016
4 Wire
Voltage: Voltage: 480/277 Volts
Supply Current: 800 Amps
Frequency: 60Hz
Phase: 3-Phase
Transformer:
Make: Hammond Power Solutions
kVA: 300kVA
Primary Voltage: 480 Volts
Secondary Voltage: 240 Volts
Phase: 3-Phase
Temp. Rise: 150°C
Make: Hammond Power Solutions
kVA: 300kVA
Primary Voltage: 480 Volts
Secondary Voltage: 240 Volts
Phase: 3-Phase
Temp. Rise: 150°C
Location: Southwest USA
