USED 2013 IHC MERWEDE SD-01

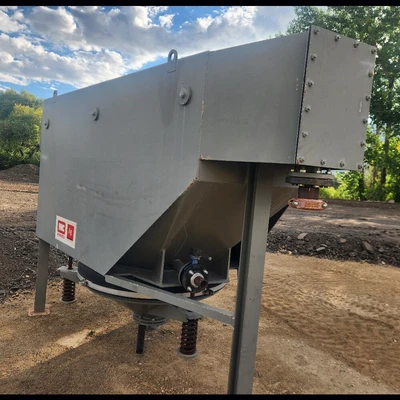

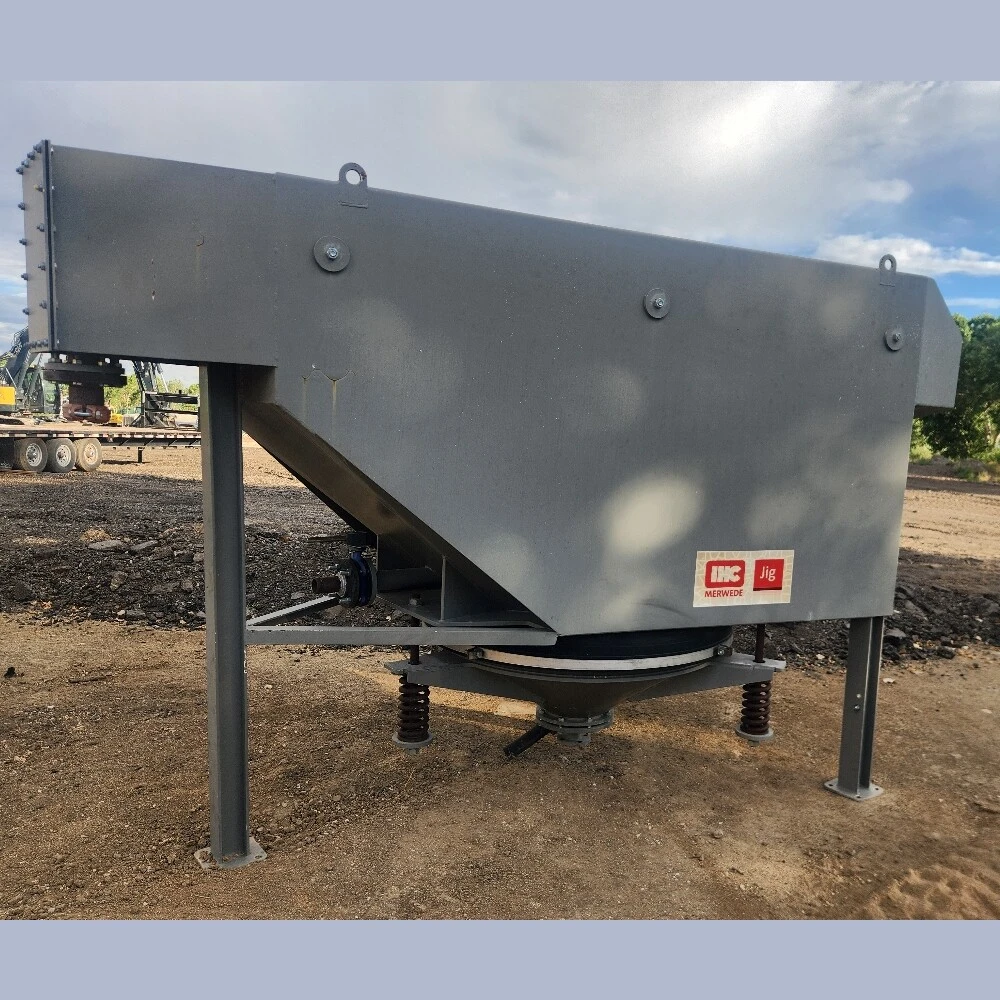

IHC Merwede SD-01 Mineral Jig

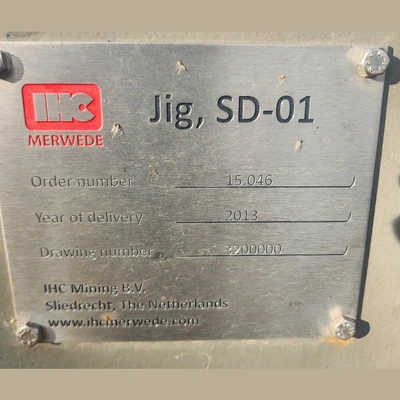

Make: IHC Merwede
Model: SD-01
Type: Mineral Jig
Year: 2013
Condition: Used Condition - Used for Approx. 50 Hours

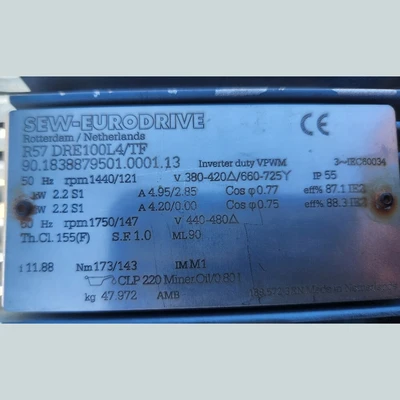

Drive: 3HP SEW-Eurodrive Electric Motor
Voltage: 440-480 Volt (380-420V, 660-725V @ 50Hz)
Frequency: 50/60Hz

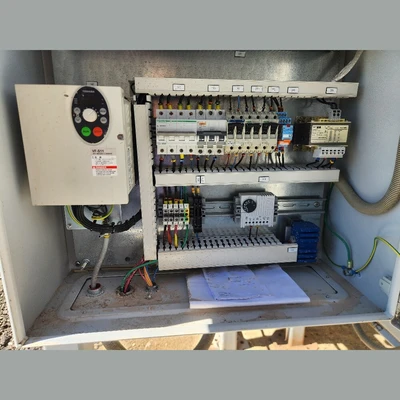

With Toshiba VFD
Voltage: 440-480 Volt (380-420V, 660-725V @ 50Hz)
Frequency: 50/60Hz
With Toshiba VFD
(36) Boxes of New Jig Shot/Bedding Material
General Model Specification:
Capacity Range (Wet Solids): 20 Tons/Hr. (Dependent on S.G. of Mineral)
Jig Bed Area: 3.2m²
Length O.A.: 3.29m
Breadth O.A.: 2.05m
Height O.A.: 2.89m  (Approx.)
Height of Tailing Discharge Above Ground Level: 1.95m
Net Construction Weight: 2,293 kg Approx.
Weight in Working Conditions: 6,860 kg Approx.
Electric Circuit: AC, 3-Ph, 380/480 V, 50/60Hz
Jig Drive Motor Output: 2.2kW
Drive System: Mechanical, with IHC Saw-Tooth Characteristic
Stroke Frequency Between: 31 and 200 Strokes/Minute
Stroke Length (Standard): 15mm (Options Available)

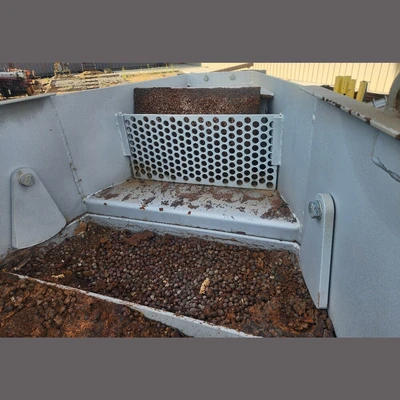

Screen Perforation (Tapered): 6.4-12.7mm
Diameter Feed Intake (Nominal): 80mm
Diameter Tailing Discharge: 150mm
Diameter Hutch Water Connection: 65mm
Capacity Range (Wet Solids): 20 Tons/Hr. (Dependent on S.G. of Mineral)
Jig Bed Area: 3.2m²
Length O.A.: 3.29m
Breadth O.A.: 2.05m
Height O.A.: 2.89m  (Approx.)
Height of Tailing Discharge Above Ground Level: 1.95m
Net Construction Weight: 2,293 kg Approx.
Weight in Working Conditions: 6,860 kg Approx.
Electric Circuit: AC, 3-Ph, 380/480 V, 50/60Hz
Jig Drive Motor Output: 2.2kW
Drive System: Mechanical, with IHC Saw-Tooth Characteristic
Stroke Frequency Between: 31 and 200 Strokes/Minute
Stroke Length (Standard): 15mm (Options Available)
Screen Perforation (Tapered): 6.4-12.7mm
Diameter Feed Intake (Nominal): 80mm
Diameter Tailing Discharge: 150mm
Diameter Hutch Water Connection: 65mm
Location: Southwest USA
