USED 2010 ELLICOTT 370-20'

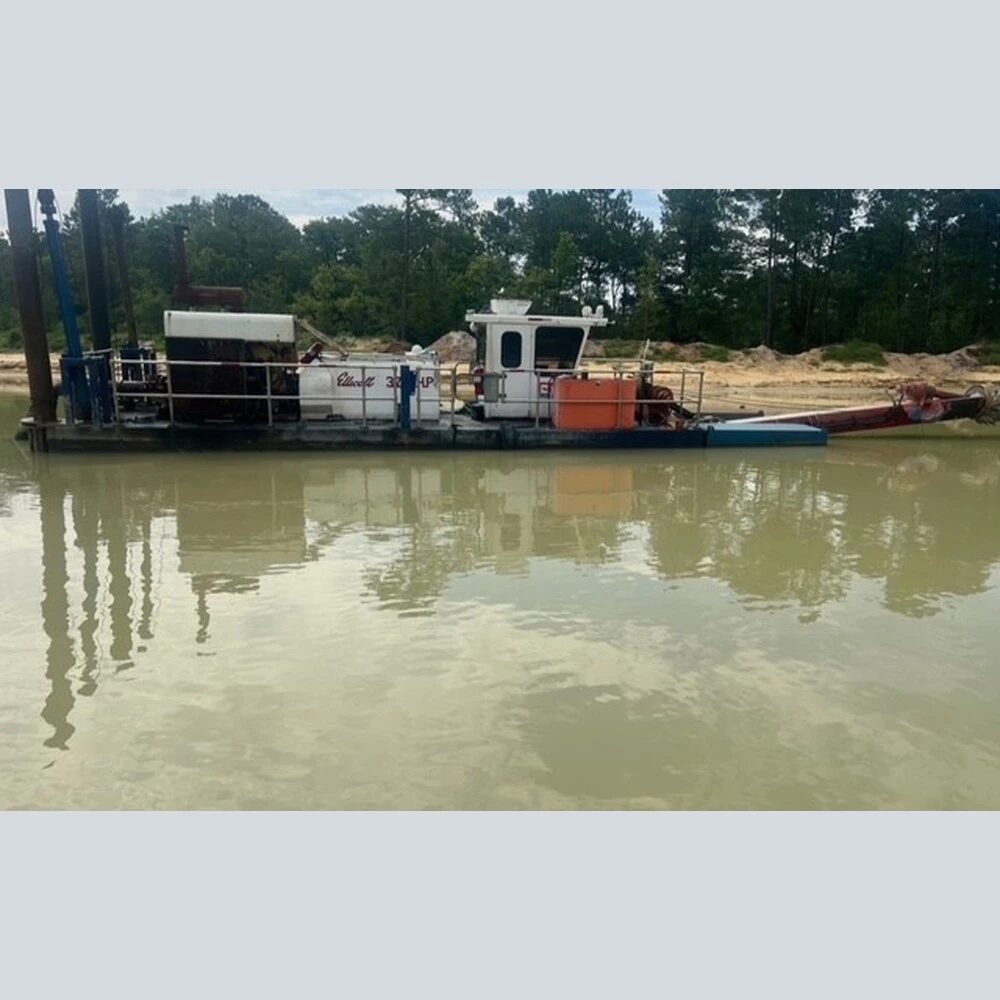

Ellicott 370 Cutter Suction Dredge
Make: Ellicott
Model: 370-20'
Type: Series 370HP Dragon Dredge
Style: Cutter Suction Dredge
Year: 2010
Condition: Used Condition
Maintained by CAT Dealer
Maintained by CAT Dealer
General Model Specifications: See Attached Spec Sheet Below for Additional Information
Suction Pipe x Discharge Pipe: 12in x 10in
Dredging Depth: 20ft
Length Overall: 57ft 5in
Dry Weight: 56,000 Lbs.
Hull Draft: 2ft 8in
Fuel Capacity: 800 Gallons
Main Engine: CAT C9.3
Power Output: 416HP
Emissions Rating: Marine Tier 3
Cutter Head Power: 40HP at Shaft
Cutter Speed: 0-39 RPM
Cutter Diameter: 31.5in Dia.
Cutting Force: 4,000 Lbs.
Suction Pipe x Discharge Pipe: 12in x 10in
Dredging Depth: 20ft
Length Overall: 57ft 5in
Dry Weight: 56,000 Lbs.
Hull Draft: 2ft 8in
Fuel Capacity: 800 Gallons
Main Engine: CAT C9.3
Power Output: 416HP
Emissions Rating: Marine Tier 3
Cutter Head Power: 40HP at Shaft
Cutter Speed: 0-39 RPM
Cutter Diameter: 31.5in Dia.
Cutting Force: 4,000 Lbs.
Location: Eastern USA
