21,000 Gallon Dragon Portable Frac Tanks

21,000 Gallon Dragon Portable Frac Tanks
Quantity: (5) Units Available
Capacity: 500 Barrel / 21,000 Gallon / 80,000 Liters
Make: Dragon Tanks
Type: Frac Tanks
Manufacture Date: 2010-2011
Condition: Used Condition
Open/Closed Top: Closed

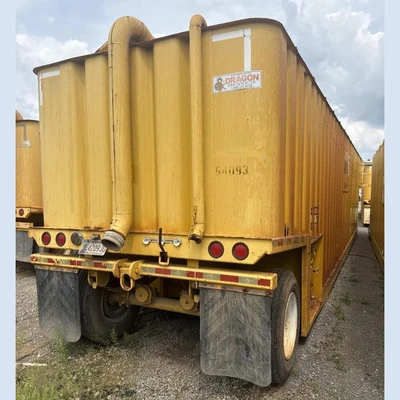

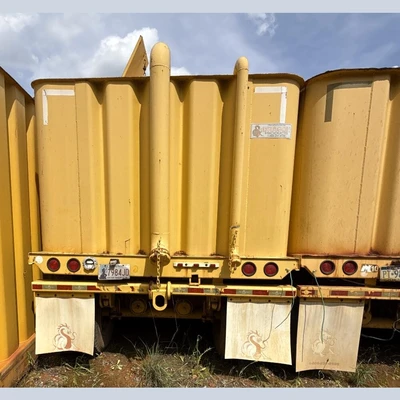

Portable - Trailer Style: Single Axle

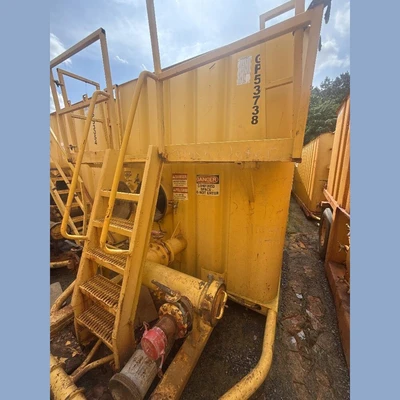

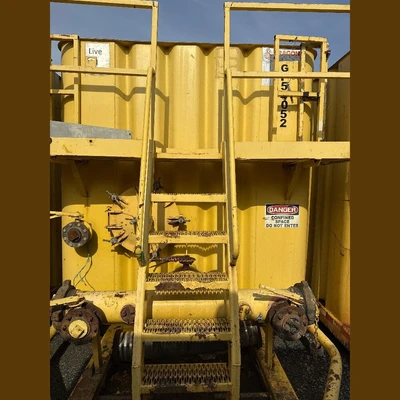

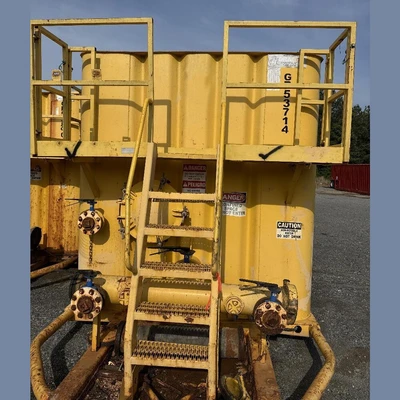

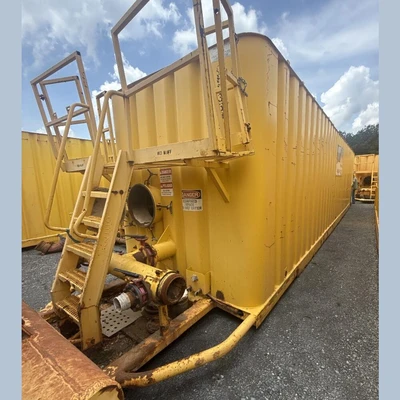

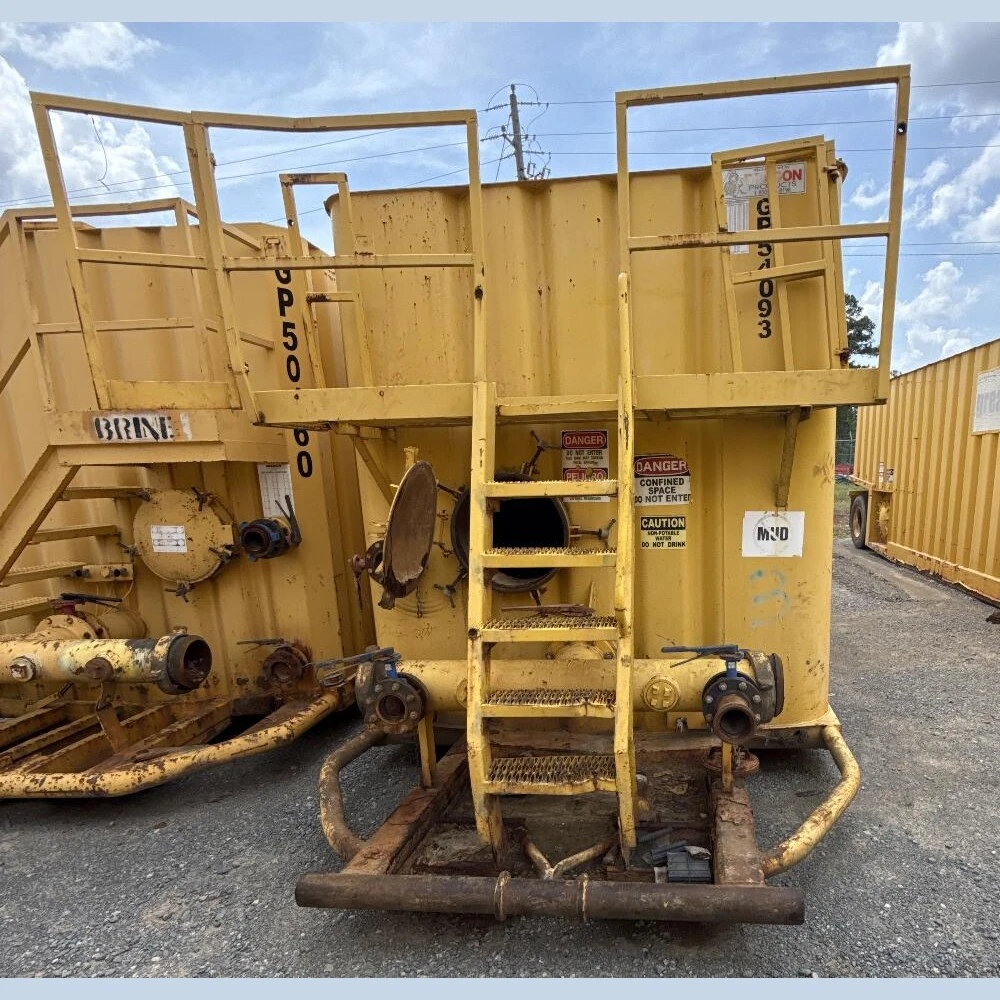

Stairs and Catwalk at Front of Tank
General Model Specs:
New Connecting Catwalk System
1/4 Inch Heavy-Duty Corrugated Steel Construction
Steel Shot Blasted
Most Durable Paint and Lining in the Industry
20mil DFT Chemical Resistant Liners
Walls: 1/4 PL Solid Welded, Corrugated Steel, Corrugations 15in on Center

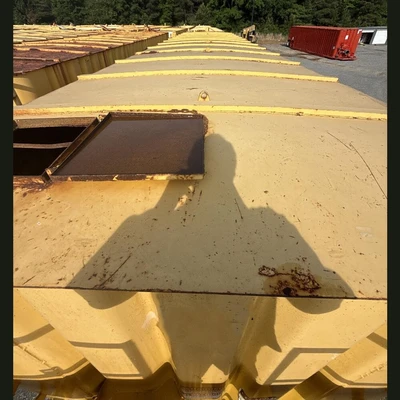

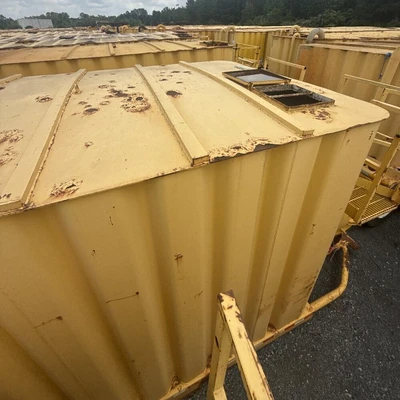

Roof: Flat Top, 1/4 PL Solid Welded with Channel Supports Outside

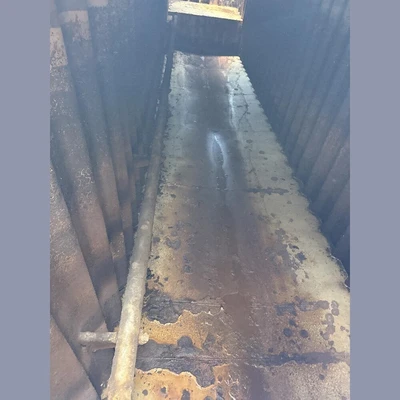

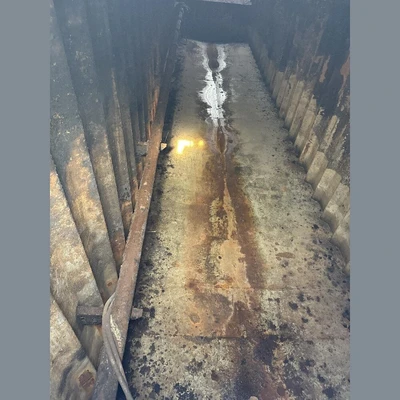

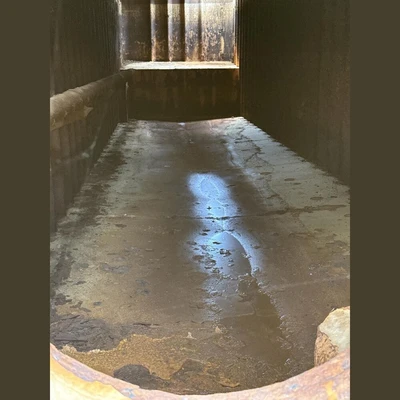

Floor: Structure Undercoated, 1/4 PL, V-Bottom with Integral Formed Side Channels
Floor Support: 10in Channel Longitudinal Runners with Formed 1/4 PL Cross-Members

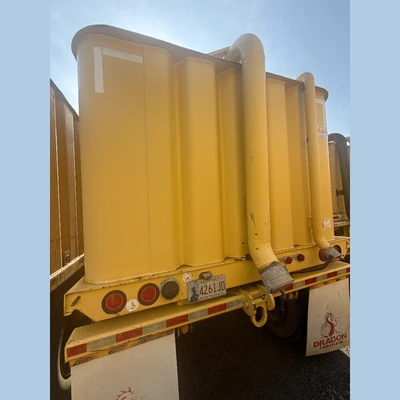

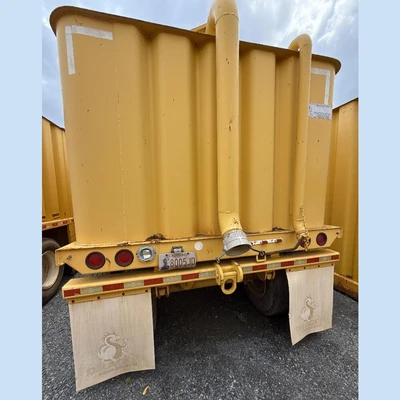

Front/Rear: 1/4 PL Solid Welded, Corrugated Steel, 10in Radius at Vertical Outside Corners
Drain/Fill:
4in Floor Drain at Rear End
3in Fill Pipe to Roof at Rear
4in Suction Line Connection at Front
8in Flanged Front Manifold Connection with Turn Down to Floor
8in Exterior Manifold with (4) 4in Couplings and Plugs, Hammer Union Sub, Nut, and Caps on End
Gel Line: 4in Mid High Connection on Curb Side, 4in Internal Pipe with 0.75in Holes Located on 12in Centers Towards Floor Center, Capped on Rear End (End Near Side Manway)

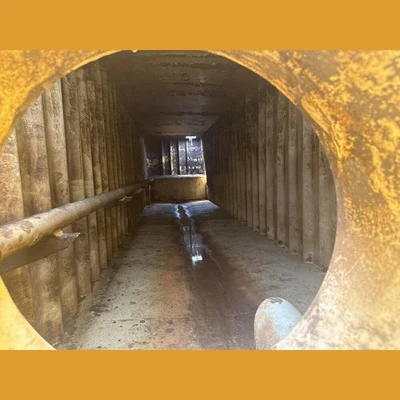

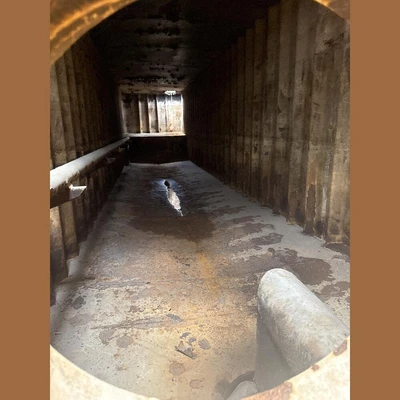

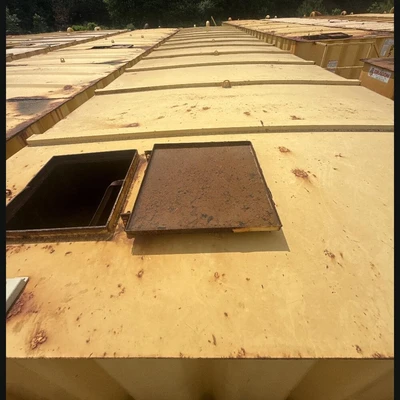

Manway: 21in Manway on Front and Side, (2) Non-Sealed Hatches on Roof
Pick Up: Standard 5th-Wheel King Pin
Welds: All Welds Continuous Except Substructure Crossmembers
New Connecting Catwalk System
1/4 Inch Heavy-Duty Corrugated Steel Construction
Steel Shot Blasted
Most Durable Paint and Lining in the Industry
20mil DFT Chemical Resistant Liners
Walls: 1/4 PL Solid Welded, Corrugated Steel, Corrugations 15in on Center
Roof: Flat Top, 1/4 PL Solid Welded with Channel Supports Outside
Floor: Structure Undercoated, 1/4 PL, V-Bottom with Integral Formed Side Channels
Floor Support: 10in Channel Longitudinal Runners with Formed 1/4 PL Cross-Members
Front/Rear: 1/4 PL Solid Welded, Corrugated Steel, 10in Radius at Vertical Outside Corners
Drain/Fill:
4in Floor Drain at Rear End
3in Fill Pipe to Roof at Rear
4in Suction Line Connection at Front
8in Flanged Front Manifold Connection with Turn Down to Floor
8in Exterior Manifold with (4) 4in Couplings and Plugs, Hammer Union Sub, Nut, and Caps on End
4in Floor Drain at Rear End
3in Fill Pipe to Roof at Rear
4in Suction Line Connection at Front
8in Flanged Front Manifold Connection with Turn Down to Floor
8in Exterior Manifold with (4) 4in Couplings and Plugs, Hammer Union Sub, Nut, and Caps on End
Gel Line: 4in Mid High Connection on Curb Side, 4in Internal Pipe with 0.75in Holes Located on 12in Centers Towards Floor Center, Capped on Rear End (End Near Side Manway)
Manway: 21in Manway on Front and Side, (2) Non-Sealed Hatches on Roof
Pick Up: Standard 5th-Wheel King Pin
Welds: All Welds Continuous Except Substructure Crossmembers
Location: South Central USA
