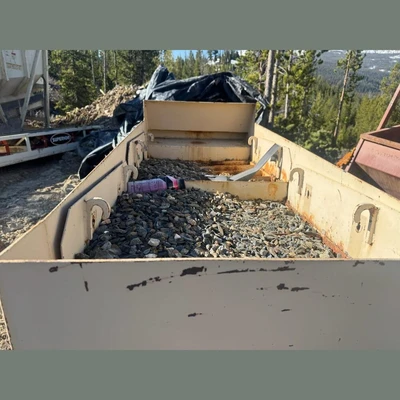

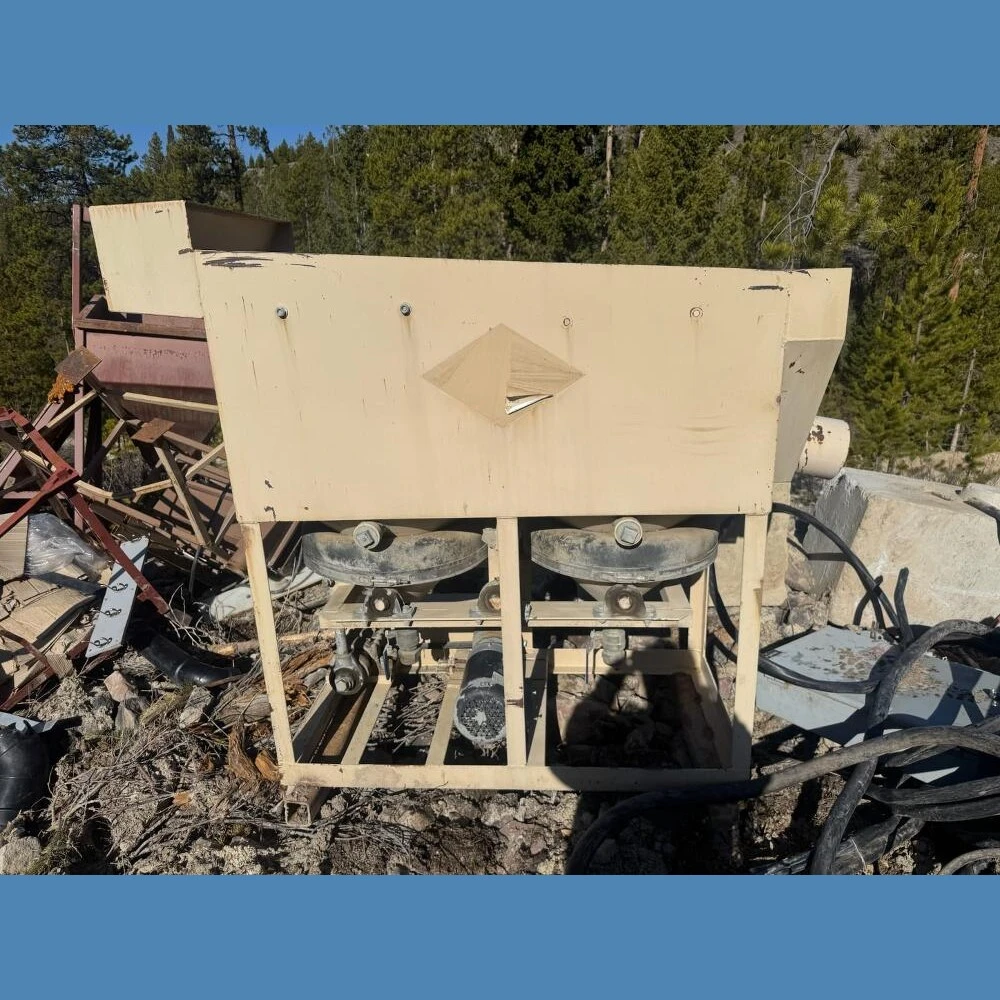

26in IRD Pan American Duplex Mineral Jig

IRD 26in x 26in Duplex Mineral Jig
Make: I.R.D Inc.
Size: 26in x 26in
Type: Duplex Mineral Jig
Style: Pan American Jig
Condition: Used Condition
Max Capacity:
Rougher: 10yd³ Per Hour
Cleaner: 3yd³ Per Hour
Rougher: 10yd³ Per Hour
Cleaner: 3yd³ Per Hour
Average Hutch Water Required:
Rougher: 30 Gallons Per Minute Per Cell
Cleaner: 20-25 Gallons Per Minute Per Cell
Rougher: 30 Gallons Per Minute Per Cell
Cleaner: 20-25 Gallons Per Minute Per Cell
Average Length of Stroke:
Rougher: 1in
Cleaner: 0.5in
Rougher: 1in
Cleaner: 0.5in
Average RPM Eccentric Shaft:
Rougher: 140 RPM
Cleaner: 170 RPM
Rougher: 140 RPM
Cleaner: 170 RPM
Inlets: 2in Diameter
Outlets: 4in Diameter
Approx. Power in Operation: 1HP
Overall Dimensions:
Length: 86in
Width: 34in
Height: 67in
Net Weight: 2,300 Lbs.
Length: 86in
Width: 34in
Height: 67in
Net Weight: 2,300 Lbs.
Location: Western USA
