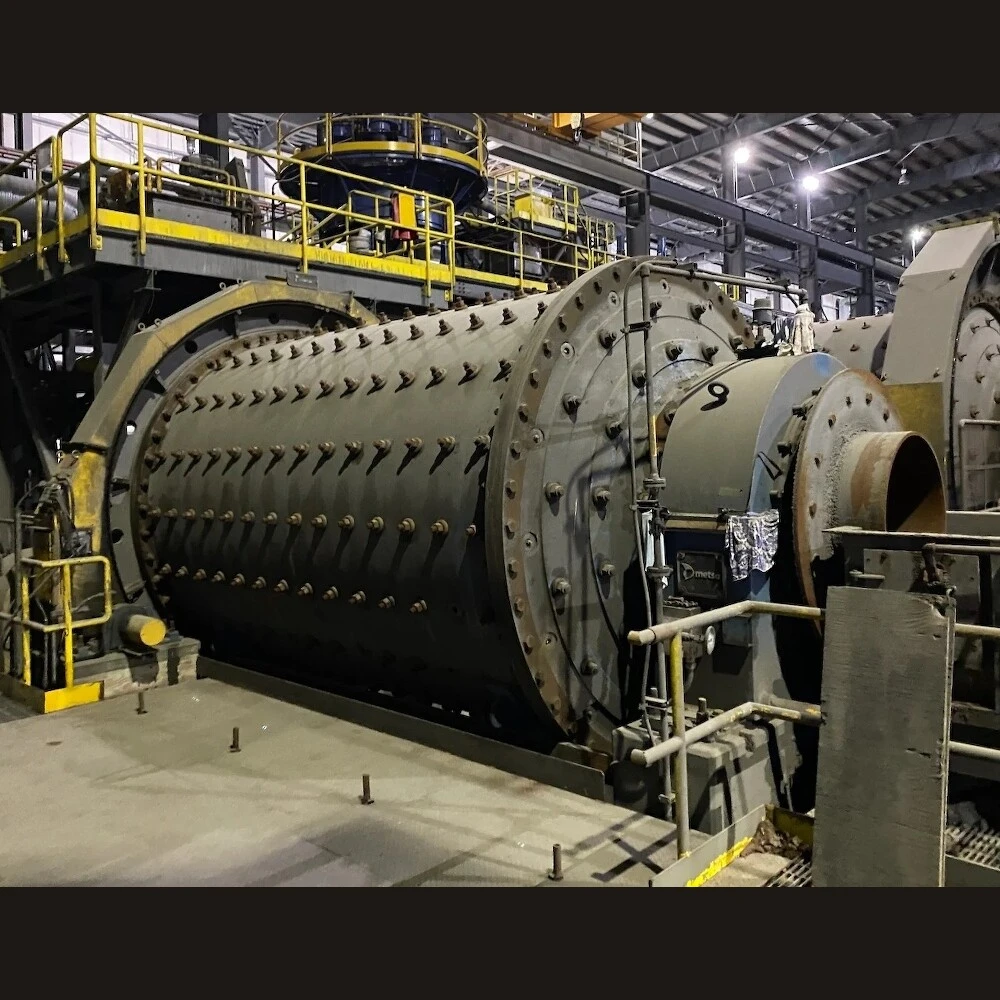

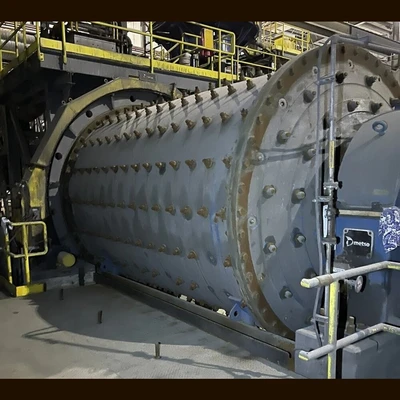

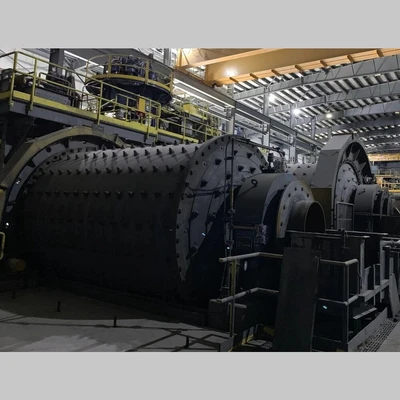

Metso 10ft Dia. x 14ft Long Rod Mill

Metso 10ft Dia. x 14ft Long Rod Mill
Make: Metso
Type: Rod Mill
Year: 2008
Condition: Used Condition
Mill Diameter: 10in Dia.
Mill Length: 14ft Long
Mill Rotation Speed: 16.9RPM
% Critical Speed: 68.4%
% Critical Speed: 68.4%
Feed: Lined Spout Feeder with Seal Assembly
Discharge: Discharge Trunnion Liner
Liners: Metal Liner Assembly
Total Rod Charge Weight: 110,000lbs (49,895kg)
Rod Length: 13ft Long
Rod Diameter:
3in Dia. - 55% Initial Charge, 60,000lbs (27,215kg)
2in Dia. - 45% Initial Charge, 50,000lbs (22,680kg)
3in Dia. - 55% Initial Charge, 60,000lbs (27,215kg)
2in Dia. - 45% Initial Charge, 50,000lbs (22,680kg)

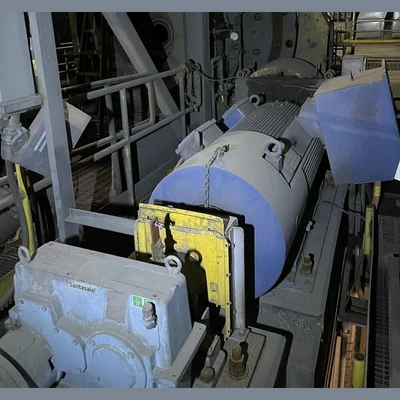

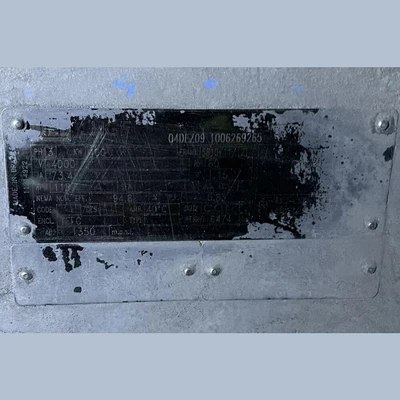

Drive: WEG Electric Motor
Power Output: 400kW (536HP)
Rotation Speed: 1187RPM
Voltage: 4000 Volts
Current: 73.4 Amps
Frequency: 60Hz
Phase: 3-Phase
Power Output: 400kW (536HP)
Rotation Speed: 1187RPM
Voltage: 4000 Volts
Current: 73.4 Amps
Frequency: 60Hz
Phase: 3-Phase
Clutch: EATON 28VC1200 SW
Speed Reducer: MOVENTAS D4PSF70
Ratio: 4.9412:1
Ratio: 4.9412:1

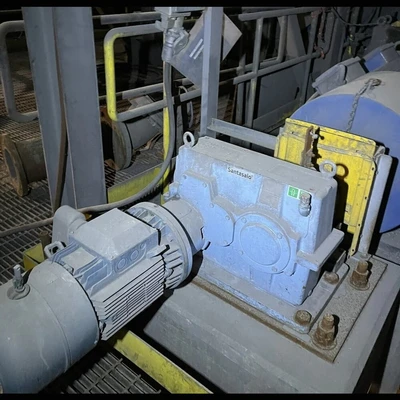

Inching Drive: MOVENTAS 4C200N Inching Drive with Brake
Gear Sets:
Teeth: 14.2:1 Ratio
Gear: (270)
Pinion: (19)
DP: 1.75
Centers: 83.533in. (2121.7mm)
Teeth: 14.2:1 Ratio
Gear: (270)
Pinion: (19)
Gear: (270)
Pinion: (19)
DP: 1.75
Centers: 83.533in. (2121.7mm)
Lube System: 650AL-Duplex Lubrication System
Trunnion Bearing Size: 48in x 16in
Type: Hydrodynamic Sleeve Bearings
Trunnion Bearing Size: 48in x 16in
Type: Hydrodynamic Sleeve Bearings
Location: Western Canada
