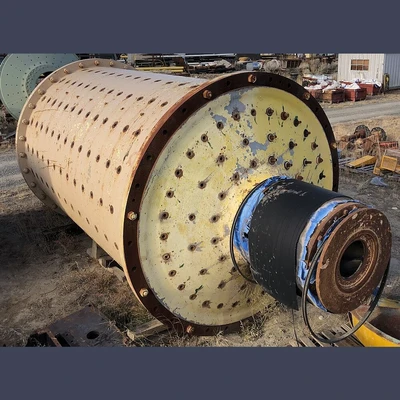

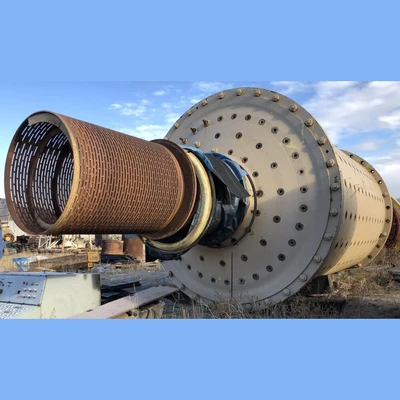

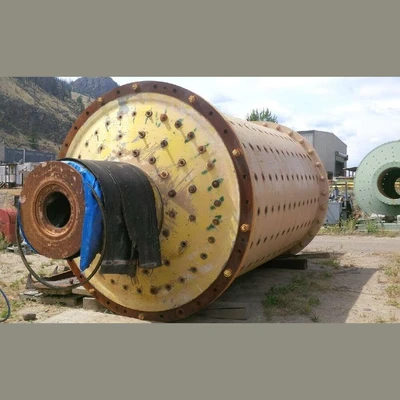

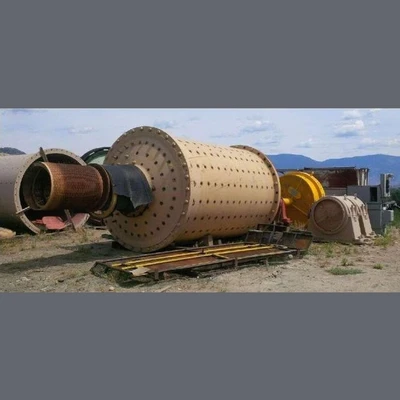

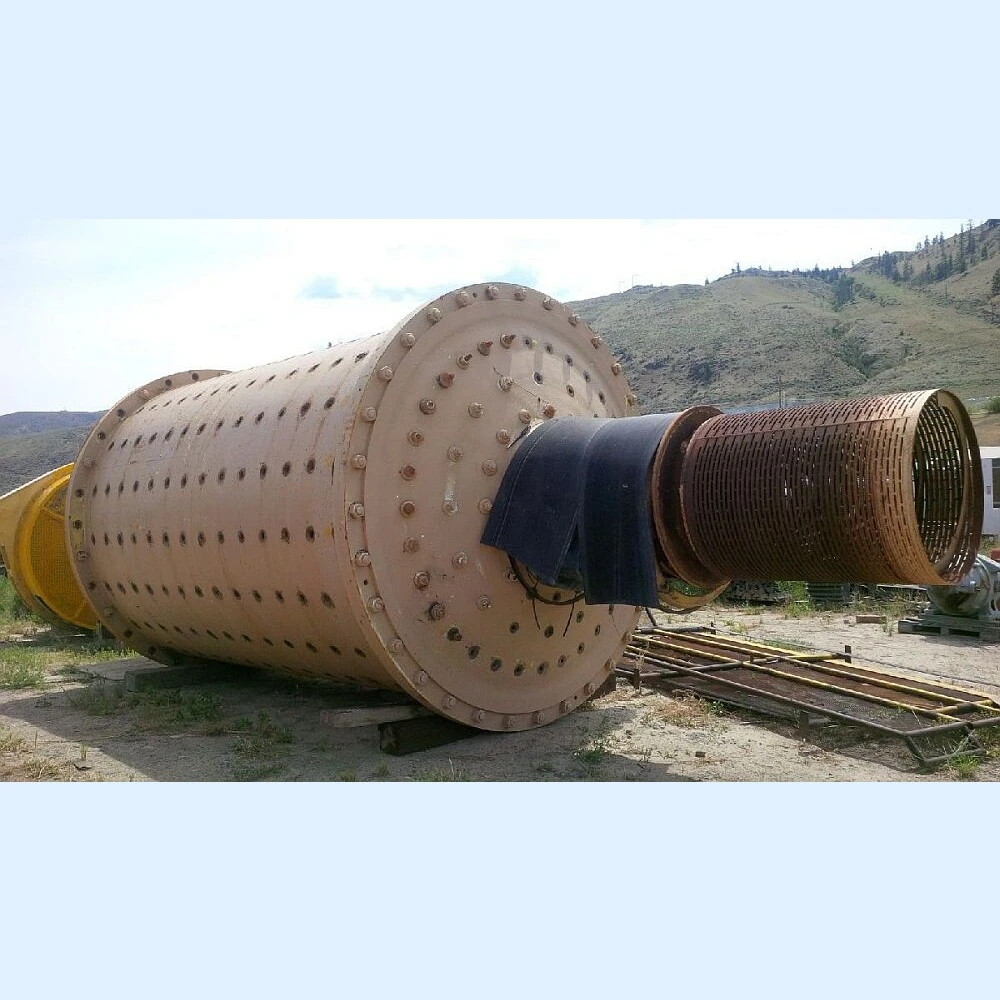

Used Dominion Rod Mill. 9.5 ft. x 14 ft. Long. 500 HP Motor.

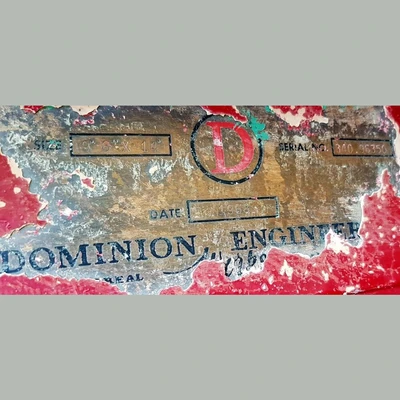

Dominion Rod-Ball mill.
9.5 ft. Diameter x 14 ft. Long.

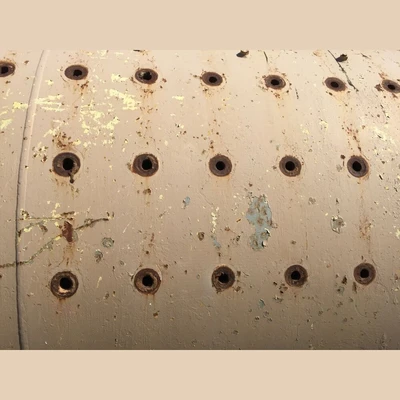

1 ¼” thick shell.

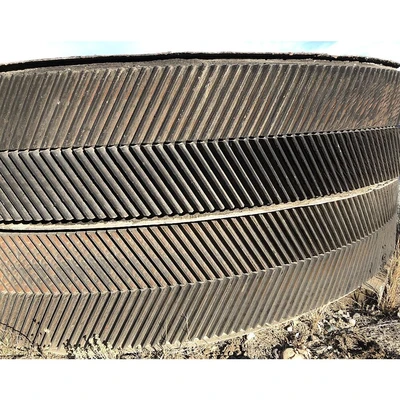

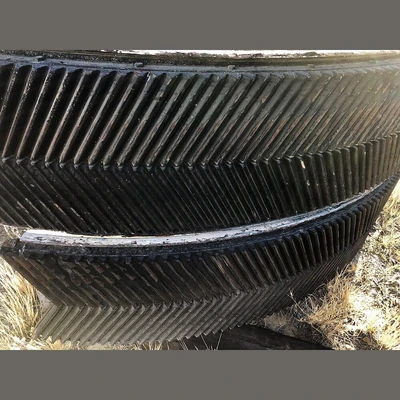

Double helical bull and Pinion gear.
Bull gear: 291 teeth.
Pinion gear: 21 teeth.
Bull gear: 291 teeth.
Pinion gear: 21 teeth.

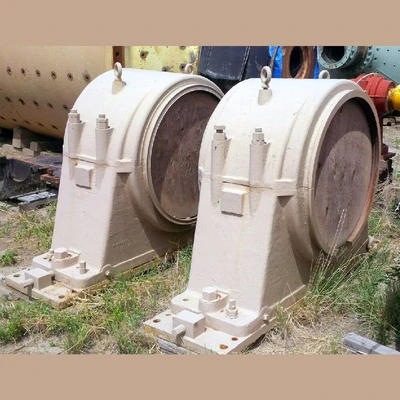

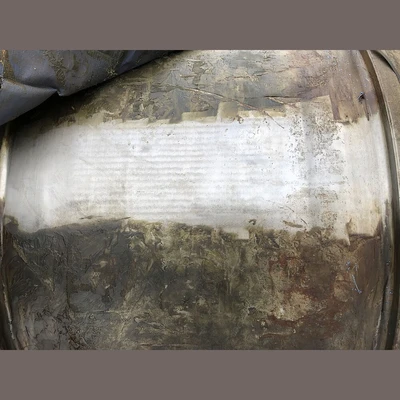

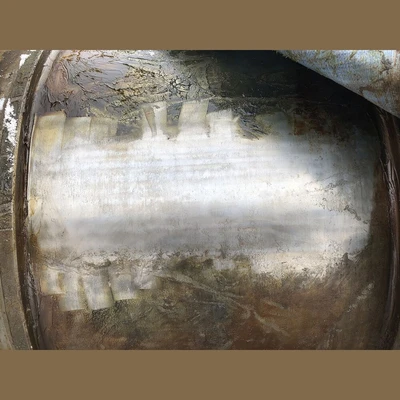

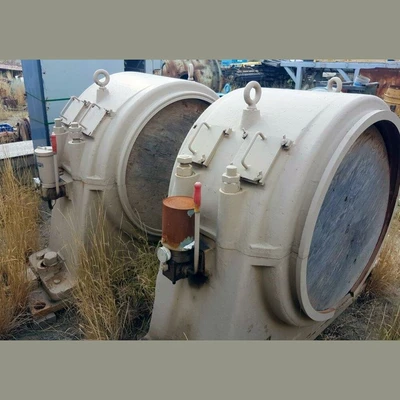

40” diameter x 24” wide self aligning babbit bearings.
Farval manual bearing start-up lubricators.
Full gear guarding with Farfal pneumatic open gear spray lube system.

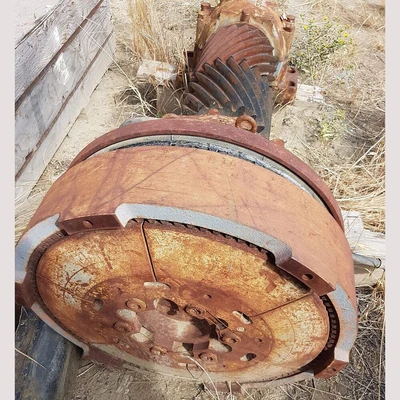

24” dia. Witchita pneumatic clutch.

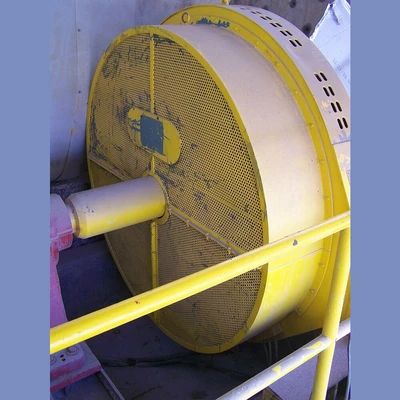

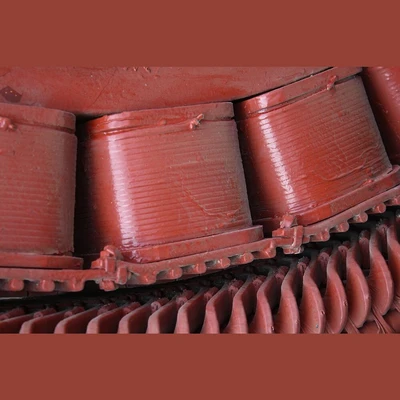

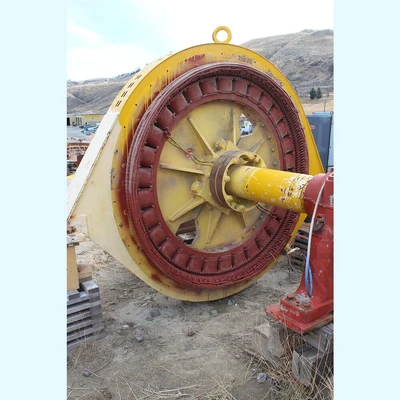

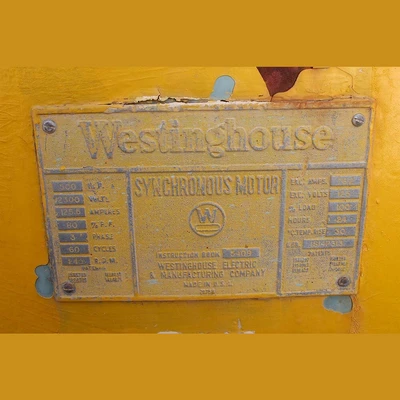

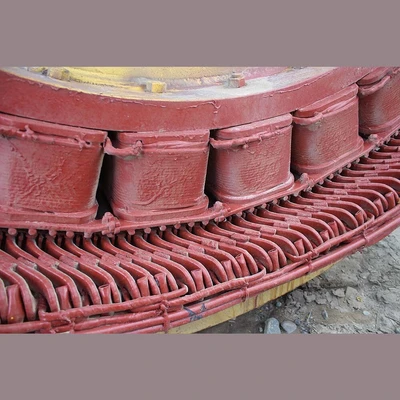

Motor:
500 HP Westinghouse
Synchronous
2300 volt
1255 amps
3 phase
60 HZ
500 HP Westinghouse
Synchronous
2300 volt
1255 amps
3 phase
60 HZ

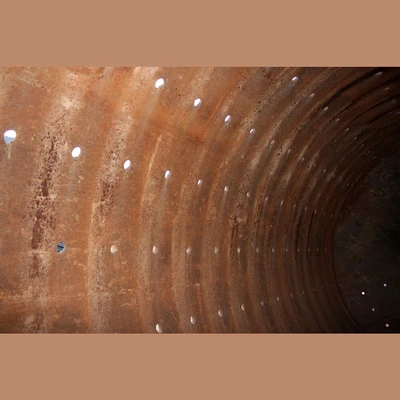

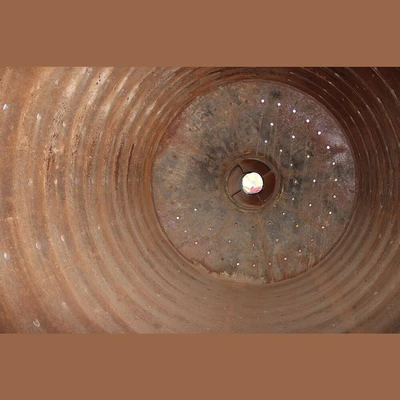

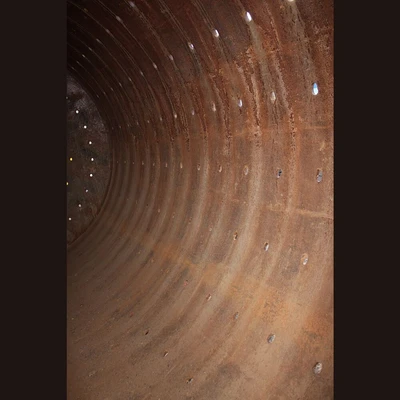

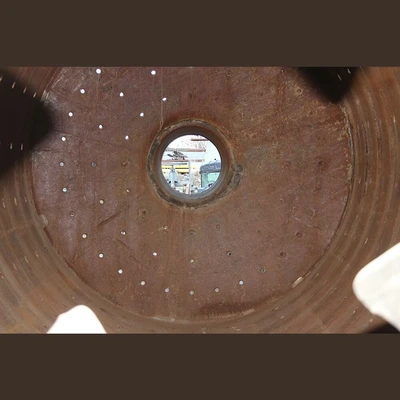

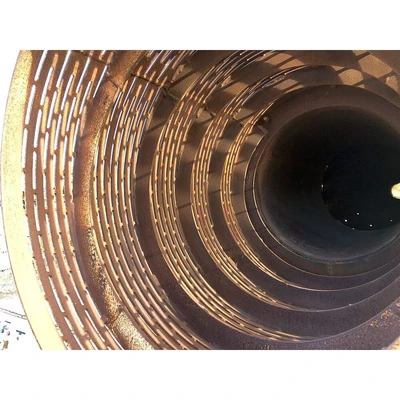

 Presently without liners.
Can be quoted complete with new liners and supplied reconditioned, ready to go into service.

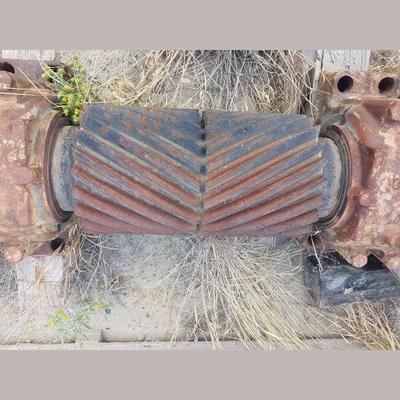

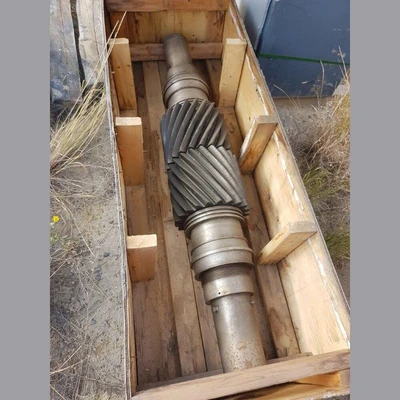

Spare used pinion gear available.
Can also be supplied with rod loader if required.

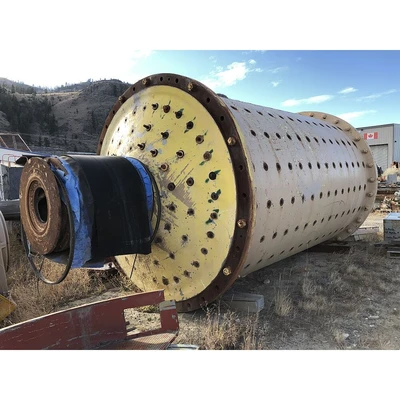

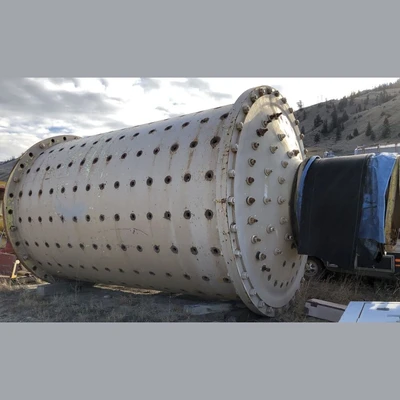

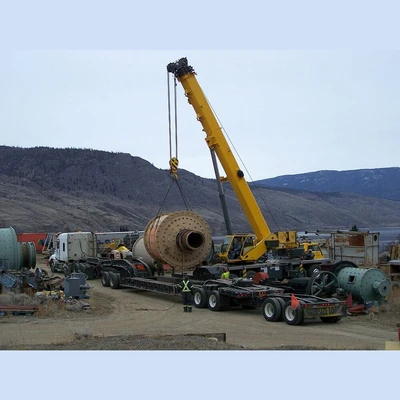

Mill has been removed from foundation and is presently in Savona BC.
Can be inspected at your convenience
