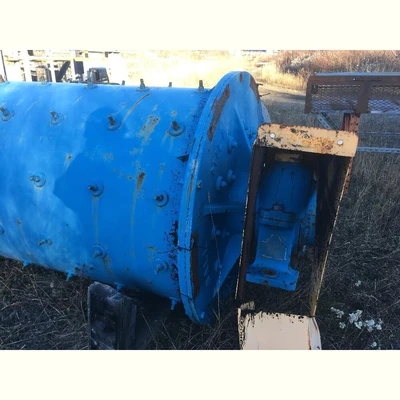

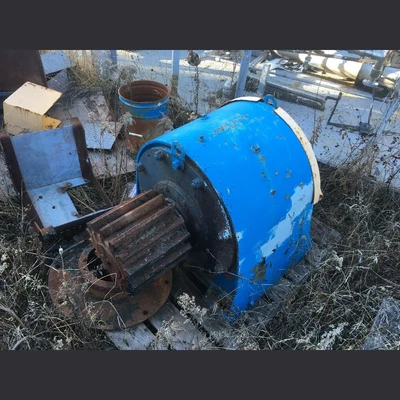

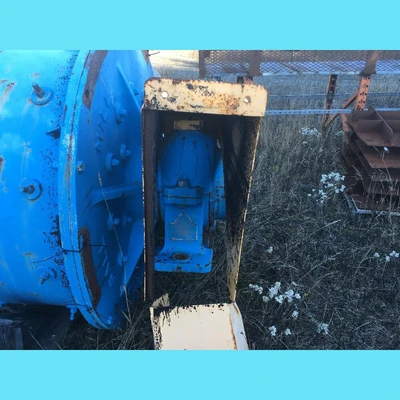

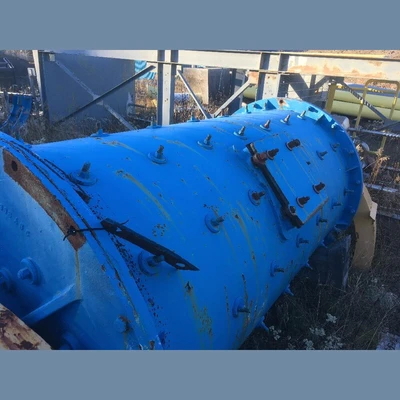

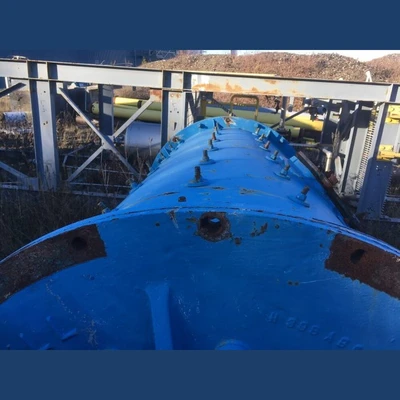

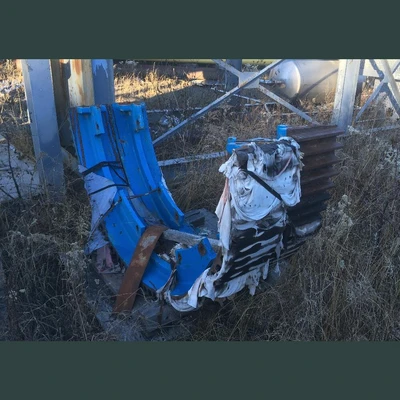

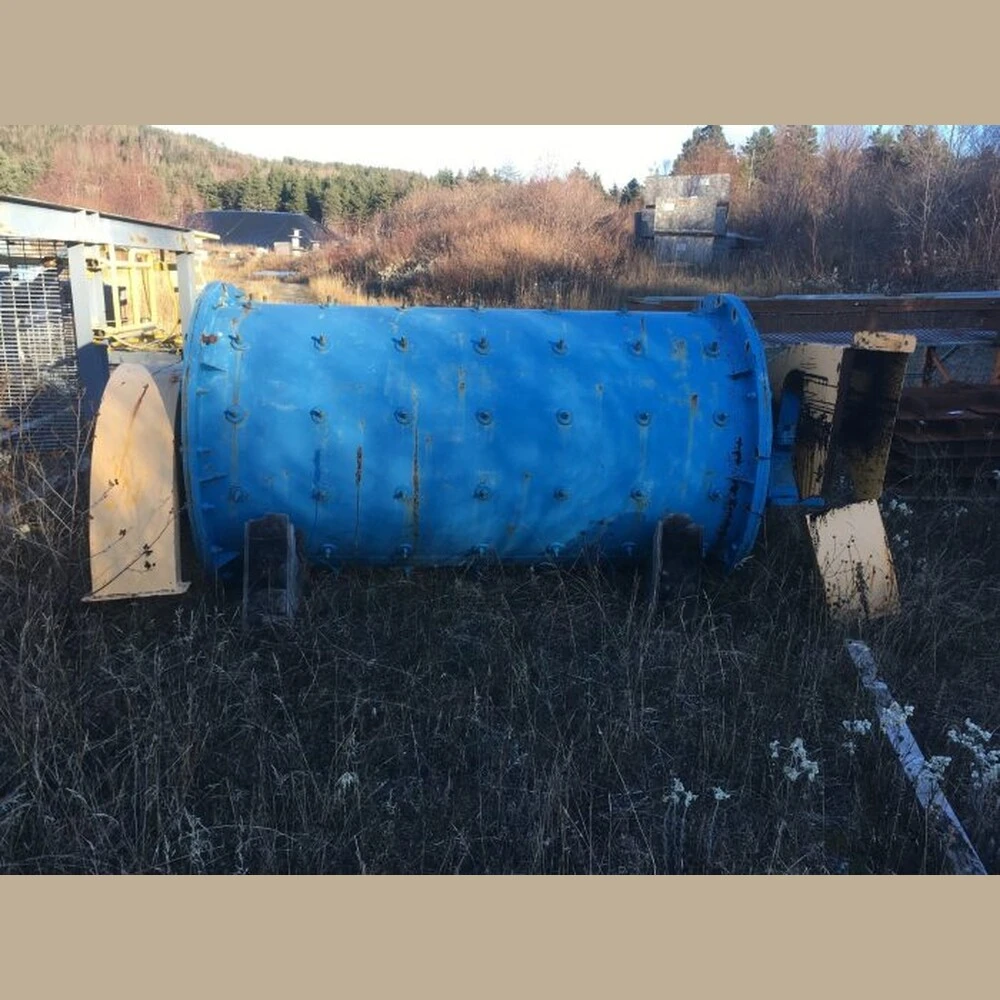

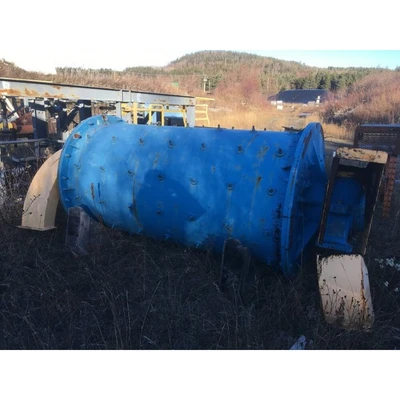

Denver 4' x 8' Ball Mill

Denver 4' x 8' Ball Mill
Make: Denver
Size: 4' x 8'
Feed Type: Center Feed
Discharge Type: Trunnion Overflow Discharge
Liner Material: Rubber Lined
Gear Style: Pinion and Ring Gear, Straight Cut Bull Gear
Drive Configuration: Electric Motor(Not Included) Close-Coupled to a Gear Reduction Unit
Motor: Motor Not Included
HP: 50 HP Recommended
HP: 50 HP Recommended
Approx. Dimensions:
Length: 13' 1" Approx.
Width: 7' 5¼" Approx.
Height: 6' 11" Approx.
Weight: 28,100 Lbs Approx.
Length: 13' 1" Approx.
Width: 7' 5¼" Approx.
Height: 6' 11" Approx.
Weight: 28,100 Lbs Approx.
Condition & Additional Notes:
Mill Capacity: 74 TPD
Mill RPM: 29
Recommended Ball Charge: 13,000 Lbs
Condition: Used
Mill Capacity: 74 TPD
Mill RPM: 29
Recommended Ball Charge: 13,000 Lbs
Condition: Used
Location: Canada
Description: 4' x 8' Denver Ball Mill. Steel Ball Mills are one of the most precise, reliable and cost effective methods of fine grinding solids in either a wet or dry state. The Steel cylinder is rotated at a predetermined speed that sets the balls into a tumbling and cascading motion which impact the solids in a very predictable and controllable fashion.
