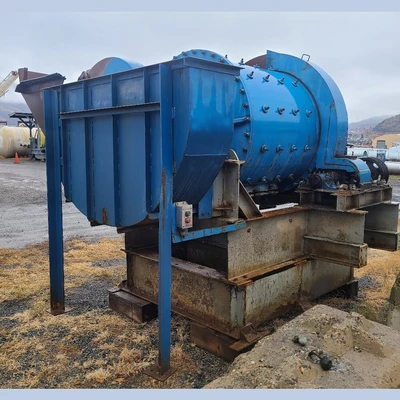

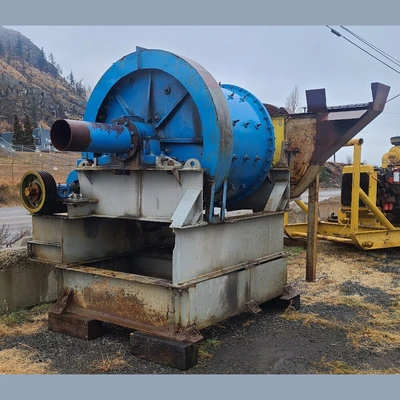

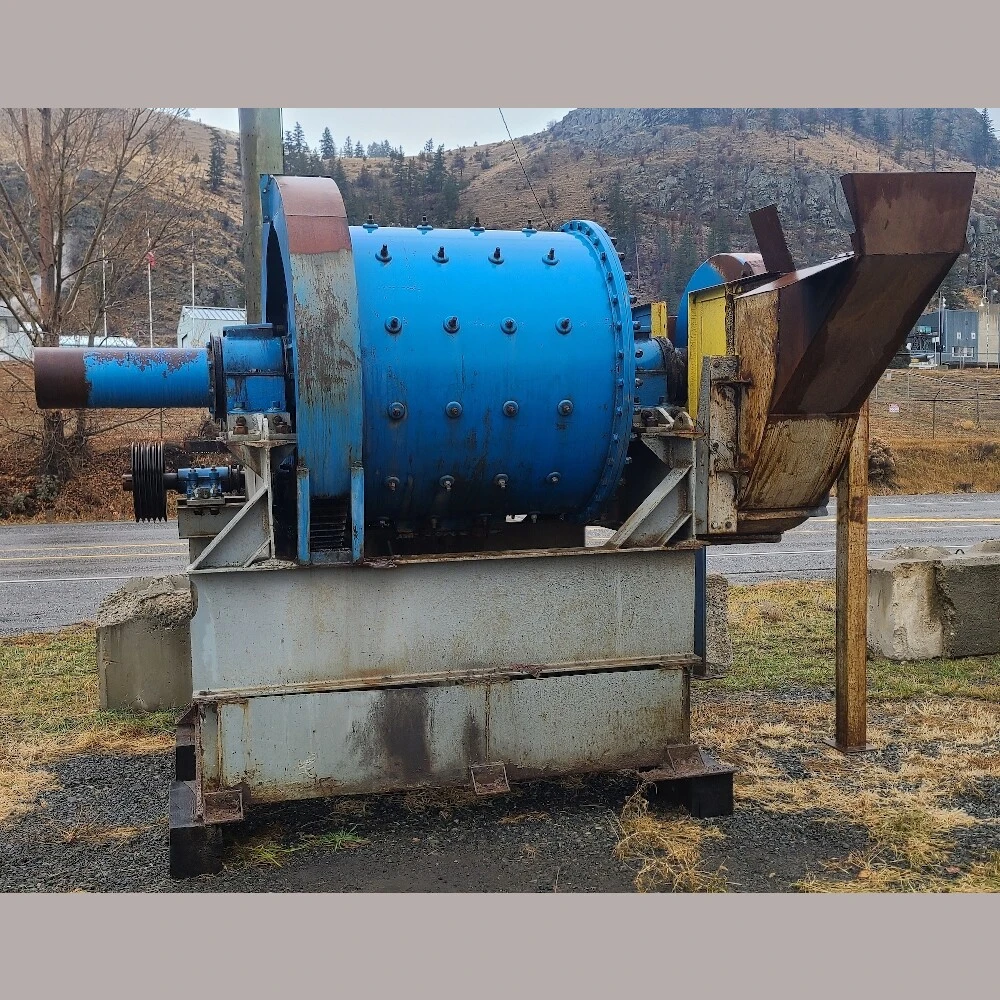

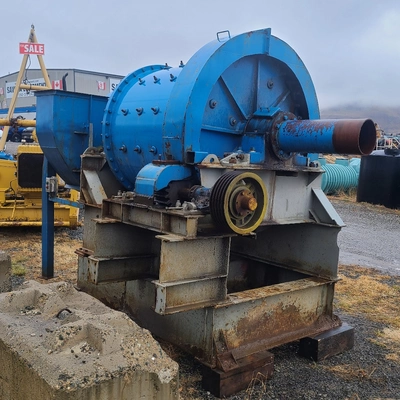

54in Dia. x 52in Long Ball Mill

54in Dia. x 52in Long Ball Mill
Type: Ball Mill
Condition: Used Condition
Size: 54in Dia. x 52in Long
Feed Type: Scoop
Discharge Type: Overflow
With Trommel Screen Discharge
With Trommel Screen Discharge
Opening Hatch: 22in x 18.5in

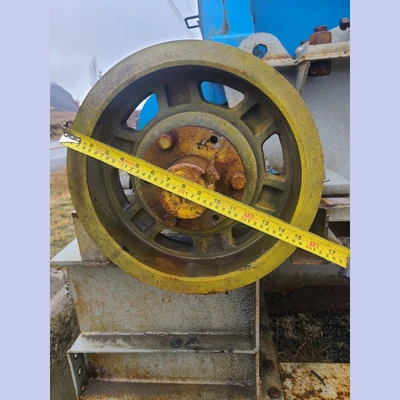

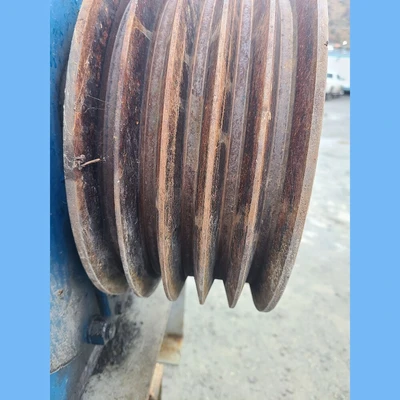

Pulley: 15.5in Dia., 5-Groove
Shaft: 3-3/8in
Shaft: 3-3/8in

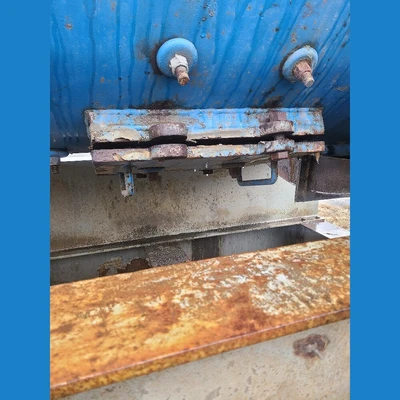

Mounted on Frame:
Beams: 6.5in Wide x 20in High x 0.5in Thick
Beams: 6.5in Wide x 20in High x 0.5in Thick
Overall Ball Mill Dimensions:
Length: 12ft
Width: 128.5in
Height: 96in
Length: 12ft
Width: 128.5in
Height: 96in

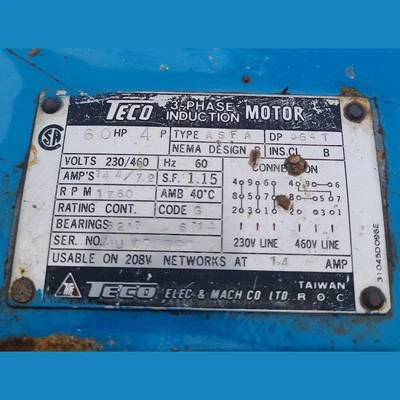

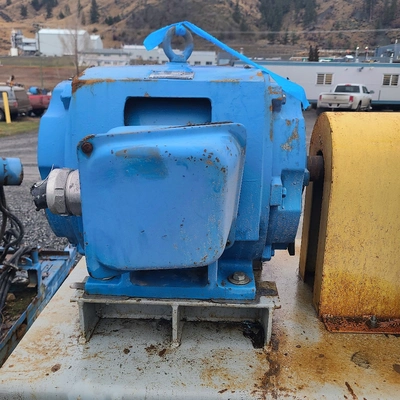

Drive: Teco Induction Motor
Power Output: 60HP
Rotation Speed: 1760RPM
Voltage: 230/460 Volts
Current: 144/72 Amps
Frequency: 60Hz
Phase: 3-Phase
Power Output: 60HP
Rotation Speed: 1760RPM
Voltage: 230/460 Volts
Current: 144/72 Amps
Frequency: 60Hz
Phase: 3-Phase

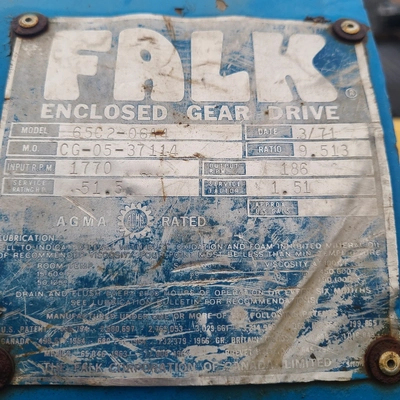

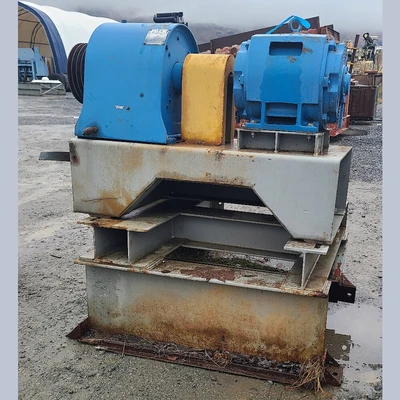

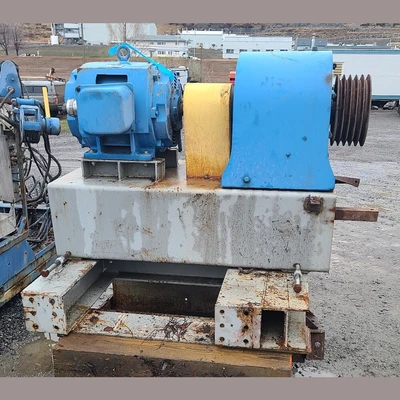

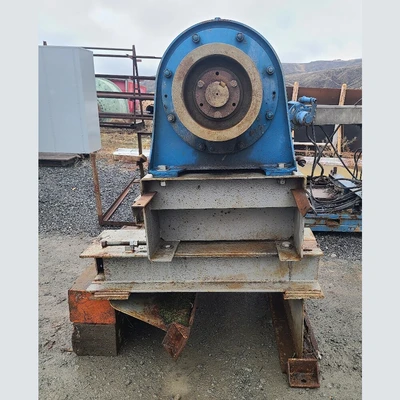

Bolt-On Speed Reducer:
Model: Falk 65C2-06A4
Ratio: 9.513:1
Model: Falk 65C2-06A4
Ratio: 9.513:1

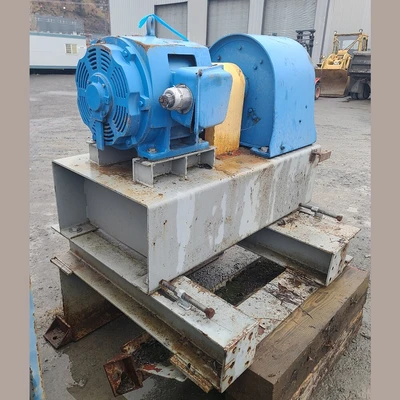

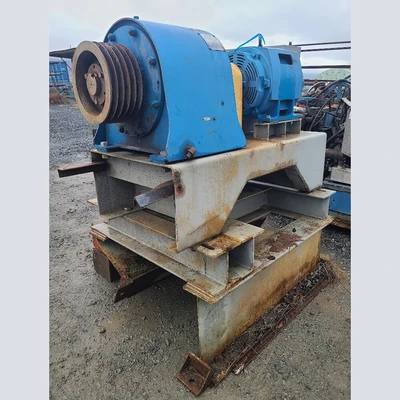

Mounted on Separate Frame
Dimensions: 63in Long x 54in Wide x 68in High
Location: Savona, British Columbia, Canada
