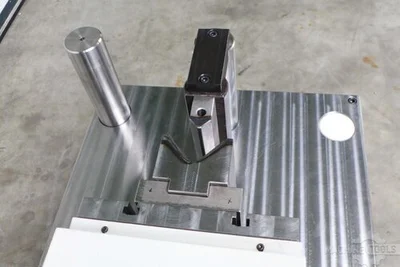

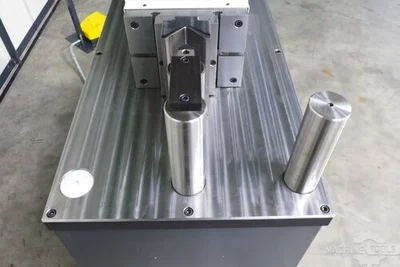

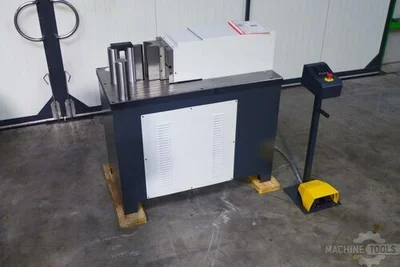

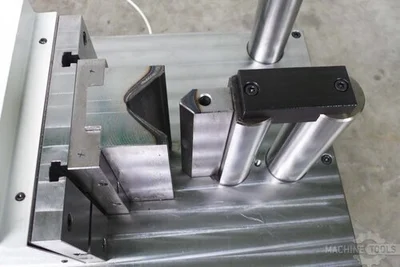

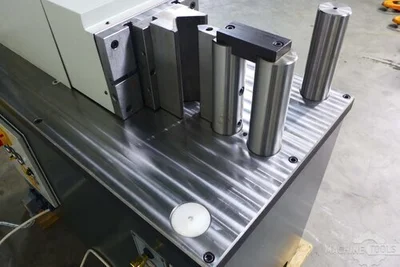

USED 2022 ZOP BEND P 30

Adjustable stroke with digital read out positioning display
Variabel instelbare druk
Snel wissel gereedschap systeem

Table Length: 1250 mm
Table Width: 660 mm
Max. pressing force: 30 Ton
Beam stroke: 235 mm
max. work piece height: 250 mm
Stroke adjustable: 0 - 235 mm
Working speed: 10000 mm/min.
Return speed: 20000 mm/min.
Power: 3 kW
Capacity flatt: 200 x 24 mm x mm
Capacity Tube: 60 x 4 Ø x mm
Capacity bar: 40 x 40 mm
Length: 1250 mm
Width: 700 mm
Height: 1200 mm
Weight: 1050 kg
